Pinpoint Test S: The Check Transmission Indicator Is Inoperative

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

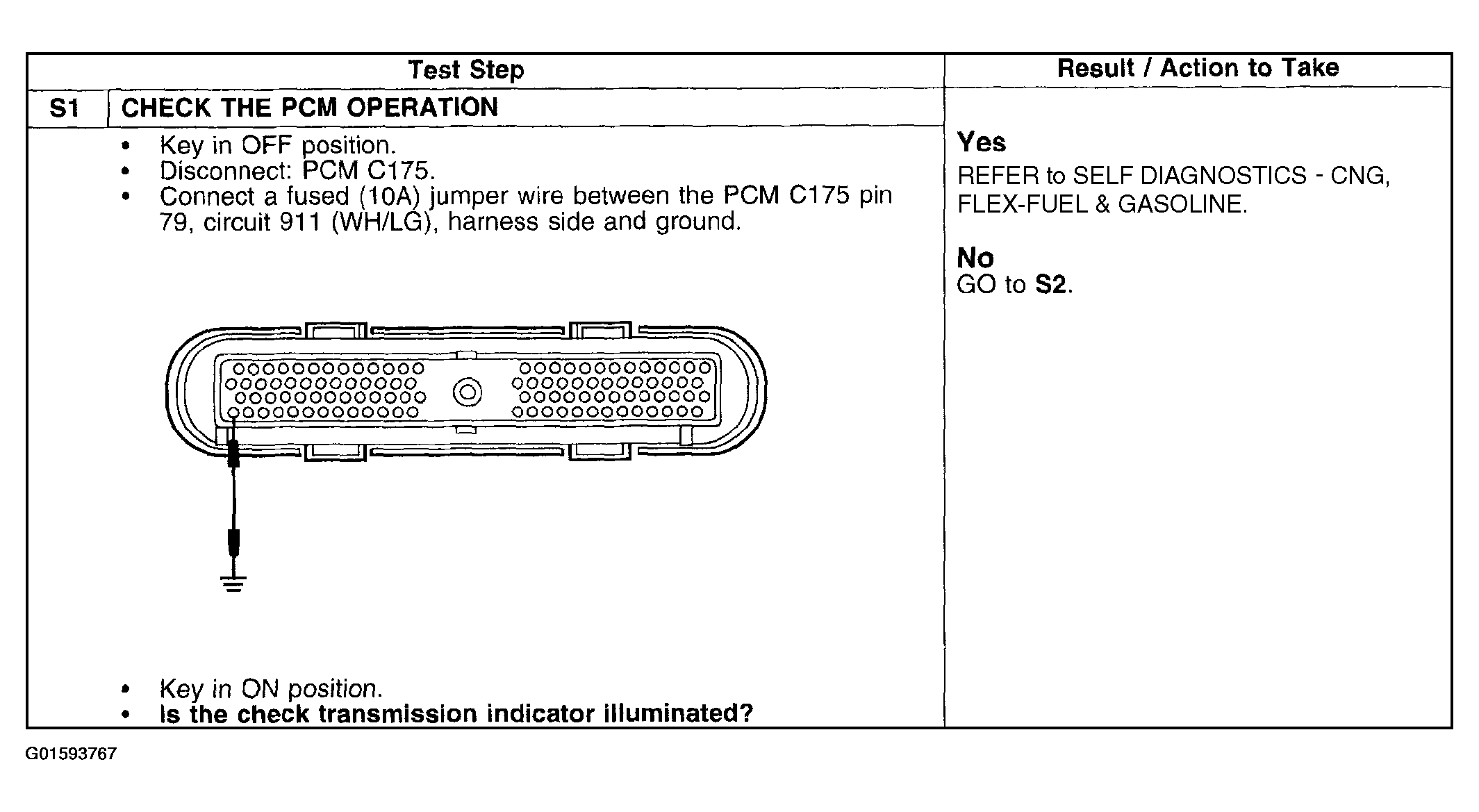

Fig 1: Pinpoint Test S: Check Transmission Indicator Inoperative (Step S1)

Courtesy of FORD MOTOR CO.

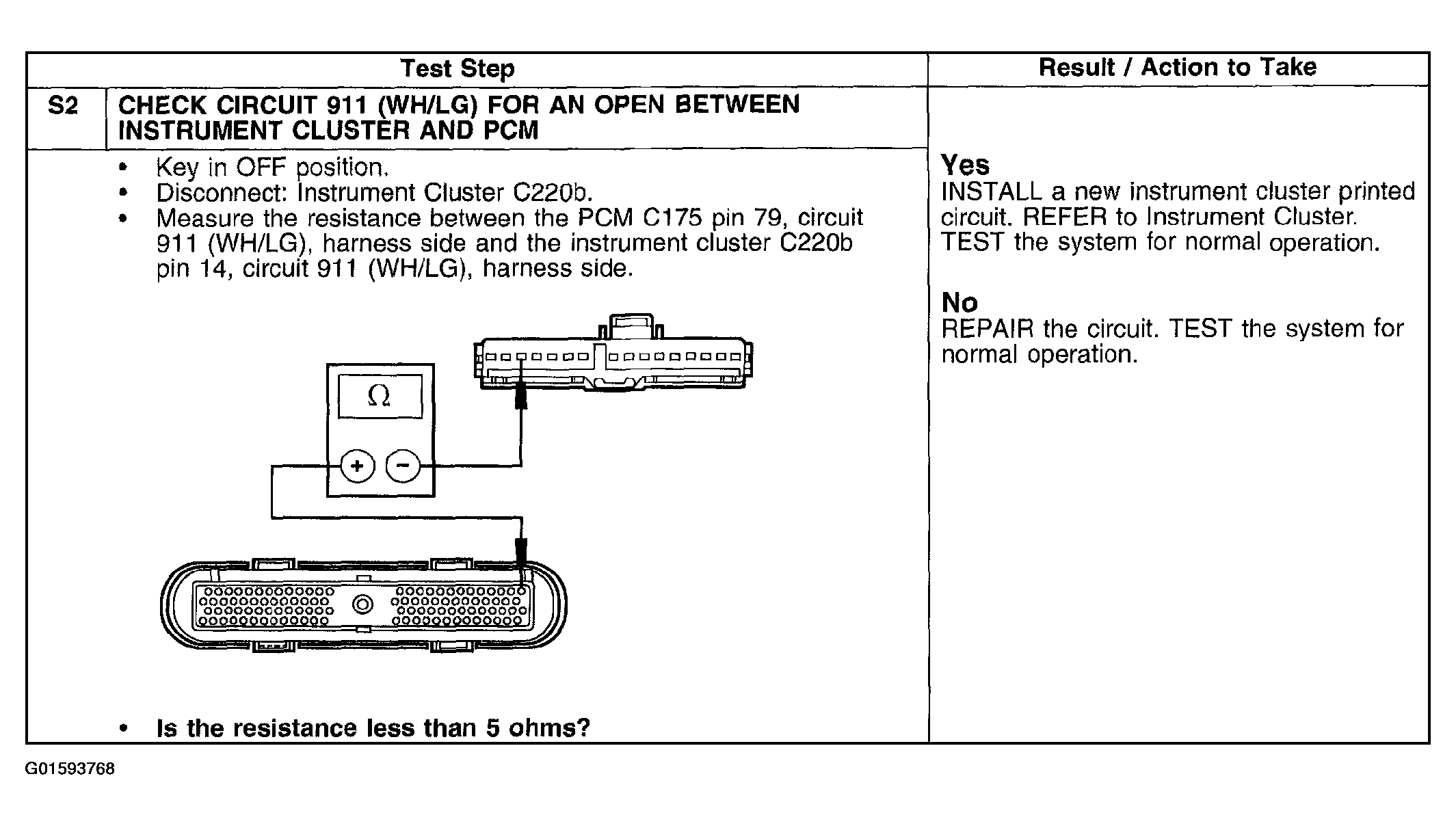

Fig 2: Pinpoint Test S: Check Transmission Indicator Inoperative (Step S2)

Courtesy of FORD MOTOR CO.
