Pinpoint Test R: The Traction Control Indicator Is Inoperative - If Equipped

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

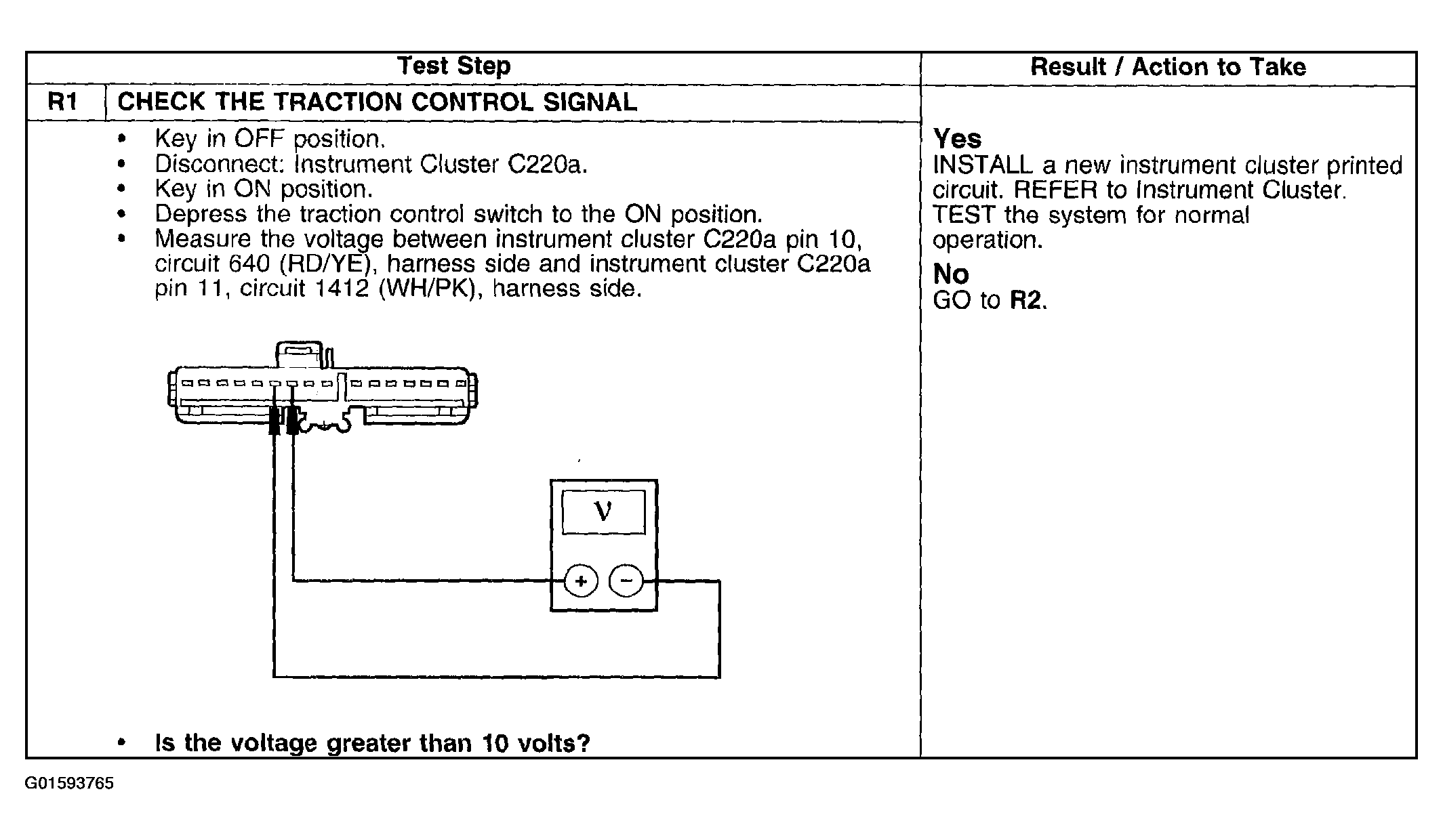

Fig 1: Pinpoint Test R: Traction Control Indicator Inoperative - If Equipped (Step R1)
G01593765Courtesy of FORD MOTOR CO.

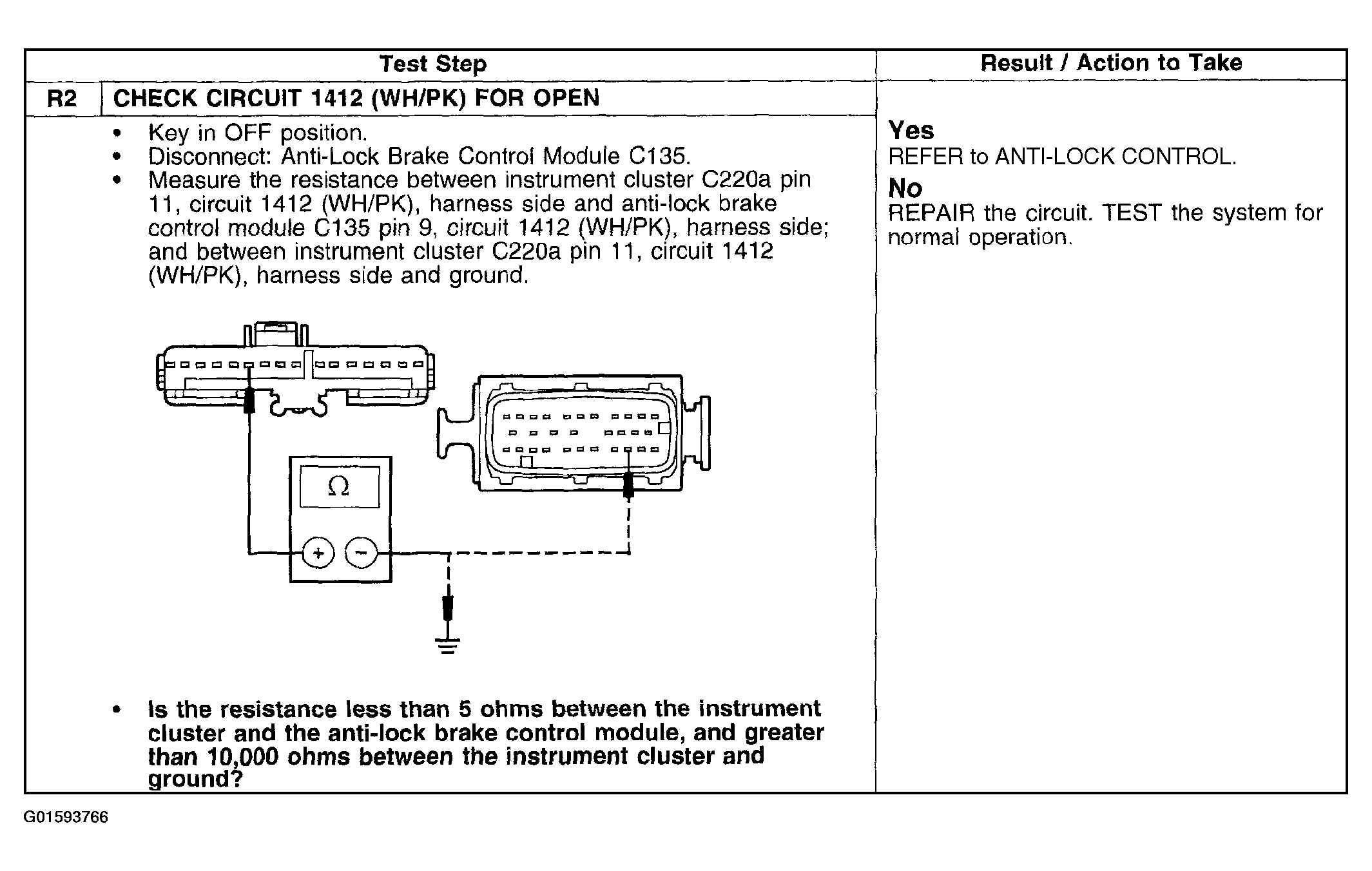

Fig 2: Pinpoint Test R: Traction Control Indicator Inoperative - If Equipped (Step R2)
G01593766Courtesy of FORD MOTOR CO.
