Pinpoint Test Q: The High Beam Indicator Is Inoperative

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

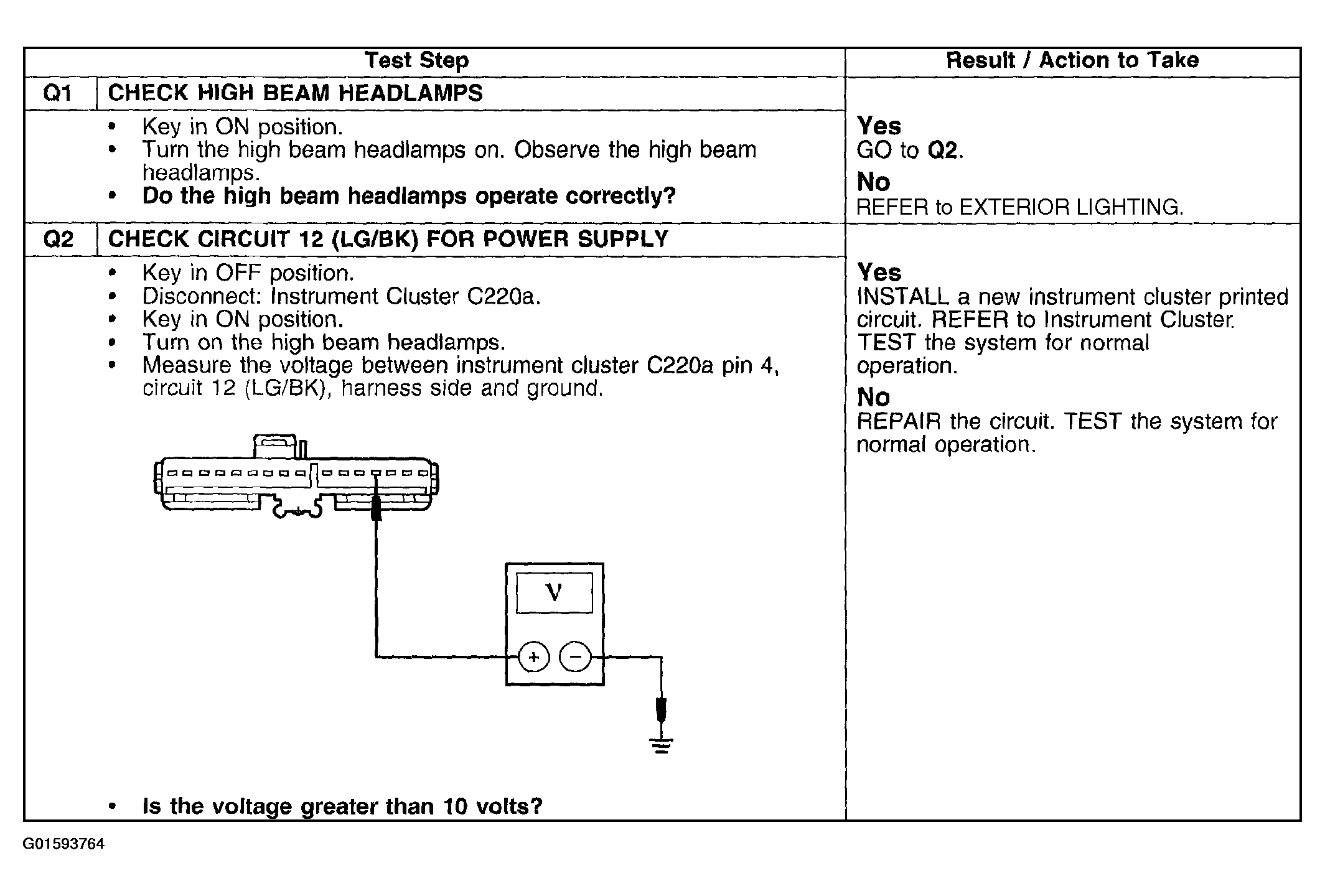

Fig 1: Pinpoint Test Q: High Beam Indicator Inoperative (Step Q1-Q2)
G01593764Courtesy of FORD MOTOR CO.
