Pinpoint Test P: The RH Turn Indicator Is Inoperative

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

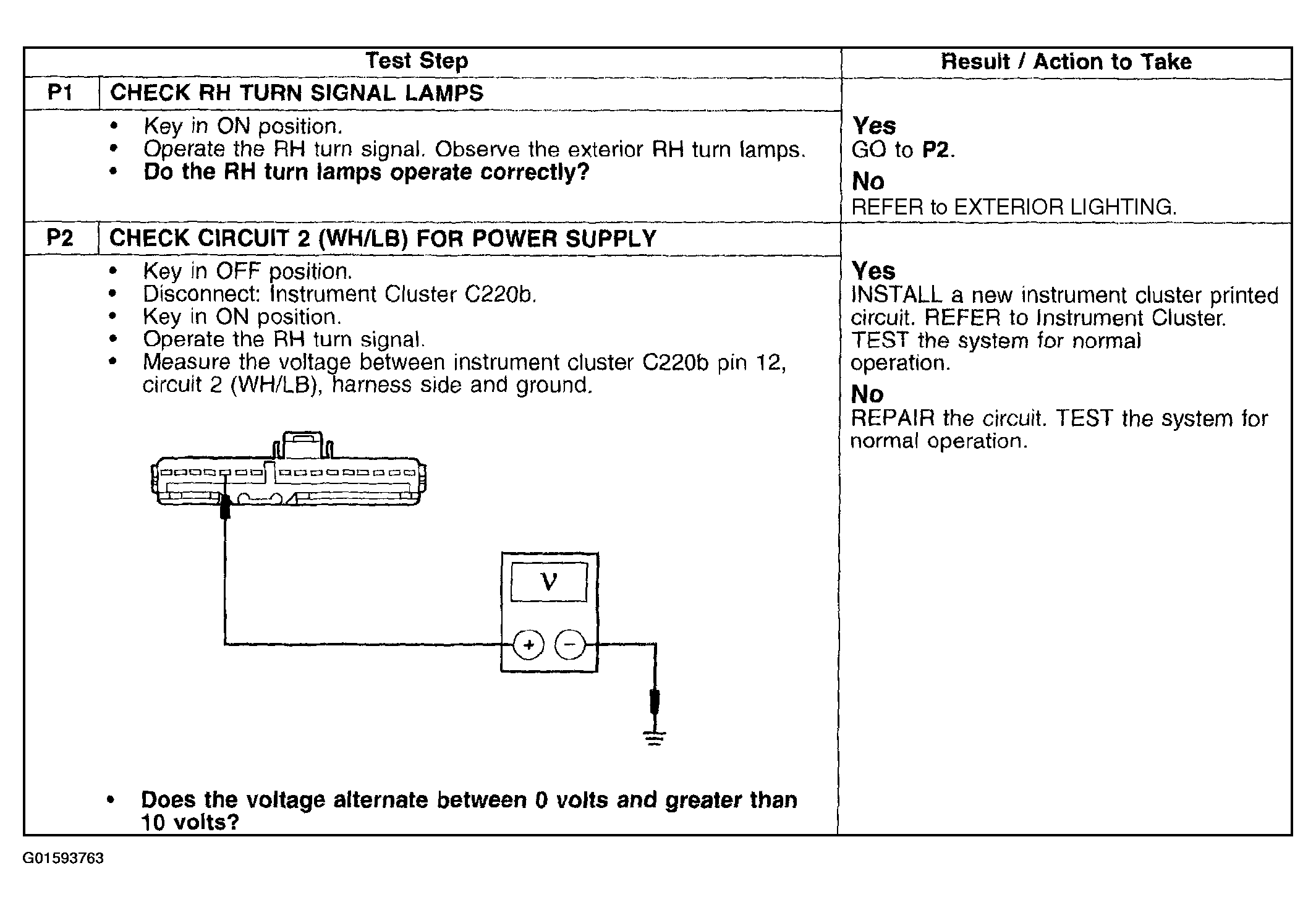

Fig 1: Pinpoint Test P: RH Turn Indicator Inoperative (Step P1-P2)
G01593763Courtesy of FORD MOTOR CO.
