Pinpoint Test K: The Brake Warning Indicator Is Never On - With Parking Brake Engaged

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

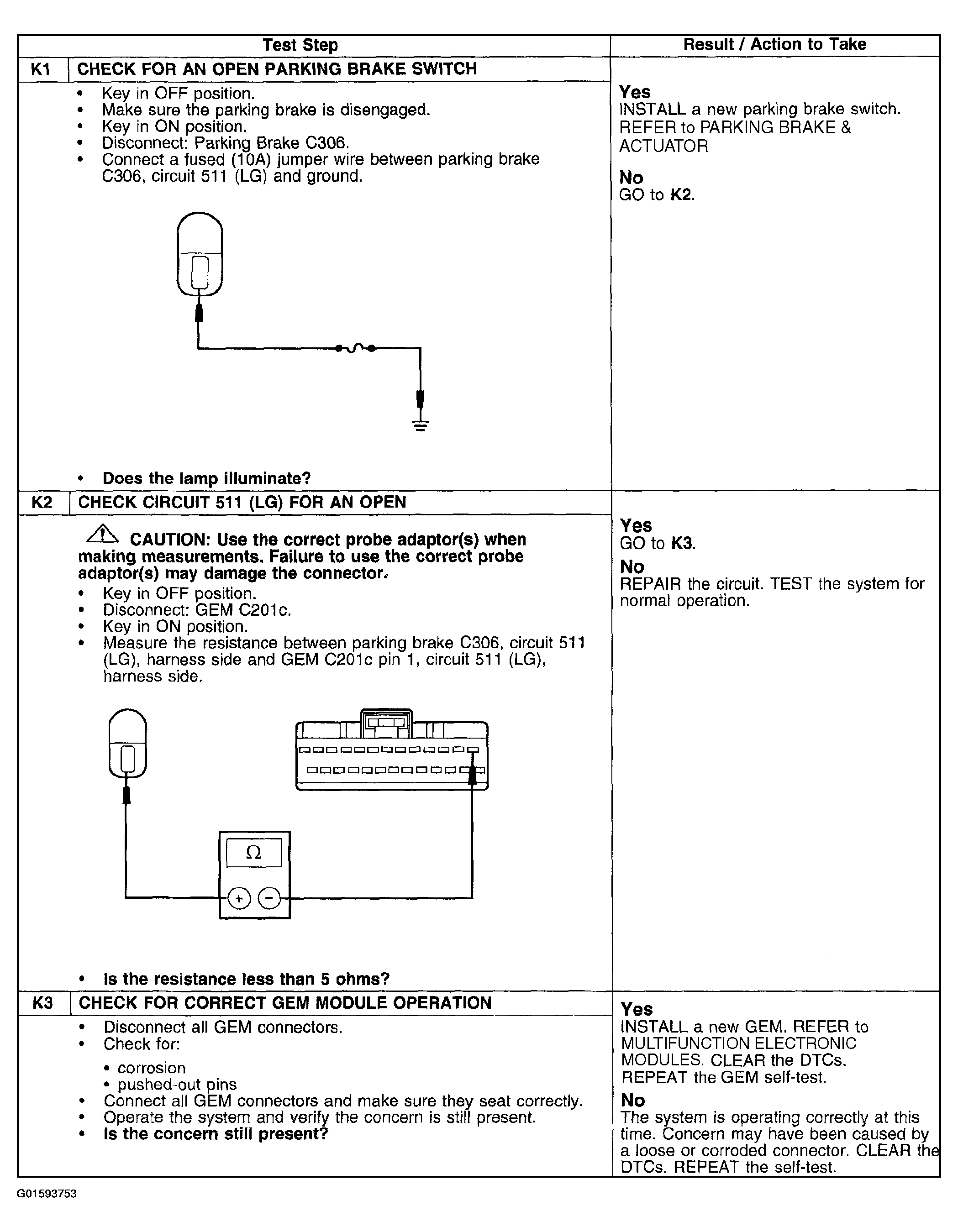

Fig 1: Pinpoint Test K: Brake Warning Indicator Never ON - With Parking Brake Engaged (Step K1-K3)
G01593753Courtesy of FORD MOTOR CO.
