Pinpoint Test J: The Brake Warning Indicator Is Never On
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

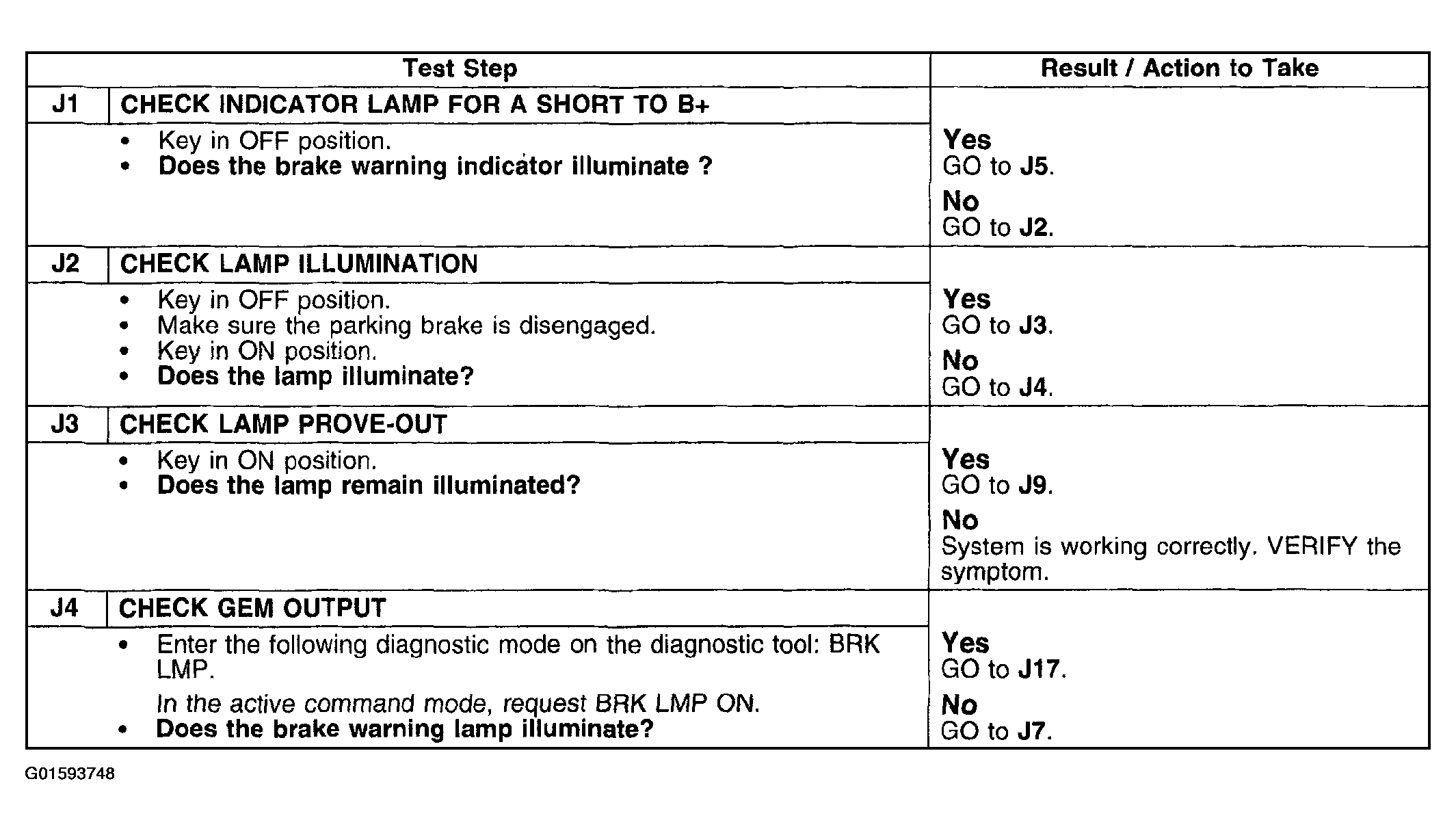

Fig 1: Pinpoint Test J: Brake Warning Indicator Never ON (Step J1-J4)
Courtesy of FORD MOTOR CO.

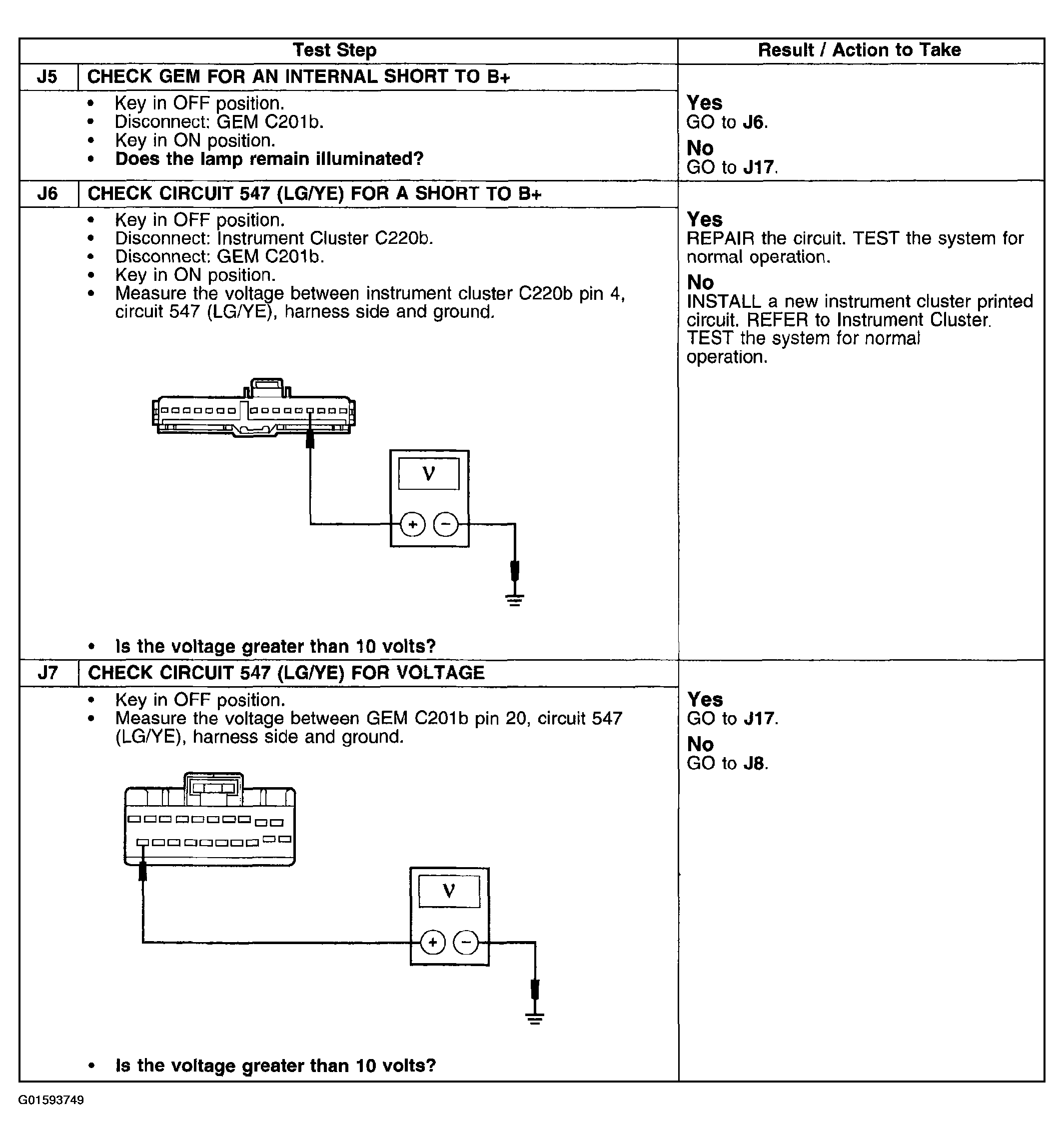

Fig 2: Pinpoint Test J: Brake Warning Indicator Never ON (Step J5-J7)
Courtesy of FORD MOTOR CO.

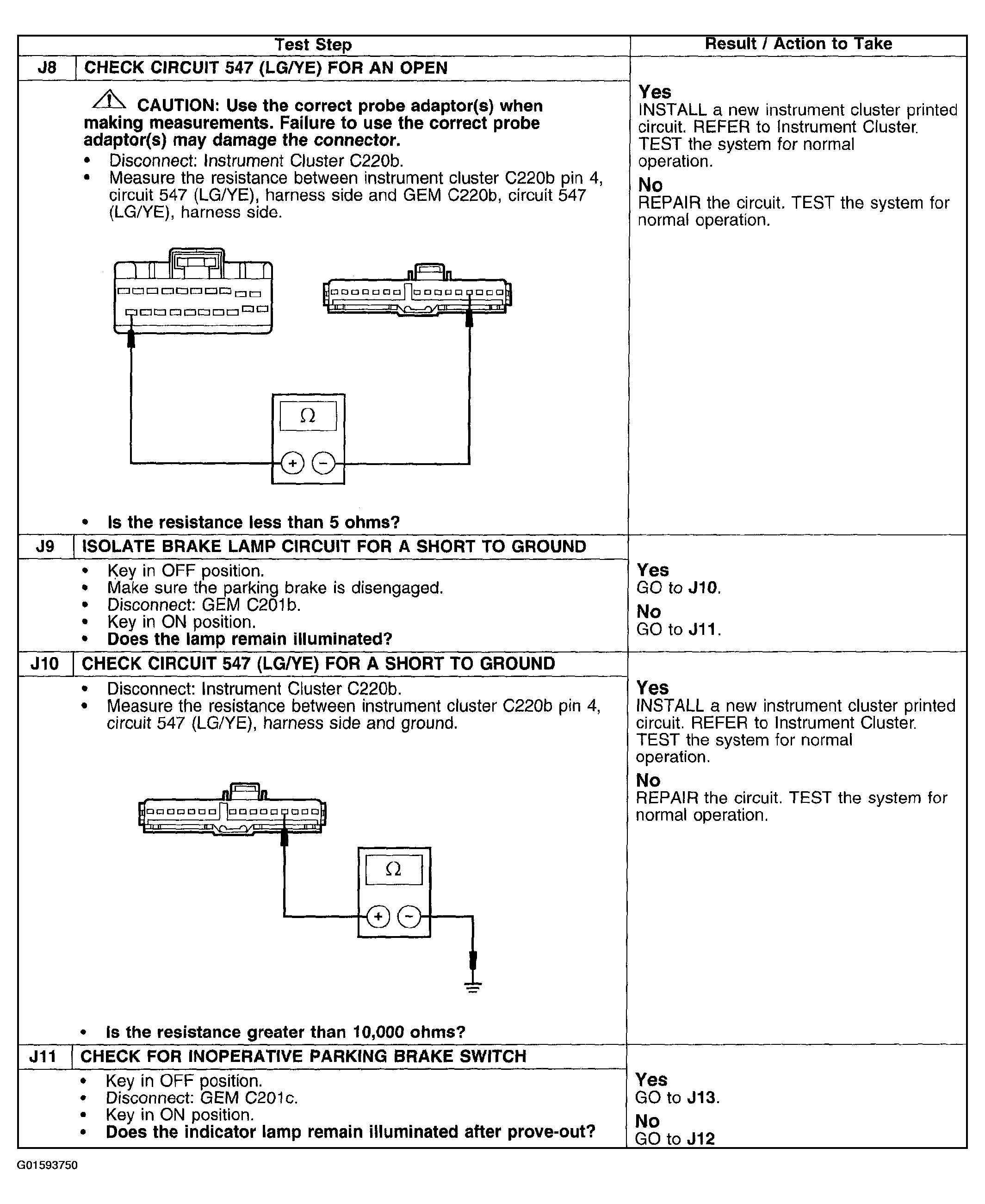

Fig 3: Pinpoint Test J: Brake Warning Indicator Never ON (Step J8-J11)
Courtesy of FORD MOTOR CO.

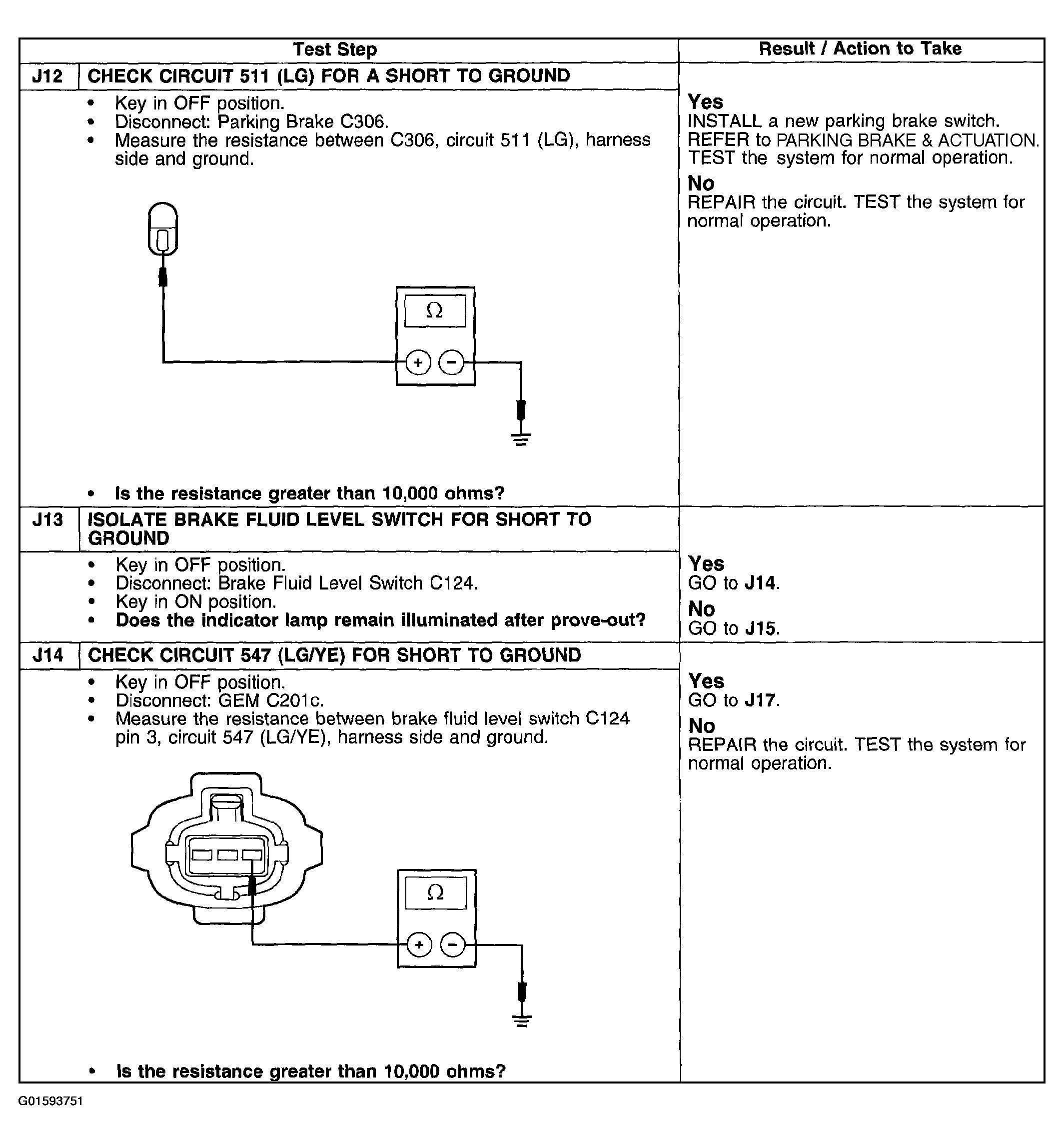

Fig 4: Pinpoint Test J: Brake Warning Indicator Never ON (Step J12-J14)
Courtesy of FORD MOTOR CO.

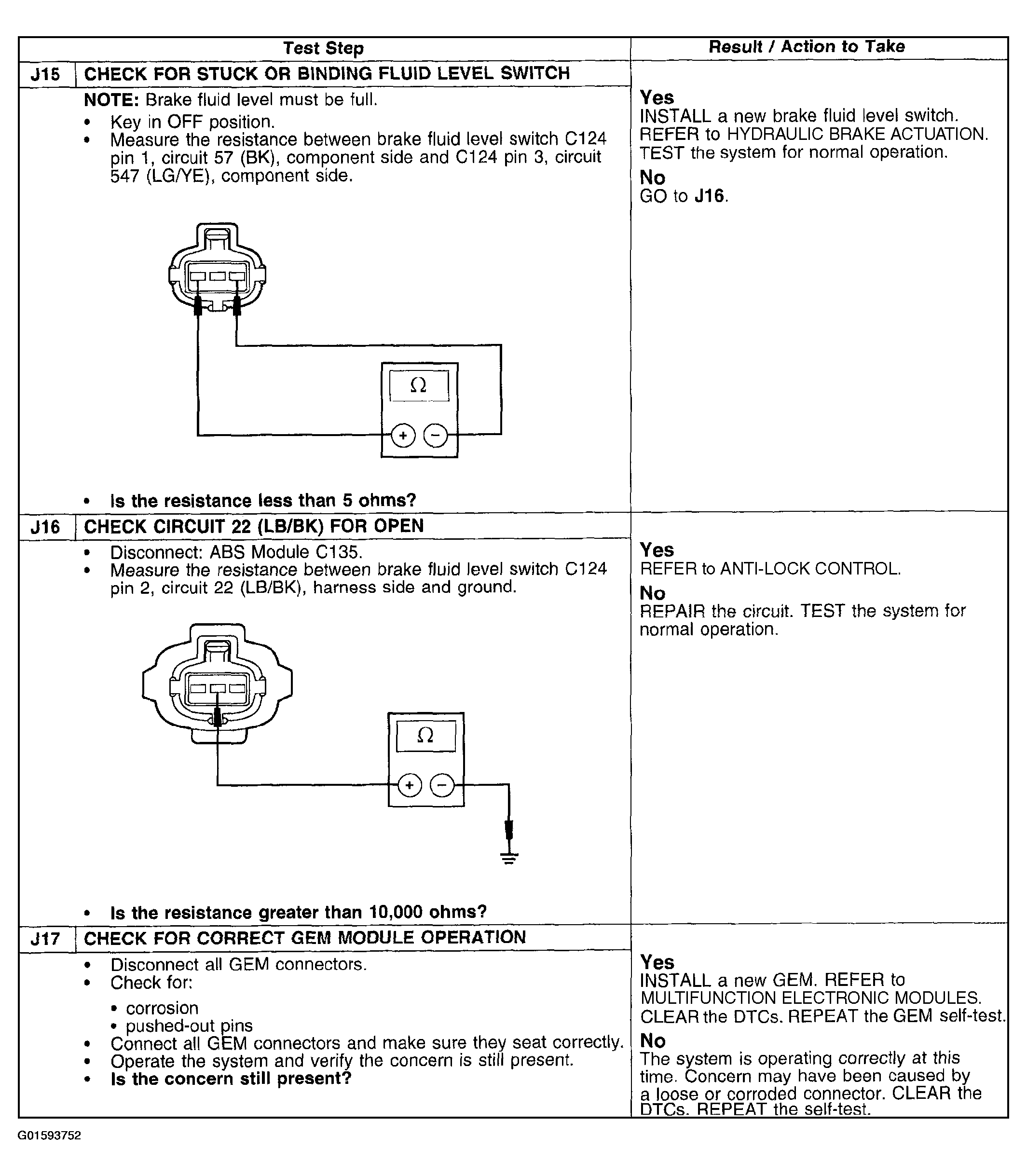

Fig 5: Pinpoint Test J: Brake Warning Indicator Never ON (Step J15-J17)
