Pinpoint Test I: The Charge System Warning Indicator Is Never On
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

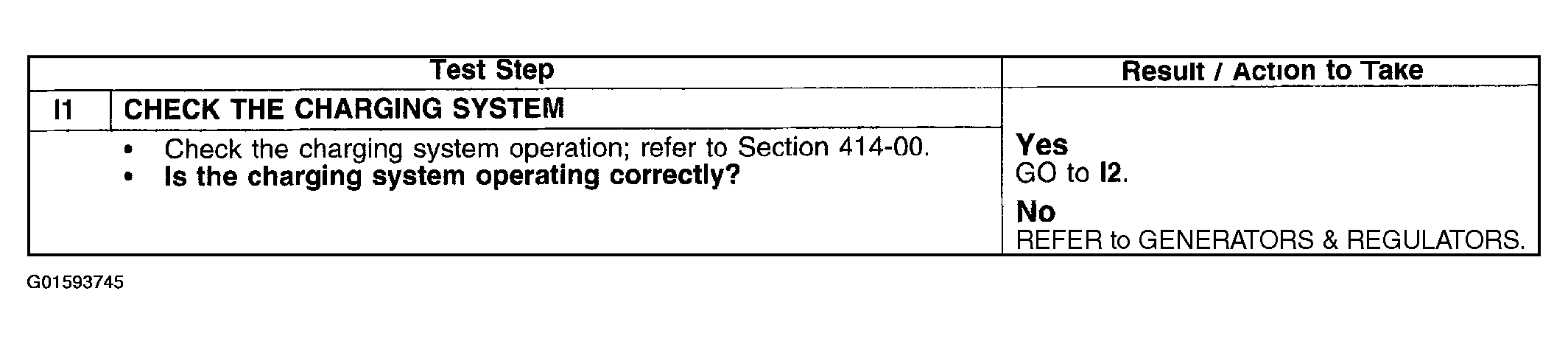

Fig 1: Pinpoint Test I: Charge System Warning Indicator Never ON (Step I1)
Courtesy of FORD MOTOR CO.

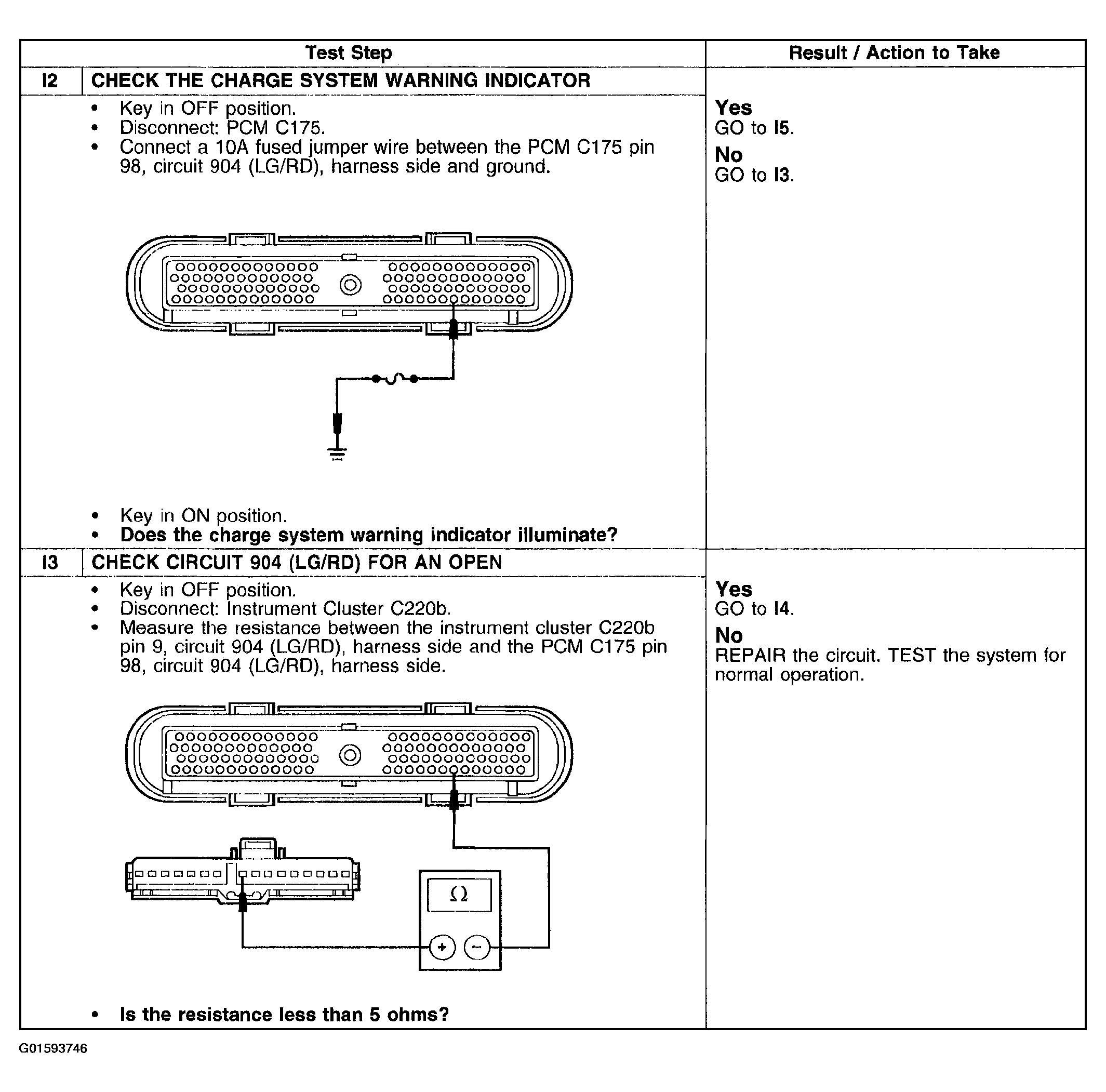

Fig 2: Pinpoint Test I: Charge System Warning Indicator Never ON (Step I2-I3)
Courtesy of FORD MOTOR CO.

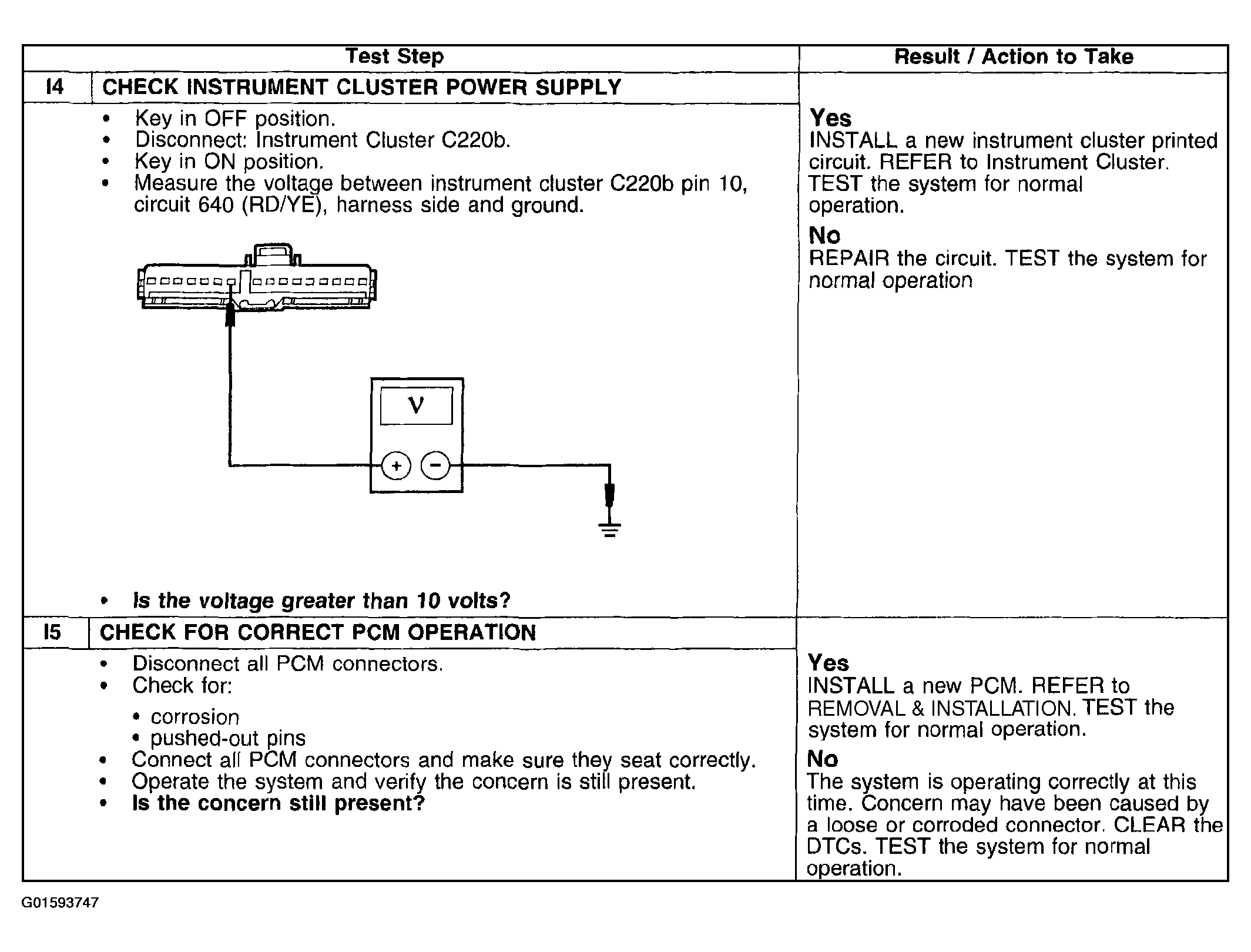

Fig 3: Pinpoint Test I: Charge System Warning Indicator Never ON (Step I4-I5)
