Pinpoint Test E: The Low Oil Pressure Warning Indicator Is Inoperative

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

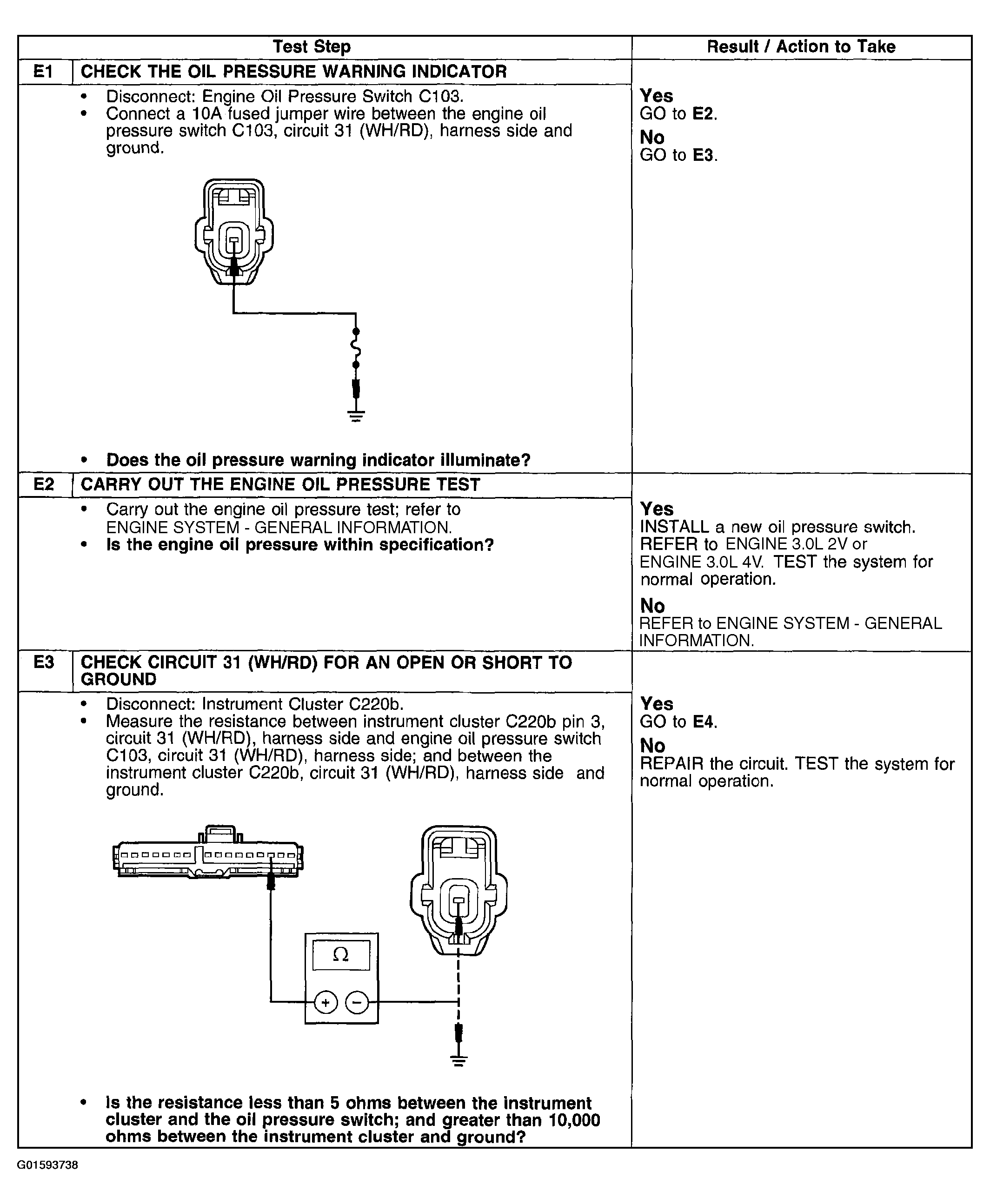

Fig 1: Pinpoint Test E: Low Oil Pressure Warning Indicator Inoperative (Step E1-E3)

Courtesy of FORD MOTOR CO.

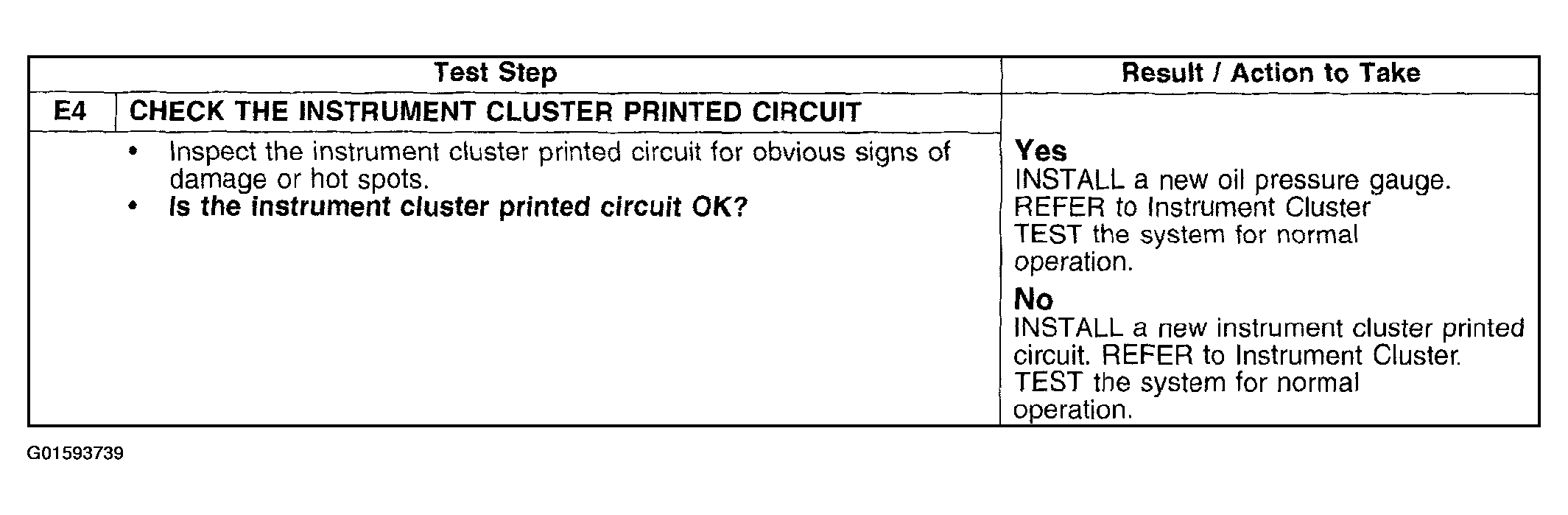

Fig 2: Pinpoint Test E: Low Oil Pressure Warning Indicator Inoperative (Step E4)

Courtesy of FORD MOTOR CO.
