Pinpoint Test A: The Instrument Cluster Is Inoperative

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

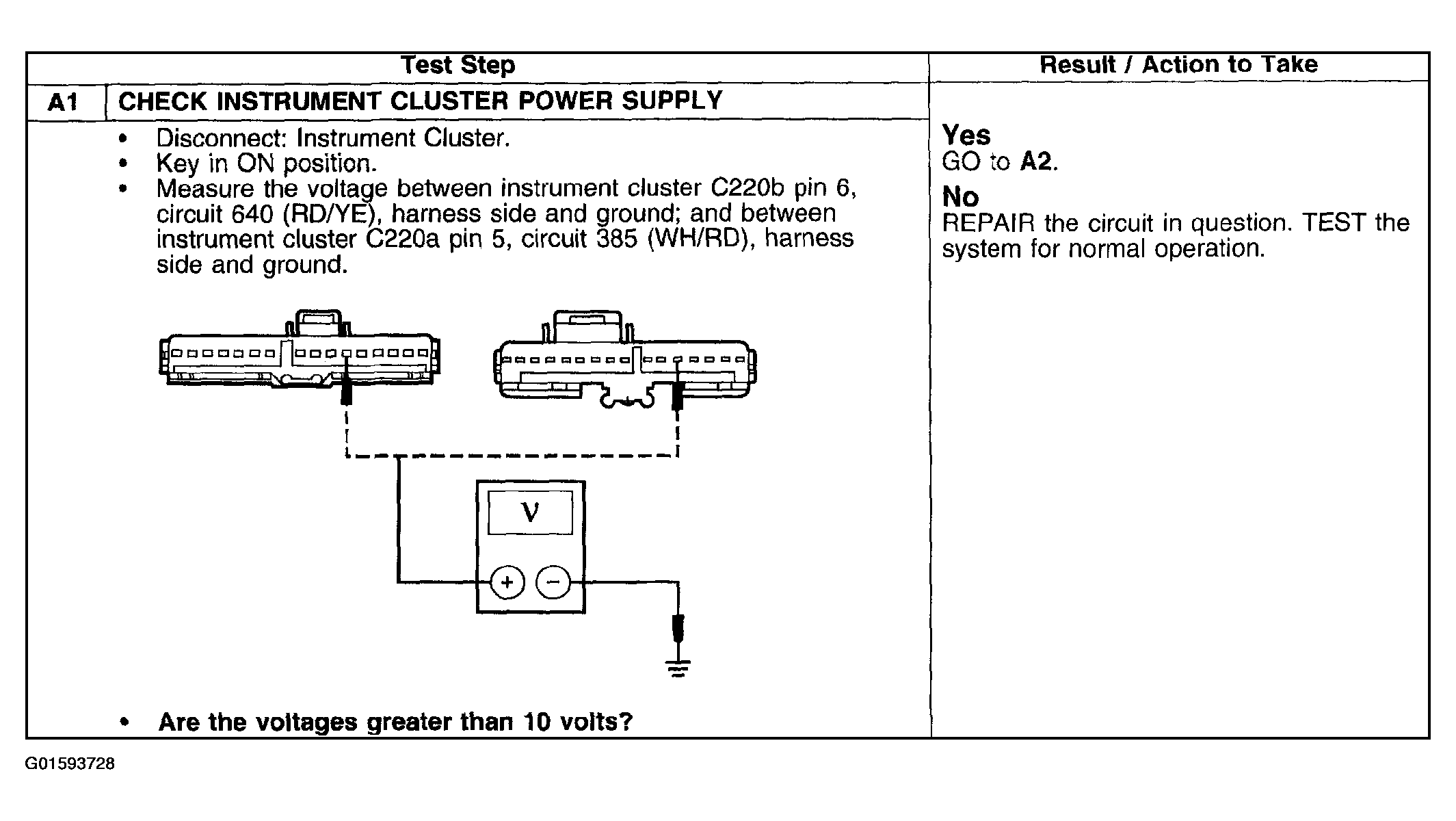

Fig 1: Pinpoint Test A: Instrument Cluster Inoperative (Step A1)
G01593728Courtesy of FORD MOTOR CO.

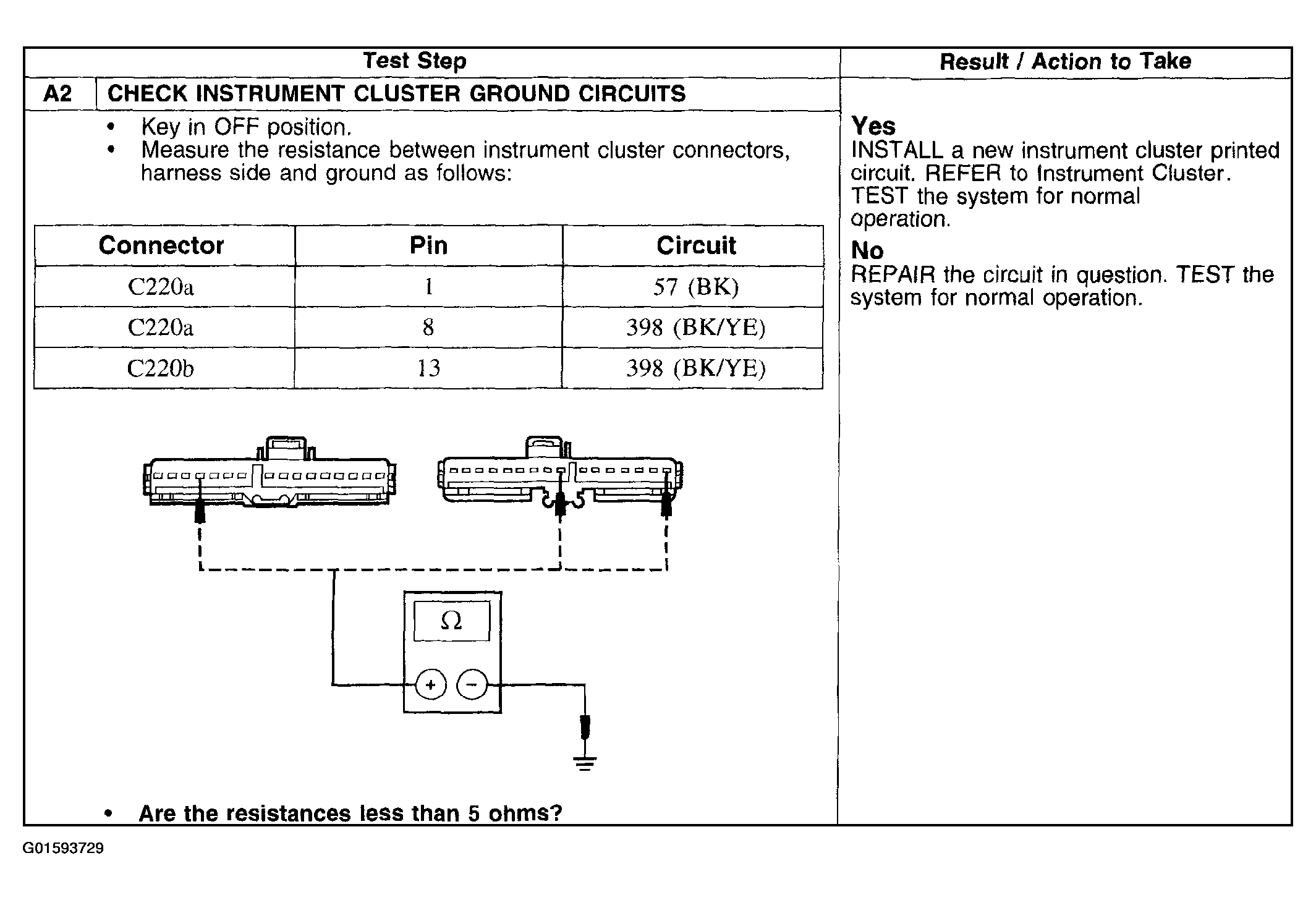

Fig 2: Pinpoint Test A: Instrument Cluster Inoperative (Step A2)
G01593729Courtesy of FORD MOTOR CO.
