Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster; refer to INSTRUMENT CLUSTER .
  2. Remove the illumination bulbs.

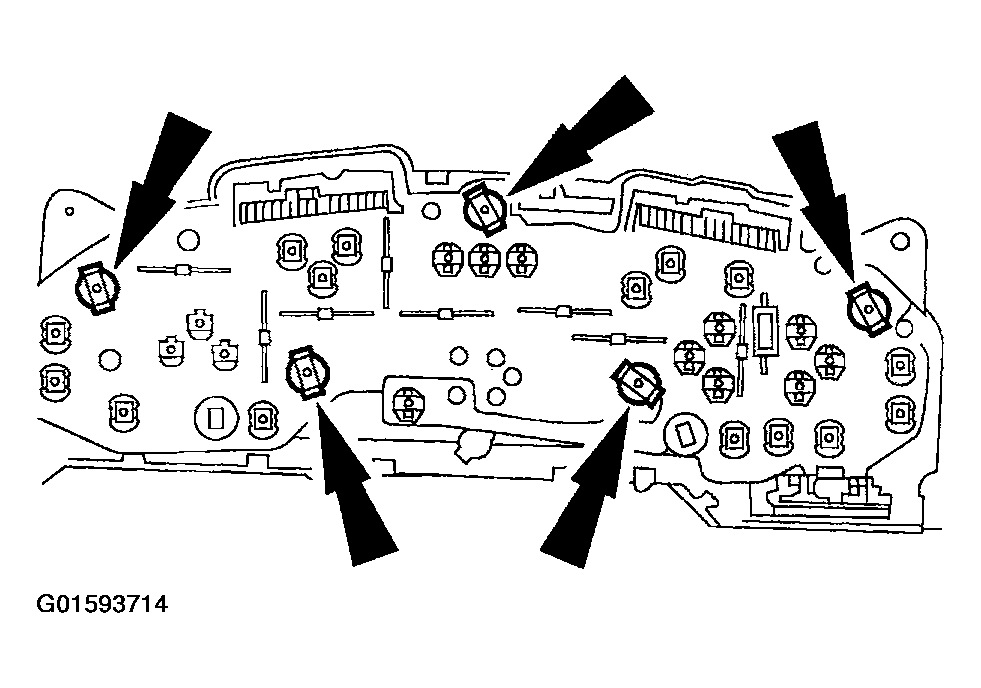

    Fig 1: Removing Illumination Bulbs
    G01593714Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
