Pinpoint Test E: A Single Illumination Source Is Inoperative - Steering Wheel Control Switches

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

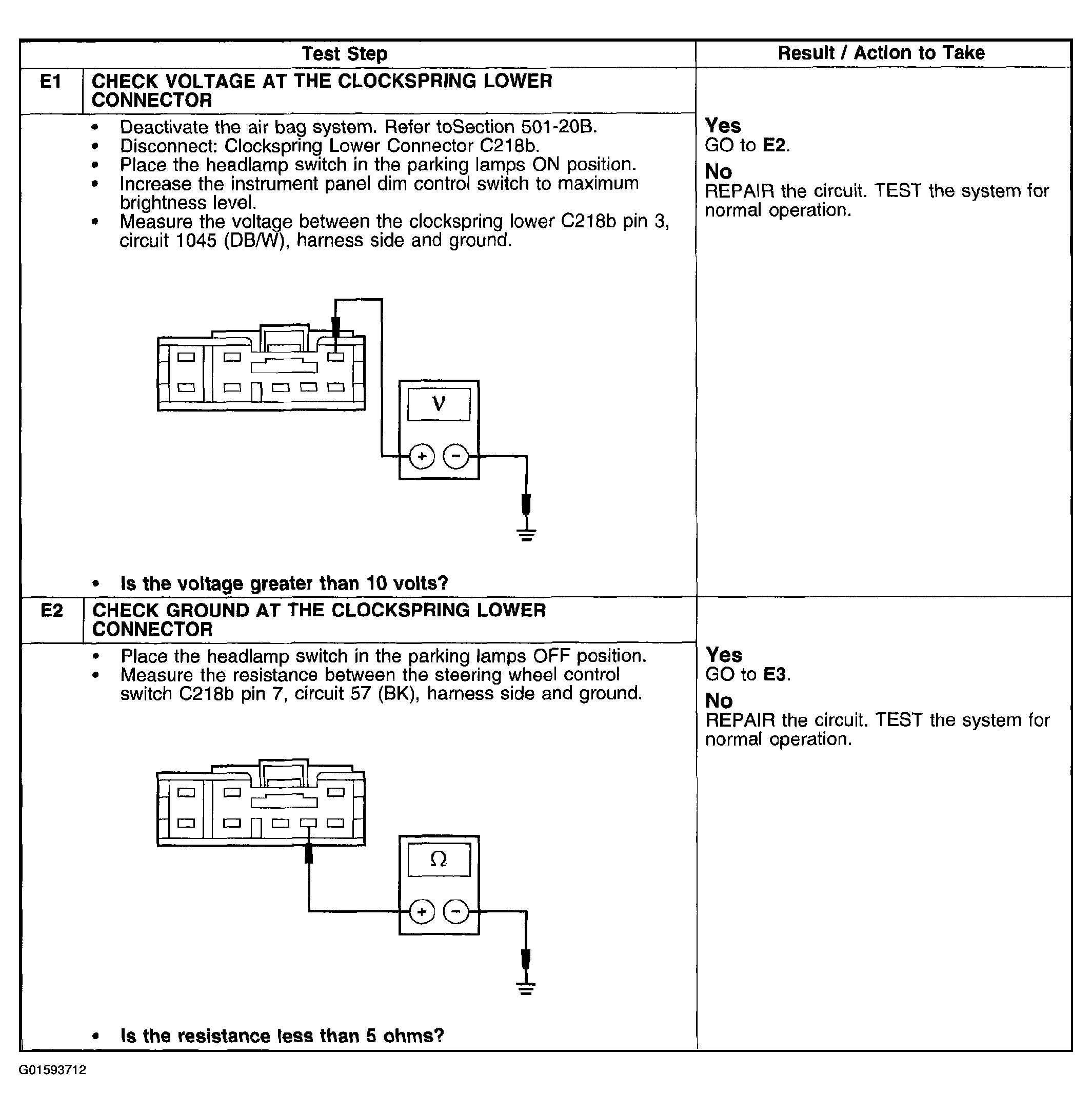

Fig 1: Pinpoint Test E: Single Illumination Source Inoperative - Steering Wheel Control Switches (Step E1-E2)
G01593712Courtesy of FORD MOTOR CO.

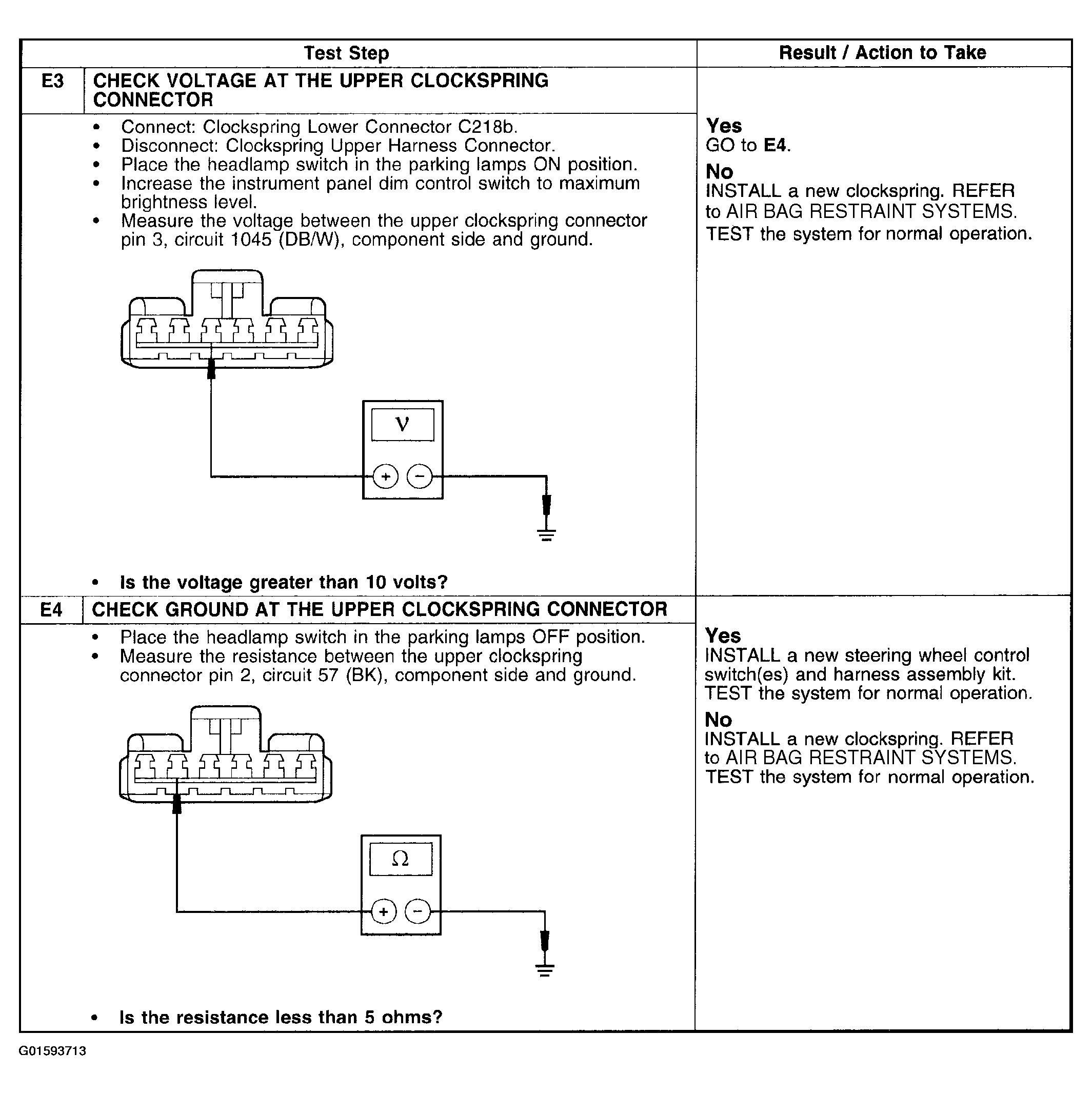

Fig 2: Pinpoint Test E: Single Illumination Source Inoperative - Steering Wheel Control Switches (Step E3-E4)
G01593713Courtesy of FORD MOTOR CO.
