Pinpoint Test C: The Integrated Control Panel Illumination Is Inoperative

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

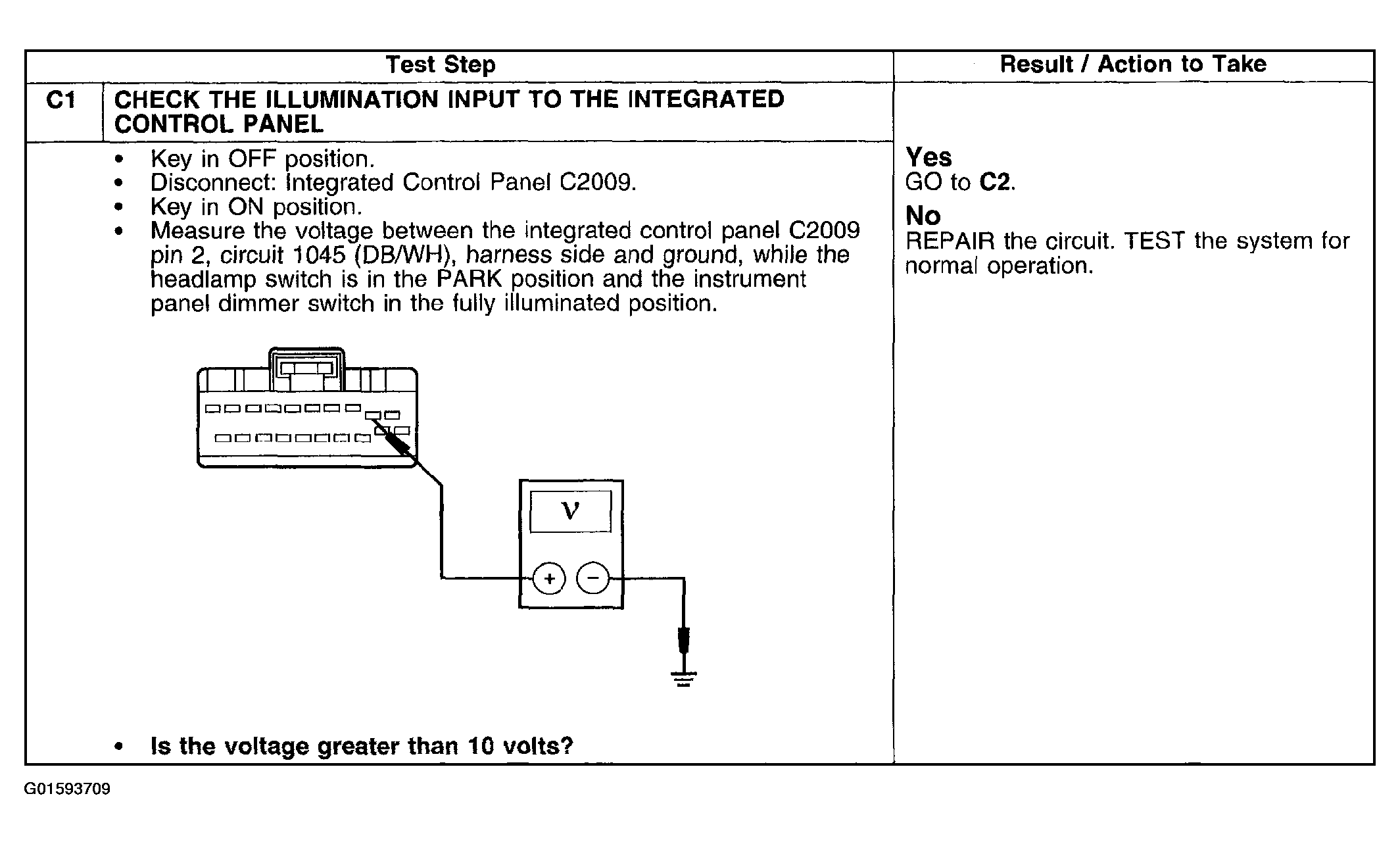

Fig 1: Pinpoint Test C: Integrated Control Panel Illumination Inoperative (Step C1)
G01593709Courtesy of FORD MOTOR CO.

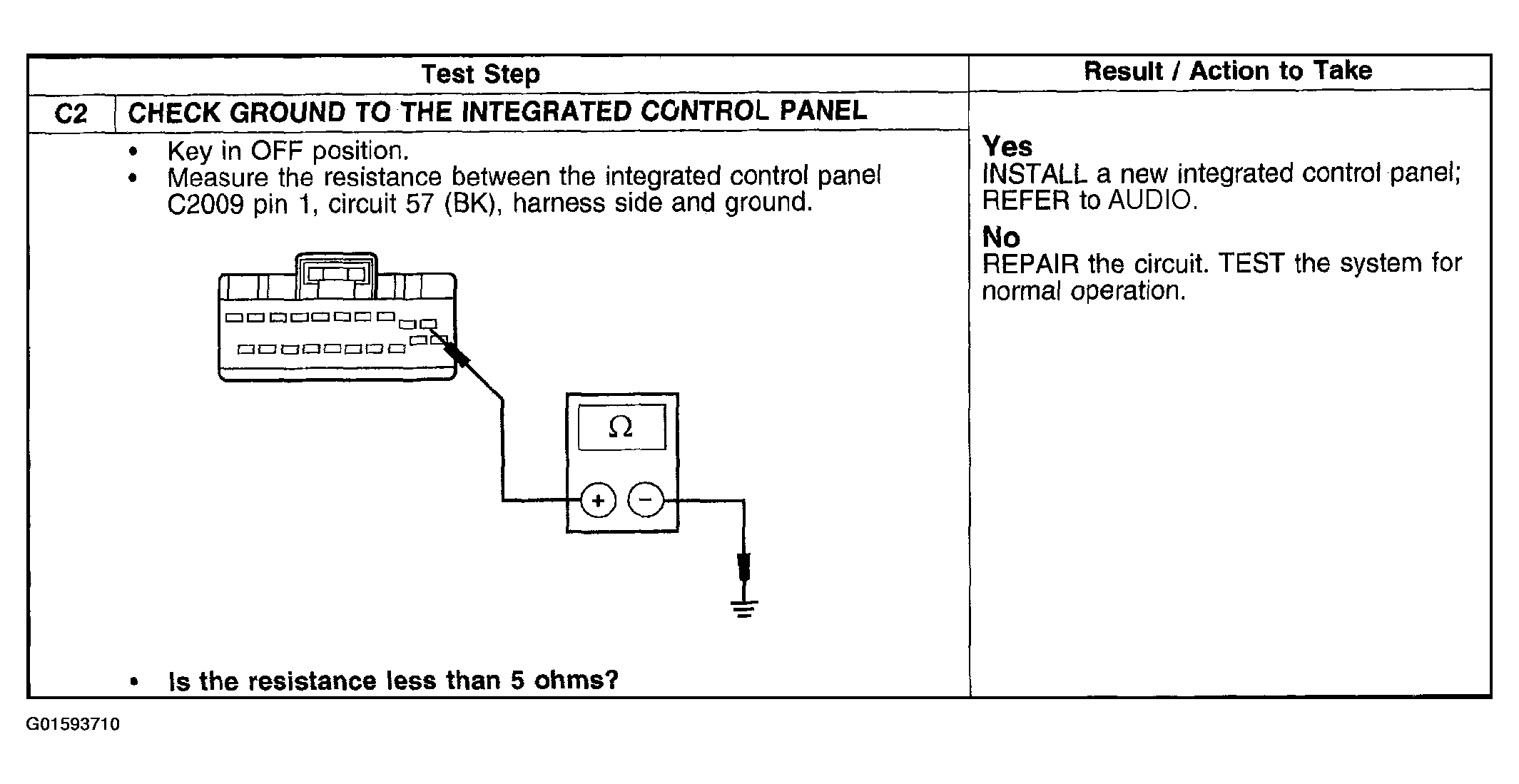

Fig 2: Pinpoint Test C: Integrated Control Panel Illumination Inoperative (Step C2)
G01593710Courtesy of FORD MOTOR CO.
