Pinpoint Test B: The Instrument Cluster Illumination Is Inoperative

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

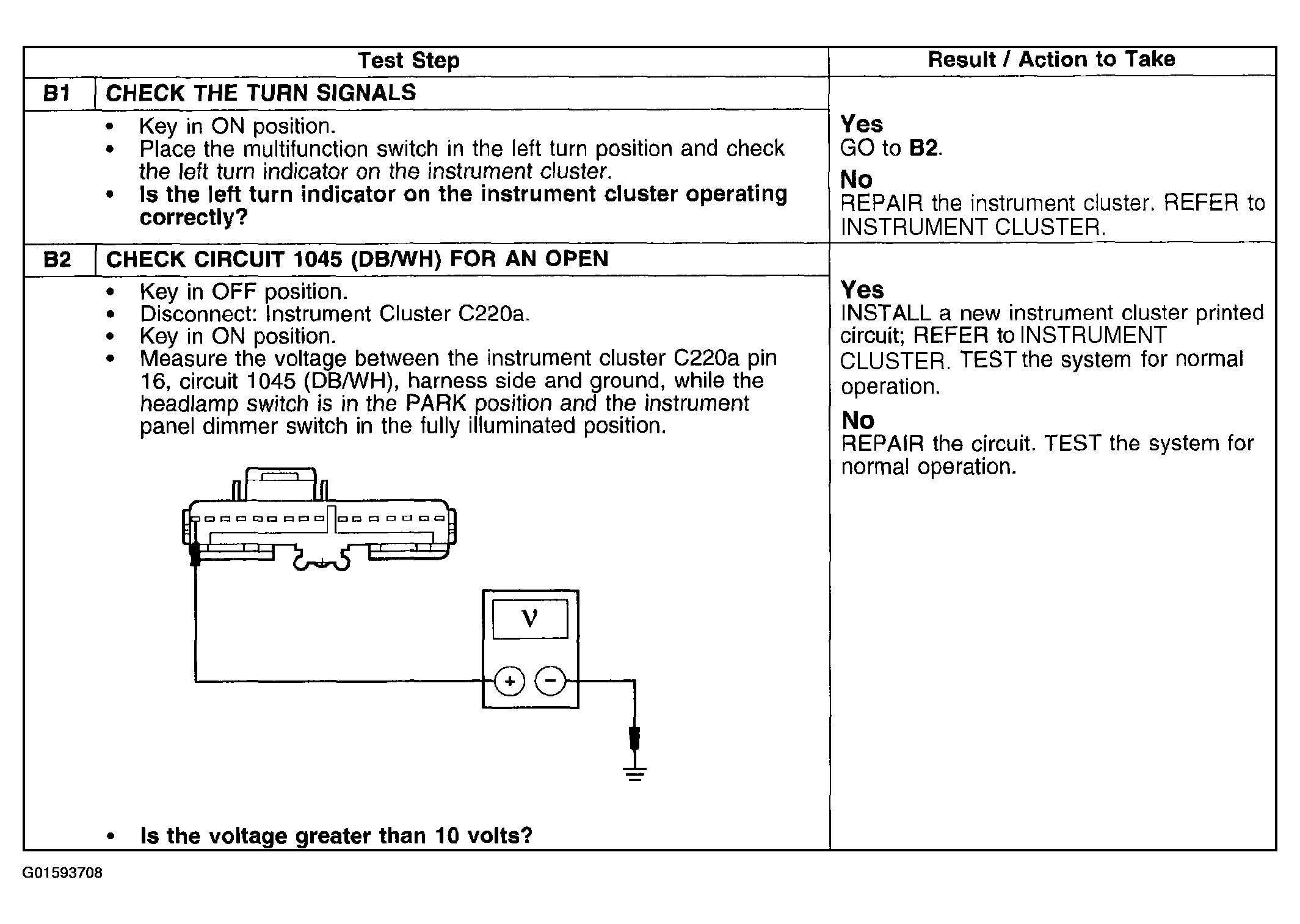

Fig 1: Pinpoint Test B: Instrument Cluster Illumination Inoperative (Step B1-B2)
G01593708Courtesy of FORD MOTOR CO.
