Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right front tire and wheel assembly. For additional information, refer to WHEELS & TIRES .
Remove the rear half of the right front fender splash shield.

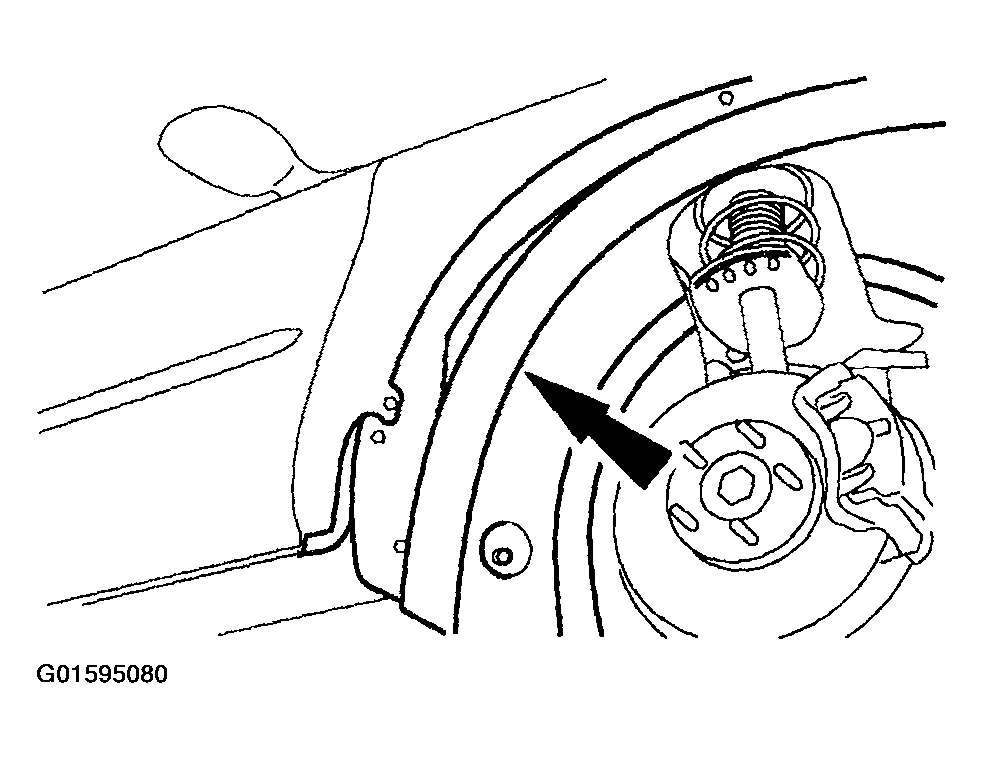

Fig 1: Removing Right Front Tire And Wheel Assembly
Courtesy of FORD MOTOR CO.
Remove the bolt.

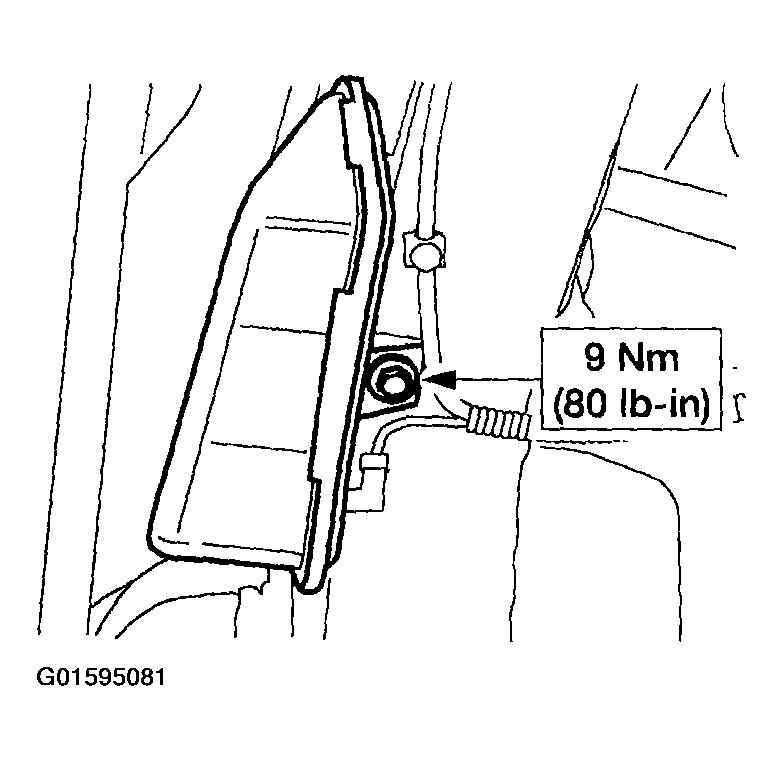

Fig 2: Removing Bolt
Courtesy of FORD MOTOR CO.
Disconnect the vacuum hose. Remove the vacuum reservoir and bracket (19A566).

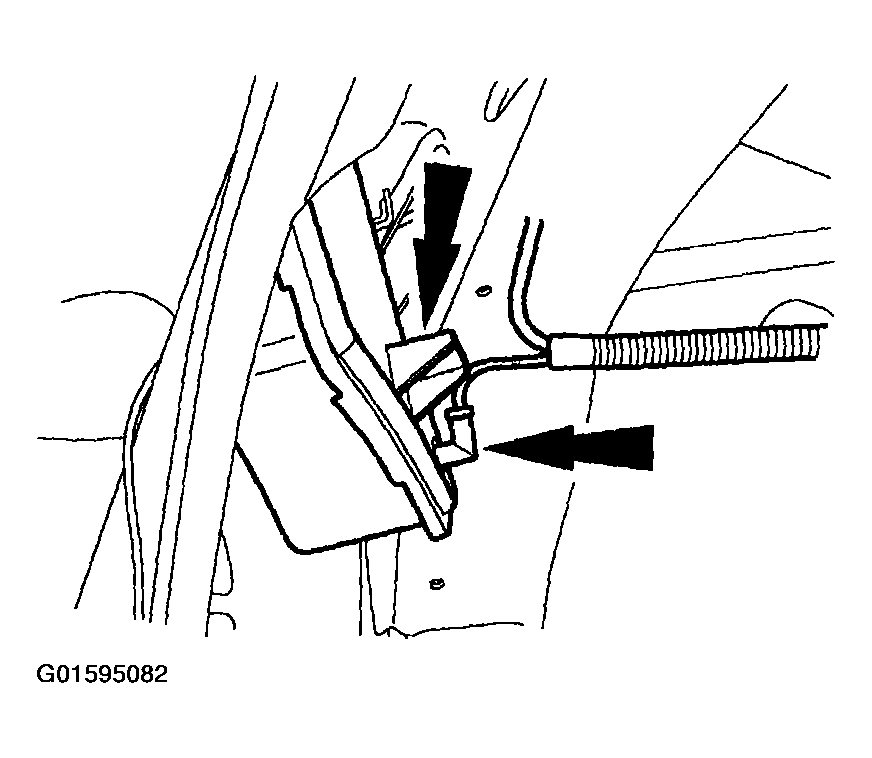

Fig 3: Removing Vacuum Reservoir And Bracket (19A566)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
