Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right-side instrument panel insulator.

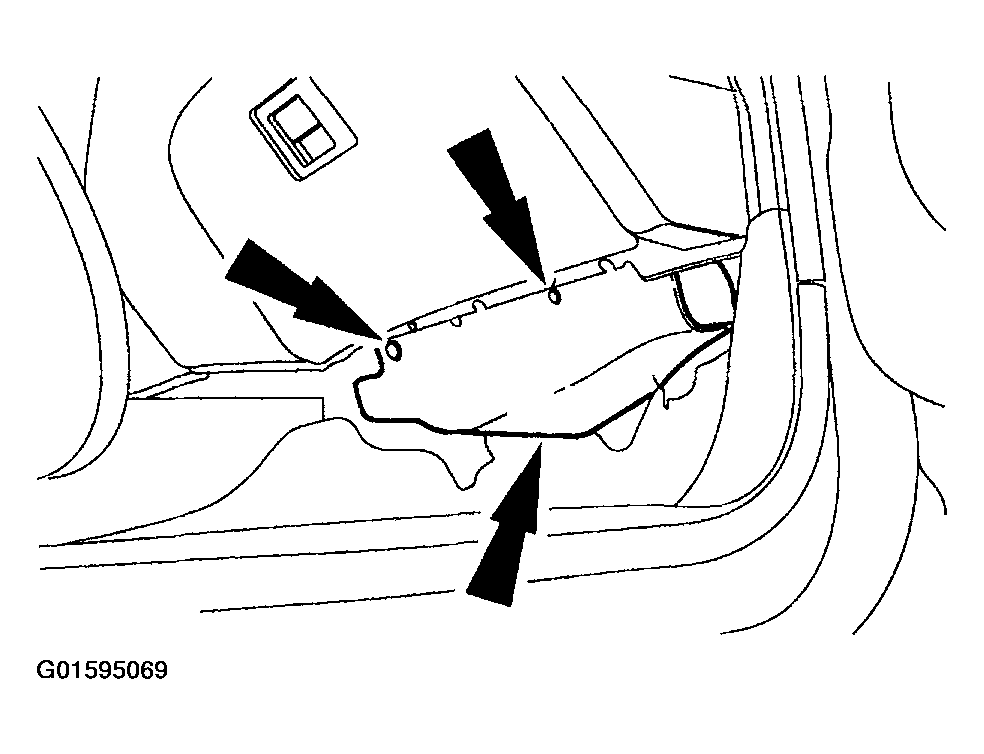

    Fig 1: Removing Right-Side Instrument Panel Insulator
    G01595069Courtesy of FORD MOTOR CO.
  2. Remove the blower motor speed control (19E624).
    1. Disconnect the vacuum line.
    2. Disconnect the electrical connectors.
    3. Remove the screws and the blower motor speed control.

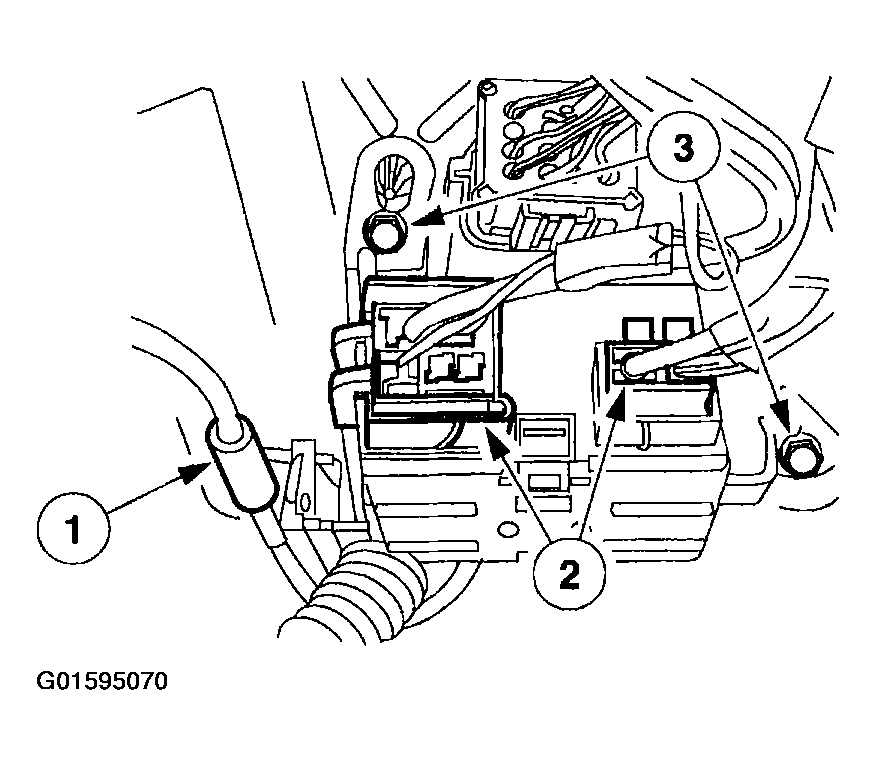

    Fig 2: Removing Screws And Blower Motor Speed Control
    G01595070Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
