Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the four scrivets and the grille.

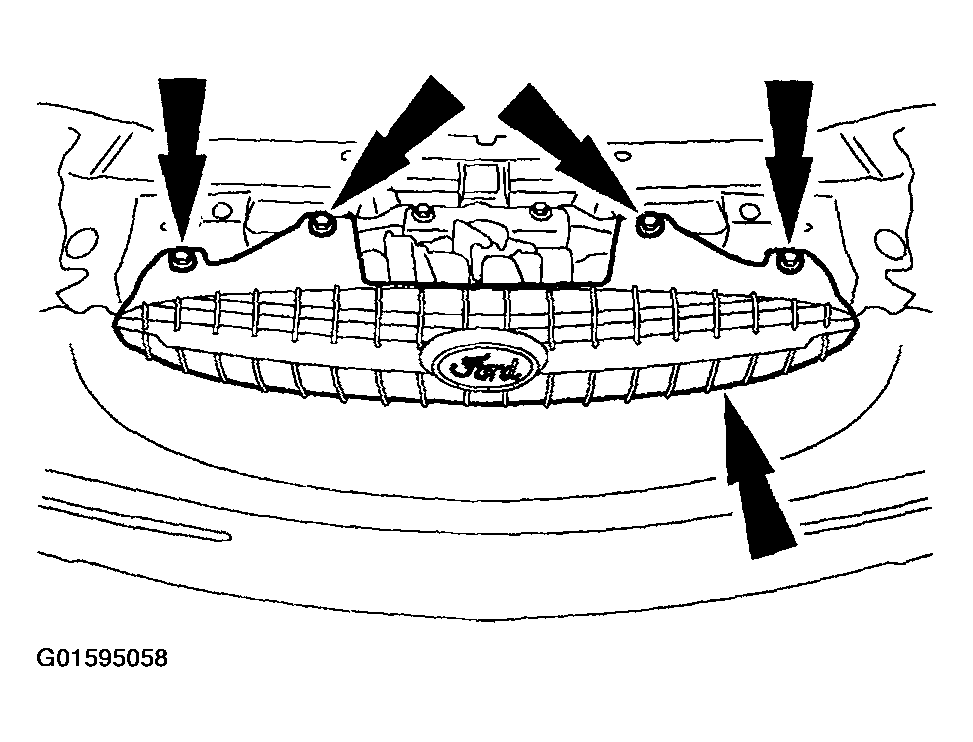

Fig 1: Locating Scrivets And Grille
Courtesy of FORD MOTOR CO.
Detach the ambient air temperature sensor (12A647).

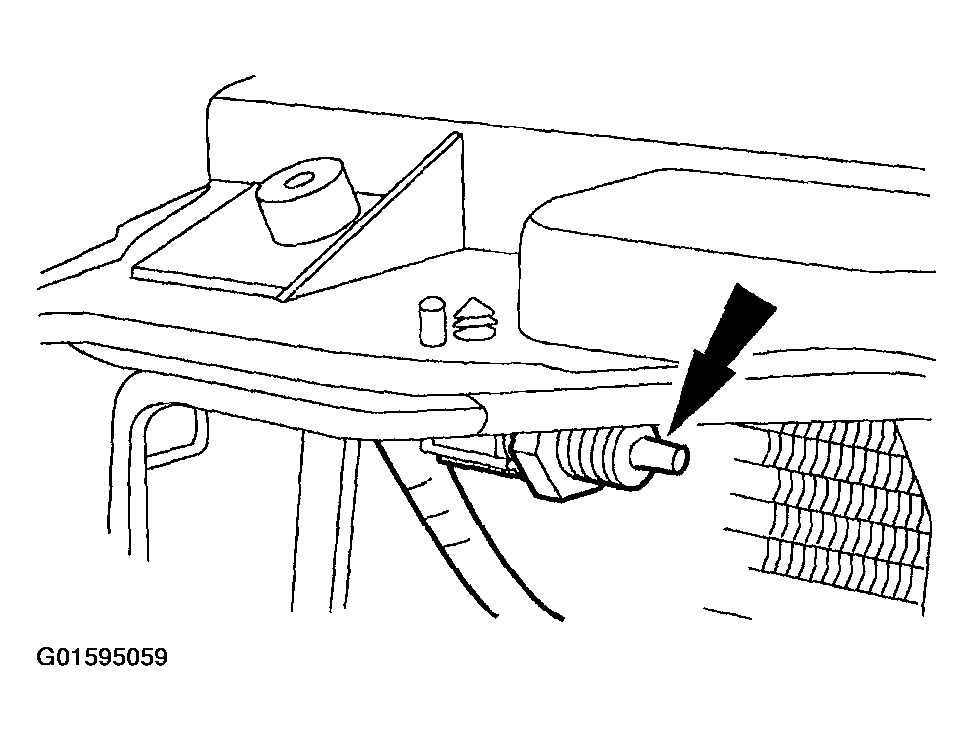

Fig 2: Locating Ambient Air Temperature Sensor (12A647)
Courtesy of FORD MOTOR CO.
Disconnect the ambient air temperature sensor.

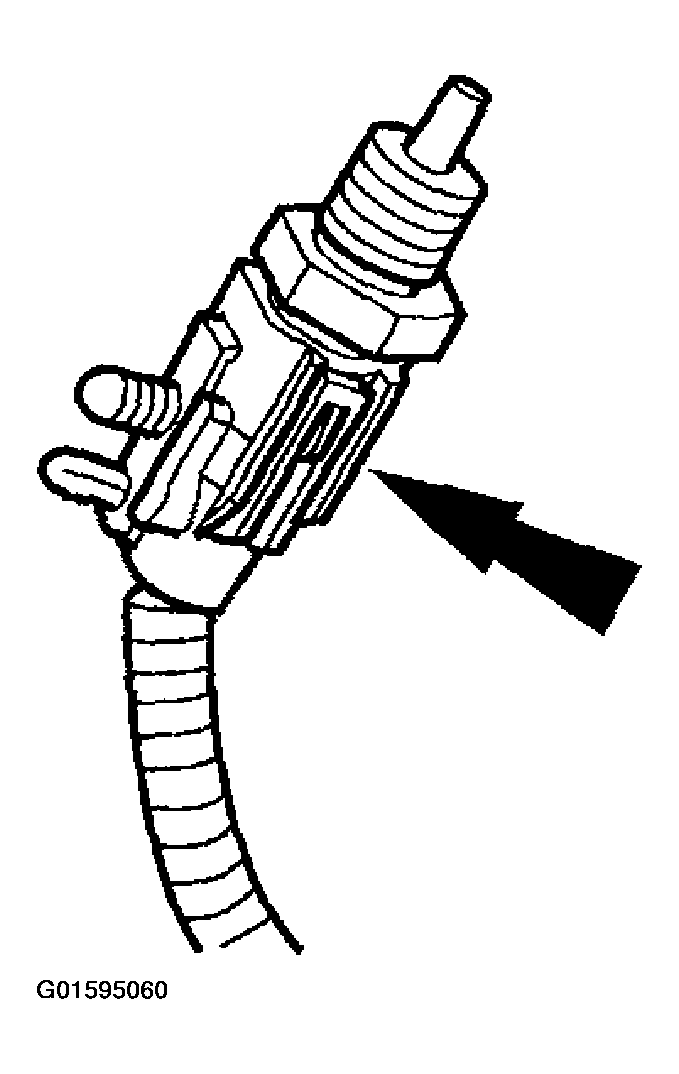

Fig 3: Locating Ambient Air Temperature Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
