Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Lower the glove compartment door.
Disconnect the electrical connector.

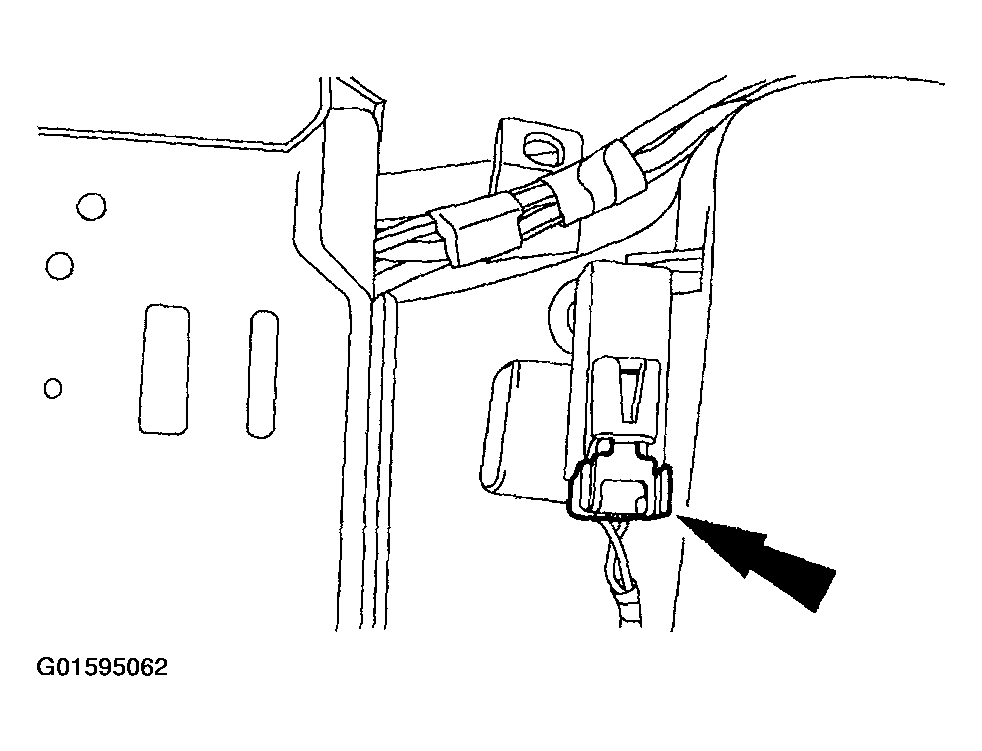

Fig 1: Locating Electrical Connector
Courtesy of FORD MOTOR CO.
Carefully pry the evaporator air discharge temperature sensor (19C734) to disengage the clips and remove the evaporator air discharge temperature sensor.

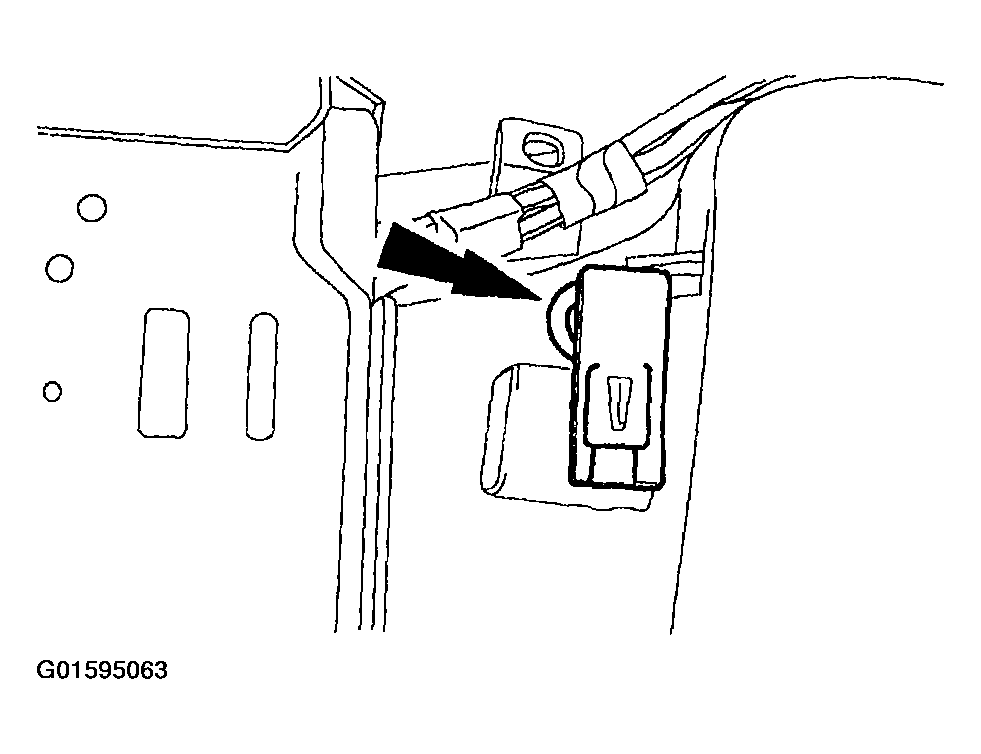

Fig 2: Locating Evaporator Air Discharge Temperature Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
