Removal and Installation

All Vehicles

1. Recover the refrigerant. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .

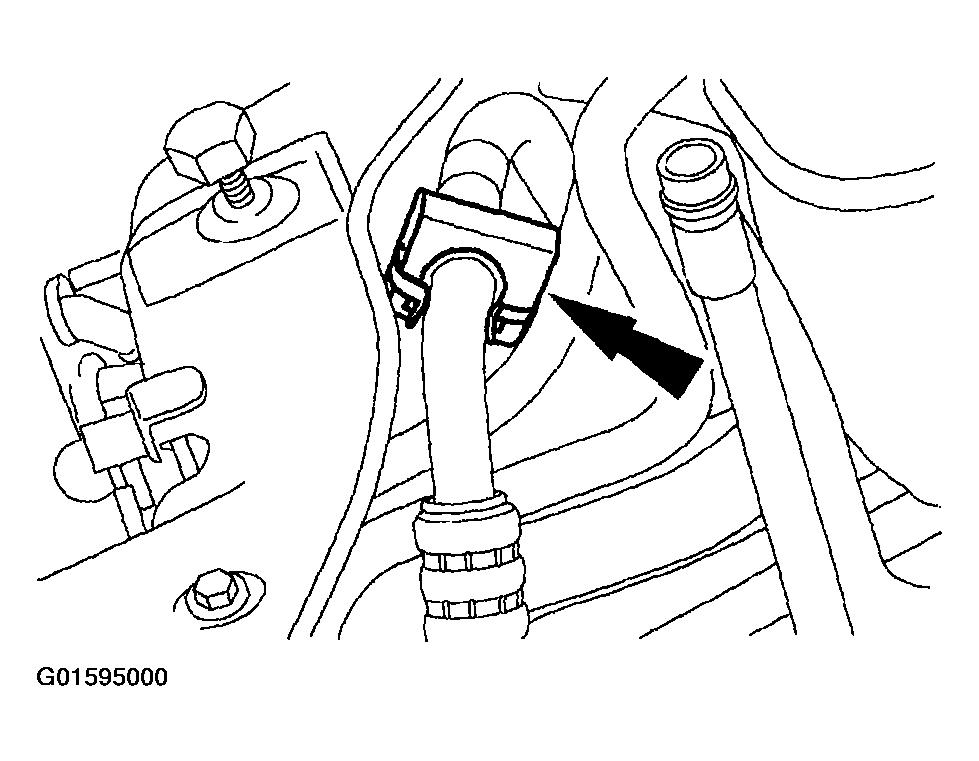

   Fig 1: Removing A/C Hose Support Bracket

   Courtesy of FORD MOTOR CO.
2. Remove the two bolts and remove the roll restrictor.

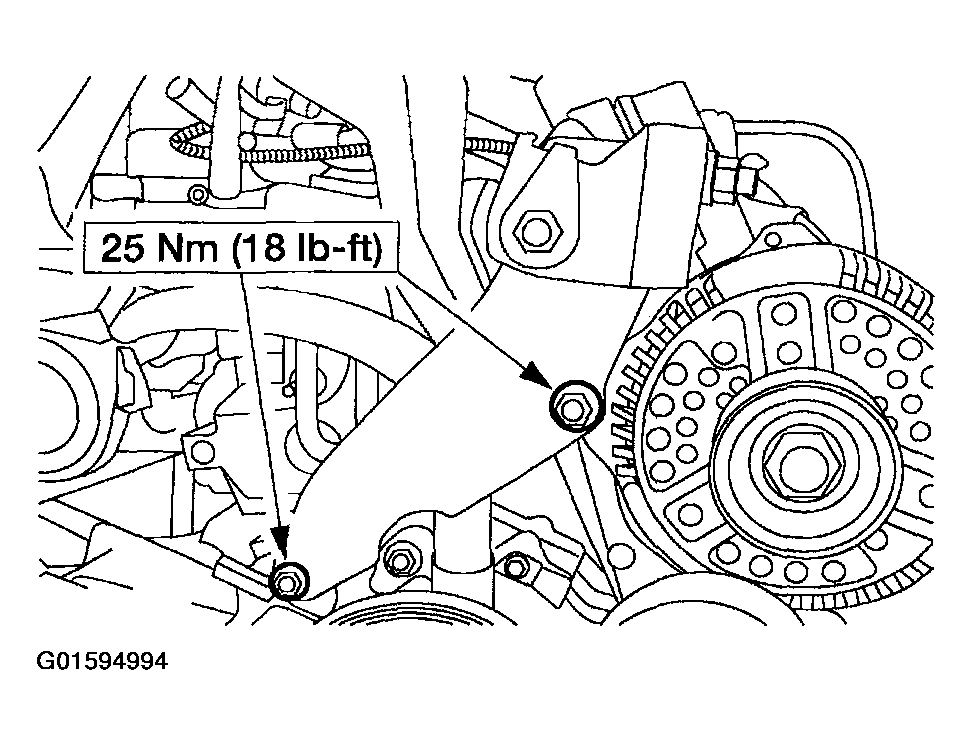

   Fig 2: Removing Roll Restrictor

   Courtesy of FORD MOTOR CO.
3. Remove the bolts and position aside the roll restrictor bracket.

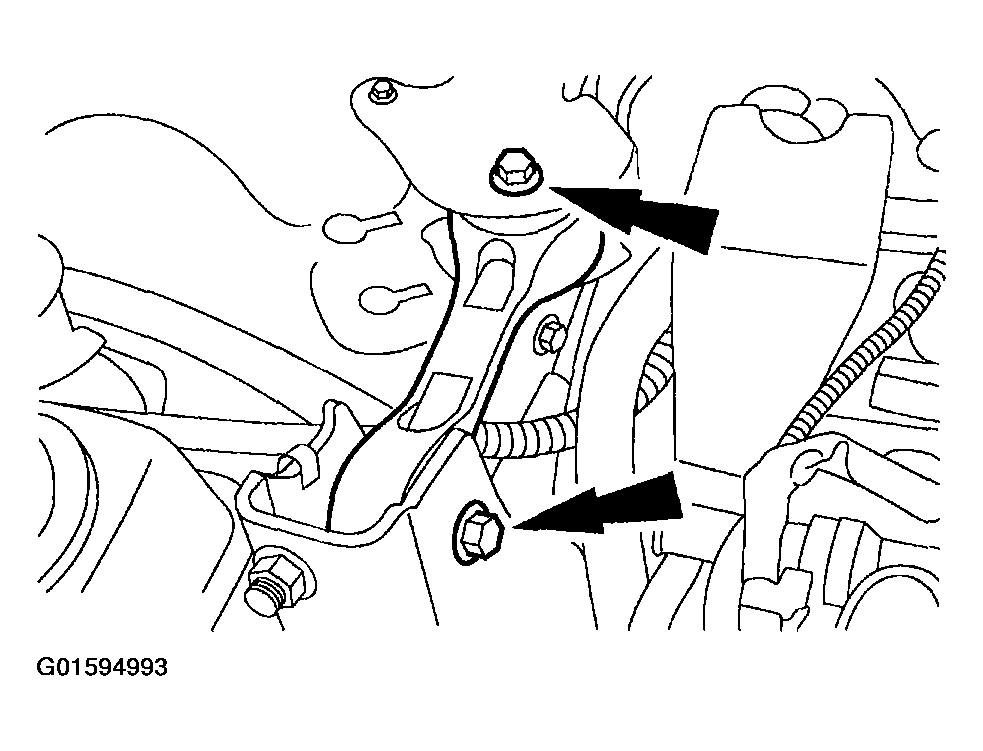

   Fig 3: Removing Roll Restrictor Bracket

   Courtesy of FORD MOTOR CO.

   Vehicles With 3.0L (2V) Engine

4. Remove the nut.

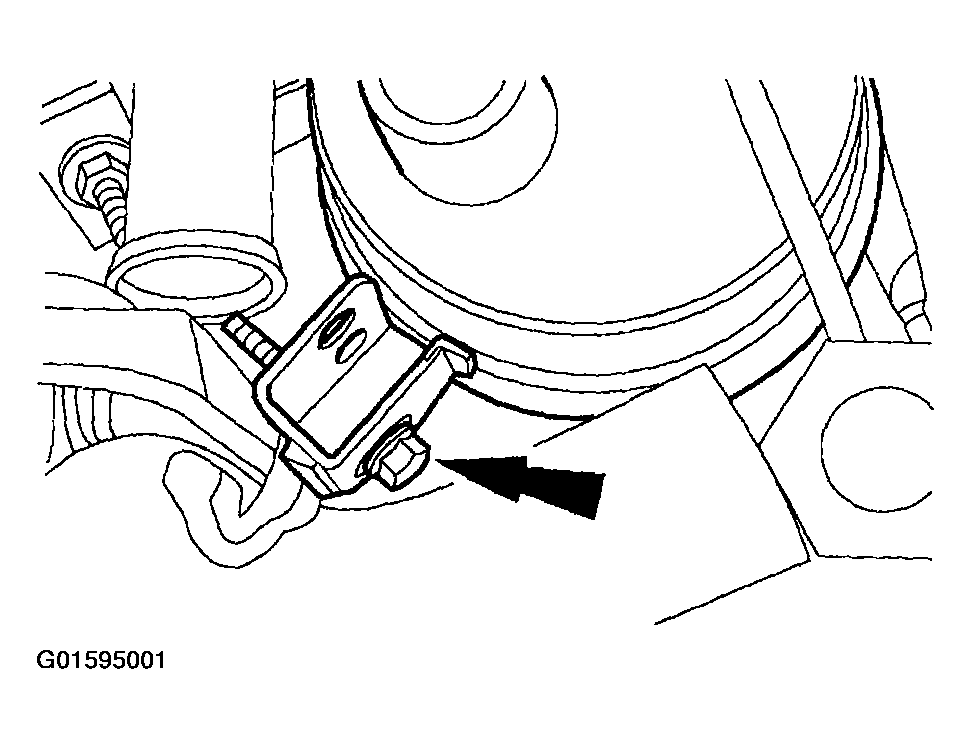

   Fig 4: Removing A/C Hose Support Bracket-3.0L (2V) Engine

   Courtesy of FORD MOTOR CO.
5. Remove the stud.
   Fig 5: Removing Stud

   Courtesy of FORD MOTOR CO.
6. Position the degas bottle aside.
   1. Disconnect the hose.
   2. Remove the bolt and nut. Position the degas bottle aside.

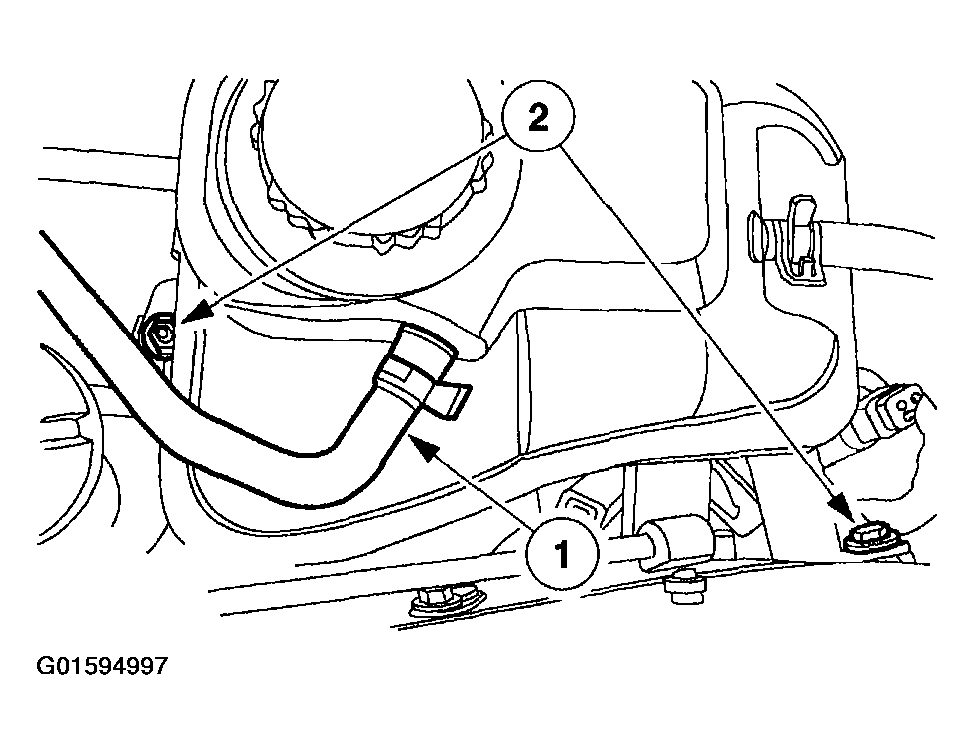

   Fig 6: Disconnecting Hose

   Courtesy of FORD MOTOR CO.

   Vehicles With 3.0L (4V) Engine

7. Remove the nut and the A/C hose support bracket.
   Fig 7: Removing A/C Hose Support Bracket-3.0L (4V) Engine

   Courtesy of FORD MOTOR CO.
8. Remove the degas bottle. For additional information, refer to ENGINE COOLING .

   All Vehicles

9. Disconnect the suction accumulator spring lock coupling. Remove and discard the O-ring seal. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
   • During installation, install a new O-ring seal lubricated with PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C), or equivalent meeting Ford specification WSH-M1C231-B.
10. Disconnect the A/C cycling switch electrical connector.

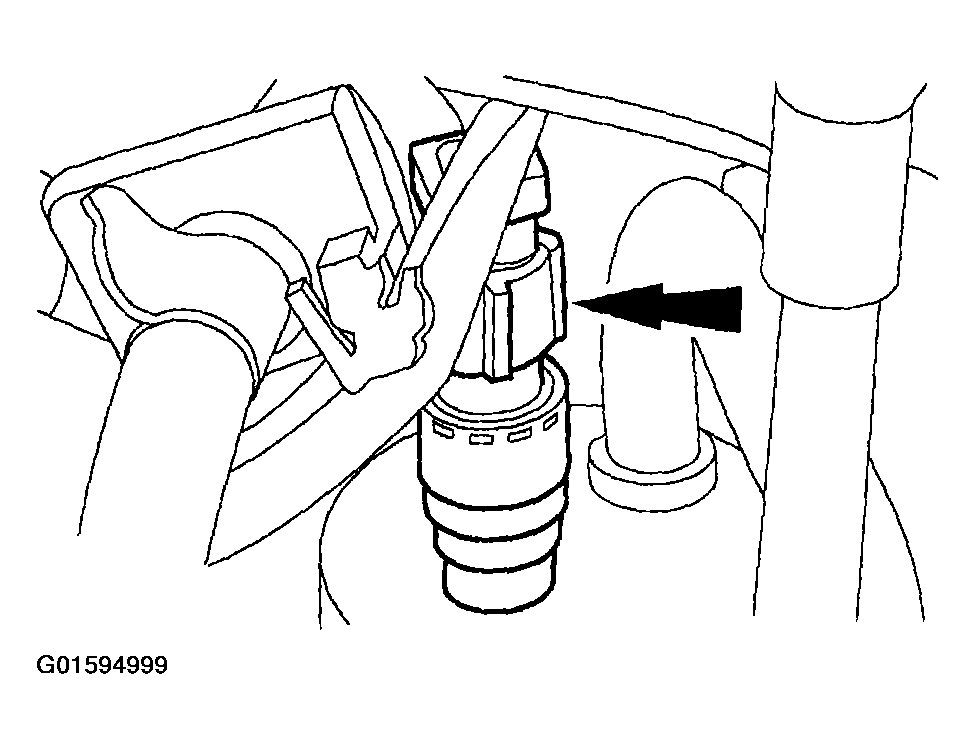

    Fig 8: Disconnecting A/C Cycling Switch Electrical Connector

    Courtesy of FORD MOTOR CO.
11. Disconnect the suction accumulator spring lock coupling. Remove and discard the O-ring seal. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
    • During installation, install a new O-ring seal lubricated with PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C), or equivalent meeting Ford specification WSH-M1C231-B.
    Fig 9: Disconnecting Suction Accumulator Spring Lock Coupling

    Courtesy of FORD MOTOR CO.
12. Remove the screw.
    Fig 10: Removing Screw

    Courtesy of FORD MOTOR CO.
13. Remove the suction accumulator (19C836).
14. To install, reverse the removal procedure.
15. 15. Evacuate, leak test and charge the A/C system. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
