Shaft Seal: Removal

WARNING: This page is about a different car, the 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the A/C clutch (2884) from the A/C compressor (19703). For additional information, refer to CLUTCH AND CLUTCH FIELD COIL .
Remove the shaft seal felt from the nose of the A/C compressor with the special tool.

Fig 1: Removing Shaft Seal Felt From Nose Of A/C Compressor
Courtesy of FORD MOTOR CO.
Clean the compressor nose area.
Insert the tip of the special tool into one of the snap ring eyes.

Fig 2: Inserting Tip Of Special Tool Into One Of Snap Ring Eyes
Courtesy of FORD MOTOR CO.
Rotate the special tool to position the tool tip and the snap ring eye closest to the A/C compressor shaft.

Fig 3: Attaching Special Tool
Courtesy of FORD MOTOR CO.
Pull the special tool up quickly while keeping the tool shaft against the side of the nose opening and remove the snap ring.

Fig 4: Removing Snap Ring
Courtesy of FORD MOTOR CO.
Engage the special tool into the inside diameter of the shaft seal.

Fig 5: Installing Special Tool Into Inside Diameter Of Shaft Seal
Courtesy of FORD MOTOR CO.
Turn the tool handle clockwise to expand the tool tip inside of the shaft seal.

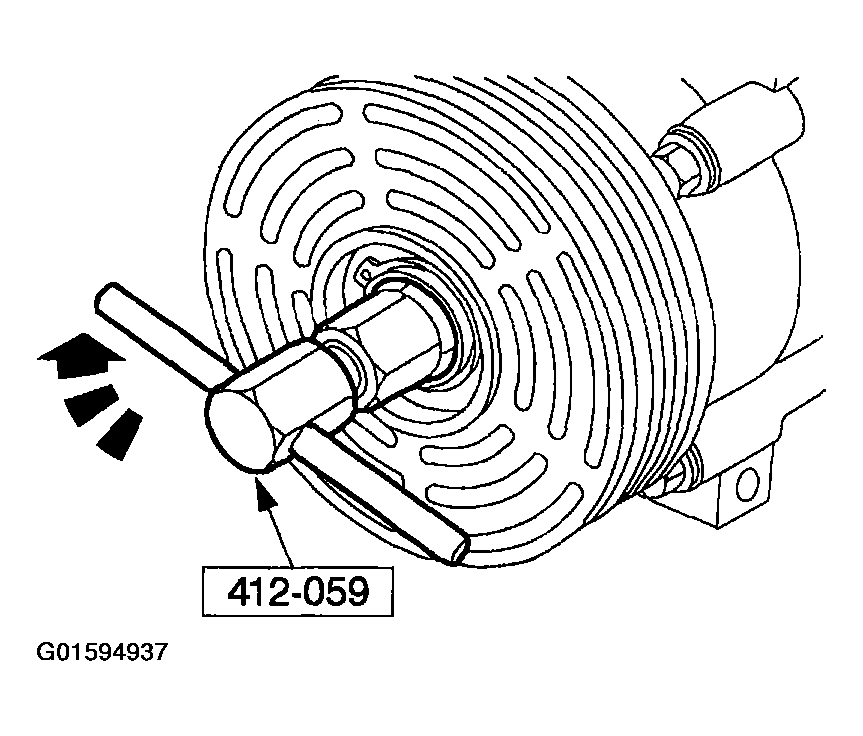

Fig 6: Turning Special Tool Handle Clockwise
Courtesy of FORD MOTOR CO.
Pull the seal from the A/C compressor.

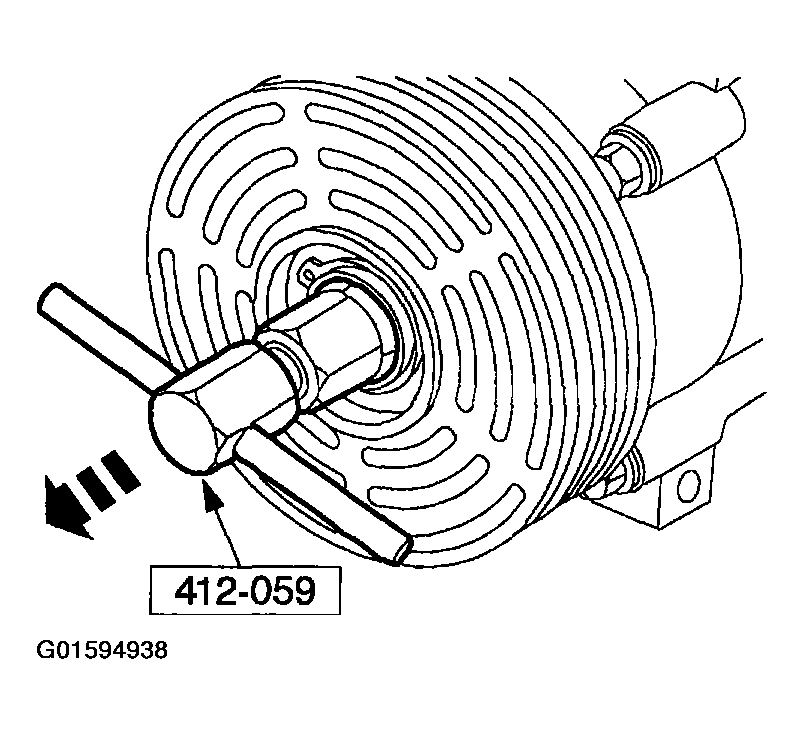

Fig 7: Pulling A/C Compressor Seal
Courtesy of FORD MOTOR CO.
