Shaft Seal: Installation

WARNING: This page is about a different car, the 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: To prevent refrigerant system contamination, do not allow dirt or other foreign materials to enter the A/C compressor.

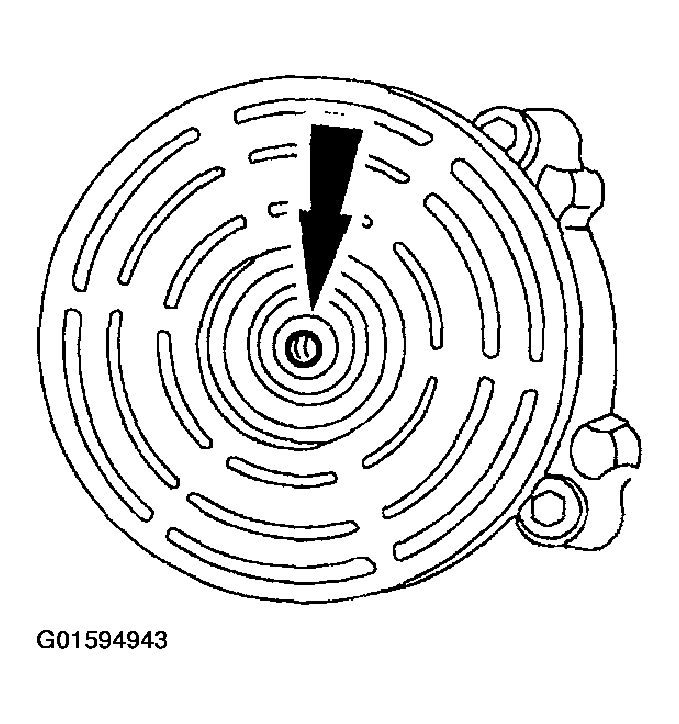

Clean the A/C compressor nose area.
Place the shaft seal on the special tool. Lubricate the shaft seal and the special tool with PAG oil or equivalent.

Fig 1: Placing Shaft Seal On Special Tool
Courtesy of FORD MOTOR CO.

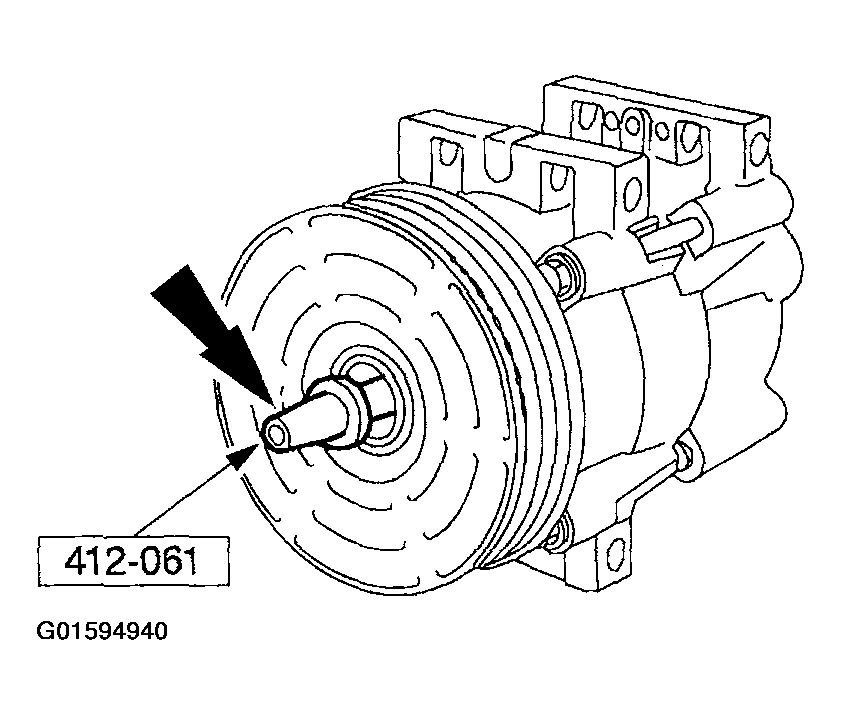

Position the shaft seal and the special tool over the A/C compressor shaft.

Fig 2: Positioning Shaft Seal
Courtesy of FORD MOTOR CO.

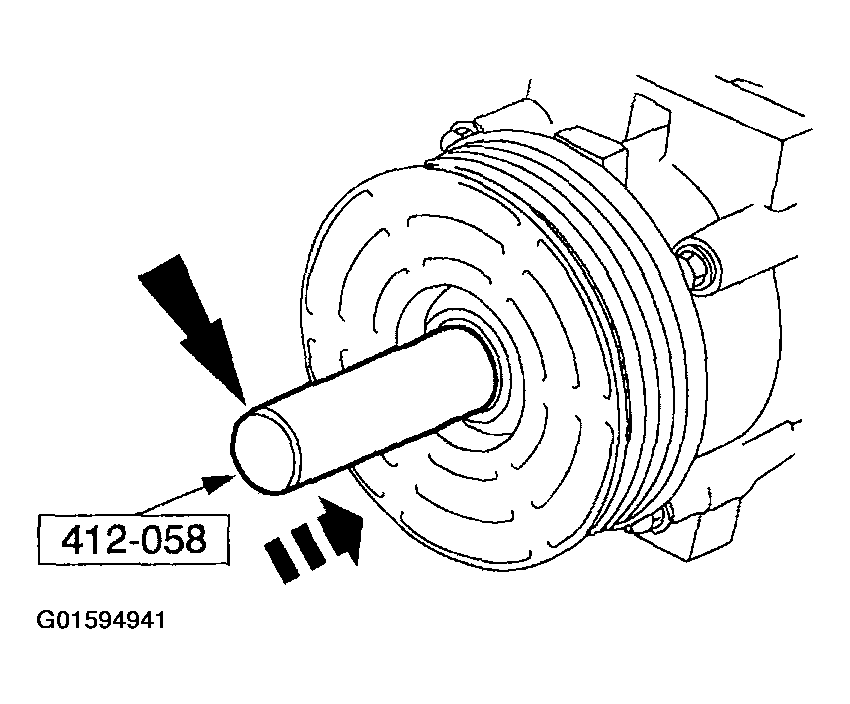

Push the shaft seal onto the A/C compressor shaft with the special tool until seated.

Fig 3: Installing Shaft Seal
Courtesy of FORD MOTOR CO.
Install the shaft seal snap ring.

Fig 4: Installing Shaft Seal Snap Ring
Courtesy of FORD MOTOR CO.
Carry out the A/C Compressor-External Leak Test. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
Install the shaft seal felt.

Fig 5: Installing Shaft Seal Felt
Courtesy of FORD MOTOR CO.
Install the A/C clutch. For additional information, refer to CLUTCH AND CLUTCH FIELD COIL .
