Removal and Installation

All Vehicles

1. Recover the refrigerant. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
2. Raise and support the vehicle. .
3. Remove the lower radiator air deflector.
   1. Remove the five screws. Remove the air deflector, if equipped.
   2. Remove the seven screws and the lower radiator air deflector.

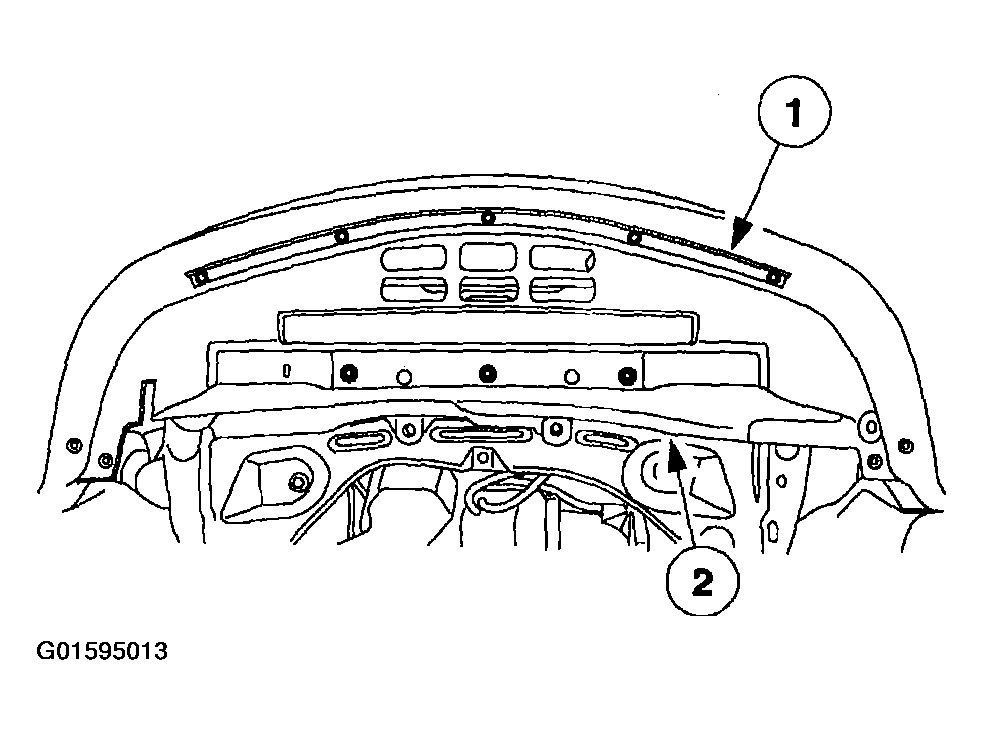

   Fig 1: Removing Lower Radiator Air Deflector

   Courtesy of FORD MOTOR CO.
4. Disconnect the compressor manifold and tube assembly.
   • Discard the O-ring seals.

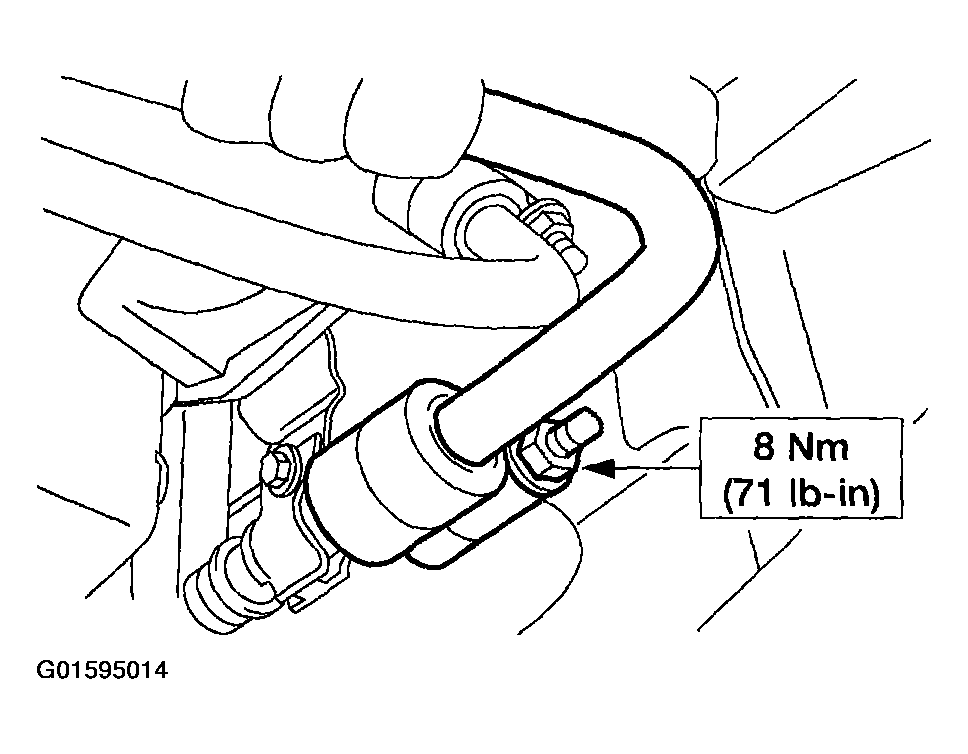

   Fig 2: Disconnecting Compressor Manifold And Tube Assembly

   Courtesy of FORD MOTOR CO.
5. Lower the vehicle.

   Vehicles With CII Power Steering Pump

6. Disconnect the power steering line.
   • Discard the O-ring seal.

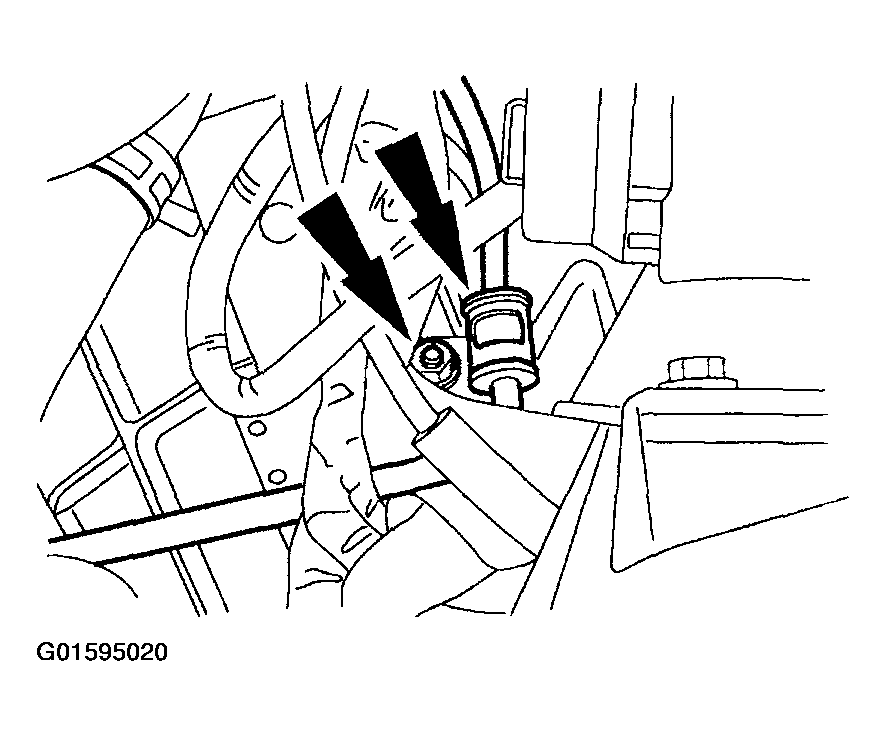

   Fig 3: Disconnecting Power Steering Line-CII Power Steering Pump

   Courtesy of FORD MOTOR CO.
7. Remove the nut and detach the power steering line bracket.

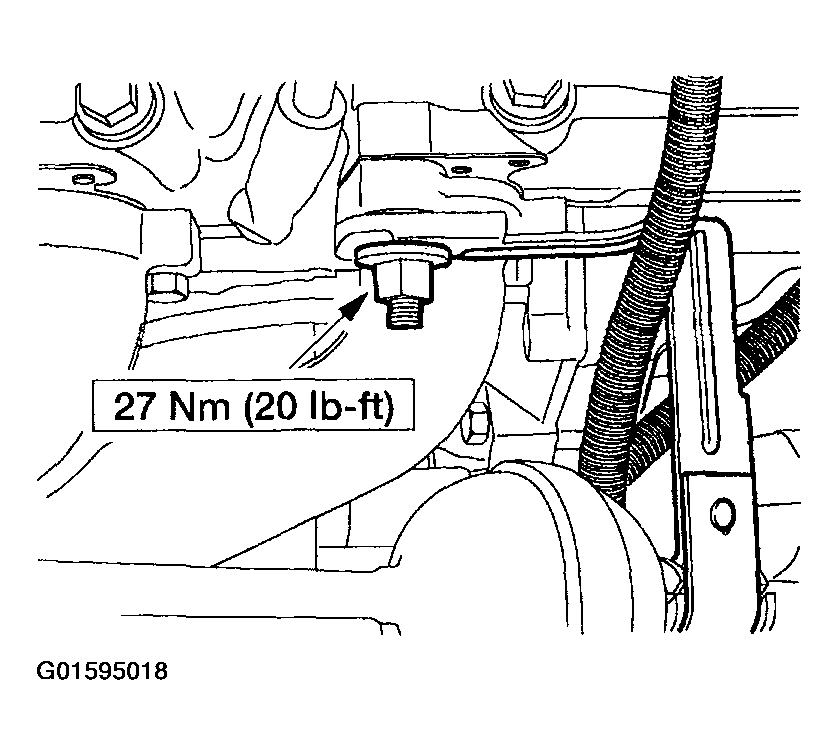

   Fig 4: Detaching Power Steering Line Bracket-CII Power Steering Pump

   Courtesy of FORD MOTOR CO.

   Vehicles With CIII Power Steering Pump

8. Remove the power steering pump pulley. For additional information, refer to POWER STEERING .
9. Disconnect the power steering line.
   • Discard the O-ring seal.

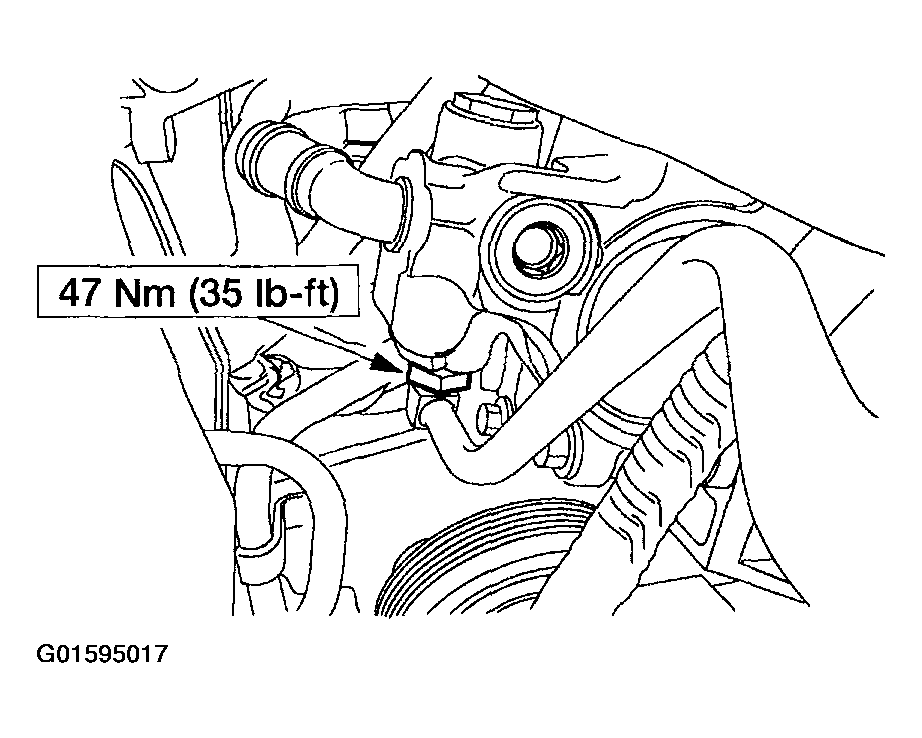

   Fig 5: Disconnecting Power Steering Line-CIII Power Steering Pump

   Courtesy of FORD MOTOR CO.
10. Remove the nut and detach the power steering line bracket.

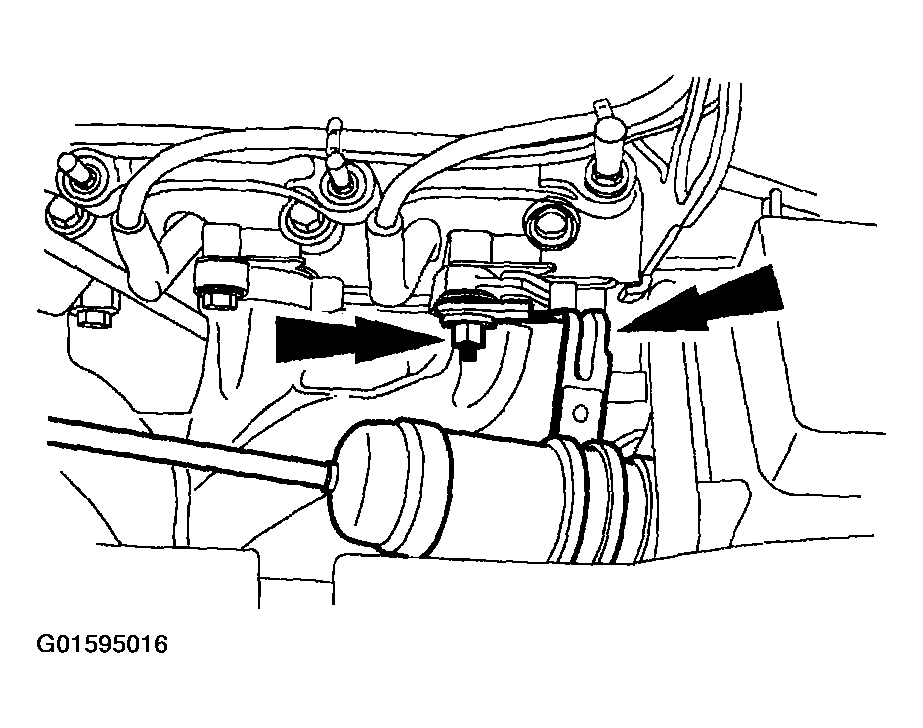

    Fig 6: Detaching Power Steering Line Bracket-CIII Power Steering Pump

    Courtesy of FORD MOTOR CO.

    All Vehicles

11. Using the special tool, install a new O-ring seal on the power steering pressure line fitting.
    Fig 7: Installing O-Ring Seal On Power Steering Pressure Line Fitting

    Courtesy of FORD MOTOR CO.
12. Remove the nut and detach the power steering line.

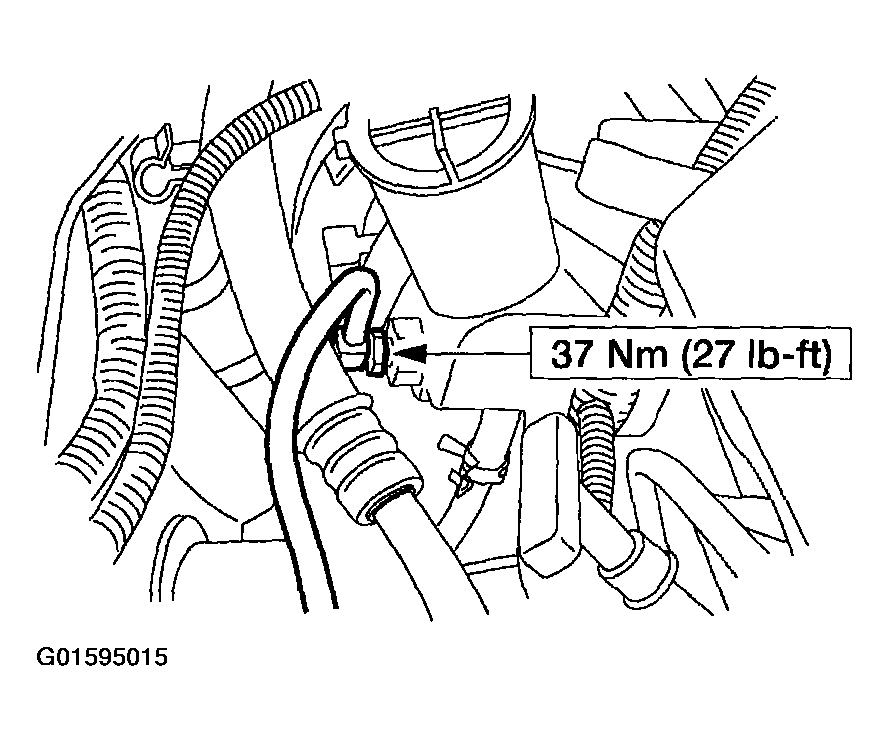

    Fig 8: Detaching Power Steering Line

    Courtesy of FORD MOTOR CO.
13. Disconnect the compressor manifold and tube assembly spring lock coupling.
    • Discard the O-ring seals.

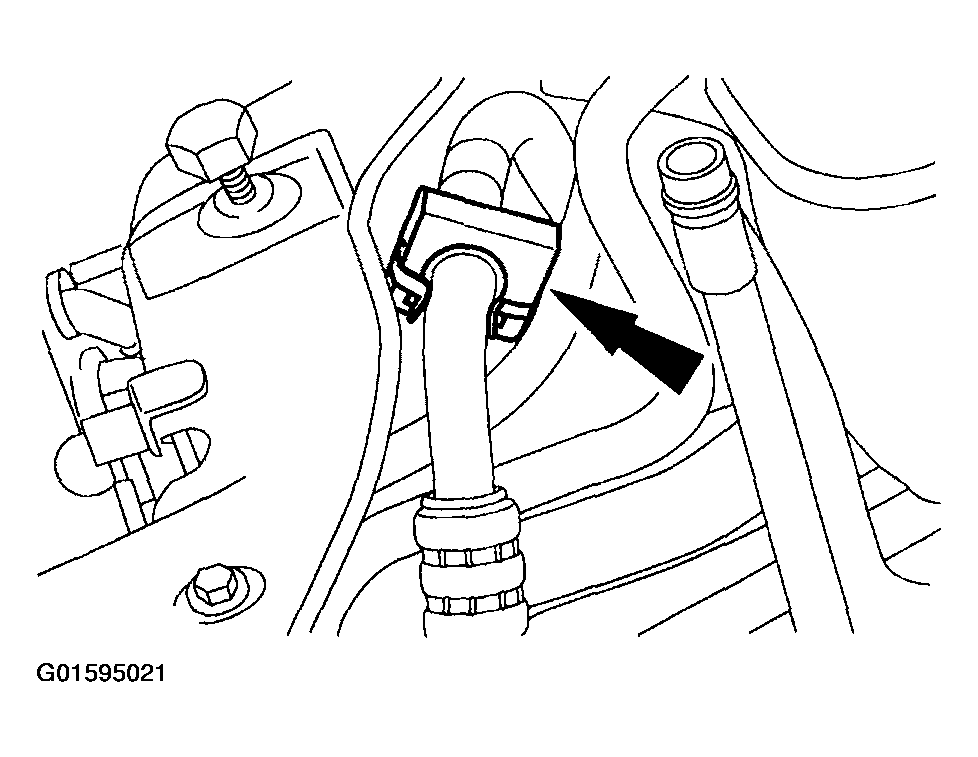

    Fig 9: Disconnecting Compressor Manifold And Tube Assembly Spring Lock Coupling

    Courtesy of FORD MOTOR CO.
14. Remove the compressor manifold and tube assembly.
    1. Disconnect the pressure cutoff switch.
    2. Remove the bolt.
    3. Remove the compressor manifold and tube assembly.
       • Discard the O-ring seals.

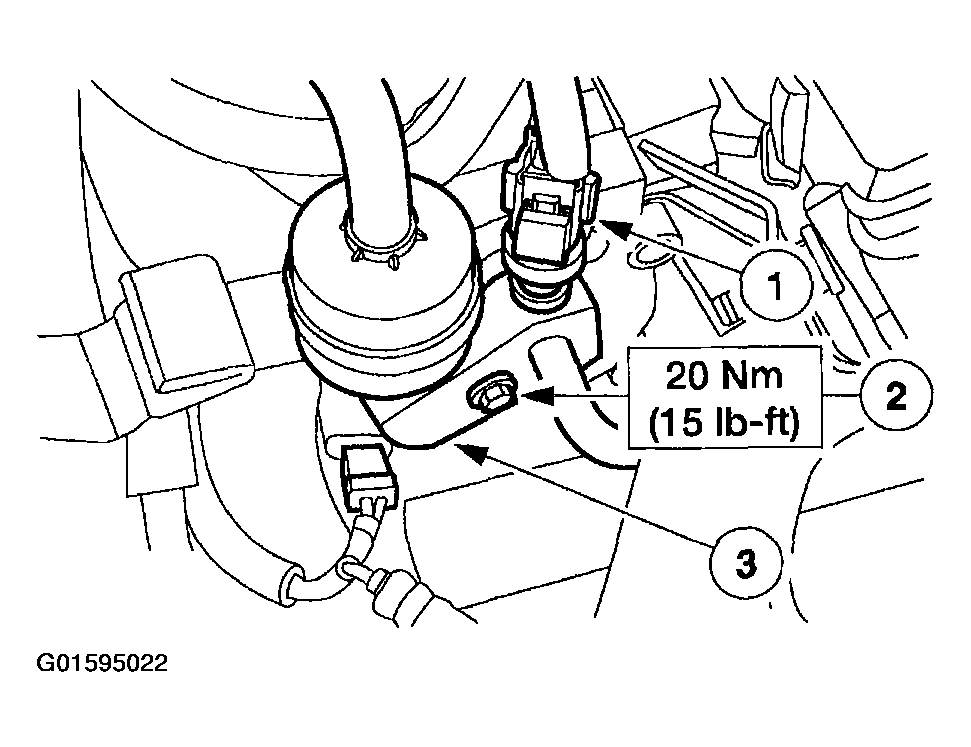

       Fig 10: Removing Compressor Manifold And Tube Assembly

       Courtesy of FORD MOTOR CO.
15. To install, reverse the removal procedure.
    • Install new A/C O-ring seals lubricated in clean PAG oil.
    • Lubricate the refrigerant system with the correct amount of clean PAG oil. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
16. Evacuate, leak test and charge the A/C system. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
