Clutch And Clutch Field Coil: Installation

WARNING: This page is about a different car, the 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Clean the A/C compressor clutch field coil and pulley bearing mounting surfaces.

CAUTION: Do not use air tools. The A/C compressor clutch field coil can be easily damaged.

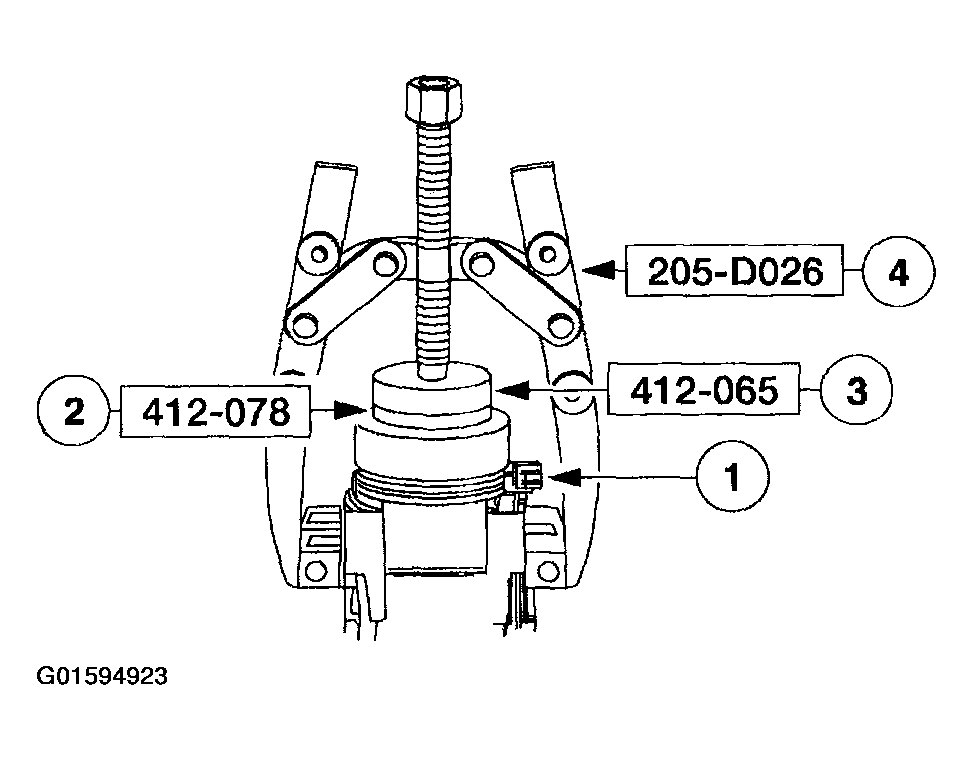

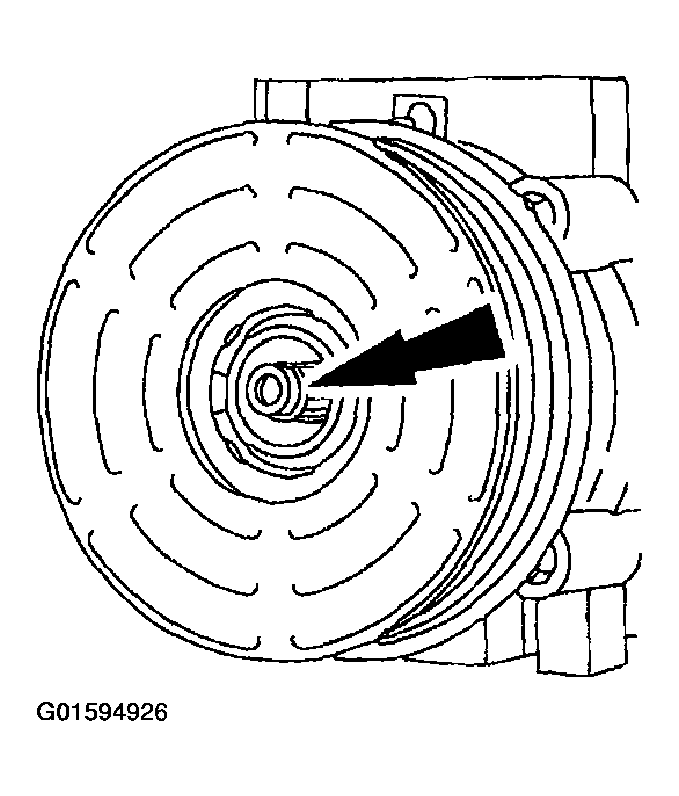

Fig 1: Installing A/C Compressor Clutch Field Coil

Courtesy of FORD MOTOR CO.

Install the A/C compressor clutch field coil.
1. Place the A/C compressor clutch field coil on the A/C compressor with the A/C compressor clutch field coil electrical connector correctly positioned.
2. Place the special tool on the A/C compressor clutch field coil.
3. Place the special tool on the special tool.
4. Use the special tool to install the A/C compressor clutch field coil until bottomed completely against the A/C compressor.

NOTE: The A/C clutch pulley is a tight fit on the A/C compressor head; it must be correctly aligned during installation.

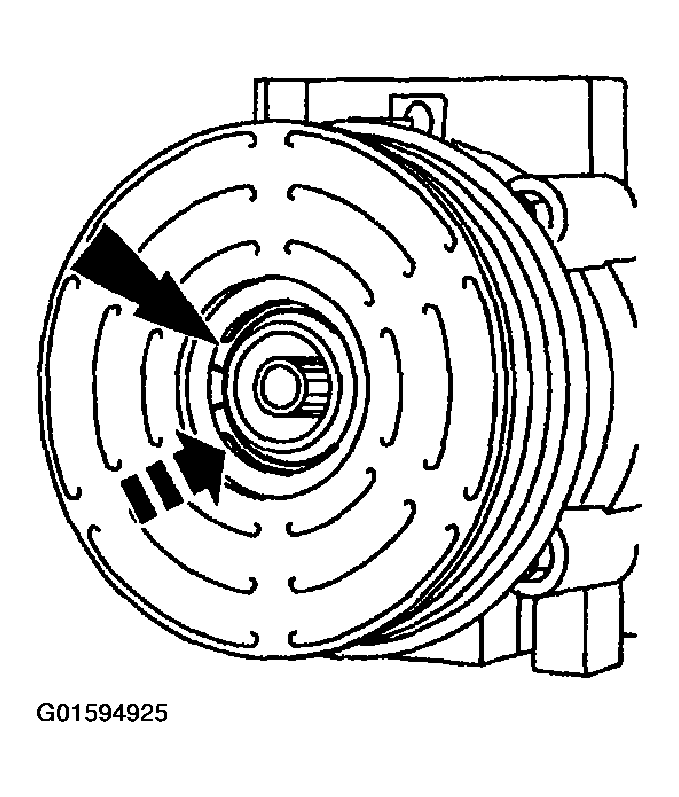

Fig 2: Installing A/C Clutch Pulley

Courtesy of FORD MOTOR CO.

Install the A/C clutch pulley.
Install the pulley snap ring with the bevel side out.

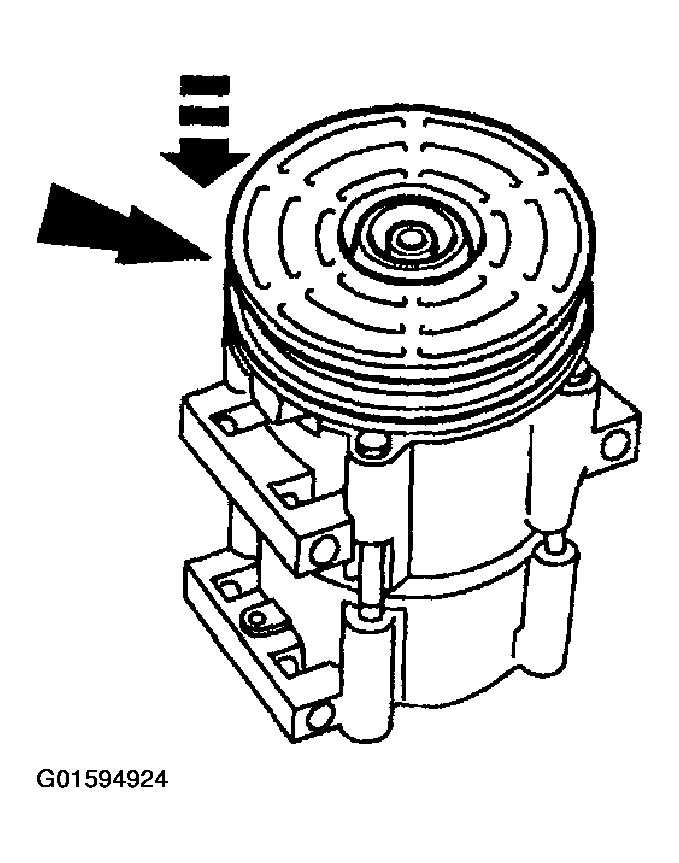

Fig 3: Installing Pulley Snap Ring
Courtesy of FORD MOTOR CO.
Place one nominal thickness A/C clutch hub spacer inside the clutch hub spline opening.

Fig 4: Placing A/C Clutch Hub Spacer
Courtesy of FORD MOTOR CO.
Install the A/C clutch.

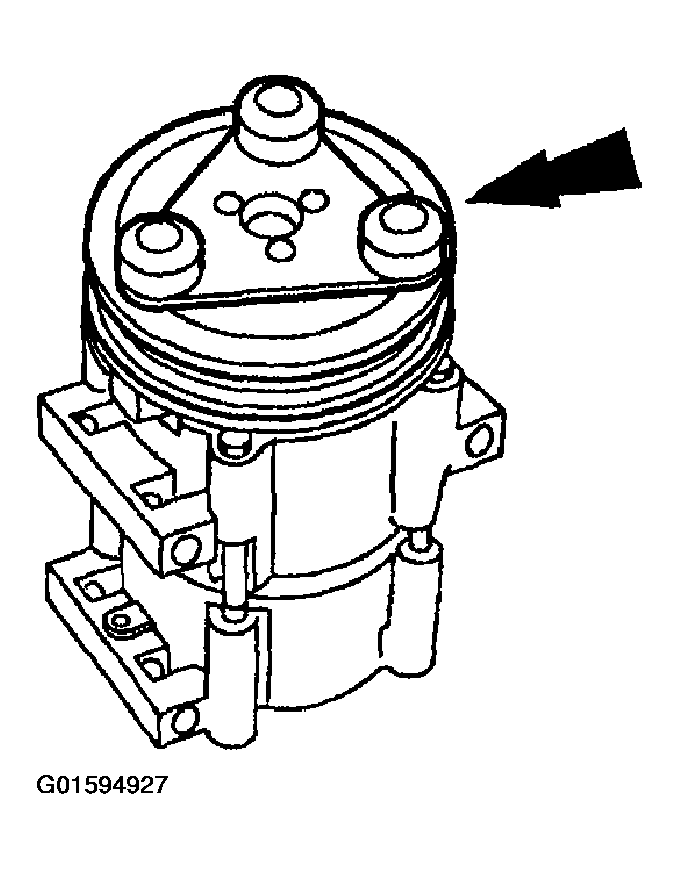

Fig 5: Installing A/C Clutch
Courtesy of FORD MOTOR CO.
Install the A/C clutch hub retaining bolt.
1. Hold the A/C clutch hub with the special tool.
2. Tighten the bolt.
Fig 6: Installing A/C Clutch Hub Retaining Bolt Using Special Tool
Courtesy of FORD MOTOR CO.
Measure and adjust the clutch air gap by removing or adding A/C clutch hub spacers.

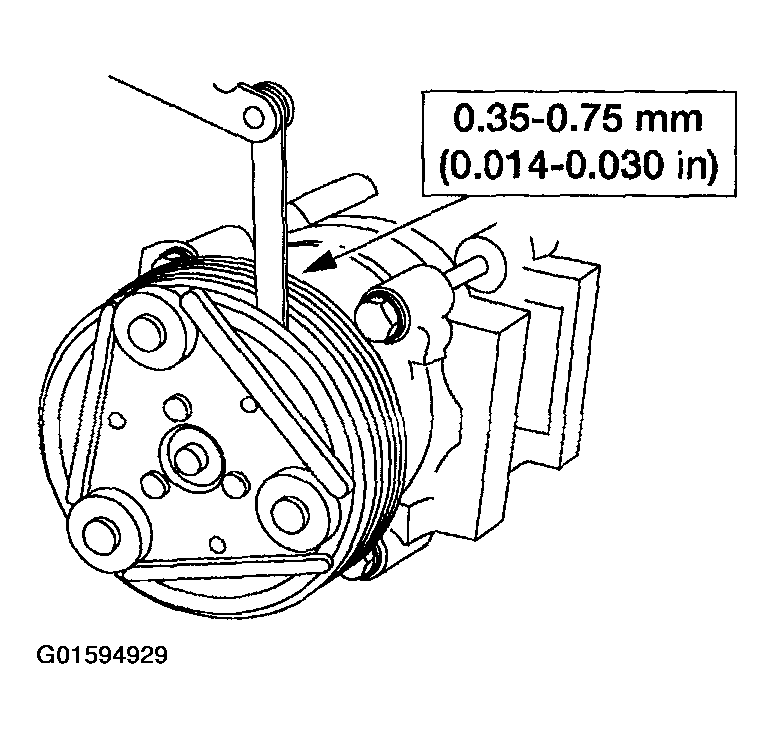

Fig 7: Measuring Clutch Air Gap
Courtesy of FORD MOTOR CO.
Install the A/C compressor. For additional information, refer to AIR CONDITIONING (A/C) COMPRESSOR-3.0L (2V) or AIR CONDITIONING (A/C) COMPRESSOR - 3.0L (4V) .
