Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If installing a new air conditioning compressor due to an internal failure of the old unit, you must carry out the following procedures to remove contamination from the air conditioning system.
  • If A/C flushing equipment is available, carry out the flushing of the air conditioning system prior to installing a new air conditioning compressor. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
  • If A/C flushing equipment is not available, carry out filtering of the air conditioning system after a new air conditioning compressor has been installed. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
  • Install a new evaporator core orifice (19D990) as directed by the A/C flushing or filtering procedure.
  • Install a new suction accumulator (19C836) as directed by the A/C flushing or filtering procedure.
NOTE: Installation of a new suction accumulator is not required when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the suction accumulator.
  1. Remove the compressor manifold and tube assembly (19D734). For additional information, refer to COMPRESSOR MANIFOLD AND TUBE ASSEMBLY-3.0L (4V) .
  2. Remove the accessory drive belt (8620) from the A/C compressor pulley.
    3. NOTE: Move the A/C compressor toward the rear of the engine and remove the A/C compressor through the battery junction box mounting location.

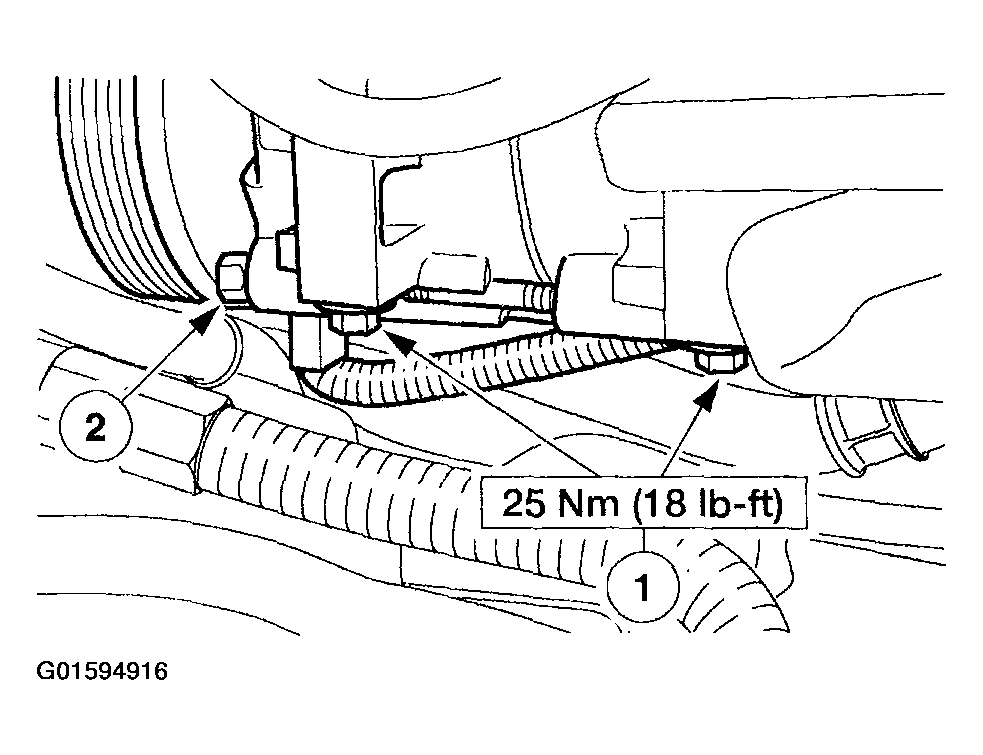

    Fig 1: Removing A/C Compressor-3.0L (4V)
    G01594916Courtesy of FORD MOTOR CO.
  3. Remove the A/C compressor.
    1. Remove the four bolts.
    2. Remove the A/C compressor.
  4. To install, reverse the removal procedure.
    • If a new A/C compressor is to be installed, the A/C compressor clutch field coil (2987), the A/C compressor pulley and bearing (2E884), and the A/C clutch plate (2884) must be transferred from the old unit. For additional information, refer to CLUTCH AND CLUTCH FIELD COIL .
    • If filtering of the refrigerant system is not to be performed, lubricate the refrigerant system with the correct amount of clean PAG oil or equivalent. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
    • Install new O-ring seals lubricated in clean PAG oil or equivalent.
  5. If filtering of the refrigerant system is not to be performed, evacuate, charge and leak test the refrigerant system. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
