Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If installing a new air conditioning compressor due to an internal failure of the old unit, you must carry out the following procedures to remove contamination from the air conditioning system.
  • If A/C flushing equipment is available, carry out flushing of the air conditioning system prior to installing a new air conditioning compressor. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
  • If A/C flushing equipment is not available, carry out filtering of the air conditioning system after a new air conditioning compressor has been installed. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
  • Install a new evaporator core orifice (19D990) as directed by the A/C flushing or filtering procedure.
  • Install a new suction accumulator (19C836) as directed by the A/C flushing or filtering procedure.
NOTE: Installation of a new suction accumulator is not required when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the suction accumulator.

    All Vehicles

  1. If flushing of the air conditioning system has not been performed, recover the refrigerant. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
  2. Remove the RH cooling fan. For additional information, refer to ENGINE COOLING .

    3. Vehicles With CII Power Steering Pump

  3. Loosen the tensioner and remove the drive belt from the A/C compressor pulley.

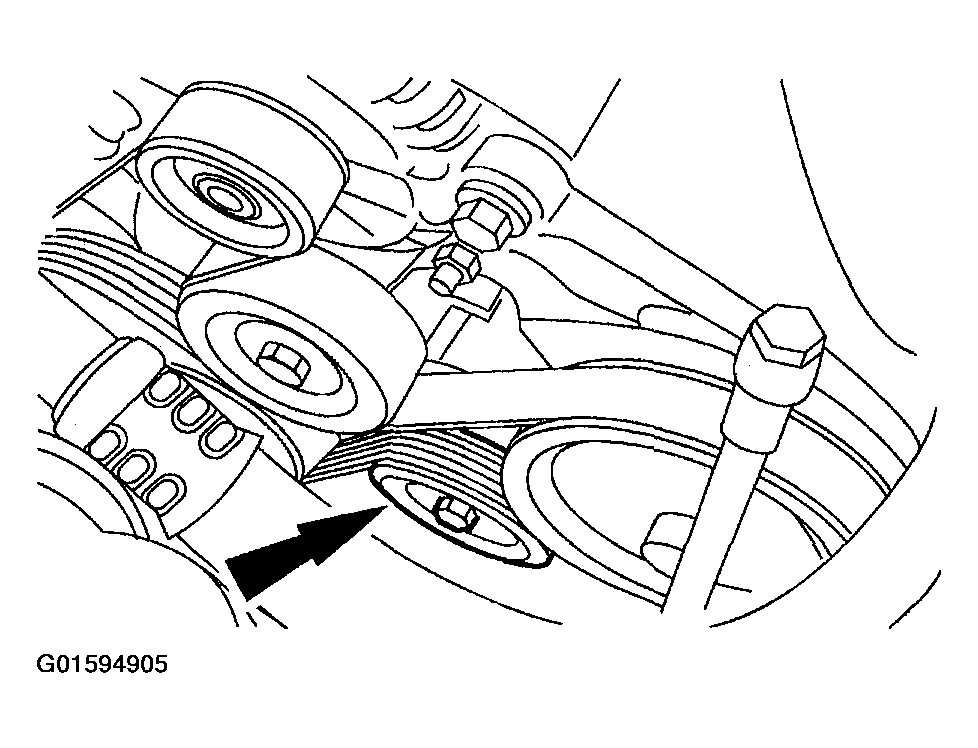

    Fig 1: Locating Drive Belt Tensioner (CII Power Steering Pump)
    G01594905Courtesy of FORD MOTOR CO.
  4. Disconnect the power steering pressure line.
    • Discard the O-ring seal.

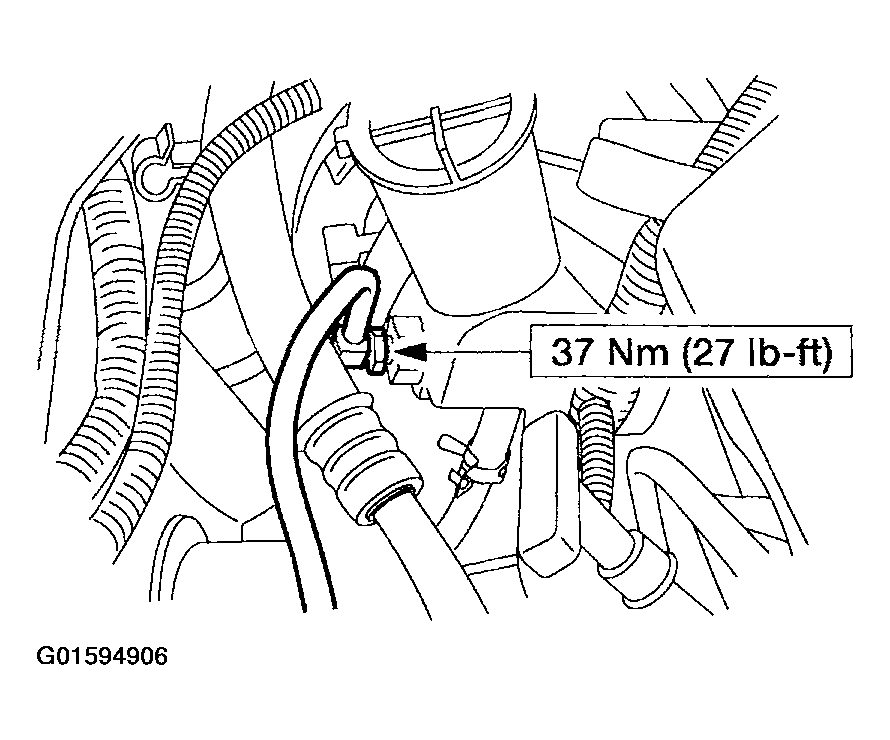

    Fig 2: Disconnecting Power Steering Pressure Line (CII Power Steering Pump)
    G01594906Courtesy of FORD MOTOR CO.
  5. Remove the nut and detach the power steering line bracket.

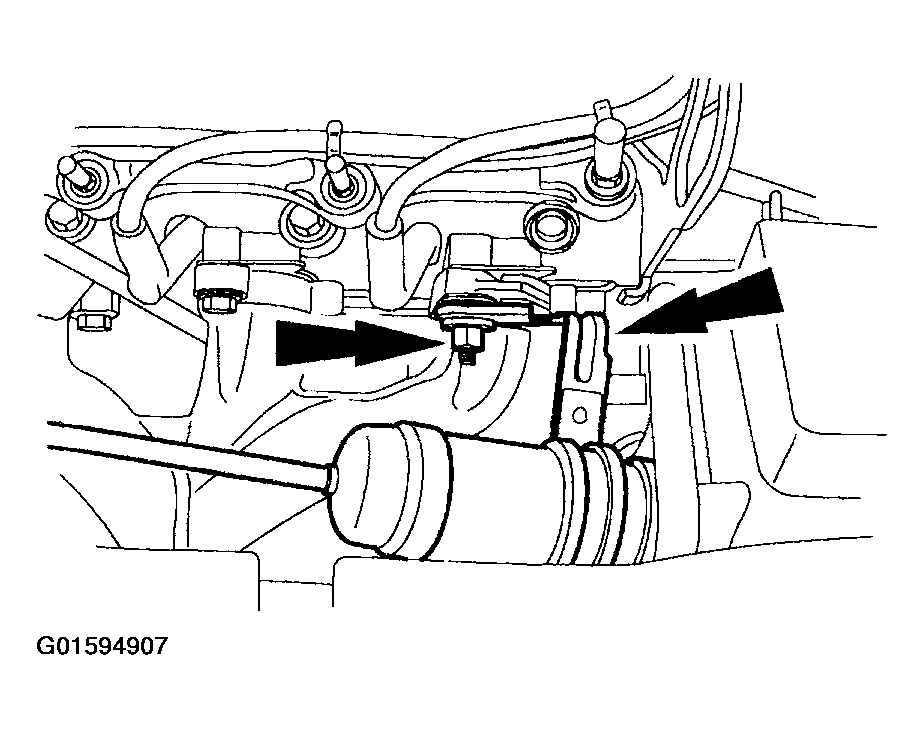

    Fig 3: Removing Power Steering Line Bracket (CII Power Steering Pump)
    G01594907Courtesy of FORD MOTOR CO.

    Vehicles With CIII Power Steering Pump

  6. Remove the power steering pump pulley. For additional information, refer to POWER STEERING .
  7. Disconnect the power steering line.
    • Discard the O-ring seal.

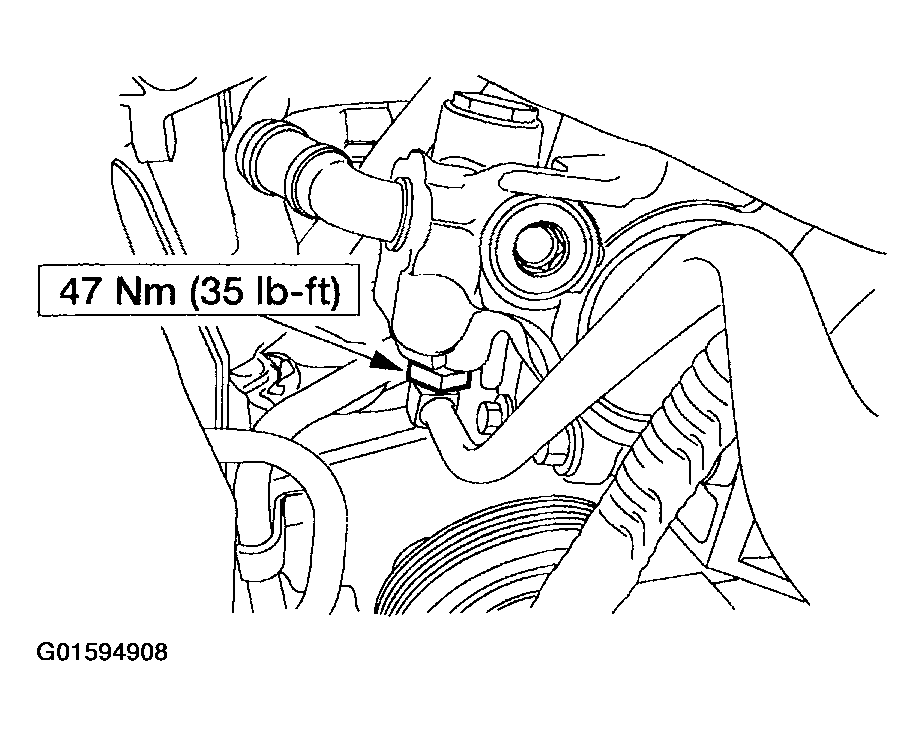

    Fig 4: Disconnecting Power Steering Line (CIII Power Steering Pump)
    G01594908Courtesy of FORD MOTOR CO.
  8. Remove the nut and detach the power steering line bracket.

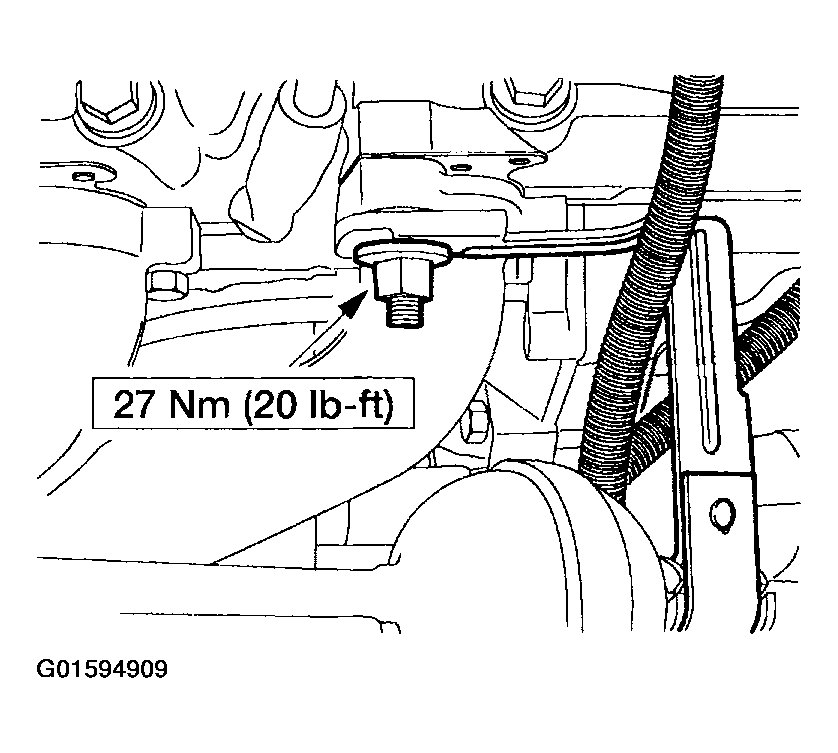

    Fig 5: Removing Power Steering Line Bracket (CIII Power Steering Pump)
    G01594909Courtesy of FORD MOTOR CO.

    All Vehicles

  9. Using the special tool, install a new O-ring seal on the power steering pressure line fitting.
    Fig 6: Installing O-Ring Seal On Power Steering Pressure Line (All Vehicles)
    G01594910Courtesy of FORD MOTOR CO.
  10. Remove the nut and detach the power steering line.

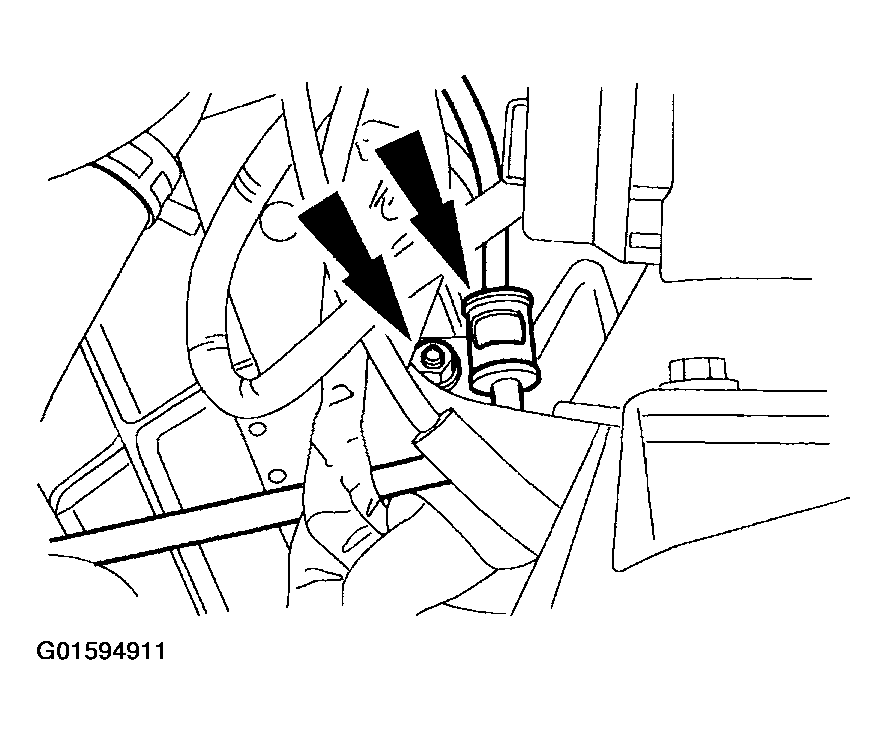

    Fig 7: Removing Power Steering Line (All Vehicles)
    G01594911Courtesy of FORD MOTOR CO.
  11. Disconnect the compressor manifold and tube assembly spring lock coupling.
    • Discard the O-ring seal.

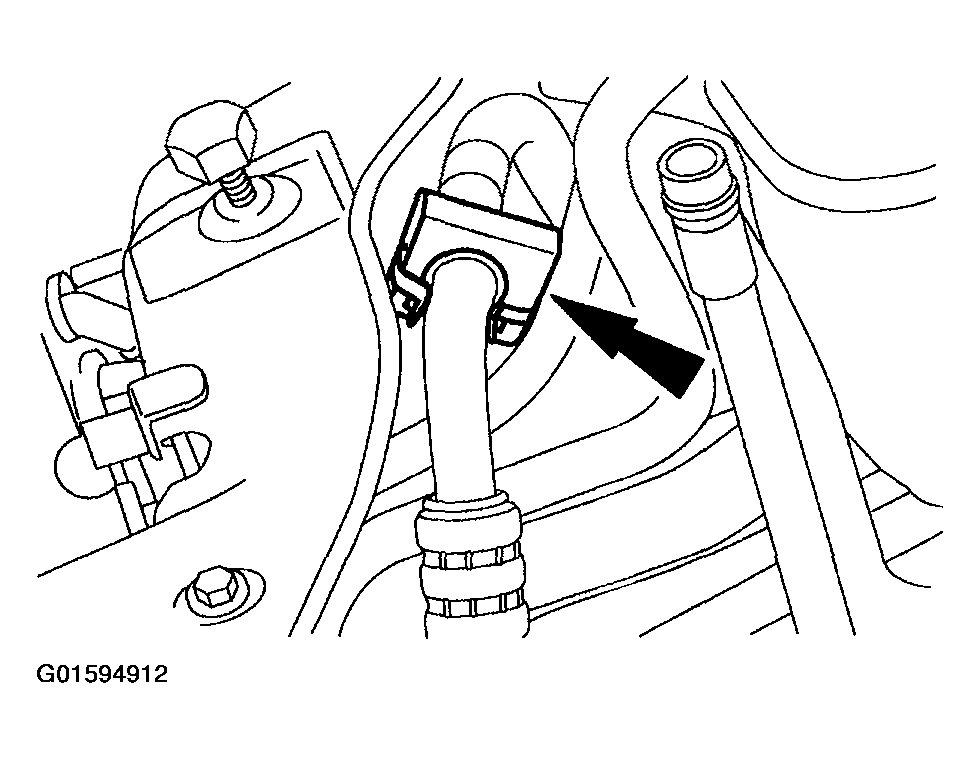

    Fig 8: Locating Spring Lock Coupling
    G01594912Courtesy of FORD MOTOR CO.
  12. Disconnect the compressor manifold and tube assembly.
    1. Disconnect the dual function pressure cutoff switch electrical connector.
    2. Disconnect the heated oxygen sensor (HO2S) electrical connector.
    3. Remove the bolt.
    4. Disconnect the compressor manifold and tube assembly.
      • Discard the O-ring seals.

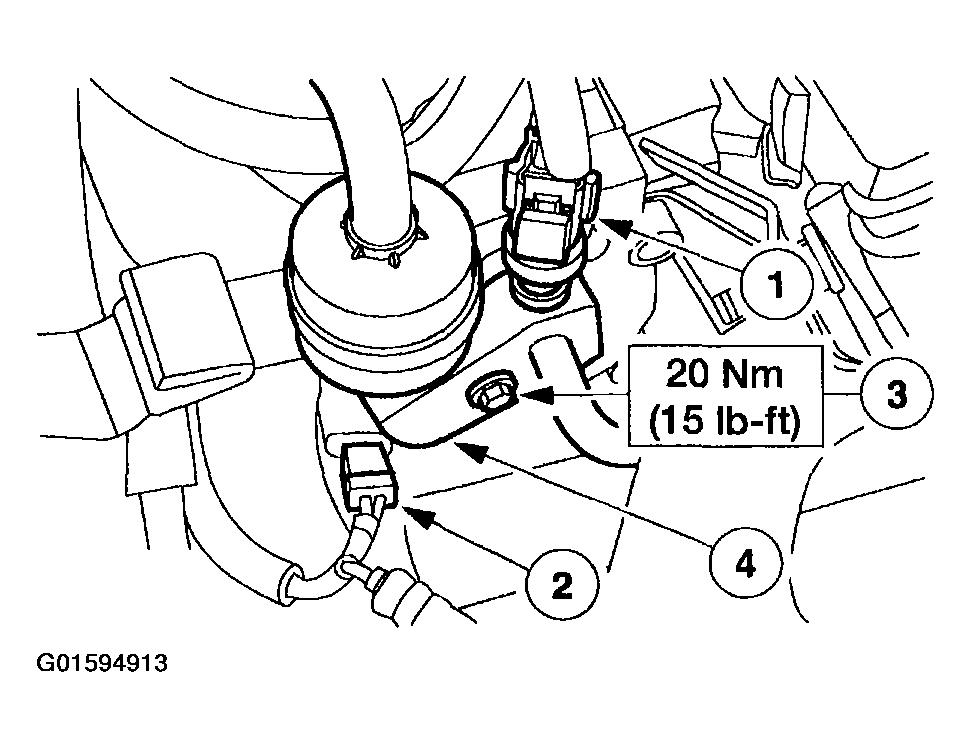

      Fig 9: Disconnecting Compressor Manifold And Tube Assembly
      G01594913Courtesy of FORD MOTOR CO.
  13. Disconnect the compressor field coil electrical connector.
    14. NOTE: The upper LH A/C compressor bolt must be removed with the A/C compressor.

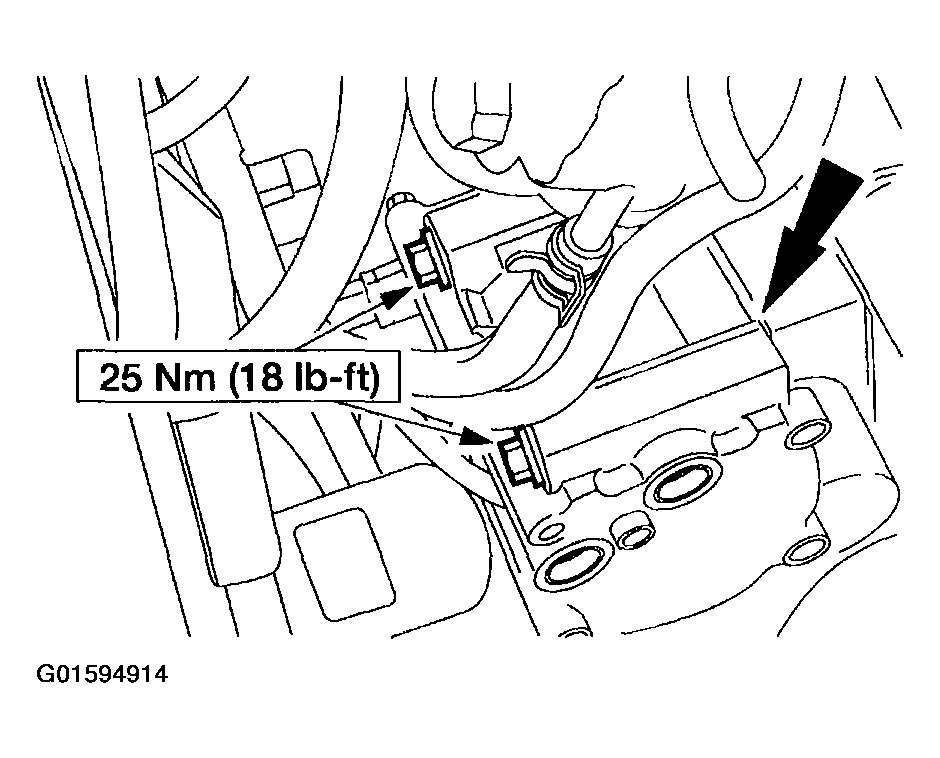

    Fig 10: Removing A/C Compressor
    G01594914Courtesy of FORD MOTOR CO.
  14. Remove the four bolts and the A/C compressor.
  15. To install, reverse the removal procedure.
    • Install new A/C O-ring seals lubricated in clean PAG oil.
    • If filtering of the refrigerant system is not to be performed, lubricate the refrigerant system with the correct amount of clean PAG oil. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
  16. If filtering of the refrigerant system is not to be performed, evacuate, leak test and charge the A/C system. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
