Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable. However, it is still accessible from the selected car via links, so may be relevant.

Remove pin-type retainers and the right instrument panel insulator.

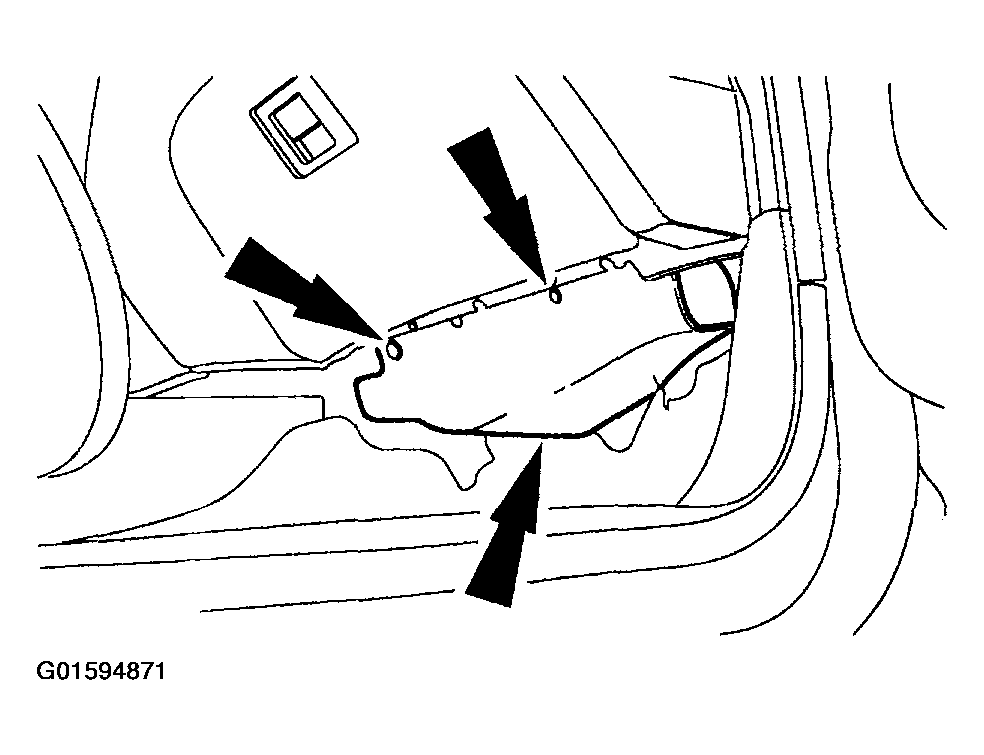

Fig 1: Removing Right Instrument Panel Insulator
Courtesy of FORD MOTOR CO.
Remove the blower motor (19805).
1. Disconnect the electrical connector
2. Remove the screws and remove the blower motor.

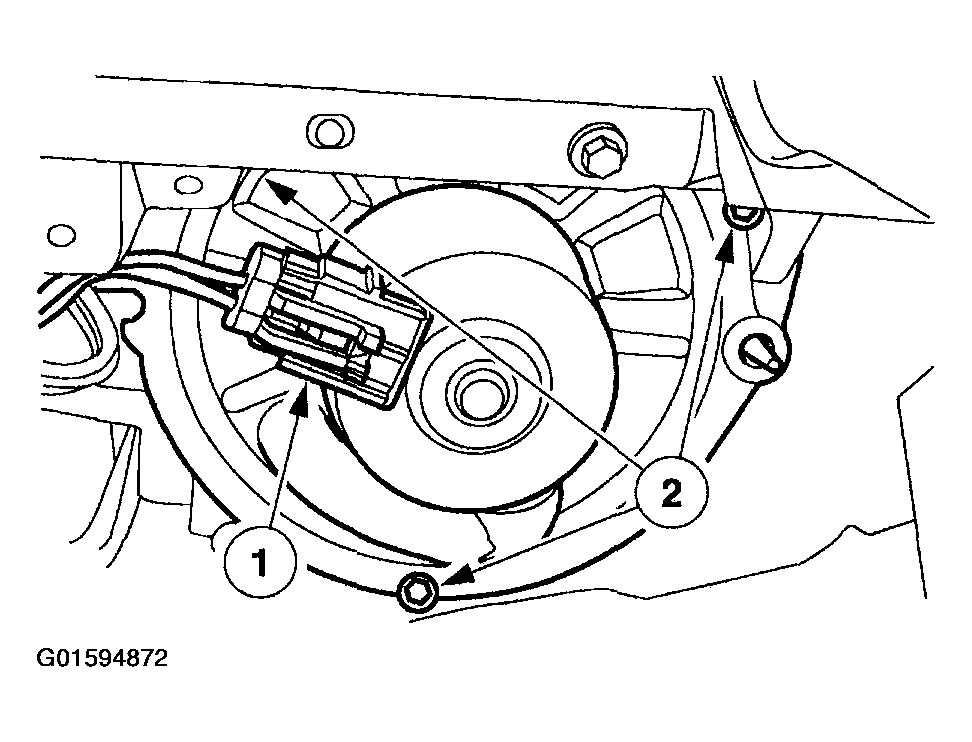

Fig 2: Removing Blower Motor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
