Air Conditioning (A/C) Clutch Air Gap Adjustment

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the A/C clutch air gap at three equally-spaced places between the A/C clutch hub (2884) and the A/C clutch pulley (2E884).

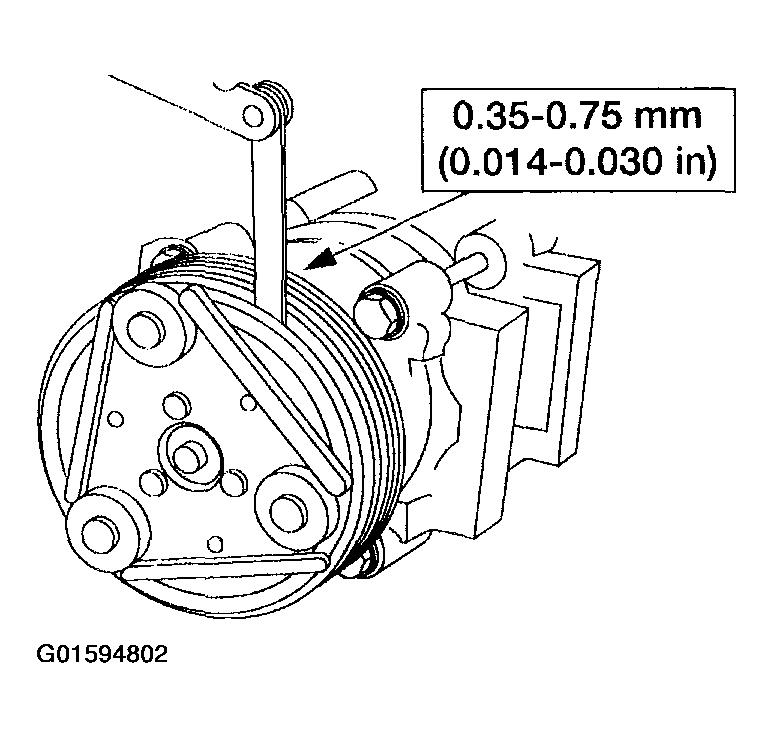

    Fig 1: Checking A/C Clutch Air Gap
    G01594802Courtesy of FORD MOTOR CO.
  2. Remove the A/C clutch. Add or remove spacers between the A/C clutch and the compressor shaft until clearance is within specification. For additional information, refer to AIR CONDITIONING .
