Section 470 (HVAC Control System - General Information)
>>
Diagnosis And Testing
>>
Climate Control System
>>
Special Tool(s)
>>
Manual Climate Control Vacuum Schematic
Manual Climate Control Vacuum Schematic
WARNING:
This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

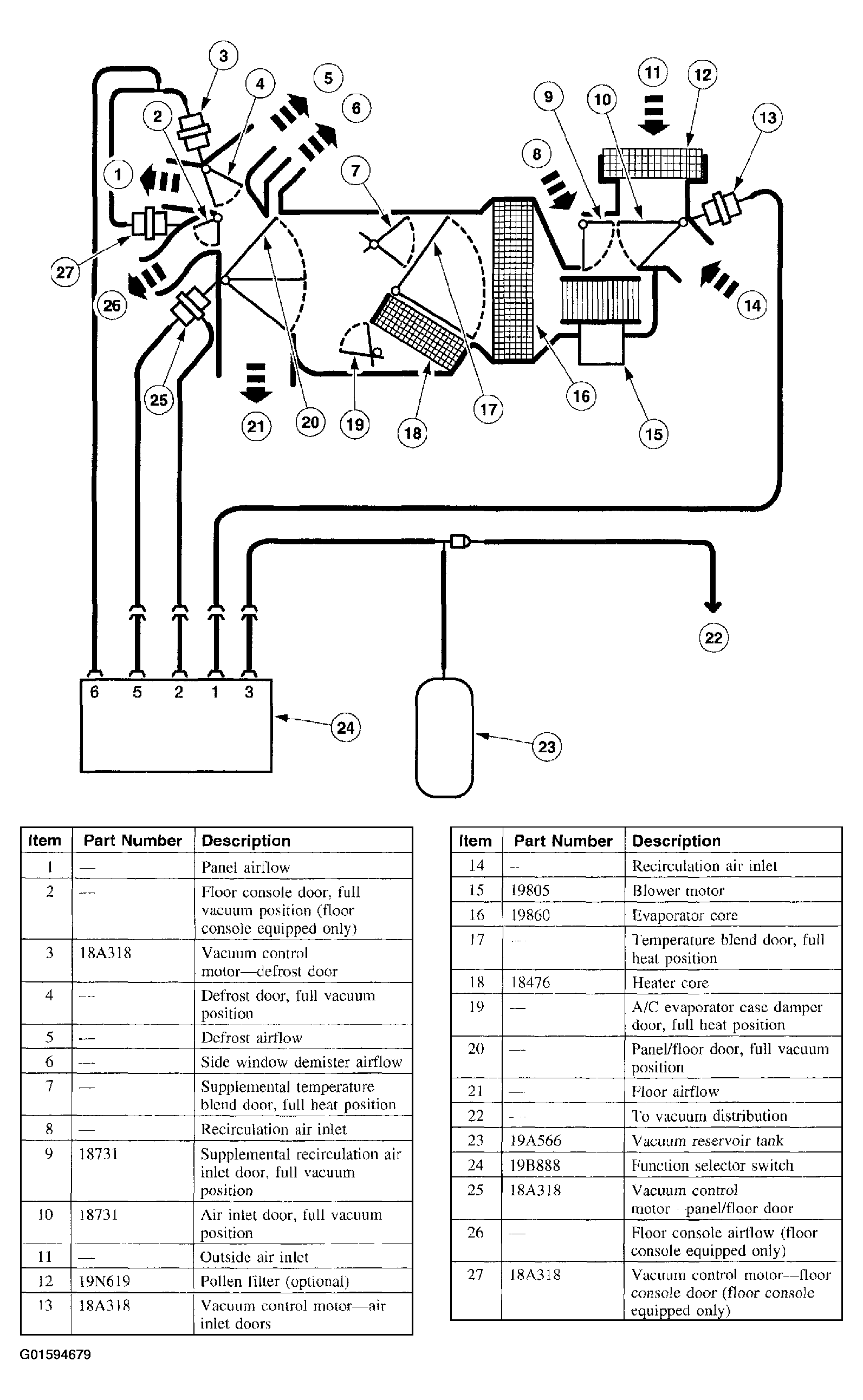

Fig 1: Identifying Manual Climate Control Vacuum Schematic Diagram
Courtesy of FORD MOTOR CO.
