Pinpoint Test R: The Blower Motor Operates Continuously In High Speed - EATC

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

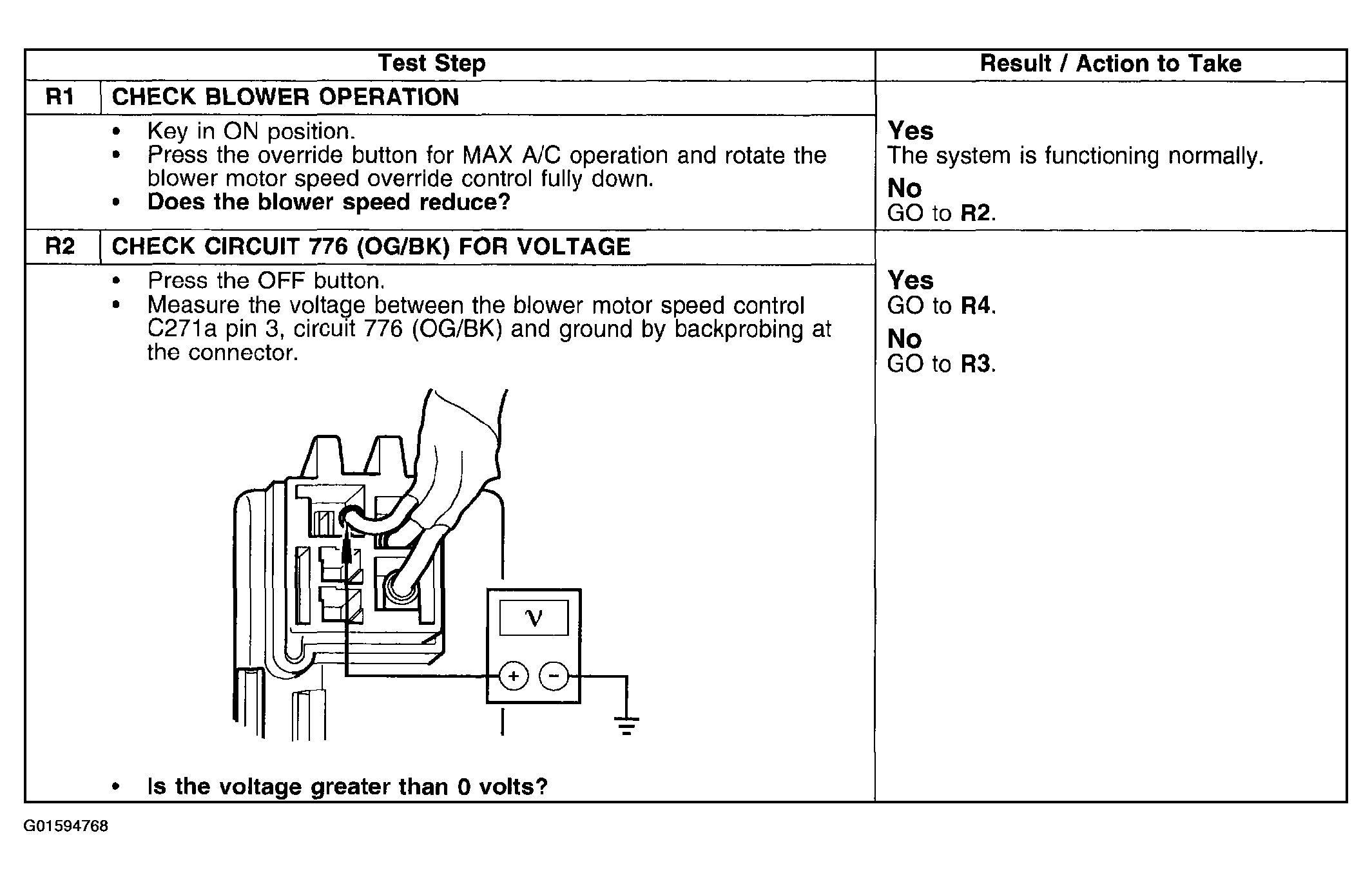

Fig 1: Pinpoint Test R: Blower Motor Operates Continuously In High Speed - EATC (Step R1-R2)

Courtesy of FORD MOTOR CO.

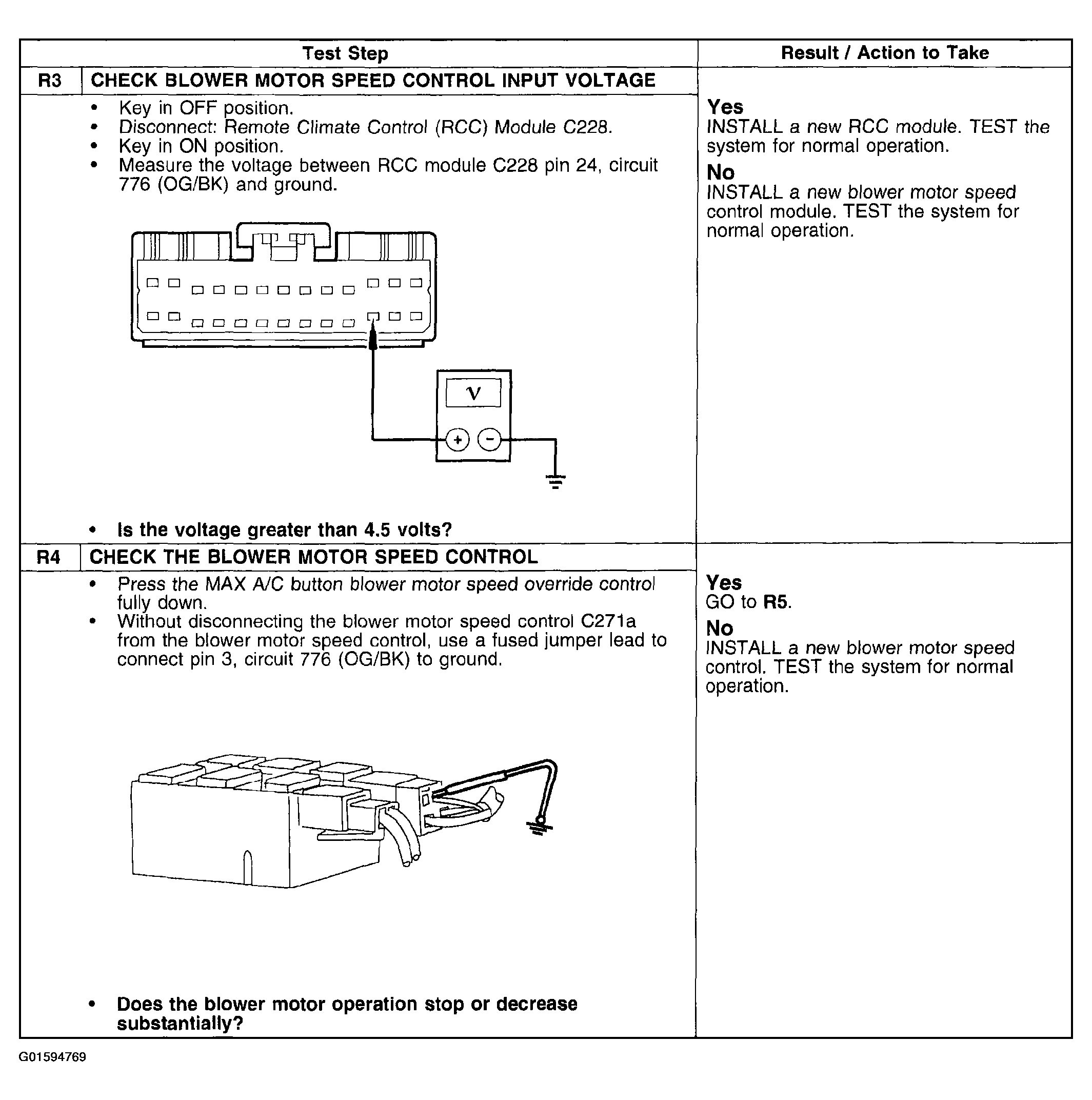

Fig 2: Pinpoint Test R: Blower Motor Operates Continuously In High Speed - EATC (Step R3-R4)

Courtesy of FORD MOTOR CO.

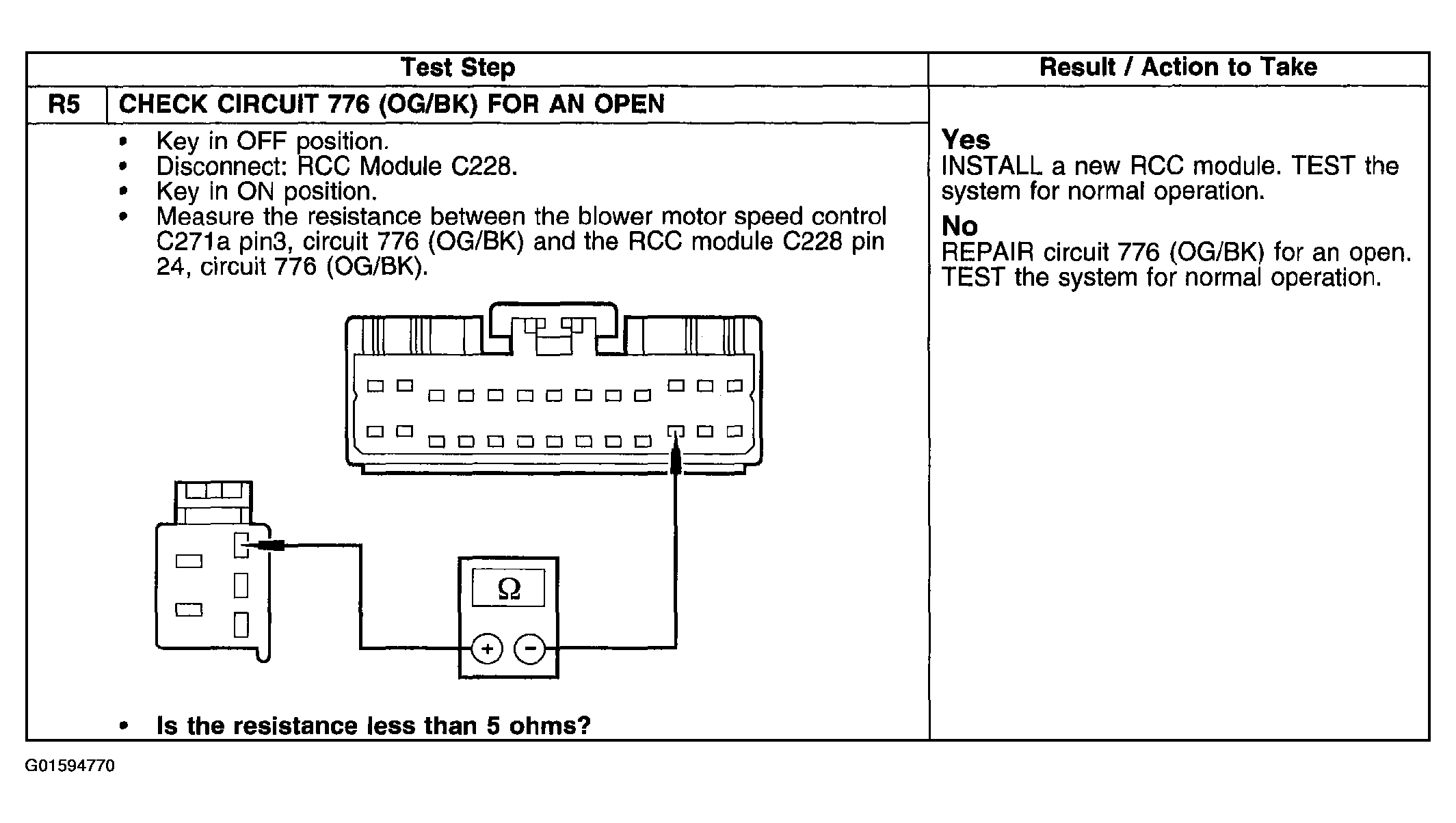

Fig 3: Pinpoint Test R: Blower Motor Operates Continuously In High Speed - EATC (Step R5)

Courtesy of FORD MOTOR CO.
