Pinpoint Test O: The Blower Motor Is Inoperative - EATC
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

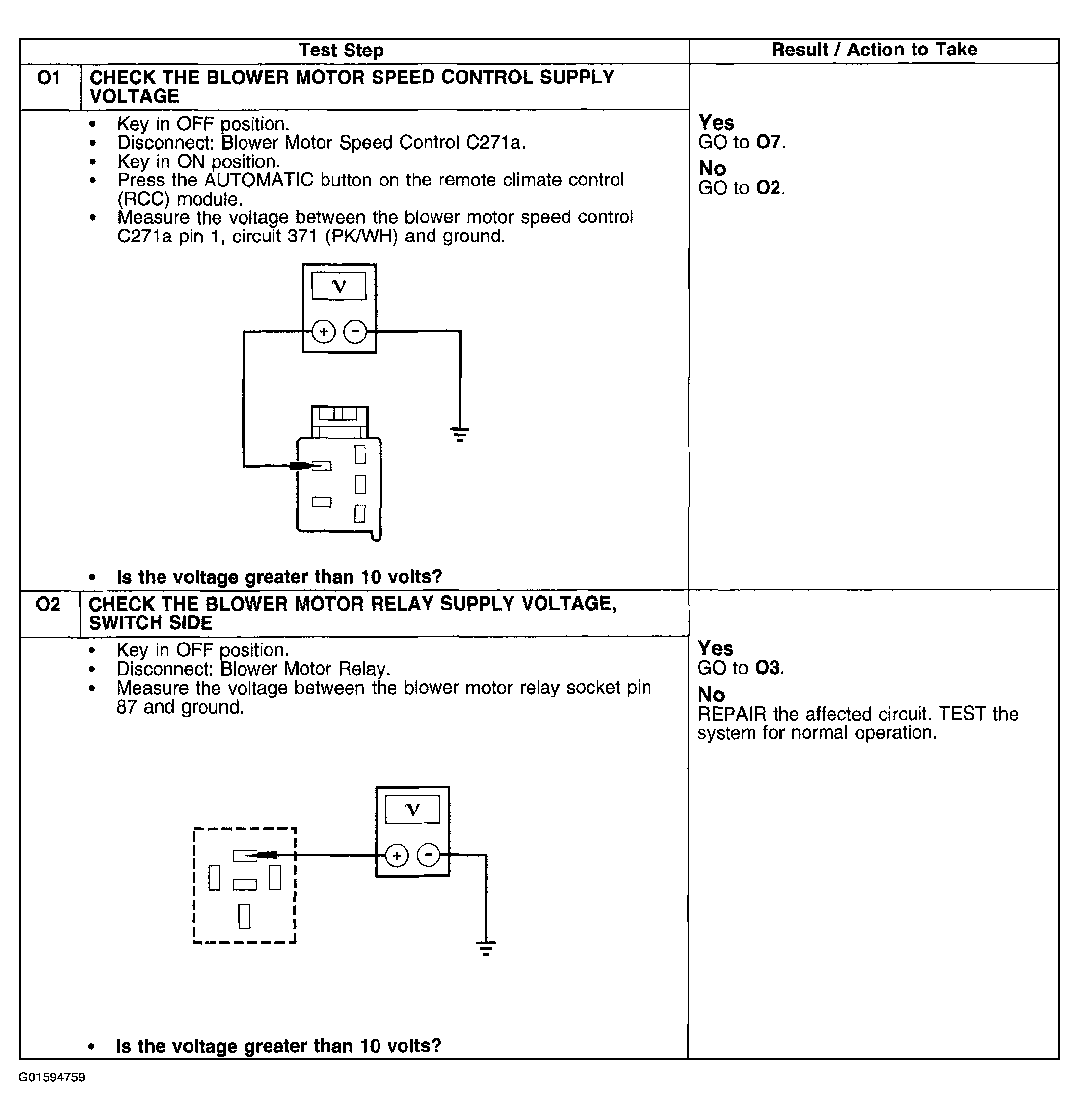

Fig 1: Pinpoint Test O: Blower Motor Is Inoperative - EATC (Step O1-O2)
Courtesy of FORD MOTOR CO.

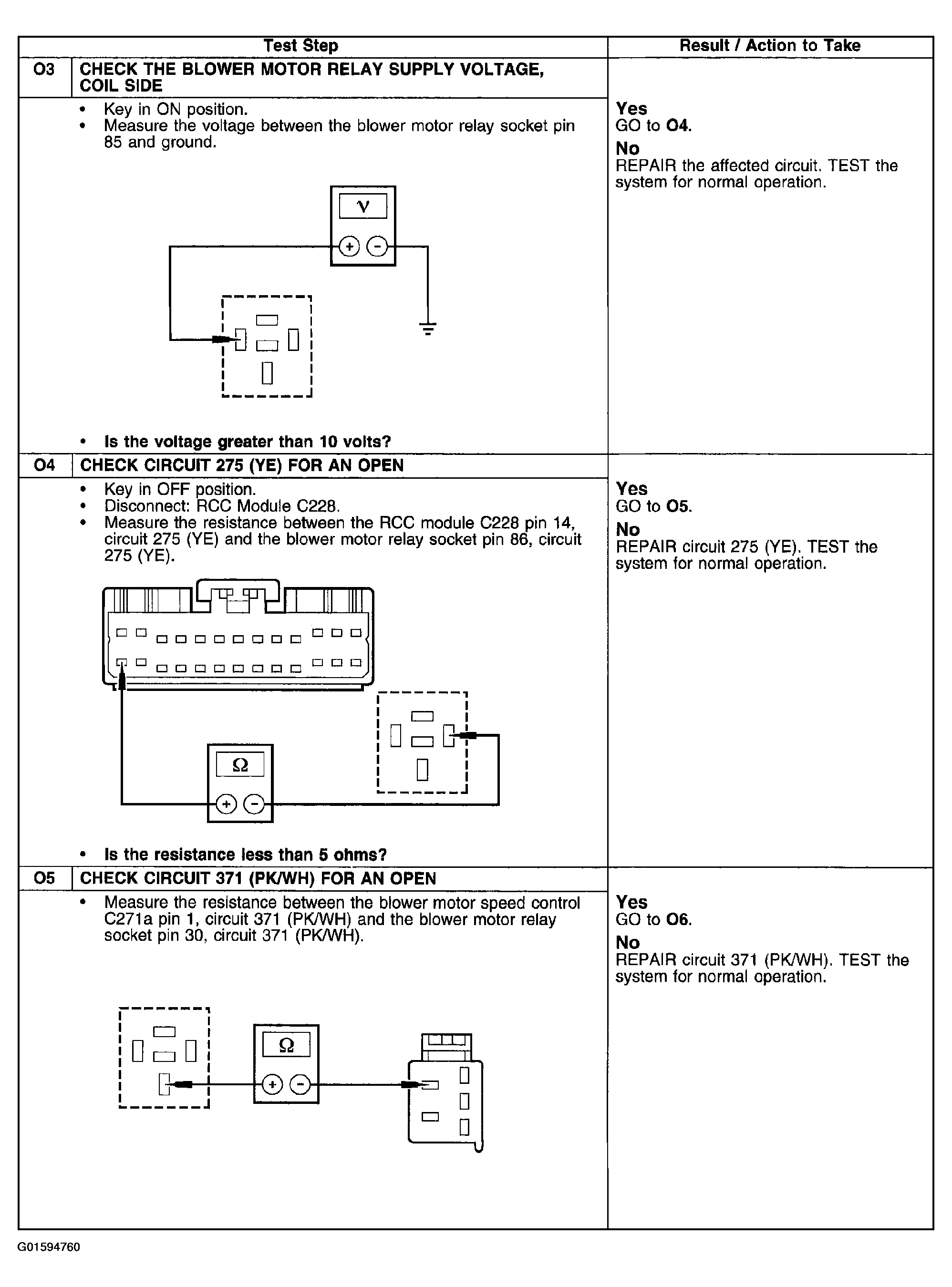

Fig 2: Pinpoint Test O: Blower Motor Is Inoperative - EATC (Step O3-O5)
Courtesy of FORD MOTOR CO.

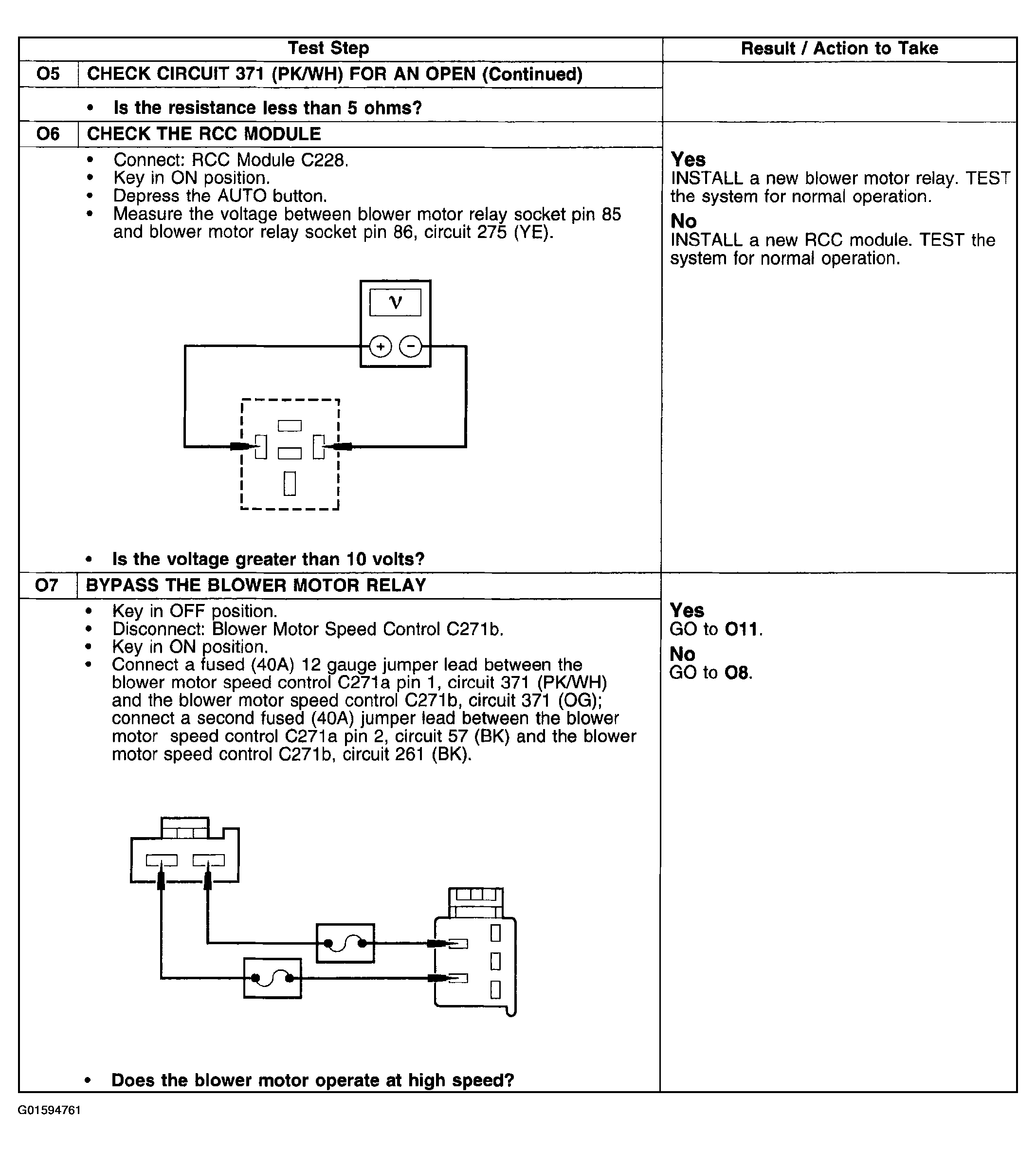

Fig 3: Pinpoint Test O: Blower Motor Is Inoperative - EATC (Step O5-O7)
Courtesy of FORD MOTOR CO.

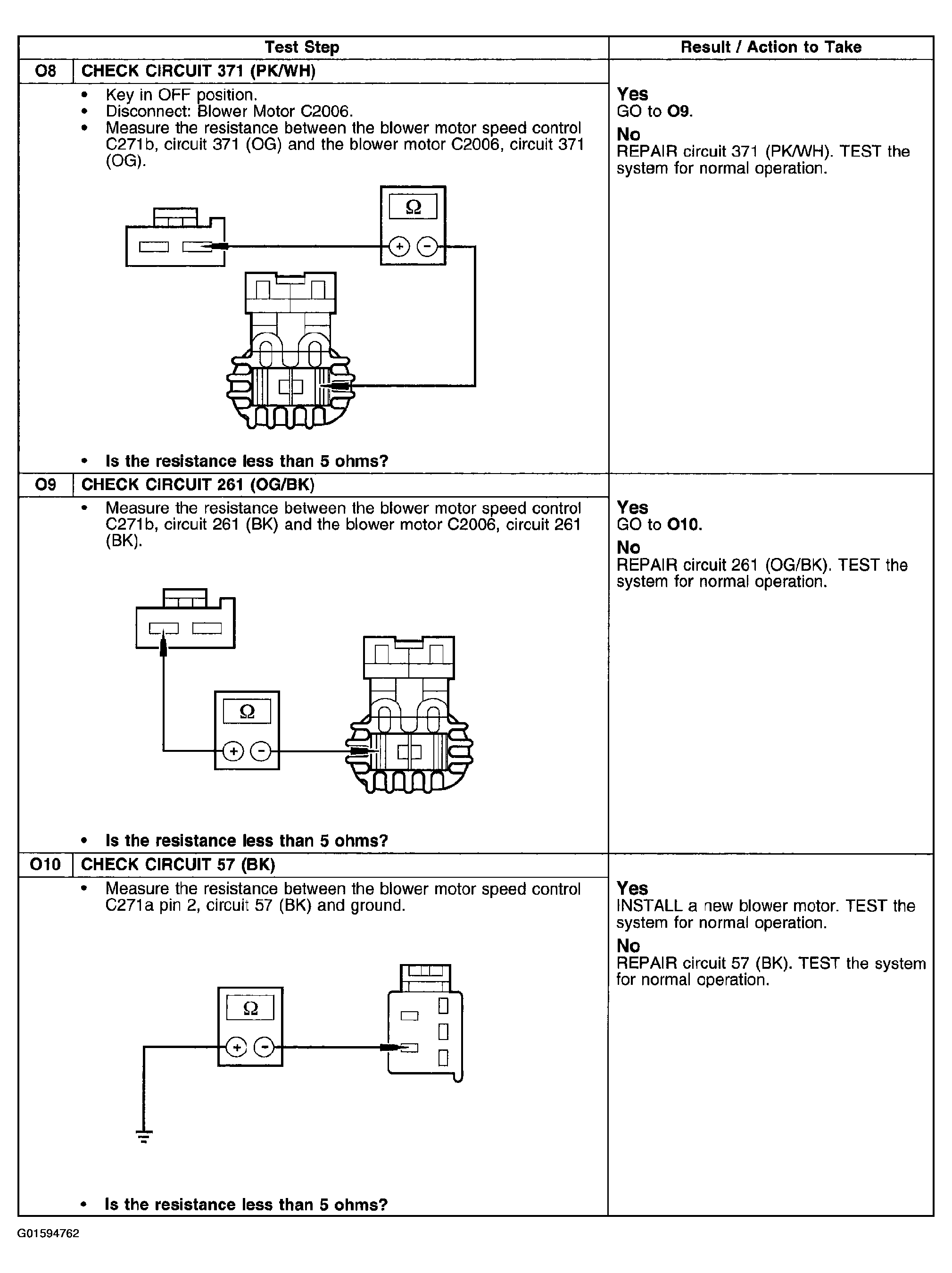

Fig 4: Pinpoint Test O: Blower Motor Is Inoperative - EATC (Step O8-O10)
Courtesy of FORD MOTOR CO.

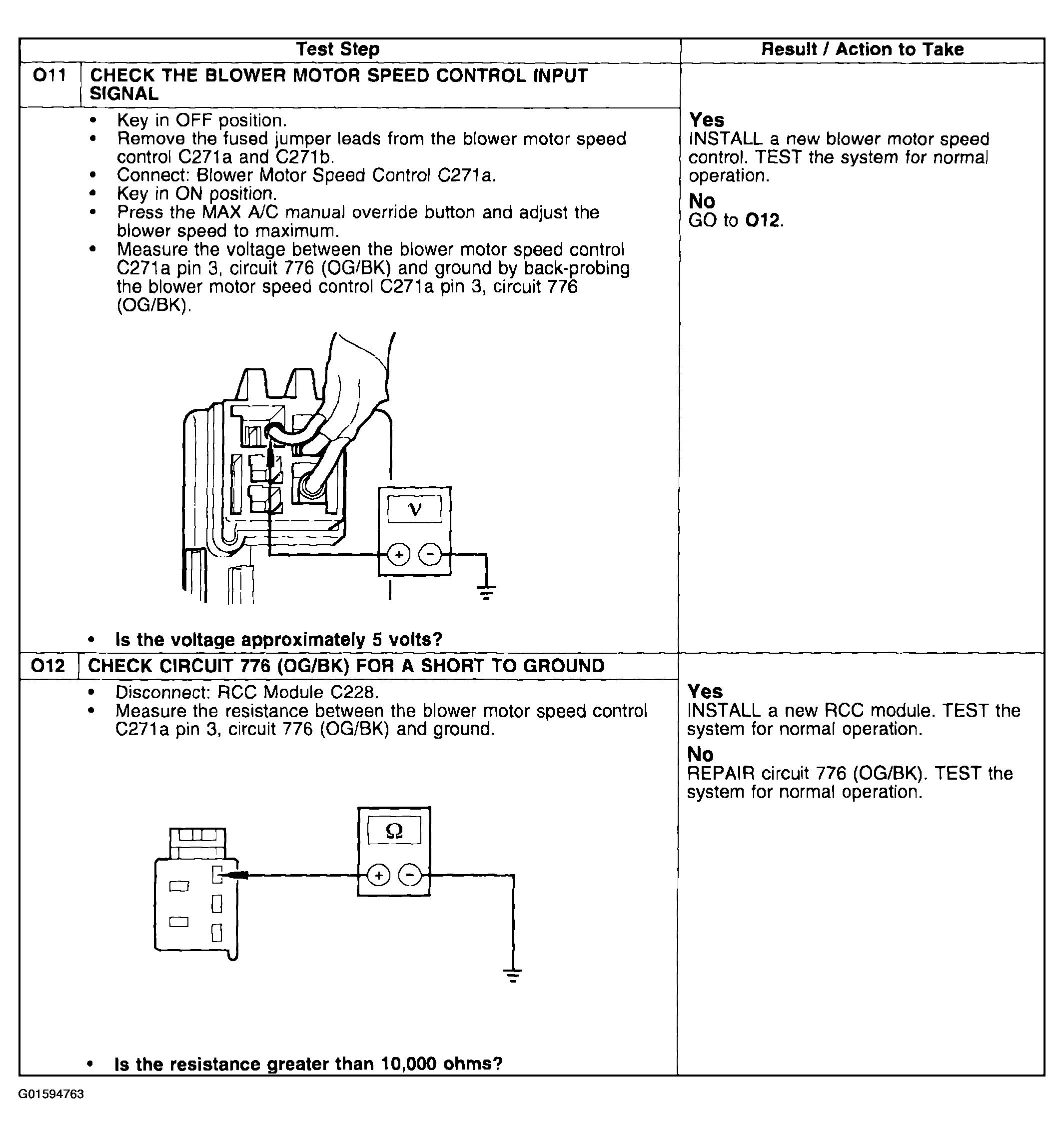

Fig 5: Pinpoint Test O: Blower Motor Is Inoperative - EATC (Step O11-O12)
