Pinpoint Test N: The Blower Motor Does Not Operate - Manual Climate Control

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

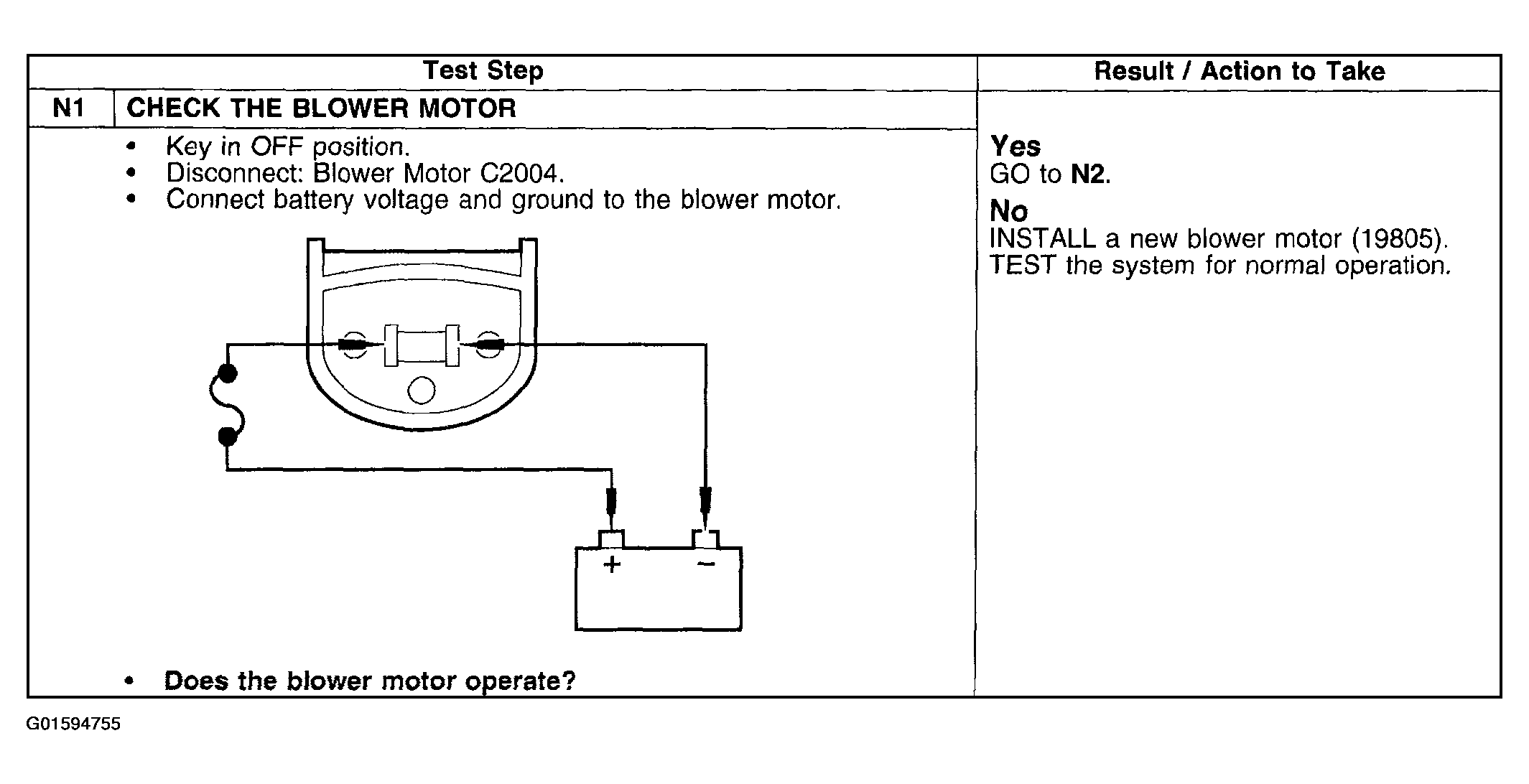

Fig 1: Pinpoint Test N: Blower Motor Does Not Operate - Manual Climate Control (Step N1)

Courtesy of FORD MOTOR CO.

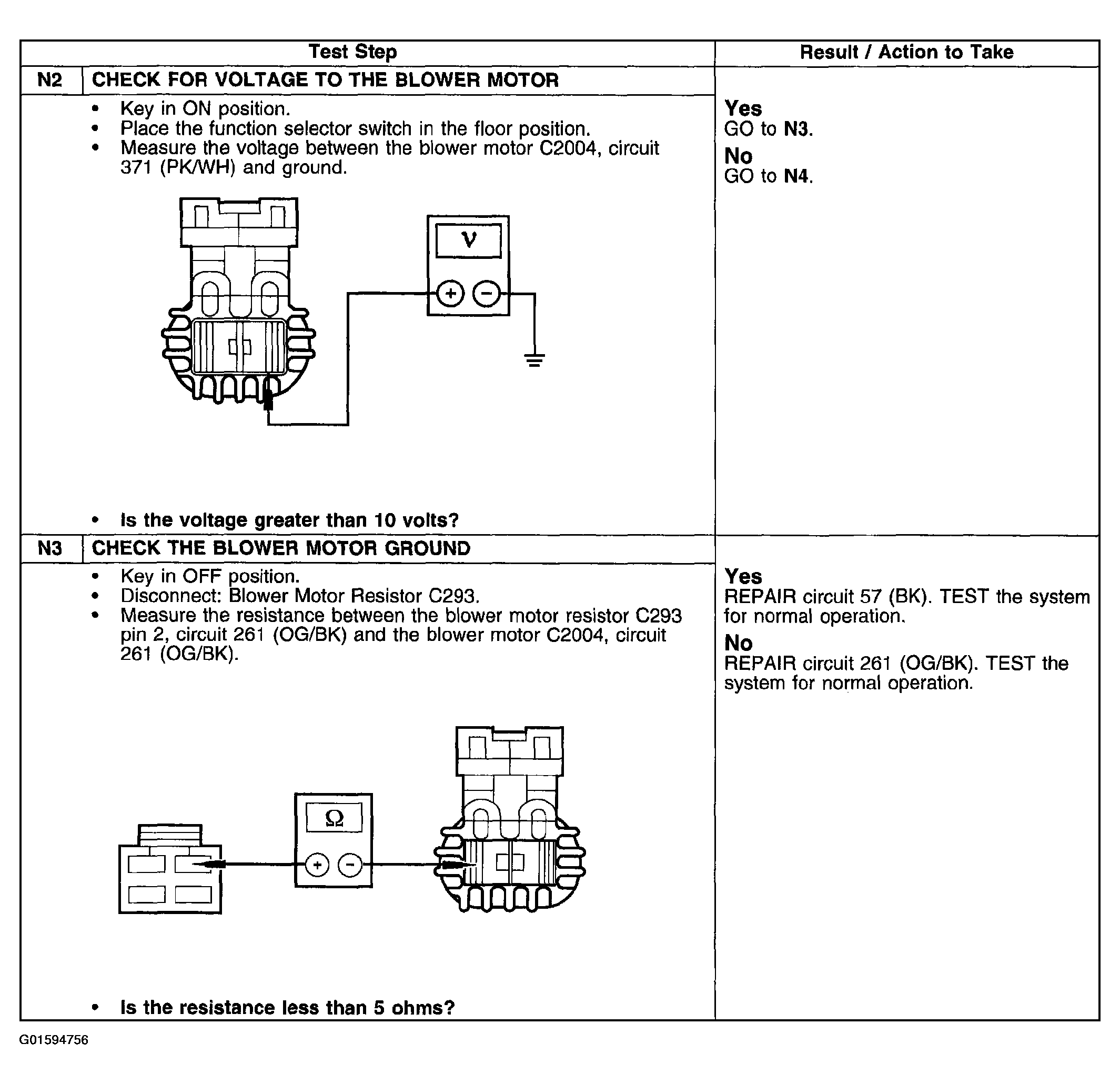

Fig 2: Pinpoint Test N: Blower Motor Does Not Operate - Manual Climate Control (Step N2-N3)

Courtesy of FORD MOTOR CO.

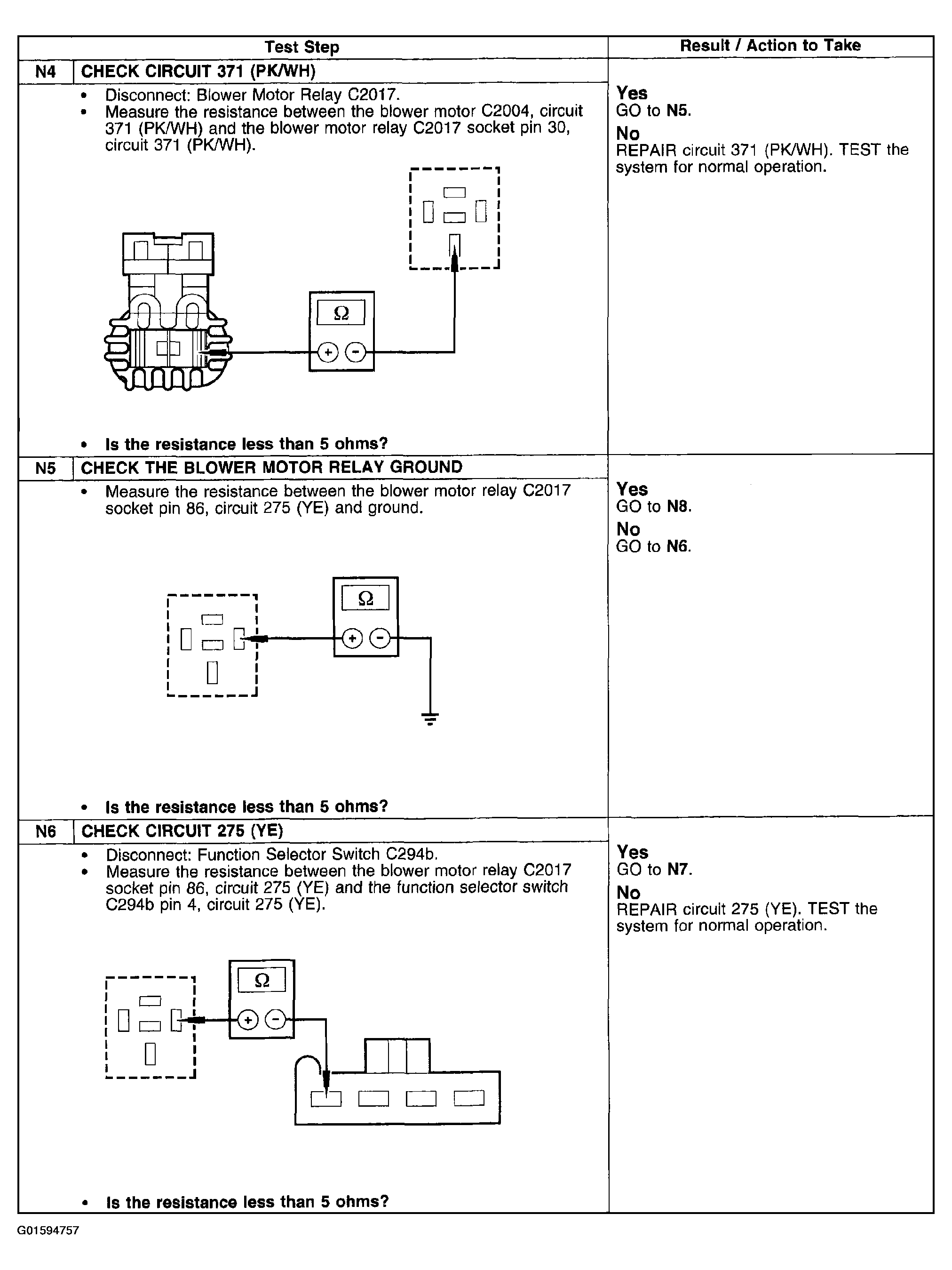

Fig 3: Pinpoint Test N: Blower Motor Does Not Operate - Manual Climate Control (Step N4-N6)

Courtesy of FORD MOTOR CO.

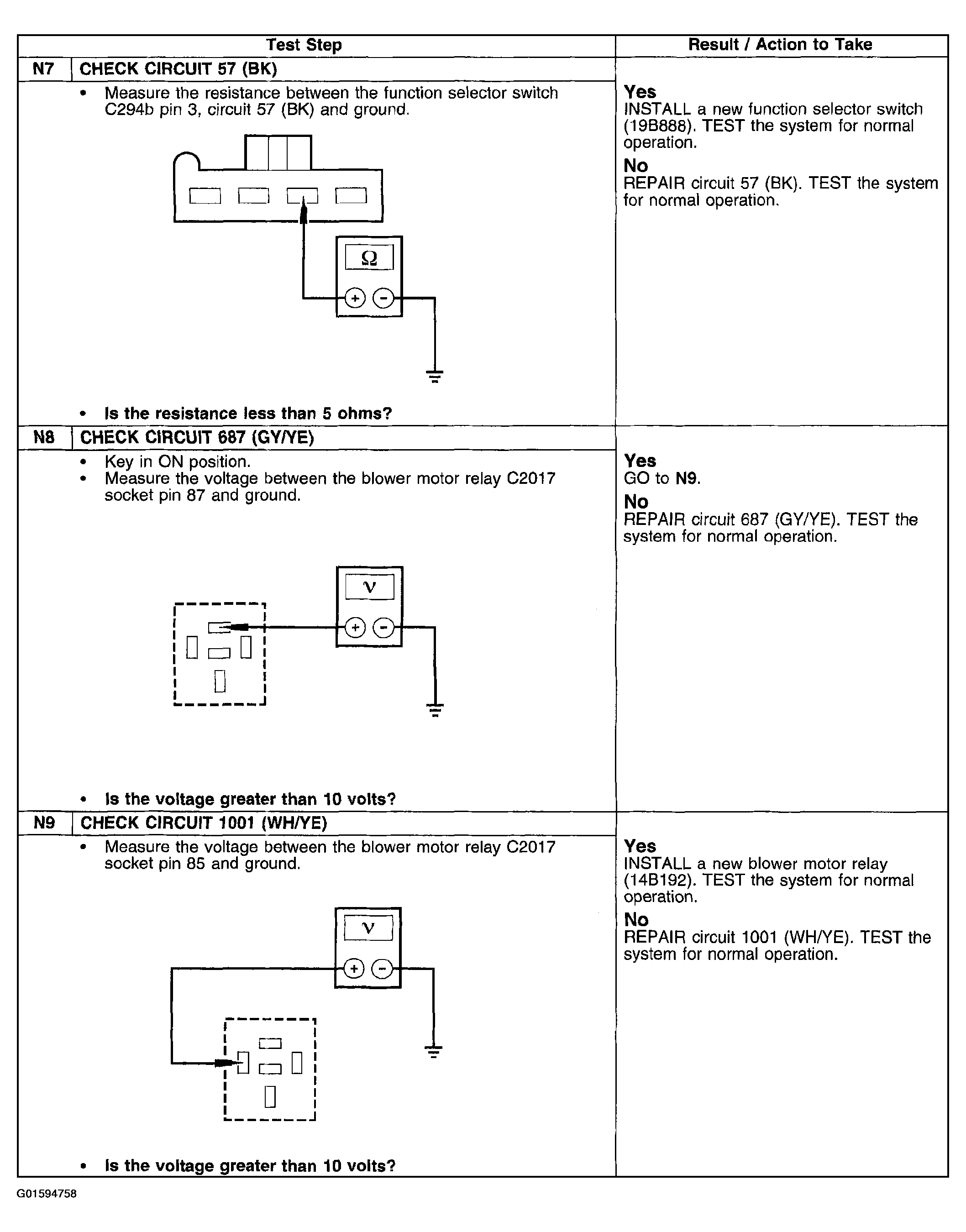

Fig 4: Pinpoint Test N: Blower Motor Does Not Operate - Manual Climate Control (Step N7-N9)

Courtesy of FORD MOTOR CO.
