Pinpoint Test M: No Operation In All Temperature Settings-Manual Climate Control

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

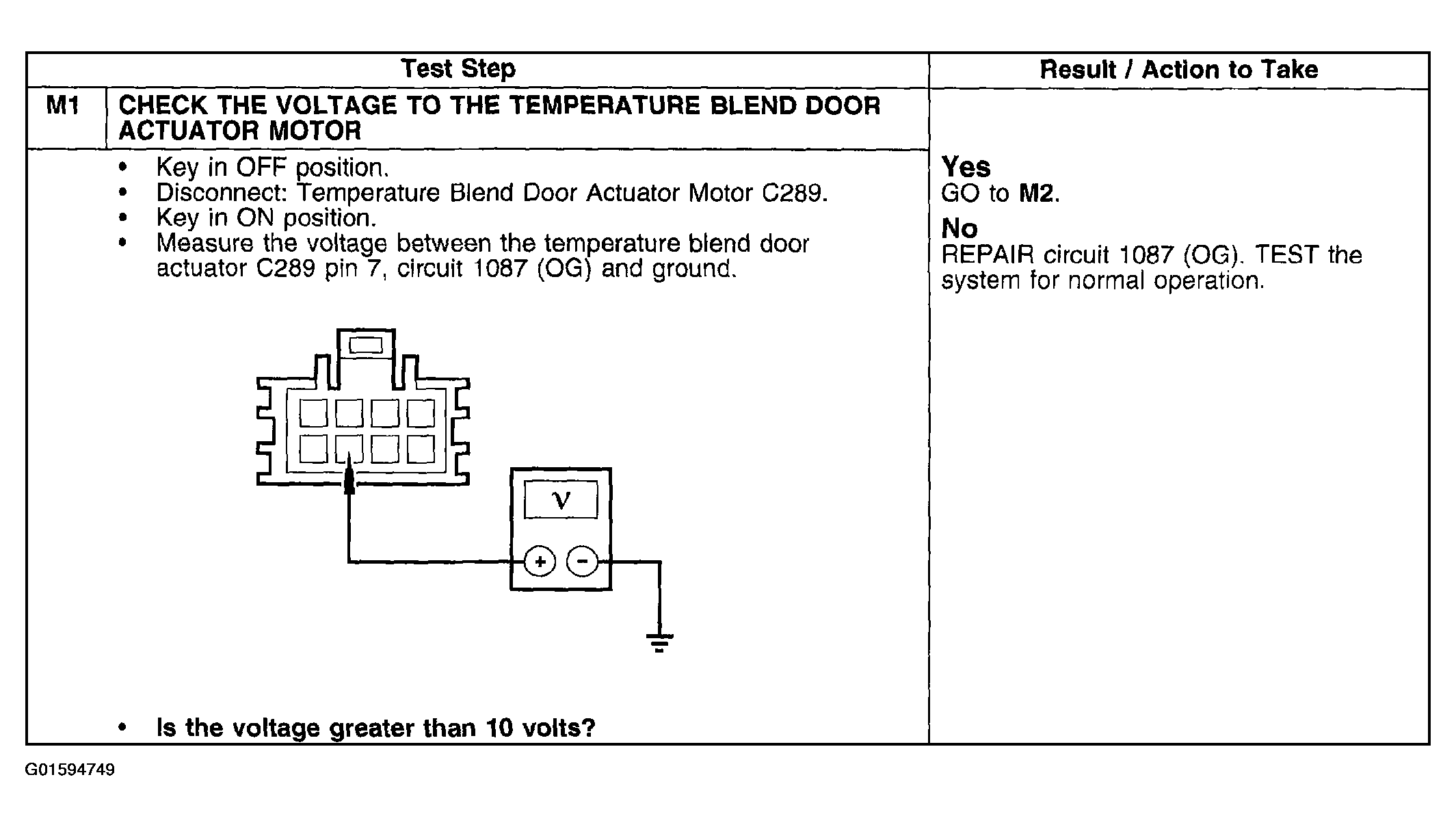

Fig 1: Pinpoint Test M: No Operation In All Temperature Settings-Manual Climate Control (Step M1)

Courtesy of FORD MOTOR CO.

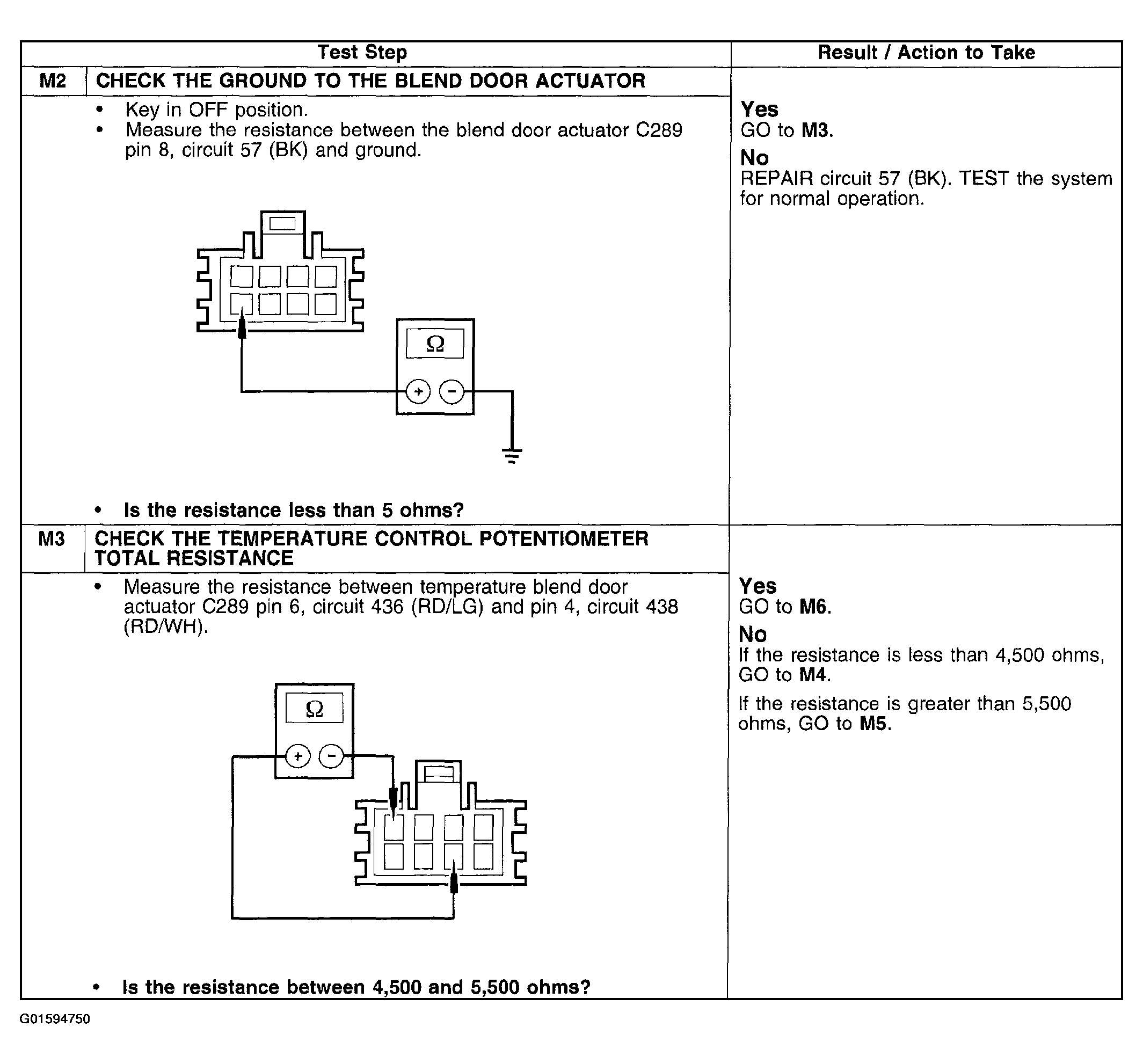

Fig 2: Pinpoint Test M: No Operation In All Temperature Settings-Manual Climate Control (Step M2-M3)

Courtesy of FORD MOTOR CO.

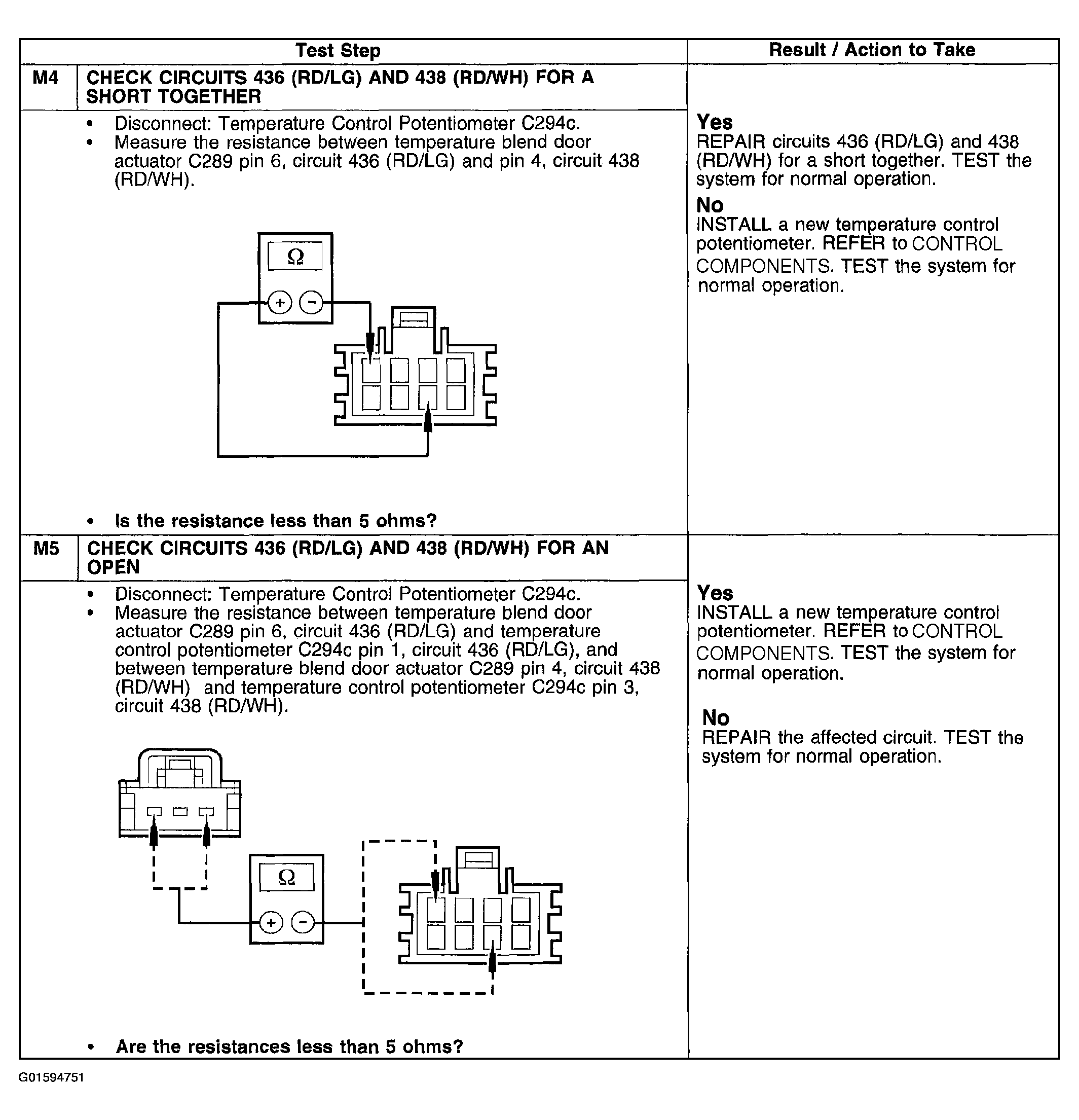

Fig 3: Pinpoint Test M: No Operation In All Temperature Settings-Manual Climate Control (Step M4-M5)

Courtesy of FORD MOTOR CO.

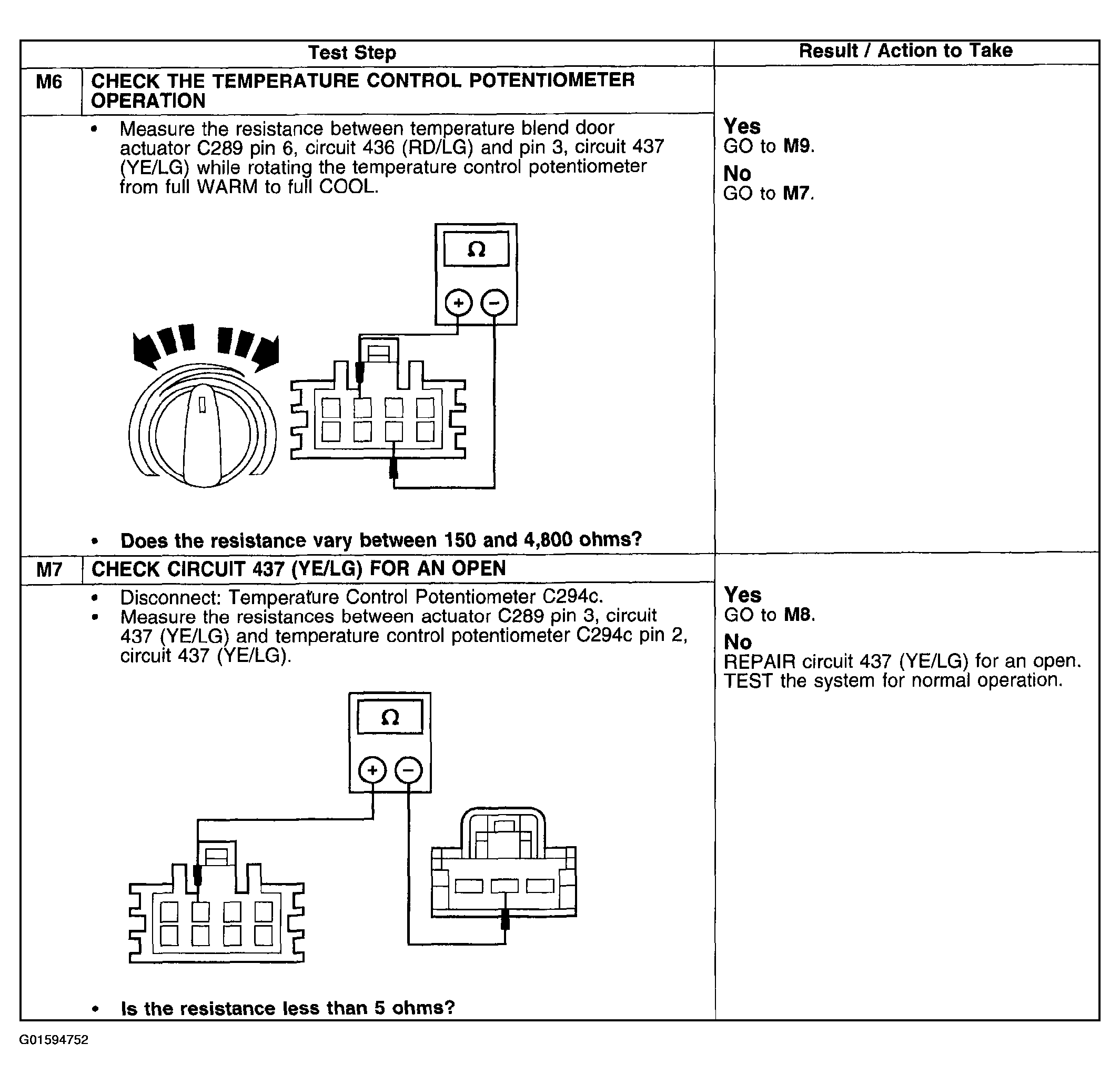

Fig 4: Pinpoint Test M: No Operation In All Temperature Settings-Manual Climate Control (Step M6-M7)

Courtesy of FORD MOTOR CO.

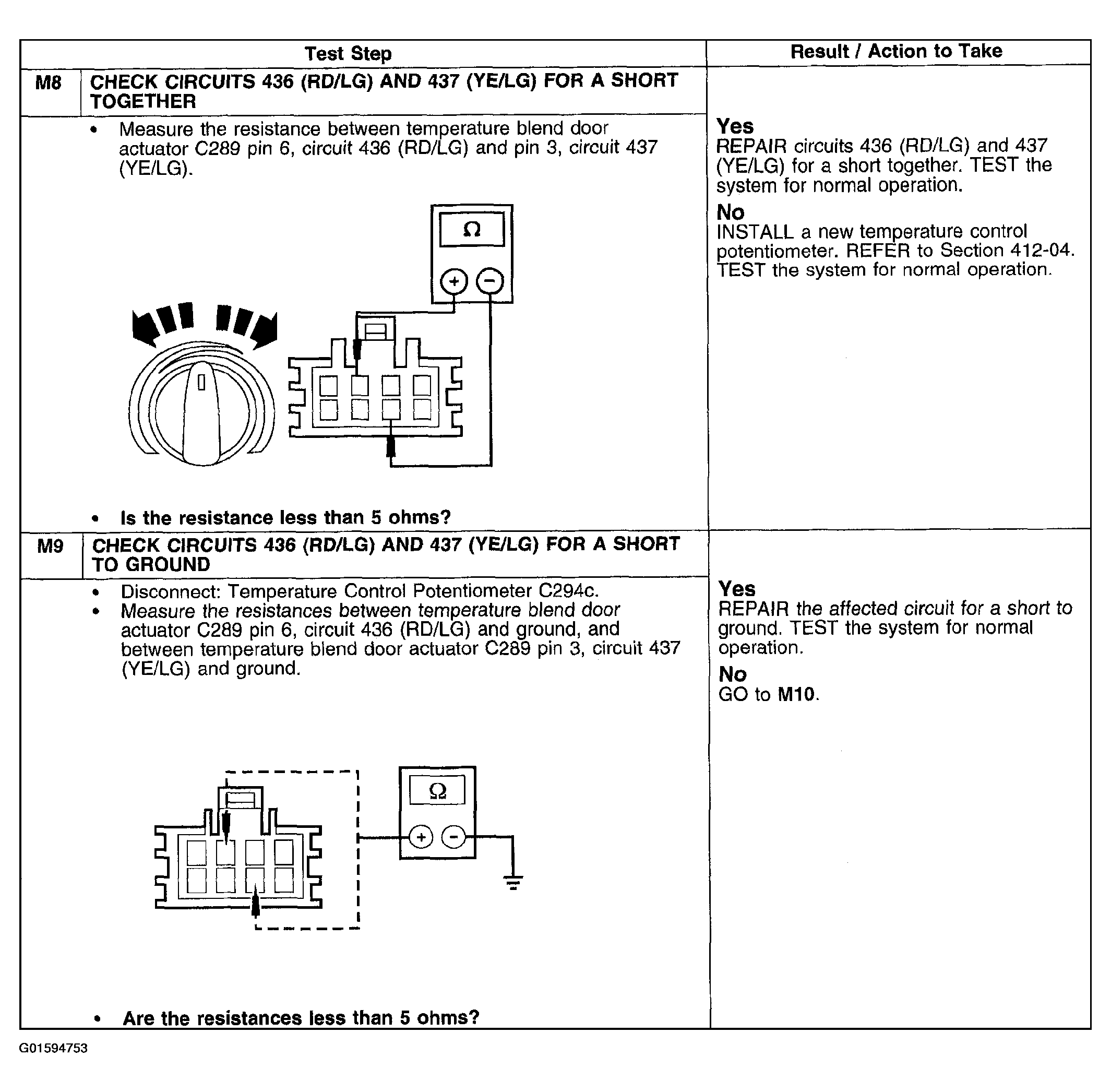

Fig 5: Pinpoint Test M: No Operation In All Temperature Settings-Manual Climate Control (Step M8-M9)

Courtesy of FORD MOTOR CO.

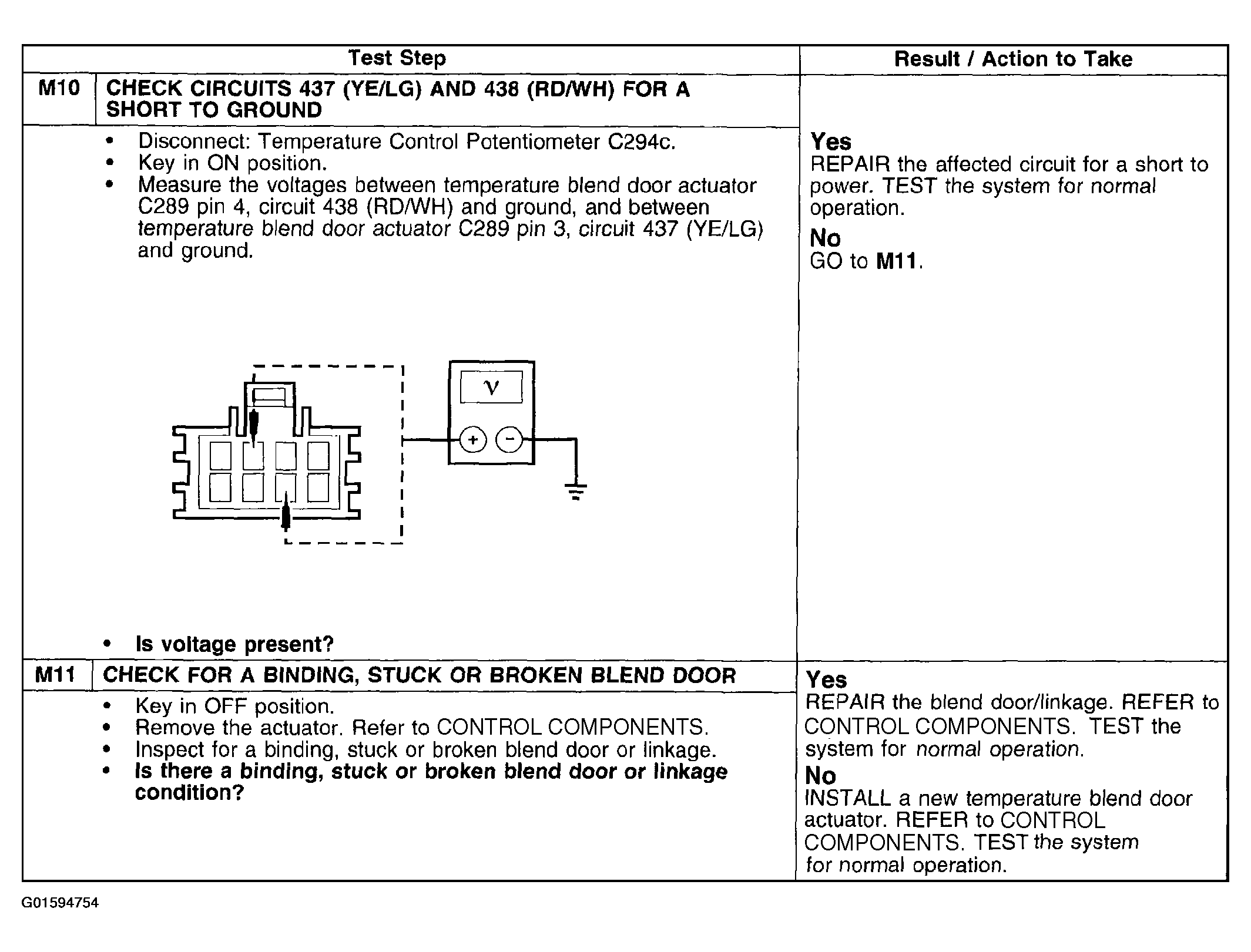

Fig 6: Pinpoint Test M: No Operation In All Temperature Settings-Manual Climate Control (Step M10-M11)

Courtesy of FORD MOTOR CO.
