WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

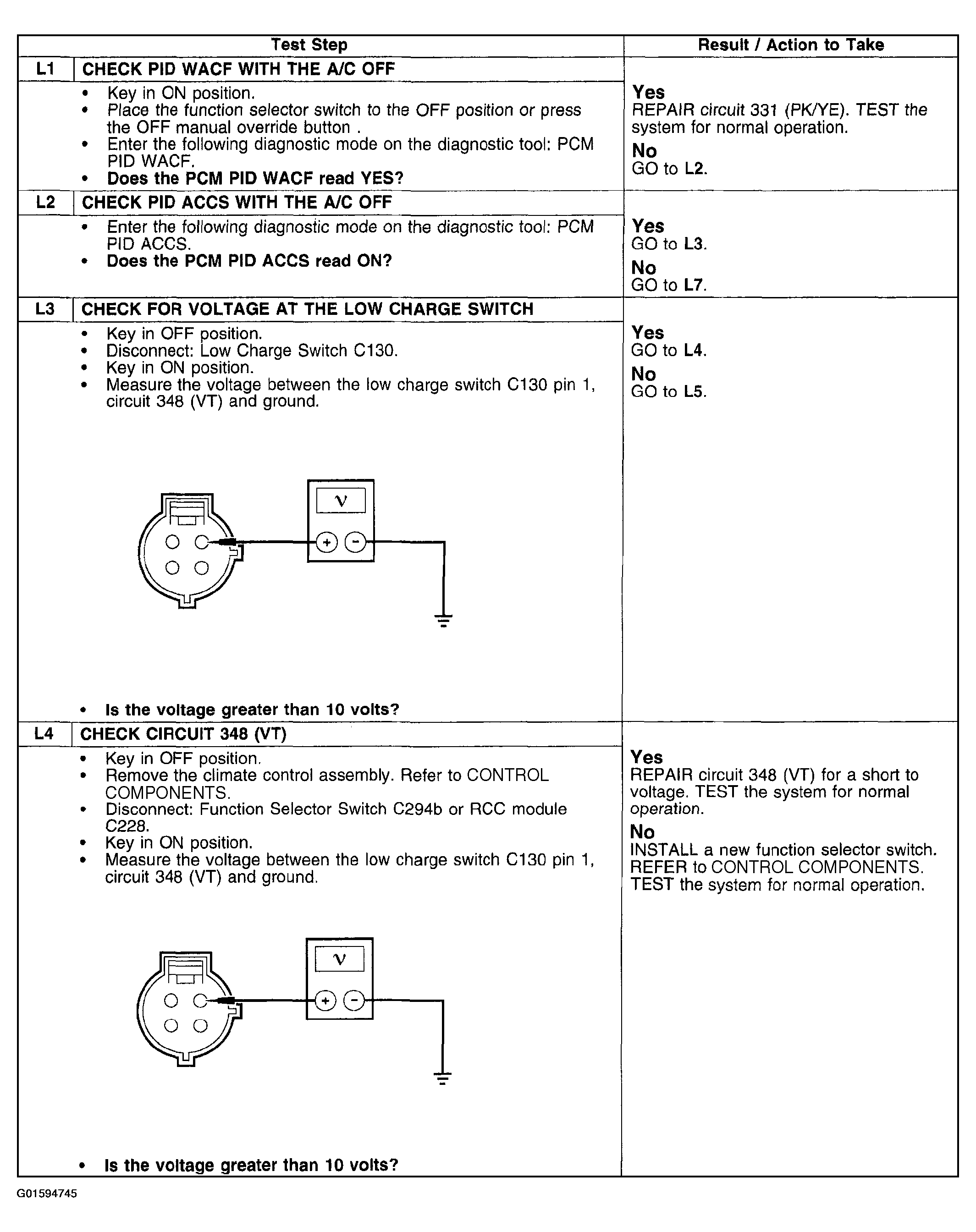

Fig 1: Pinpoint Test L: A/C Is Always On (Step L1-L4)
Courtesy of FORD MOTOR CO.

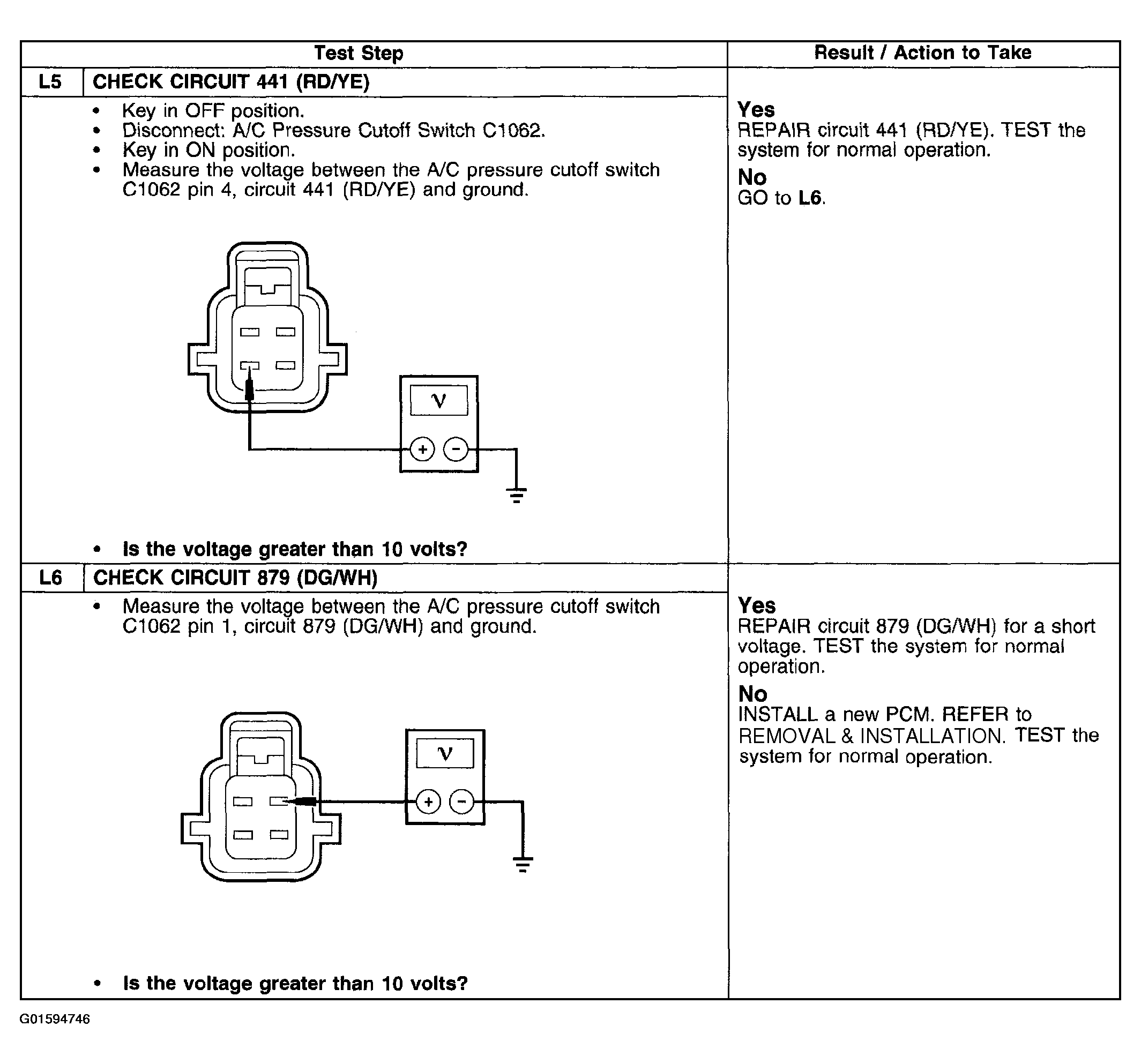

Fig 2: Pinpoint Test L: A/C Is Always On (Step L5-L6)
Courtesy of FORD MOTOR CO.

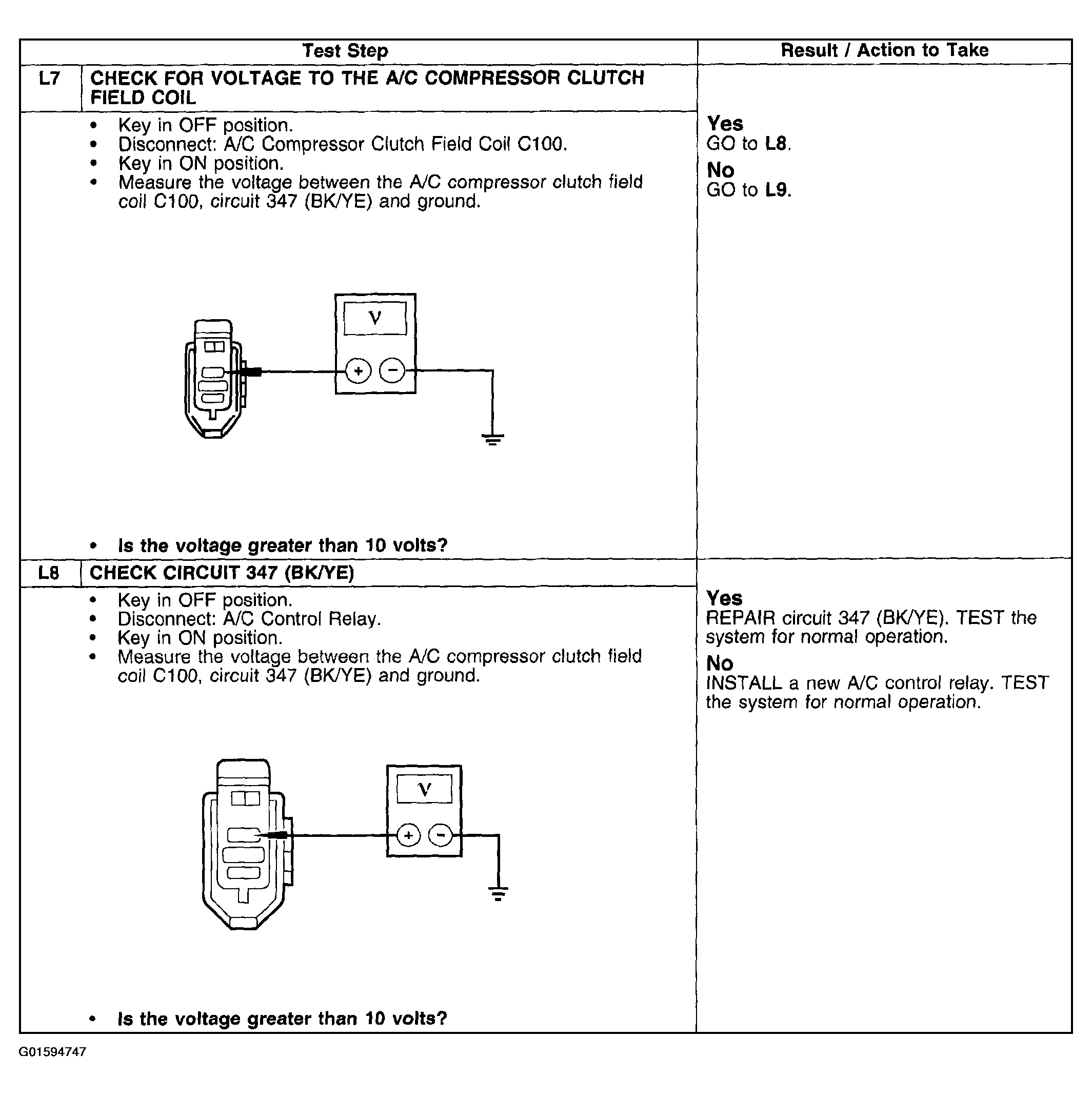

Fig 3: Pinpoint Test L: A/C Is Always On (Step L7-L8)
Courtesy of FORD MOTOR CO.

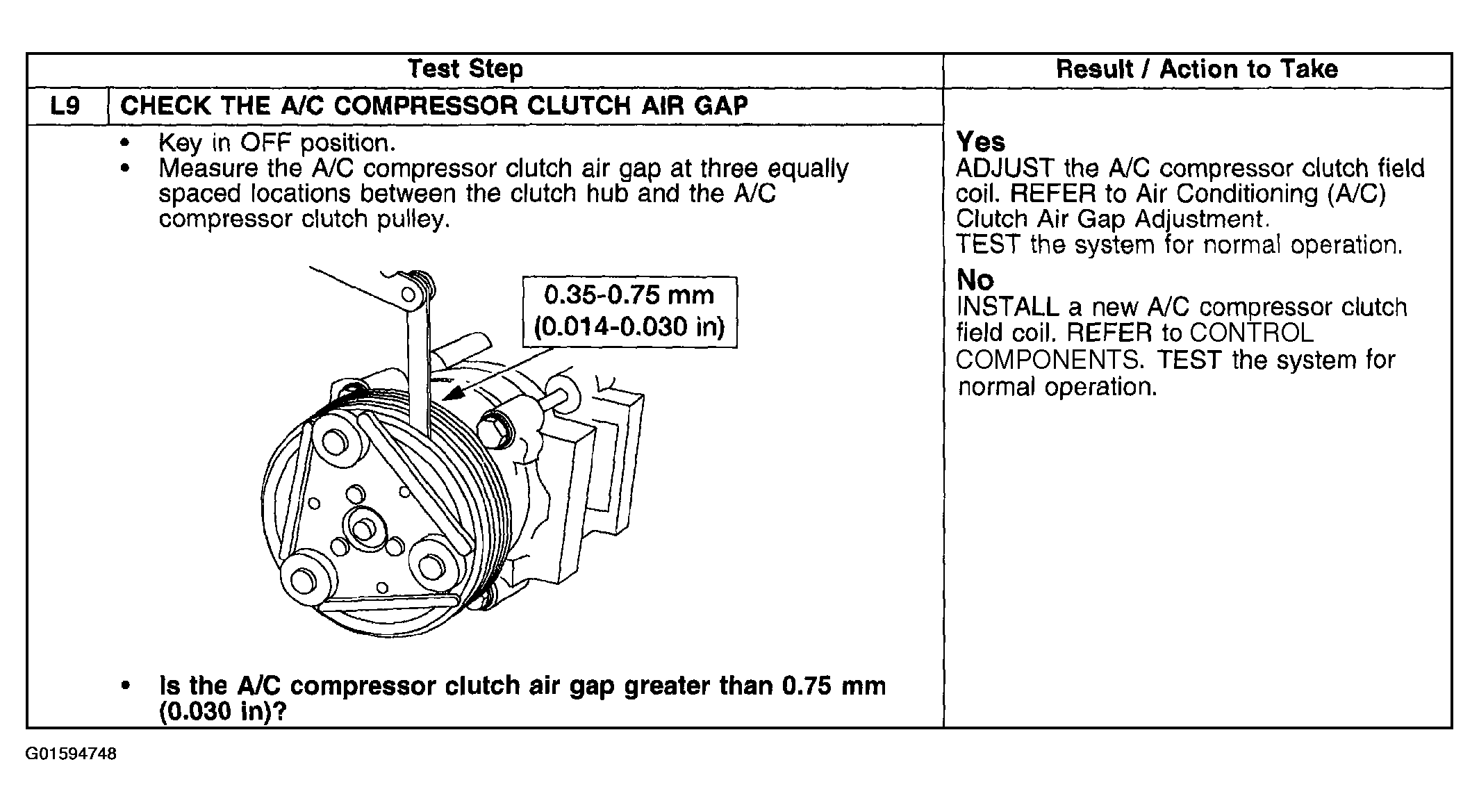

Fig 4: Pinpoint Test L: A/C Is Always On (Step L9)
