Pinpoint Test J: Insufficient, Erratic, Or No Heat - Manual Climate Control And EATC

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

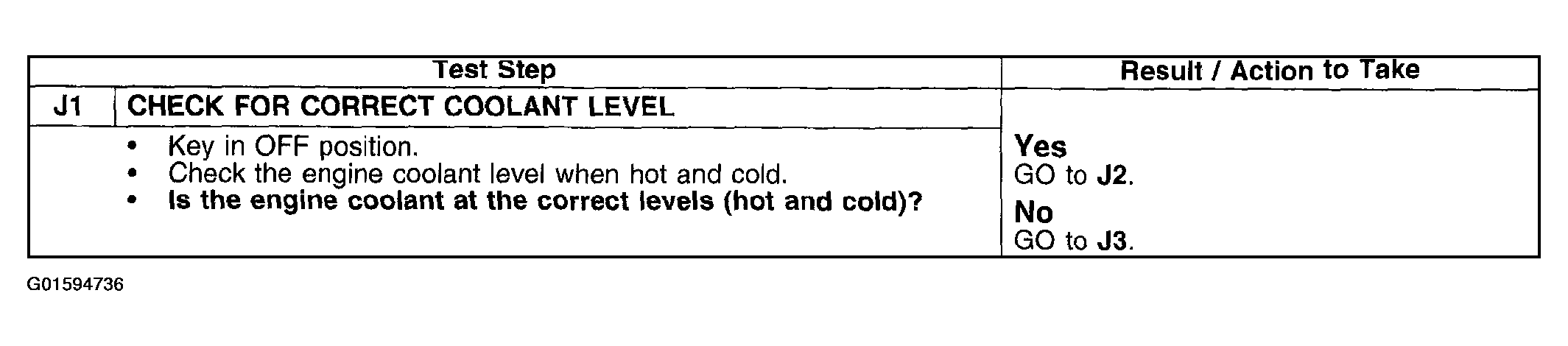

Fig 1: Pinpoint Test J: Insufficient, Erratic, Or No Heat - Manual Climate Control And EATC (Step J1)
G01594736Courtesy of FORD MOTOR CO.

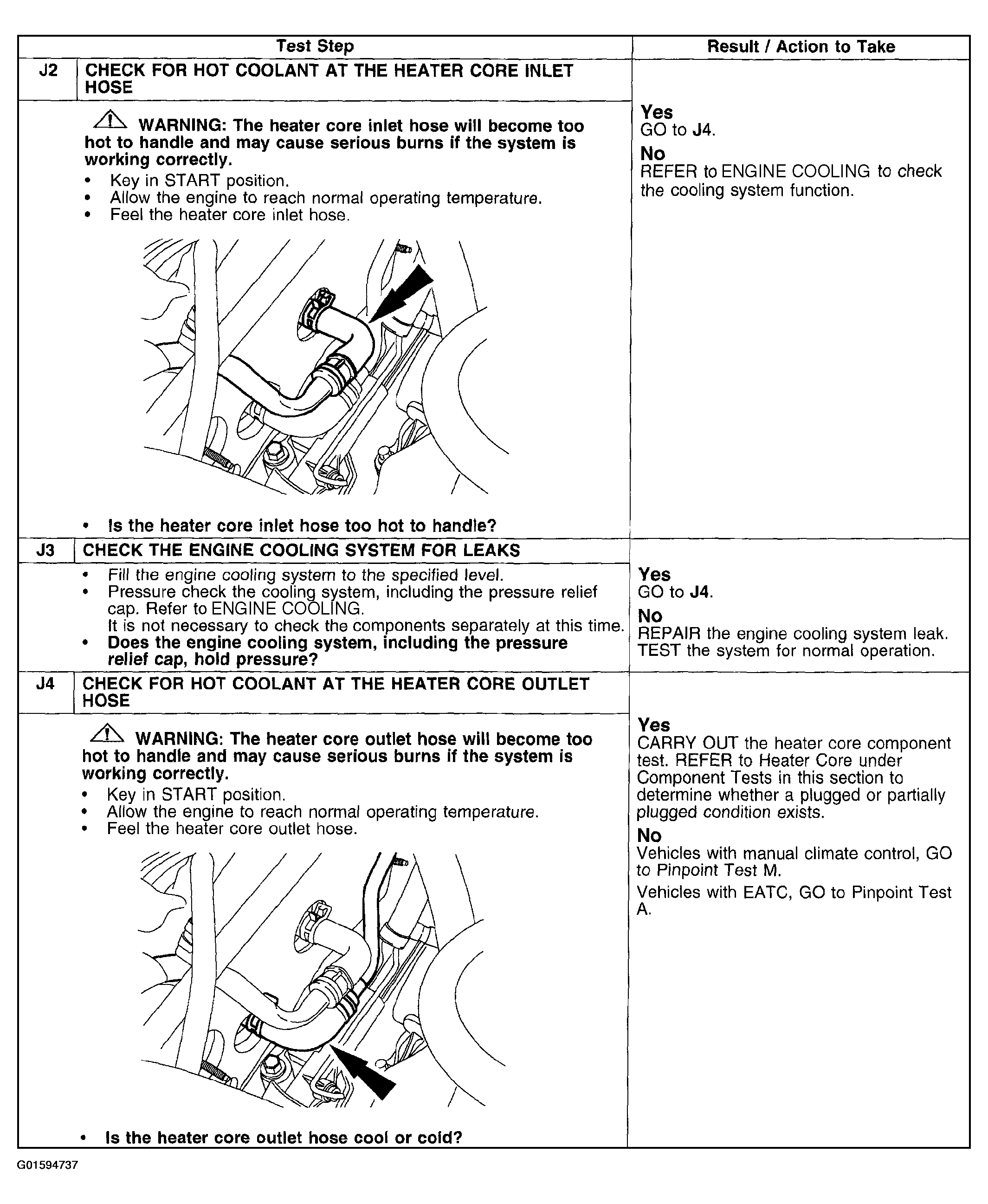

Fig 2: Pinpoint Test J: Insufficient, Erratic, Or No Heat - Manual Climate Control And EATC (Step J2-J4)
G01594737Courtesy of FORD MOTOR CO.
