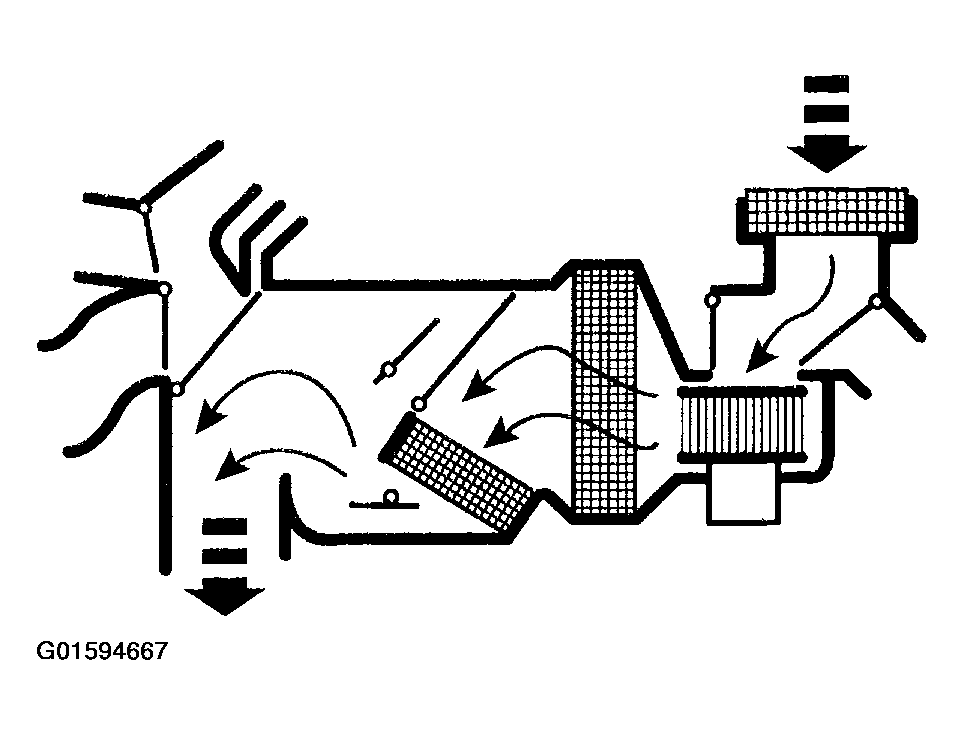

System Airflow Description - Manual Climate Control: Floor
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
When FLOOR is selected:
- The air inlet door vacuum control motor is at no vacuum, admitting only outside air into the passenger compartment.
- The panel/floor door vacuum control motor is at full vacuum and the defrost door and floor console duct door (if equipped) vacuum control motors are at no vacuum, directing airflow to the floor duct.
- The temperature can be adjusted to heat the air, but the air cannot be cooled below the outside temperature.
- The A/C compressor will not operate.
- The blower motor is on.
