Pinpoint Test H: The Set Speed Fluctuates

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

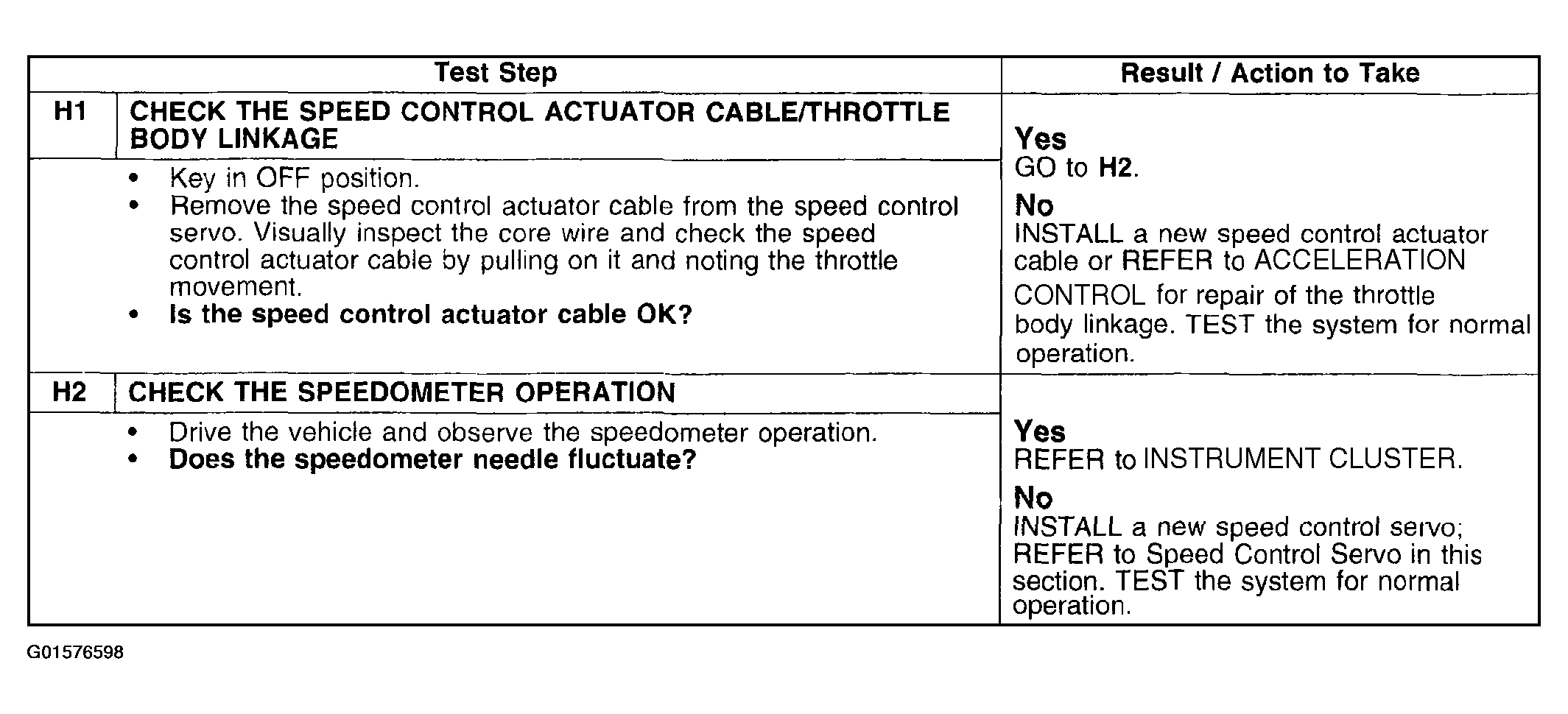

Fig 1: Pinpoint Test H: Set Speed Fluctuates (Steps H1-H2)
G01576598Courtesy of FORD MOTOR CO.
