Pinpoint Test G: The Speed Control Indicator Lamp Is Always On

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

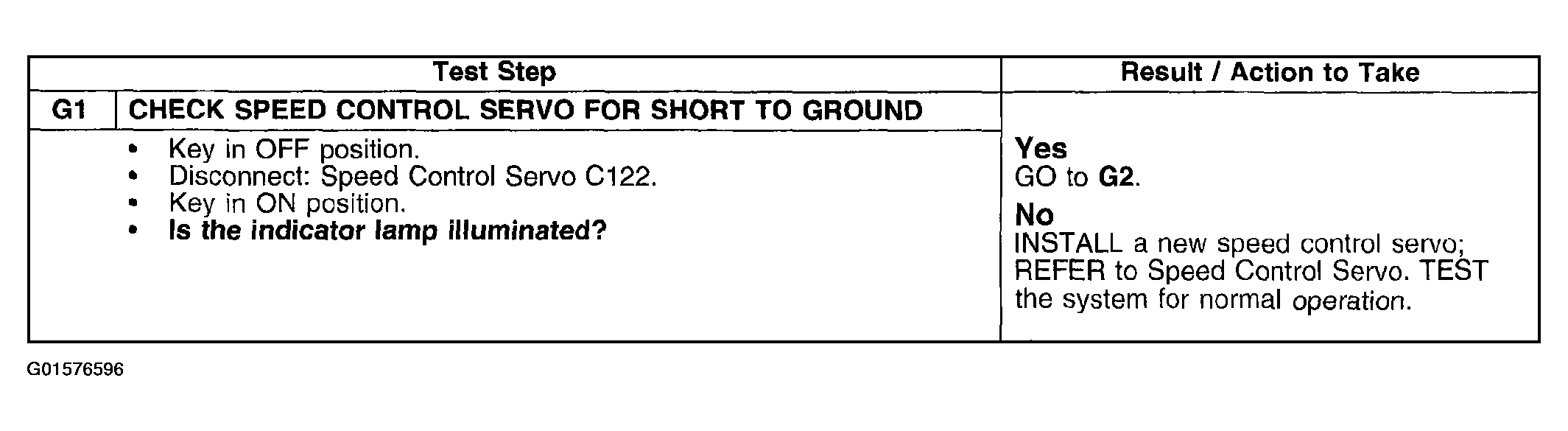

Fig 1: Pinpoint Test G: Speed Control Indicator Lamp Is Always On (Steps G1)
G01576596Courtesy of FORD MOTOR CO.

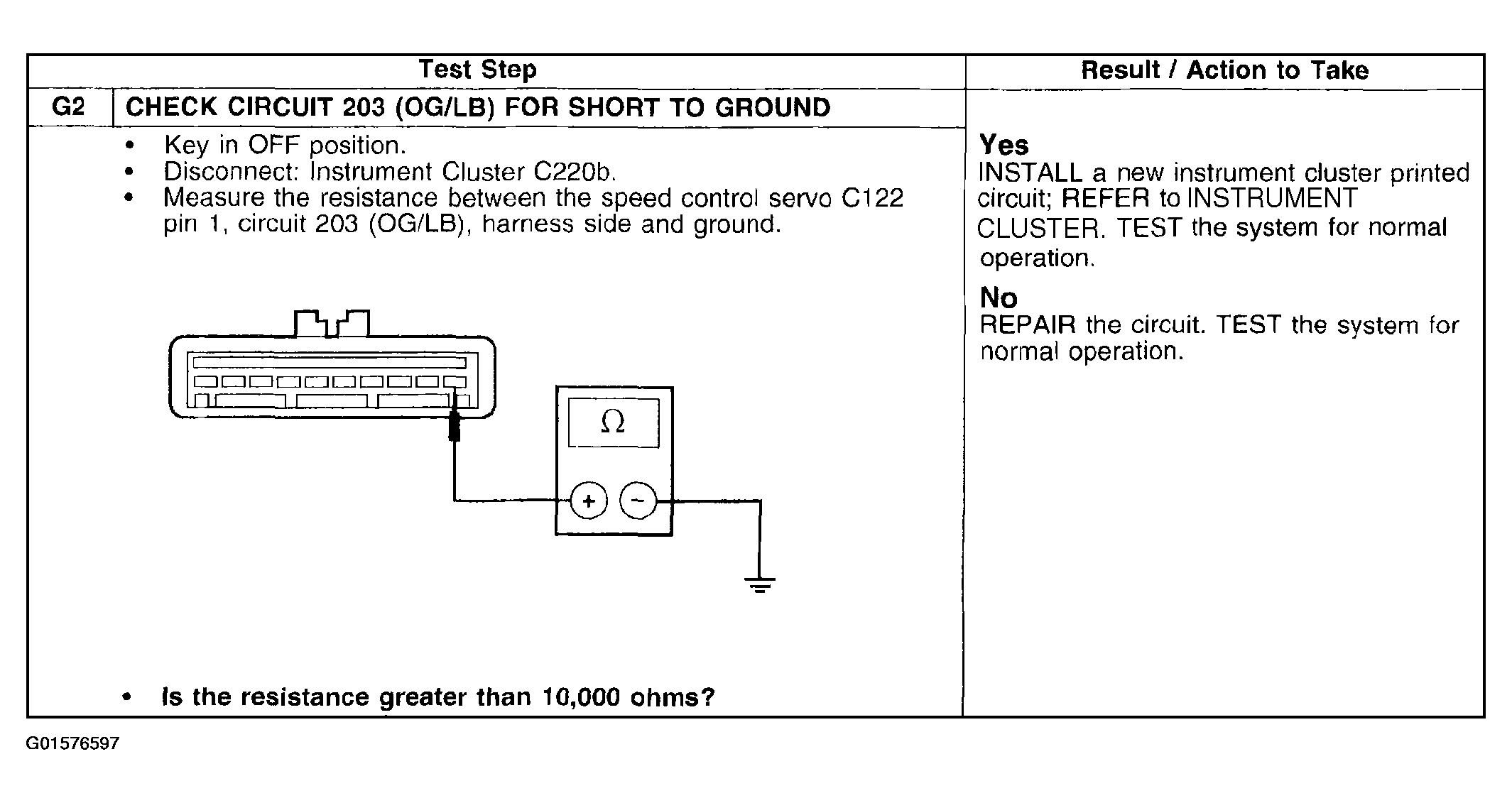

Fig 2: Pinpoint Test G: Speed Control Indicator Lamp Is Always On (Steps G2)
G01576597Courtesy of FORD MOTOR CO.
