Pinpoint Test E: The Speed Control Is Inoperative - No Flash Codes
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

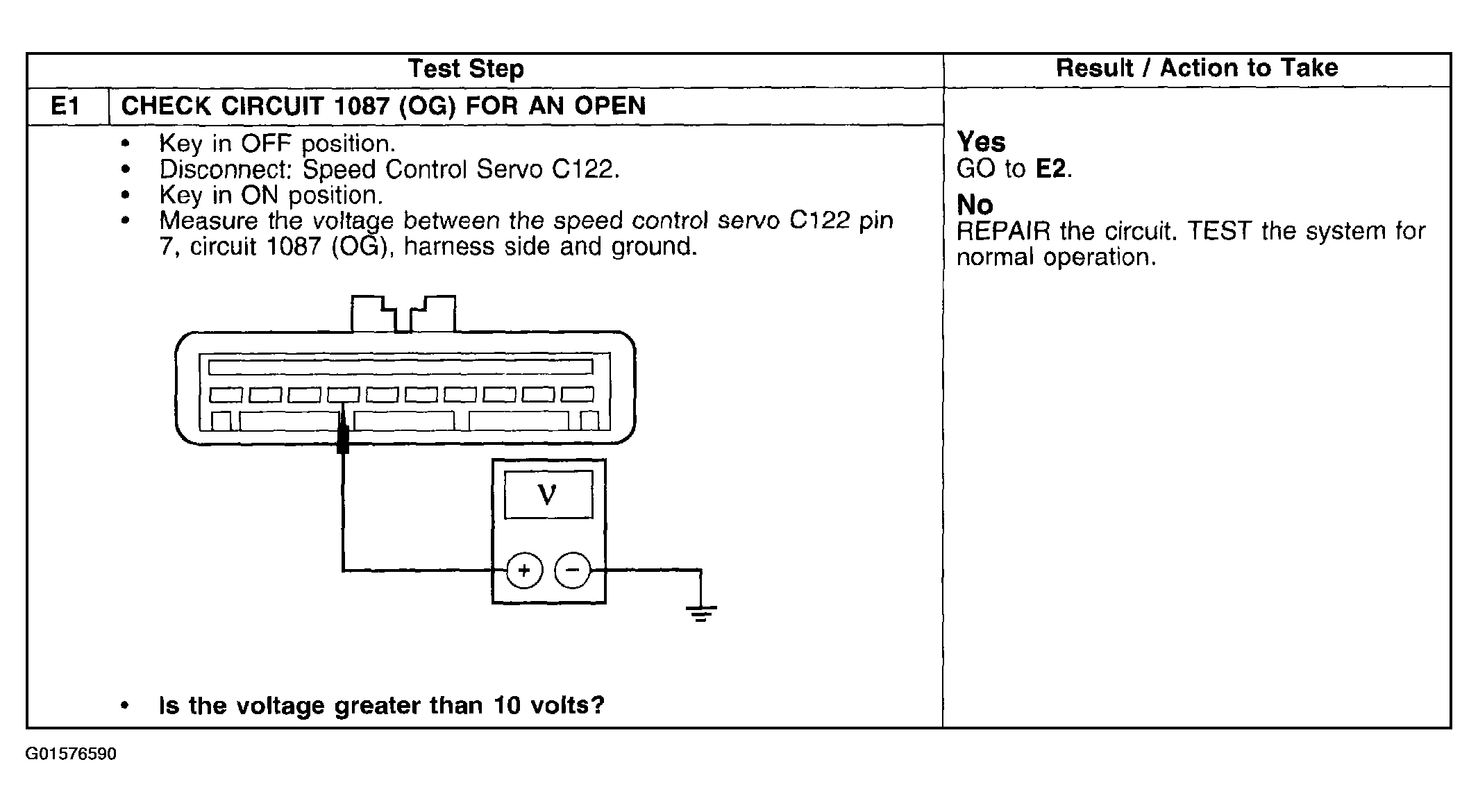

Fig 1: Pinpoint Test E: Speed Control Is Inoperative - No Flash Codes (Steps E1)
Courtesy of FORD MOTOR CO.

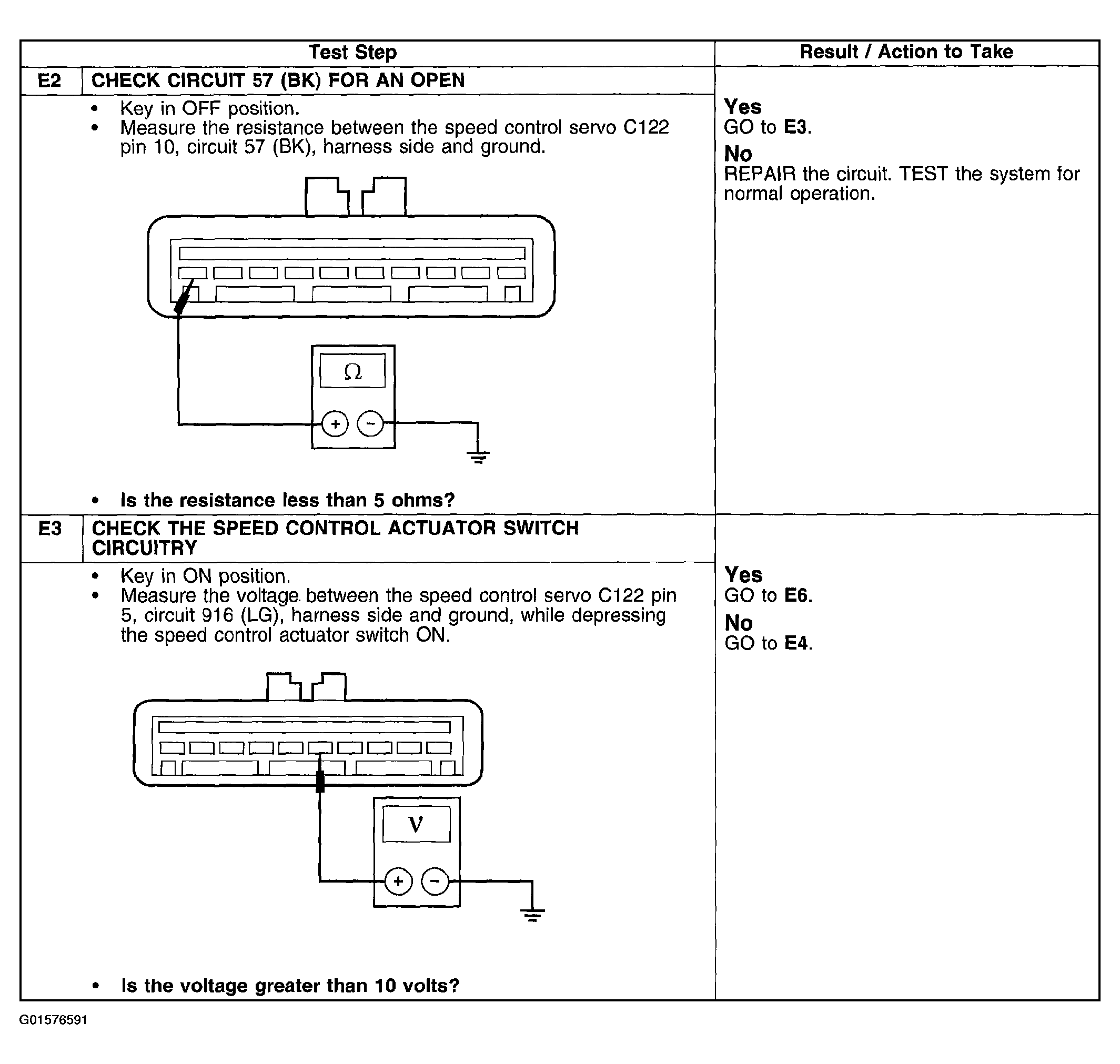

Fig 2: Pinpoint Test E: Speed Control Is Inoperative - No Flash Codes (Steps E2-E3)
Courtesy of FORD MOTOR CO.

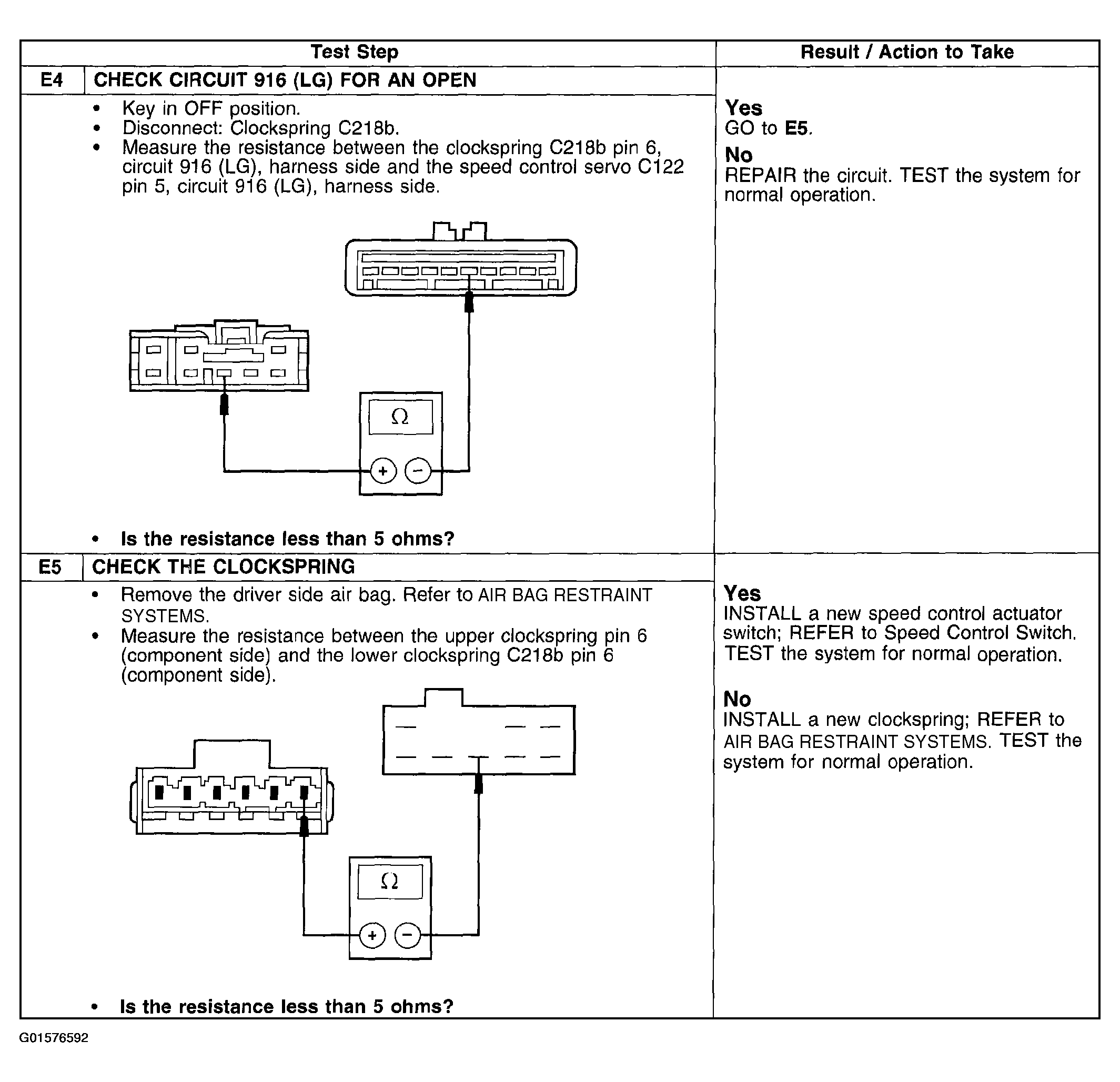

Fig 3: Pinpoint Test E: Speed Control Is Inoperative - No Flash Codes (Steps E4-E5)
Courtesy of FORD MOTOR CO.

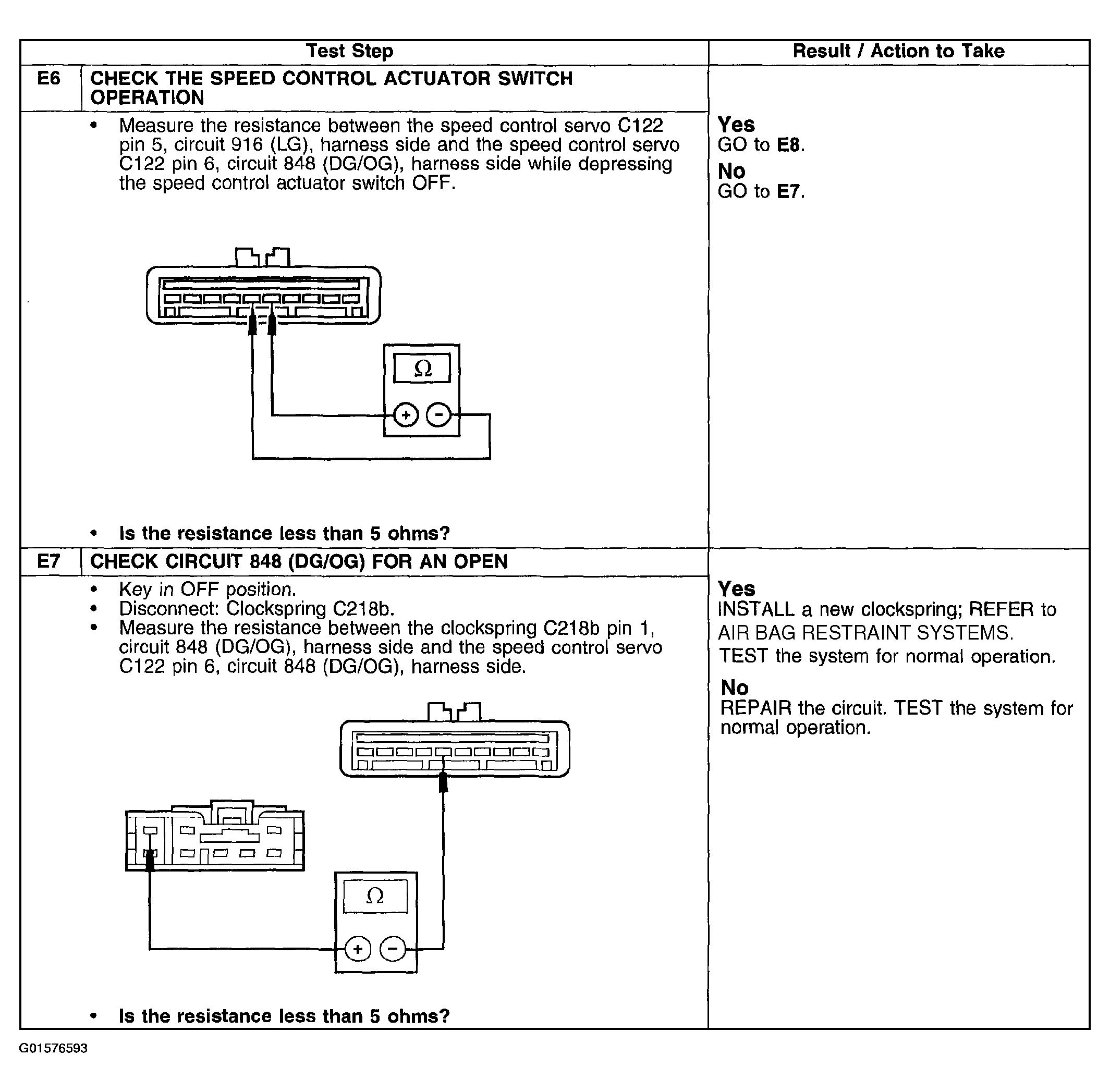

Fig 4: Pinpoint Test E: Speed Control Is Inoperative - No Flash Codes (Steps E6-E7)
Courtesy of FORD MOTOR CO.

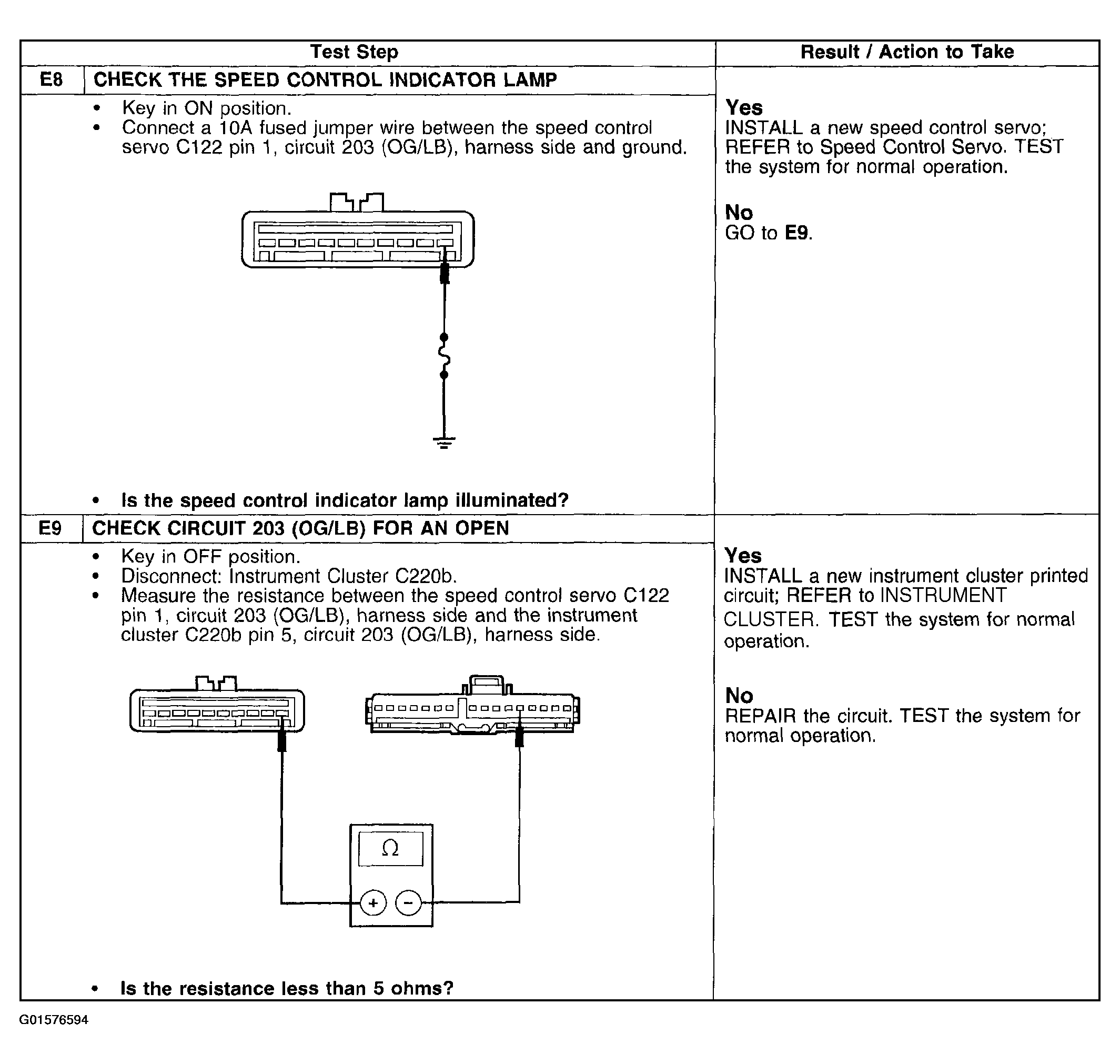

Fig 5: Pinpoint Test E: Speed Control Is Inoperative - No Flash Codes (Steps E8-E9)
