Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

    All Vehicles

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

    2. Sedan

  2. Position back the RH truck liner.

    3. Station Wagon

  3. Remove the rear quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .

    4. All Vehicles

  4. Remove the inertia fuel shutoff (IFS) switch.
    1. Disconnect the IFS switch electrical connector.
    2. Remove the screws and the switch.

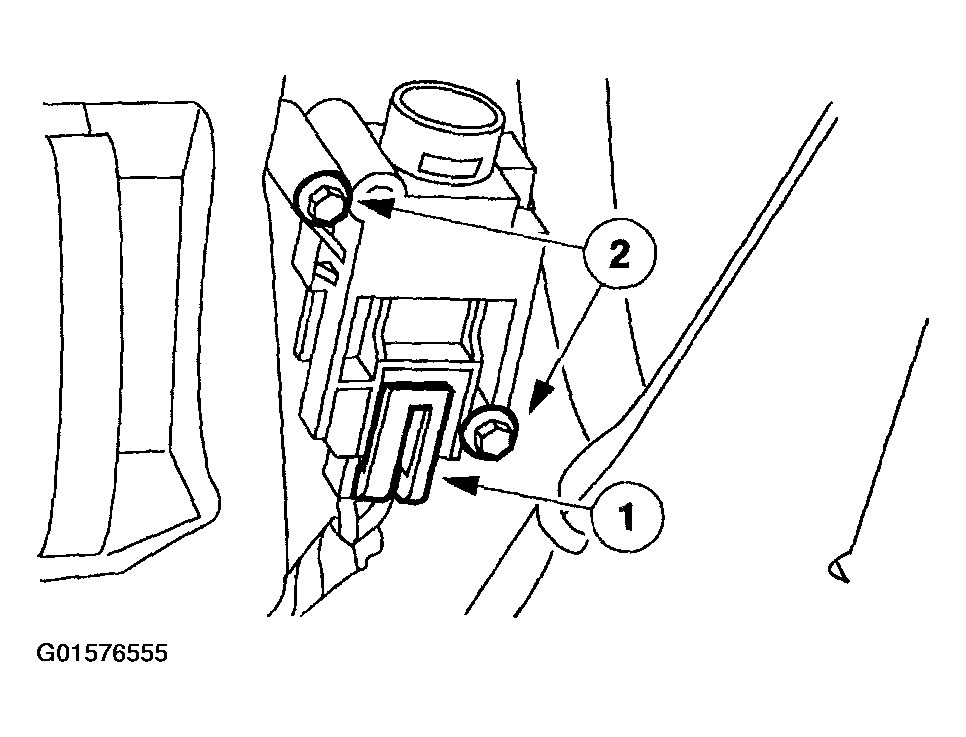

      Fig 1: Identifying Inertia Fuel Shutoff (IFS) Switch
      G01576555Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
