Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Relieve the fuel pressure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
Drain the fuel tank. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
Raise and support the vehicle.
Remove the fuel tank filler pipe hoses.
1. Loosen the hose clamps.
2. Disconnect the hoses from the filler pipes.

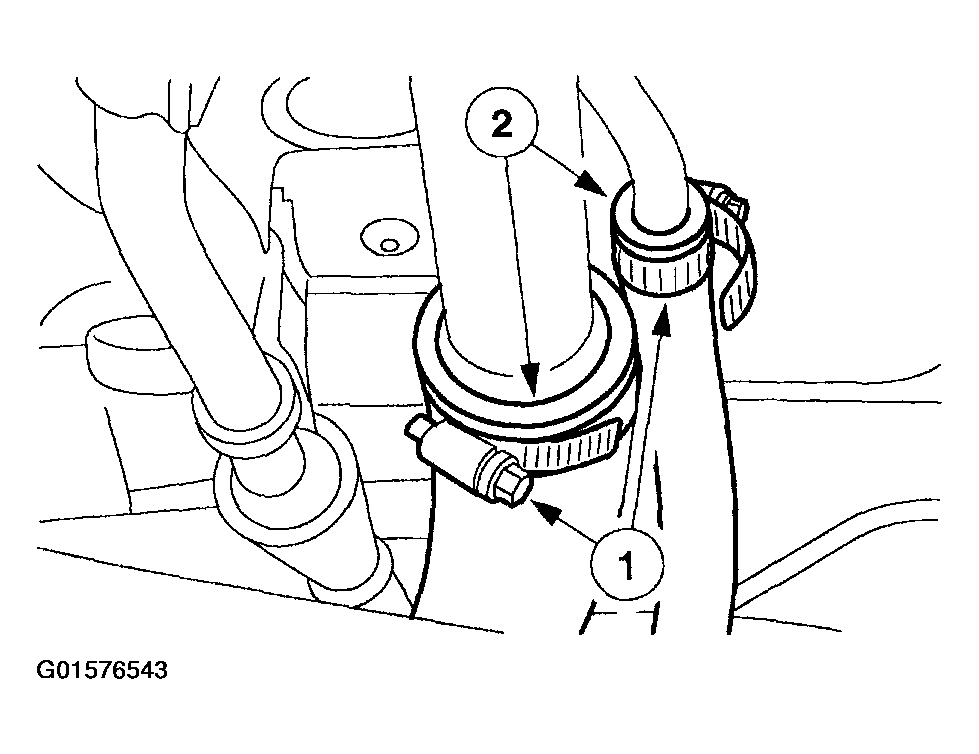

Fig 1: Identifying Hose Clamps And Filler Pipes Of Fuel Tank
Courtesy of FORD MOTOR CO.
Disconnect the fuel pump electrical connector.

Fig 2: Identifying Fuel Pump Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the fuel filter inlet hose.

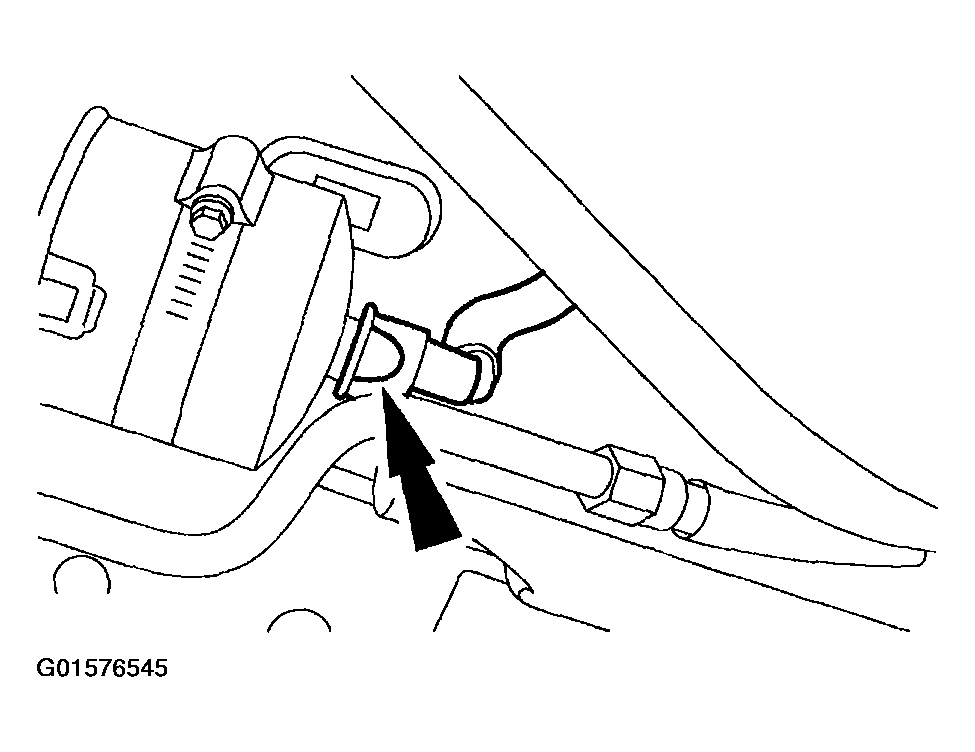

Fig 3: Identifying Fuel Filter Inlet Hose
Courtesy of FORD MOTOR CO.
Disconnect the vapor tube fitting. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .

Fig 4: Identifying Vapor Tube Of Fuel Tank
Courtesy of FORD MOTOR CO.
Position a safety support under the fuel tank.
Remove the two fuel tank support strap bolts.

Fig 5: Identifying Two Fuel Tank Support Strap Bolts
Courtesy of FORD MOTOR CO.
Partially lower the fuel tank while swinging the fuel tank support straps away from the fuel tank. Position the straps aside and lower the fuel tank.
To install, reverse the removal procedure.
