Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
If the fuel tank is full, drain the fuel tank (9002) until the fuel level is at or below half a tank. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
Remove the filler neck screws.

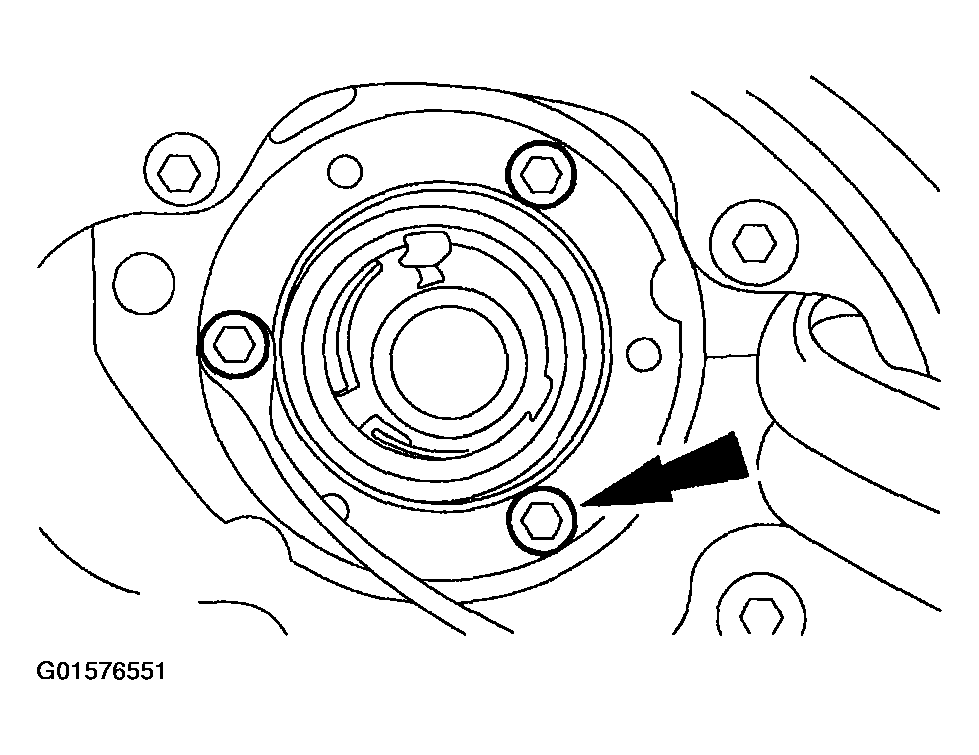

Fig 1: Identifying Filler Neck Screws
Courtesy of FORD MOTOR CO.
Raise and support the vehicle. .
Remove the fuel tank filler pipe hoses.
1. Loosen the hose clamps.
2. Disconnect the hoses from the filler pipes.

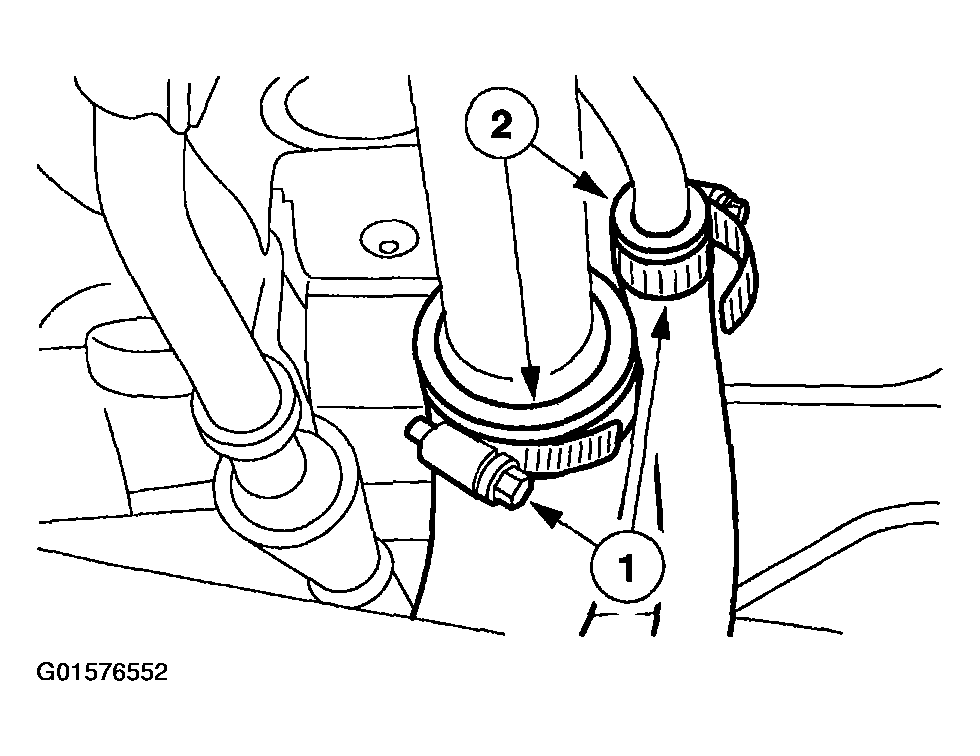

  Fig 2: Identifying Fuel Tank Filler Pipe Hoses
  Courtesy of FORD MOTOR CO.
Remove the filler pipe assembly.
1. Remove the filler tube bolt.
2. Remove the filler pipe.

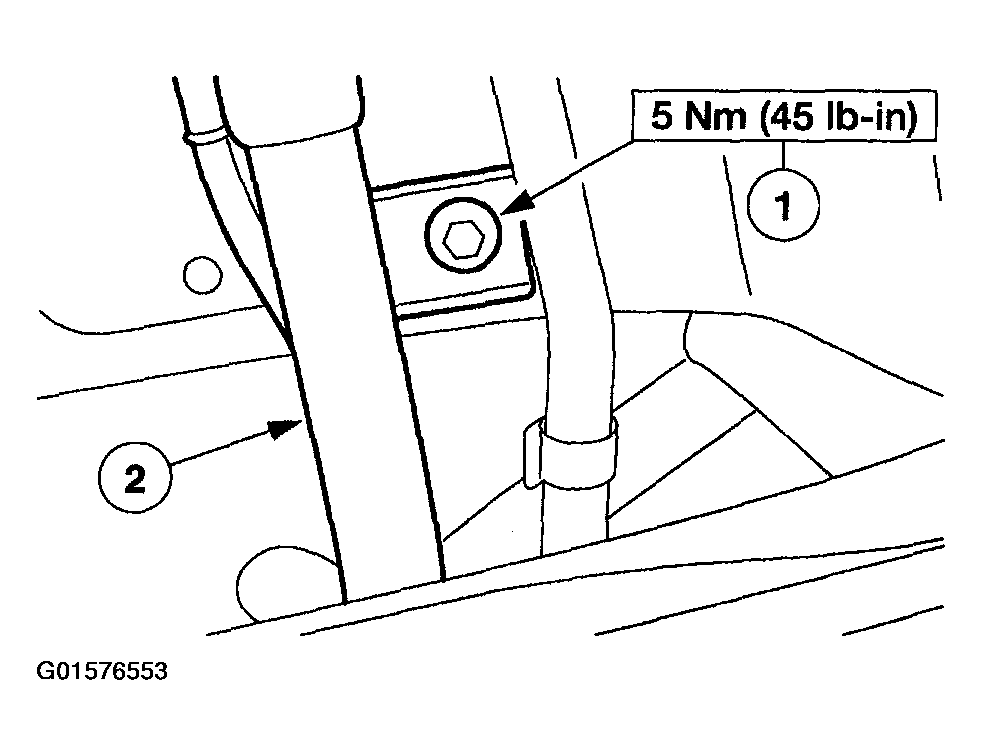

  Fig 3: Identifying Filler Tube Bolt
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
