Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fuel tank (9002). For additional information, refer to FUEL TANK .
Clean the area around the fuel pump mounting flange.
Using the special tool, remove the fuel module retaining ring.

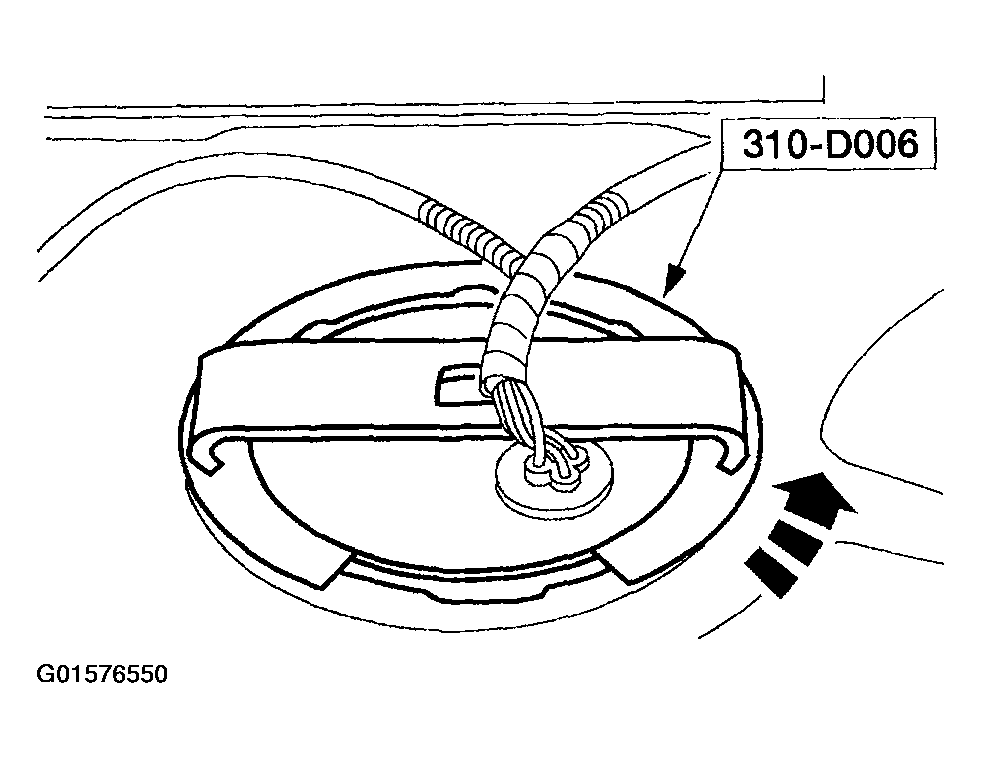

Fig 1: Removing Fuel Module Retaining Ring By Using Special Tool
Courtesy of FORD MOTOR CO.

CAUTION: The fuel delivery module must be handled carefully to avoid damage to the float arm, filter, and convolute hoses.

Remove the fuel delivery module from the fuel tank.

NOTE: A stop should be felt when aligning the raised arrow on top of the fuel delivery module to the dot on the fuel tank.

To install, reverse the removal procedure.
