Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the nuts.

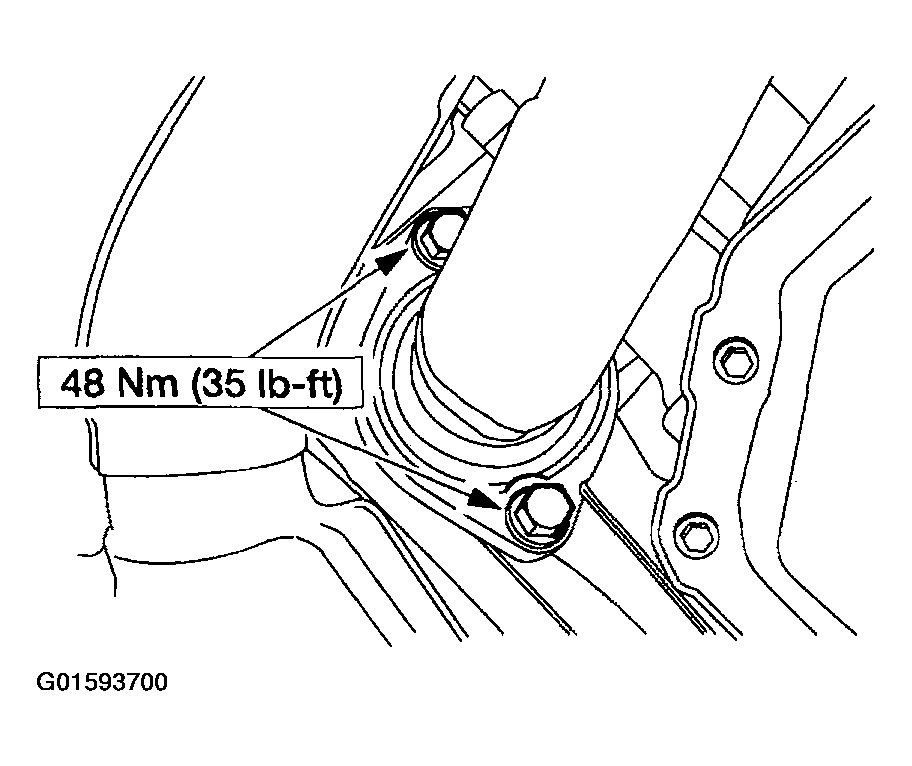

Fig 1: Removing Dual Converter Y-Pipe - 3.0L (4V)
Courtesy of FORD MOTOR CO.
Raise and support the vehicle.
Disconnect the catalyst monitor sensor (CMS) electrical connectors.

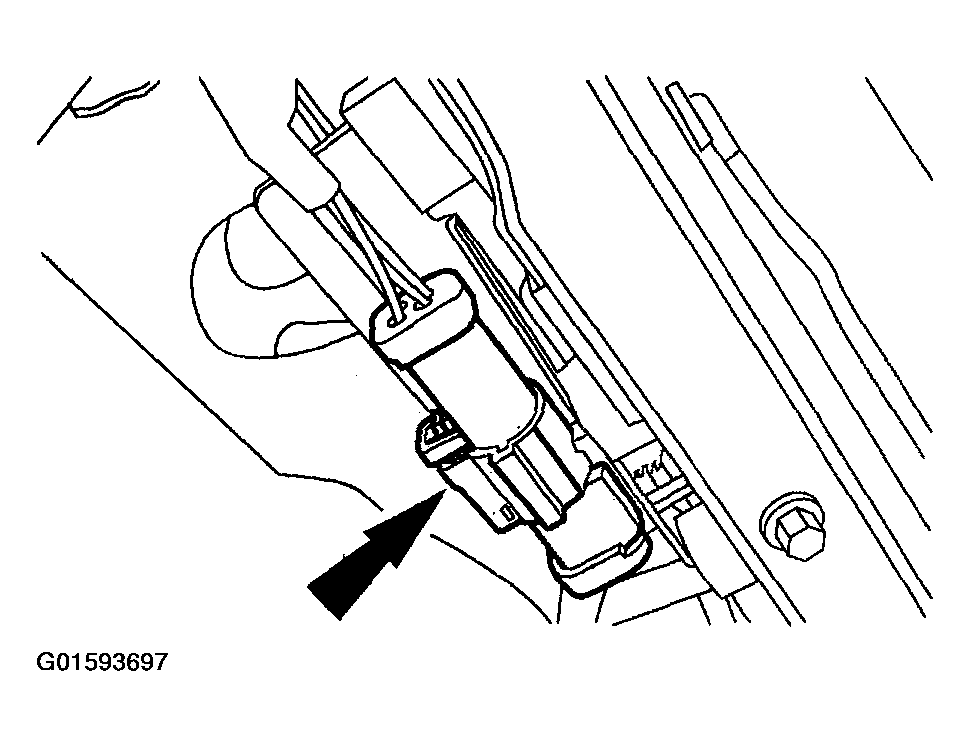

Fig 2: Disconnecting Catalyst Monitor Sensor (CMS) Electrical Connectors
Courtesy of FORD MOTOR CO.
Support the exhaust system with a suitable jack stand.

Fig 3: Supporting Exhaust System With Suitable Jack Stand
Courtesy of FORD MOTOR CO.
Remove the nut.

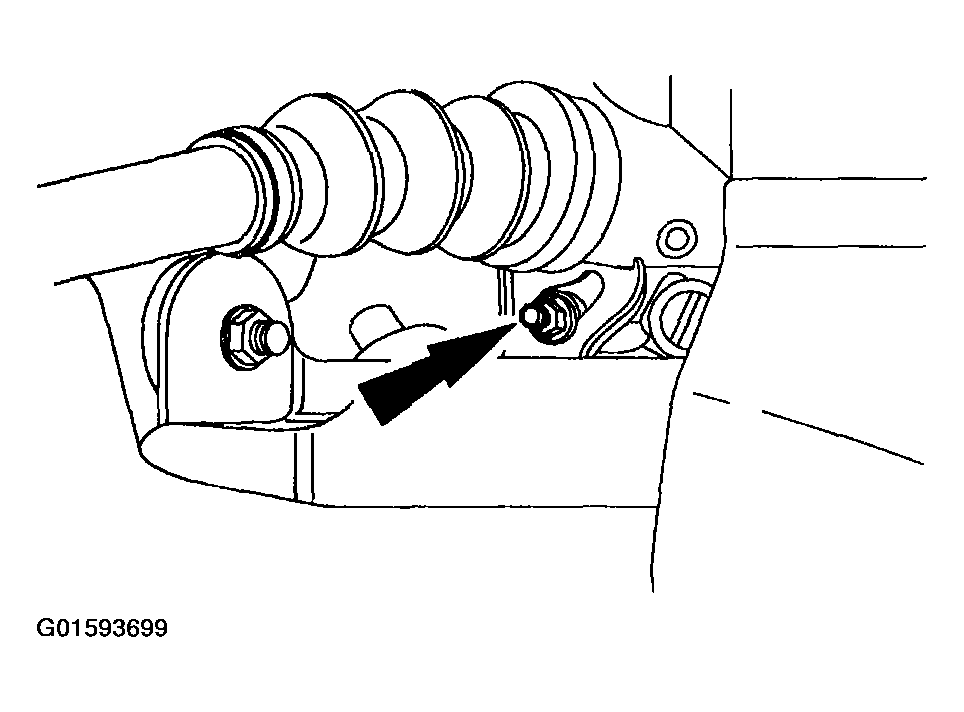

Fig 4: Removing Nut
Courtesy of FORD MOTOR CO.
Remove the bolts.

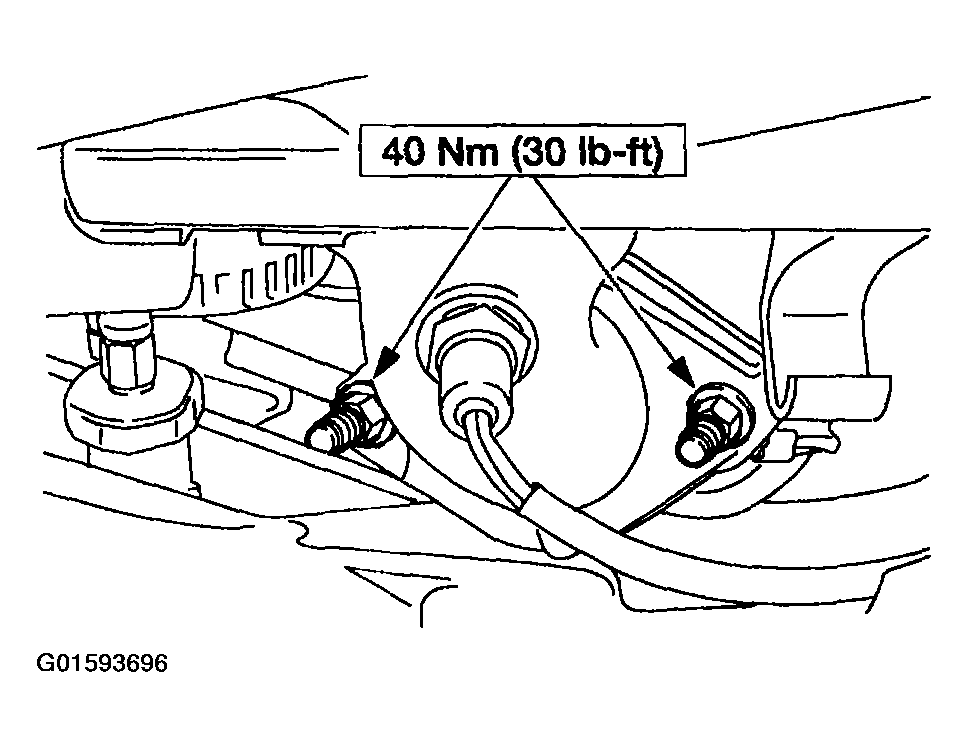

Fig 5: Removing Bolt
Courtesy of FORD MOTOR CO.
Remove the nuts and remove the dual converter Y-pipe.

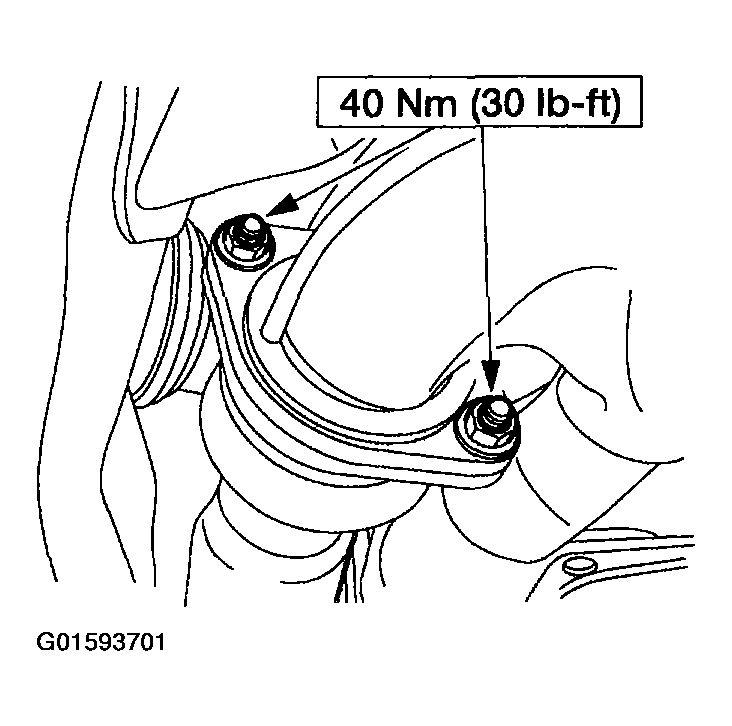

Fig 6: Removing Dual Converter Y-Pipe
Courtesy of FORD MOTOR CO.
Remove the gaskets and, if necessary, the catalyst monitor sensors (CMS).
- Discard the gaskets.

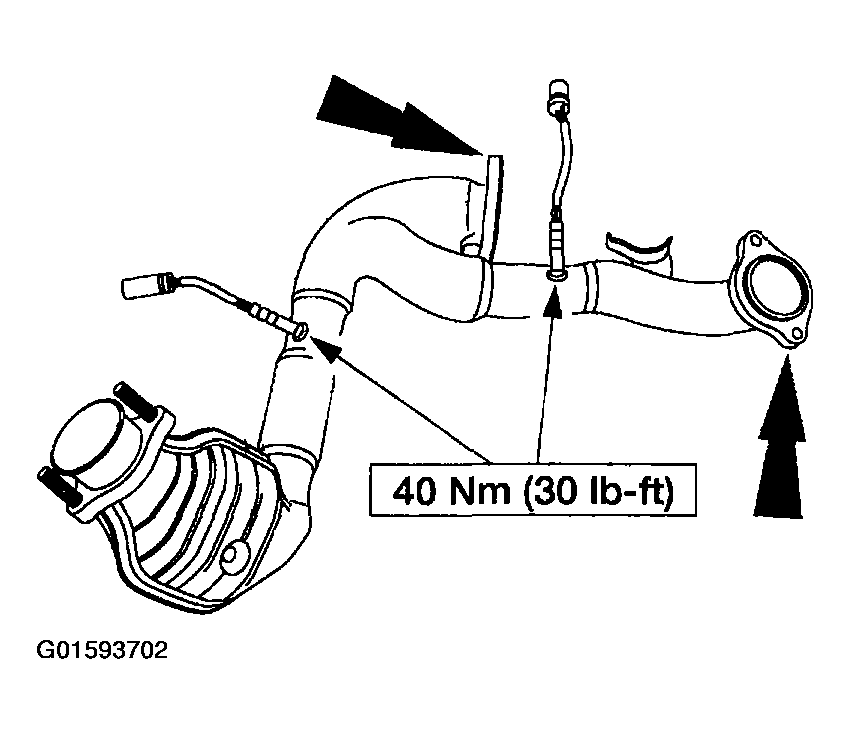

Fig 7: Removing Gaskets
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
