Dual Converter Y-Pipe - 3.0L (2V): Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Install the new gaskets and, if removed, install the catalyst monitor sensors (CMS).

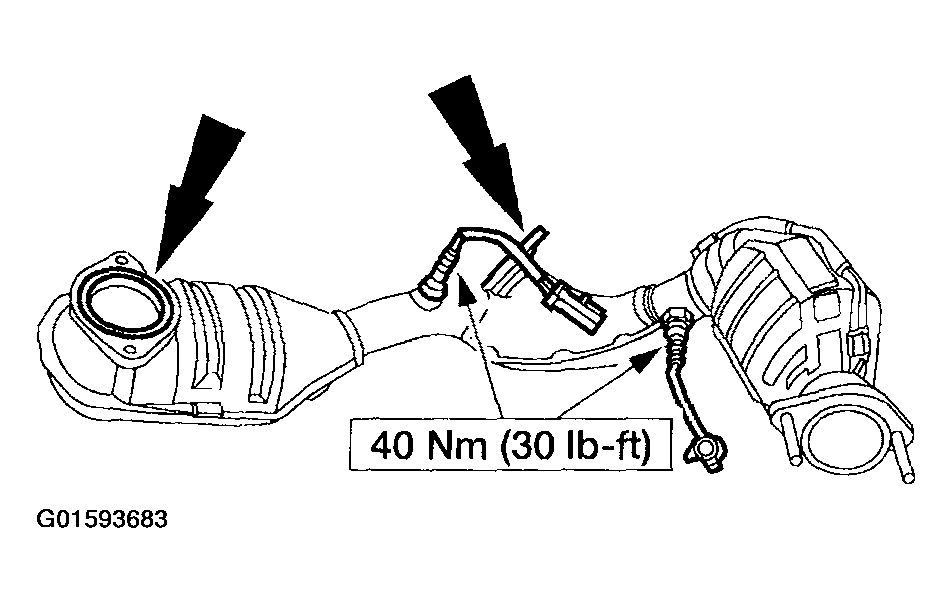

Fig 1: Installing Catalyst Monitor Sensors (CMS)
Courtesy of FORD MOTOR CO.
Position the dual converter Y-pipe and loosely start the front nuts and the rear bolt.

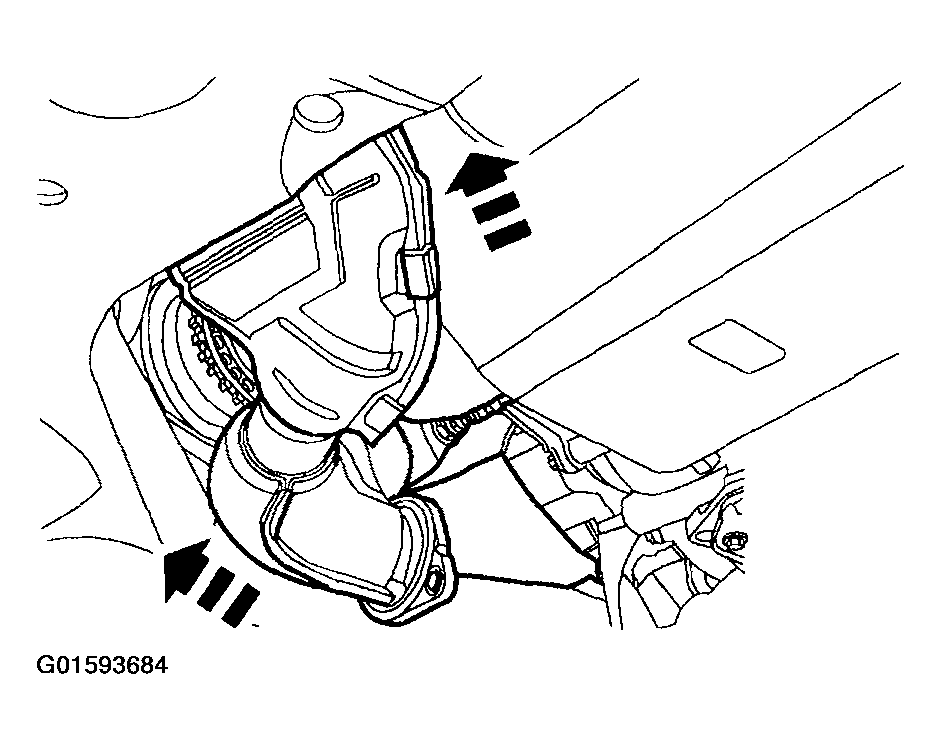

Fig 2: Positioning Dual Converter Y-Pipe
Courtesy of FORD MOTOR CO.
Tighten the bolt.

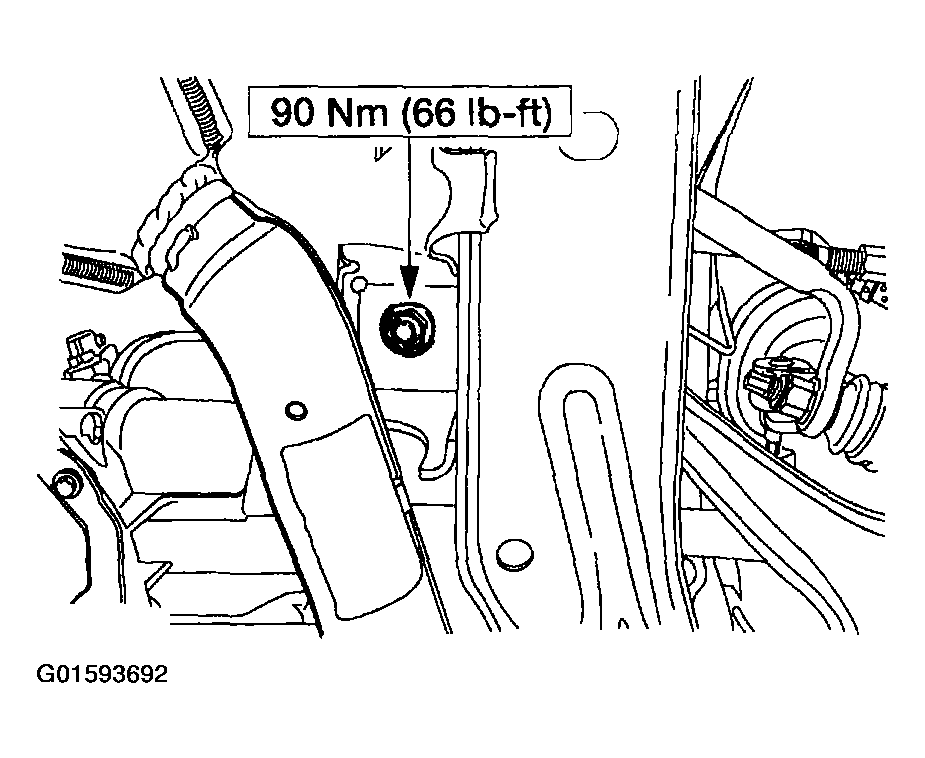

Fig 3: Tightening Bolt
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Tighten the nuts.

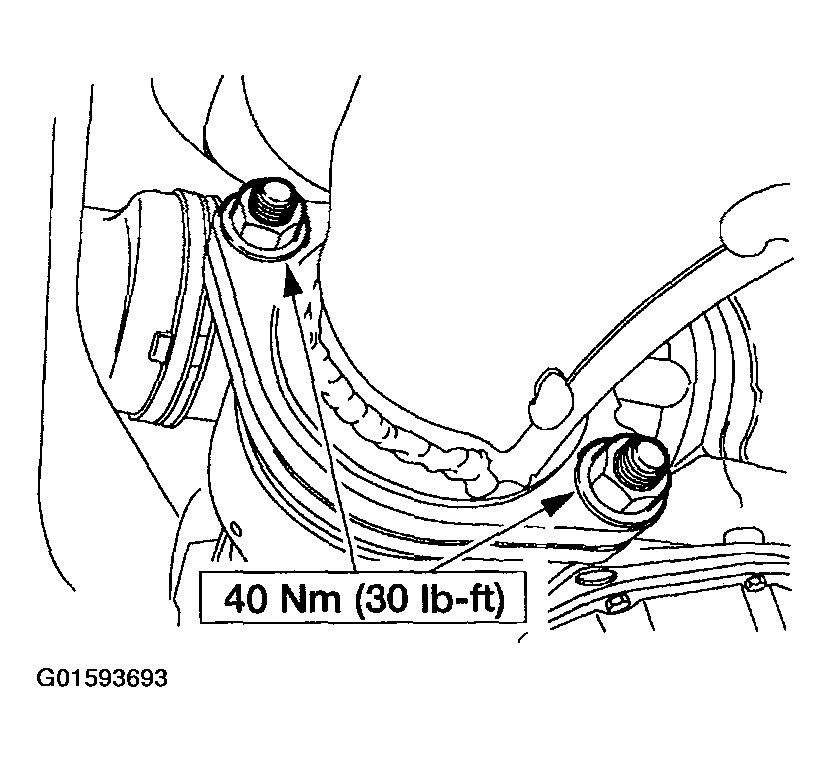

Fig 4: Tightening Nuts
Courtesy of FORD MOTOR CO.
Lower the engine and remove the special tools.
Tighten the bolt.

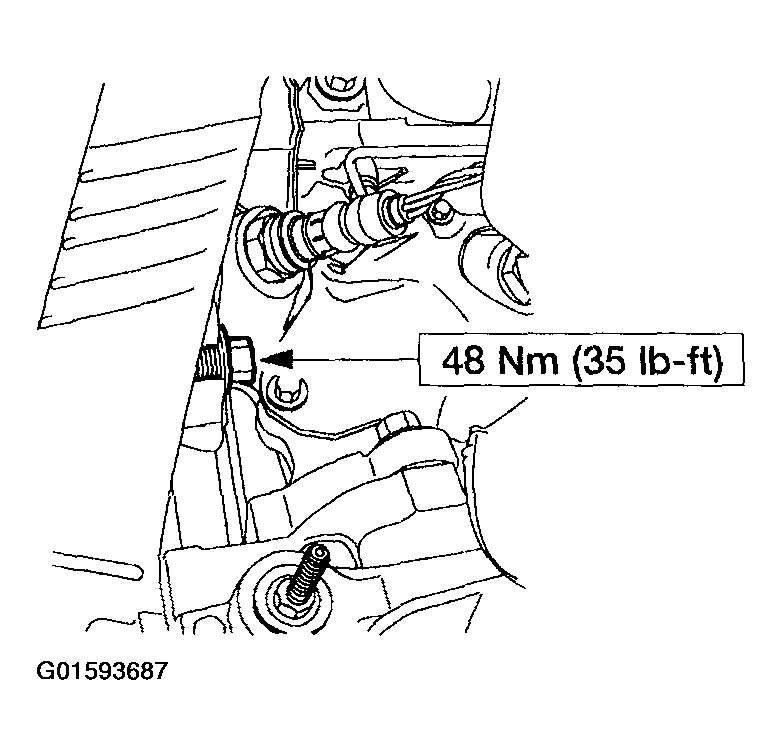

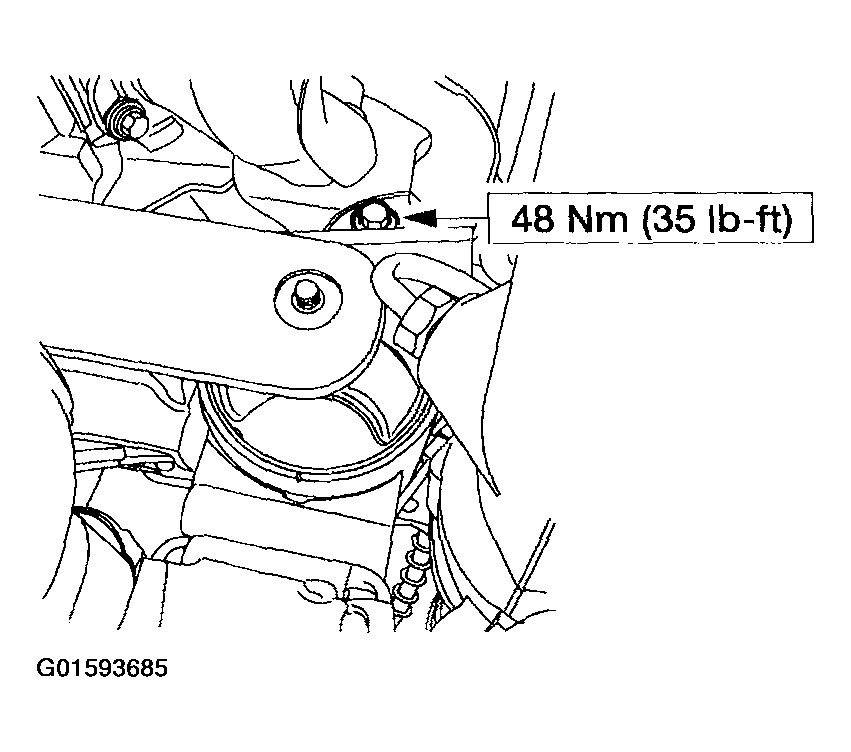

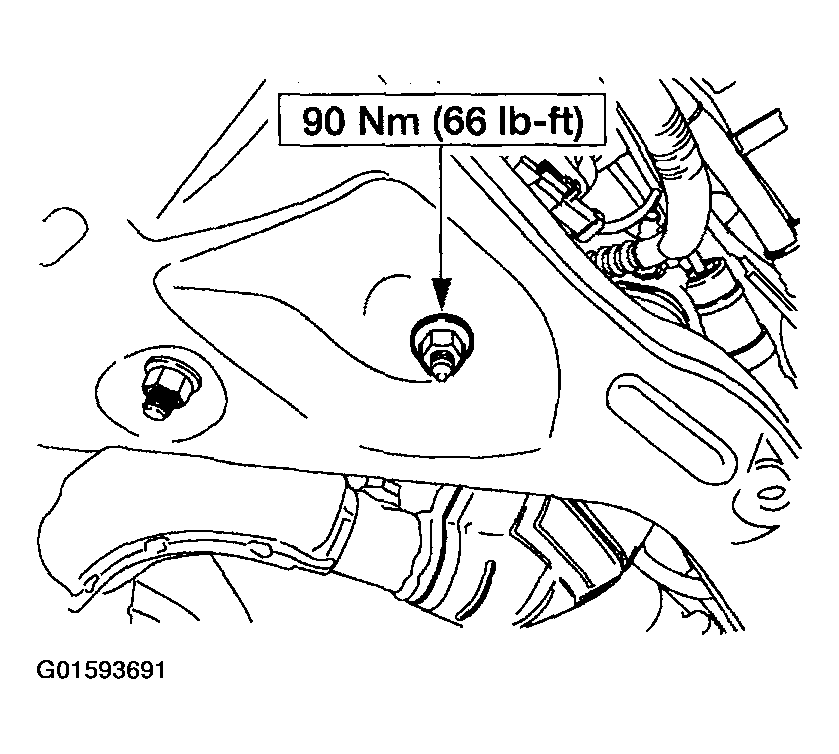

Fig 5: Lowering Engine
Courtesy of FORD MOTOR CO.
Install the engine roll restrictor and tighten the bolts.

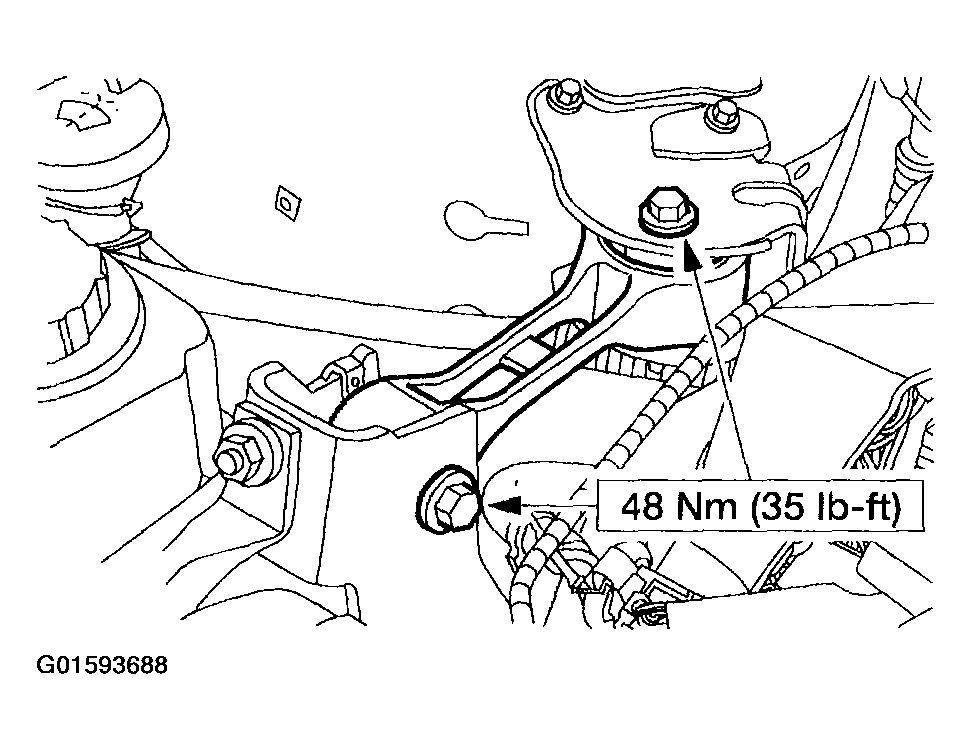

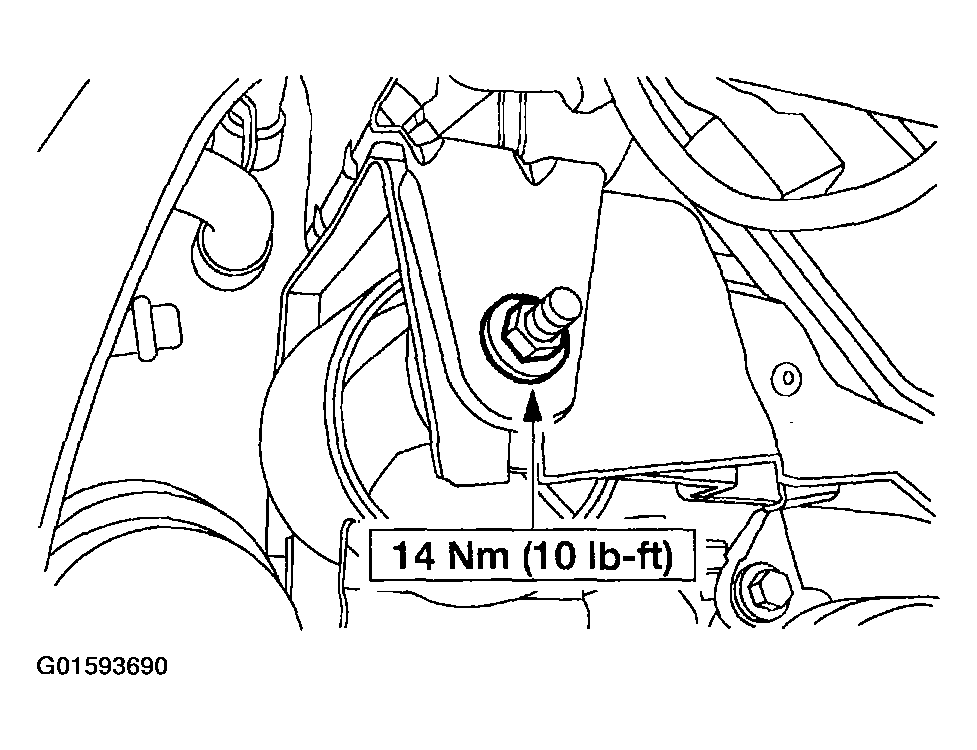

Fig 6: Installing Engine Roll Restrictor
Courtesy of FORD MOTOR CO.
Position the heat shield. Install the ground strap and tighten the bolt and nut.

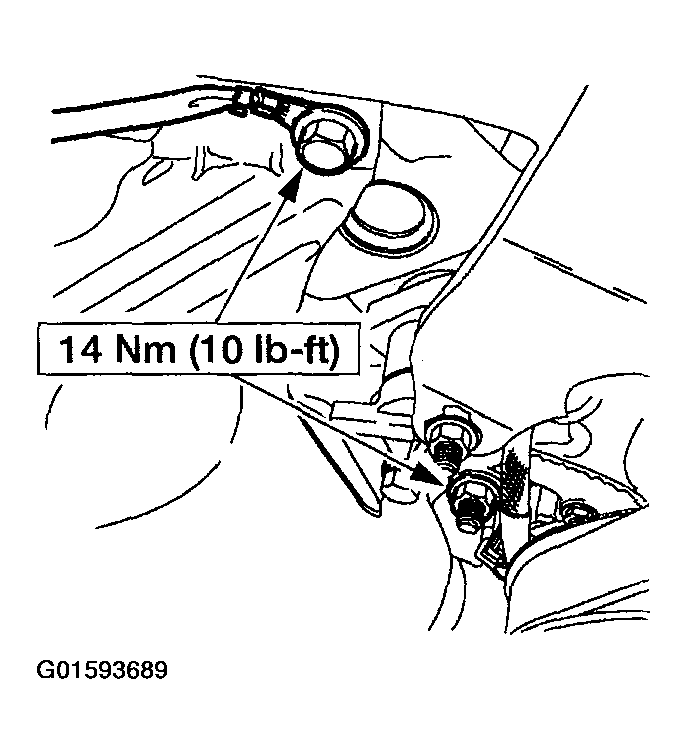

Fig 7: Installing Ground Strap
Courtesy of FORD MOTOR CO.
Raise the vehicle.
Tighten the nut.

Fig 8: Tightening Nut (1 Of 3)
Courtesy of FORD MOTOR CO.
Tighten the nut.

Fig 9: Tightening Nut (2 Of 3)
Courtesy of FORD MOTOR CO.
Tighten the nut.

Fig 10: Tightening Nut (3 Of 3)
Courtesy of FORD MOTOR CO.
Connect the three-way converter to the dual converter Y-pipe, and tighten the nuts.

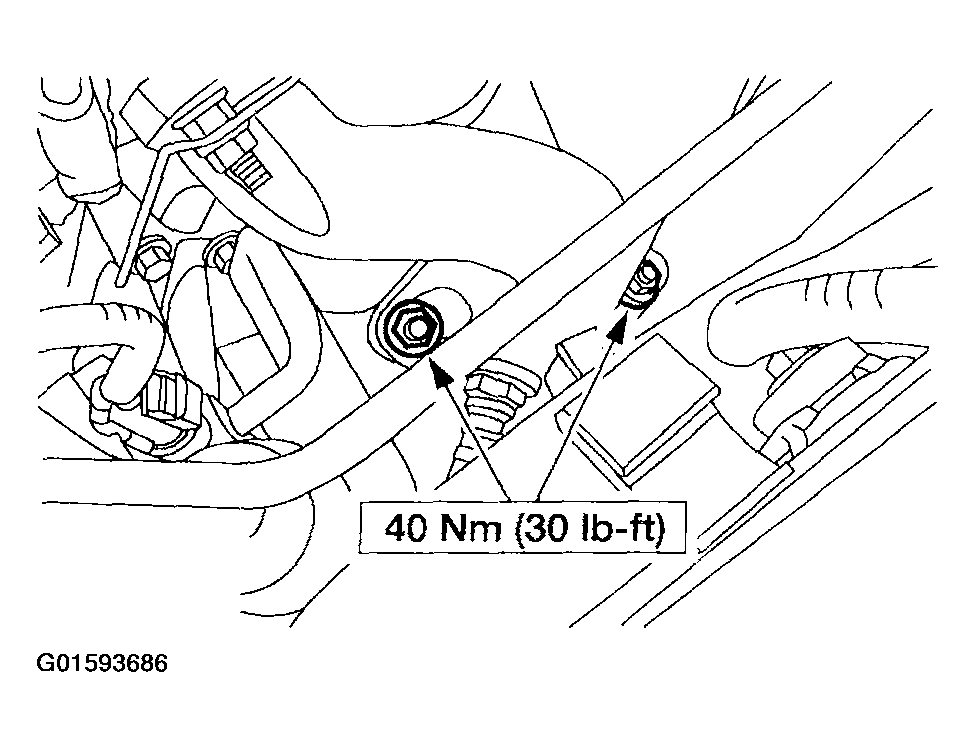

Fig 11: Connecting Three-Way Converter To Dual Converter Y-Pipe
Courtesy of FORD MOTOR CO.
Connect the CMS electrical connectors.

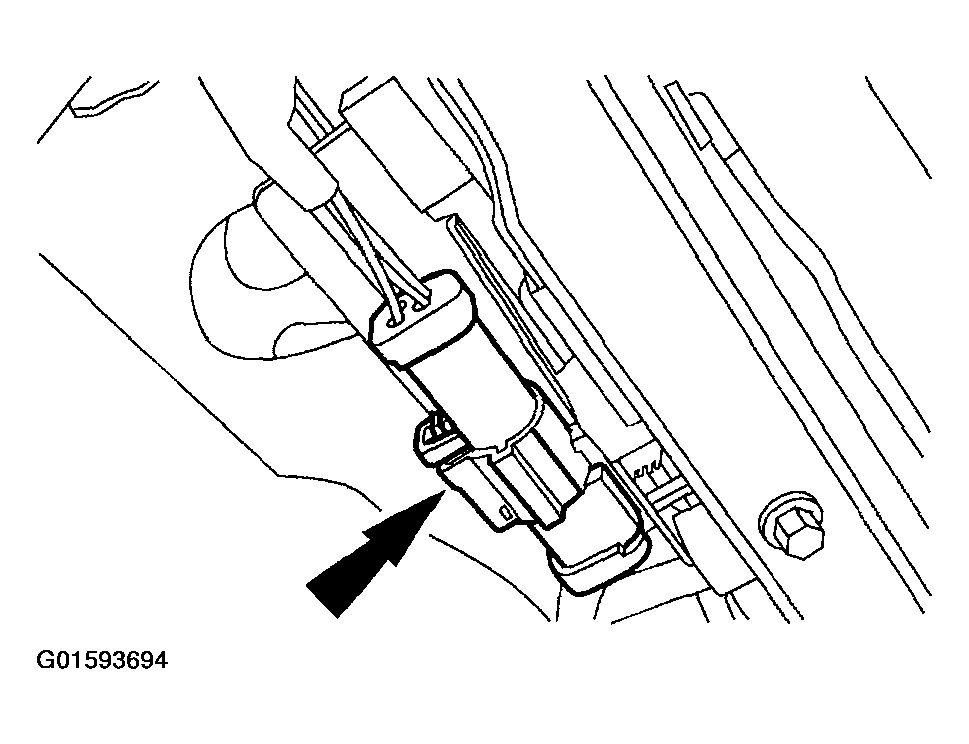

Fig 12: Connecting CMS Electrical Connectors
Courtesy of FORD MOTOR CO.
Install the splash shield and the air deflector, and tighten the screws.

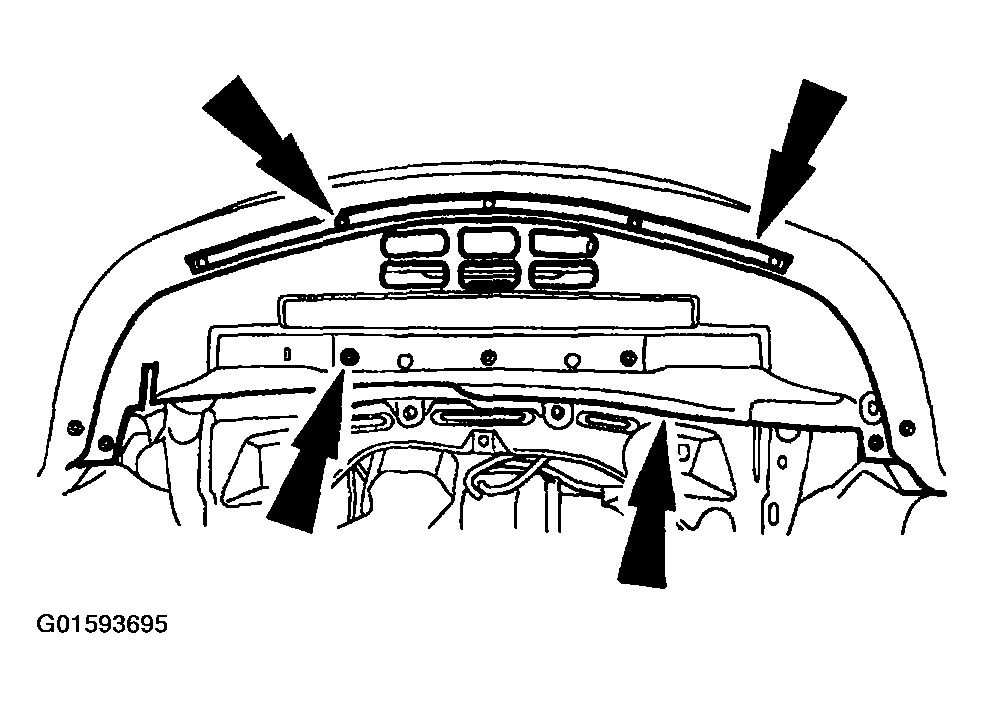

Fig 13: Installing Air Deflector
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Connect the battery cable.
