Selector Lever Bezel: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console bezel.
    • Carefully pry the bezel from the rear and lift.

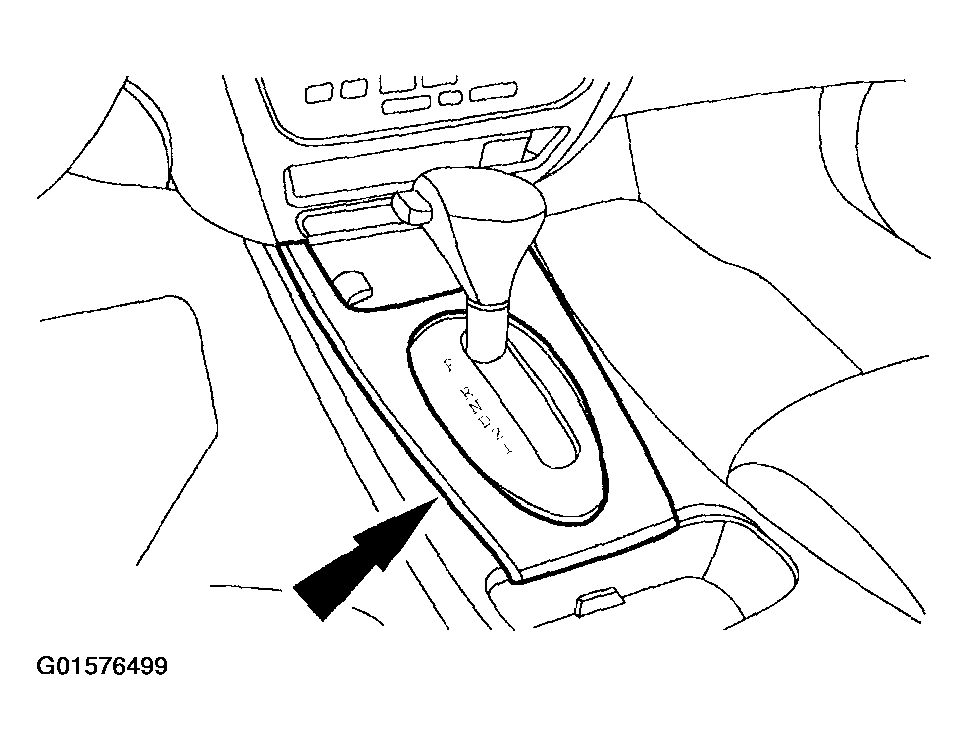

      Fig 1: Removing Console Bezel
      G01576499Courtesy of FORD MOTOR CO.
  2. Remove the shift knob. For additional information, refer to TRANSMISSION SELECTOR LEVER KNOB .
  3. Remove the retaining clips, then, pinching the retaining fingers, lift upward on the selector lever bezel slightly.
    Fig 2: Removing Retaining Clips
    G01576500Courtesy of FORD MOTOR CO.
  4. Disconnect the selector lever bezel light bulbs and sockets.

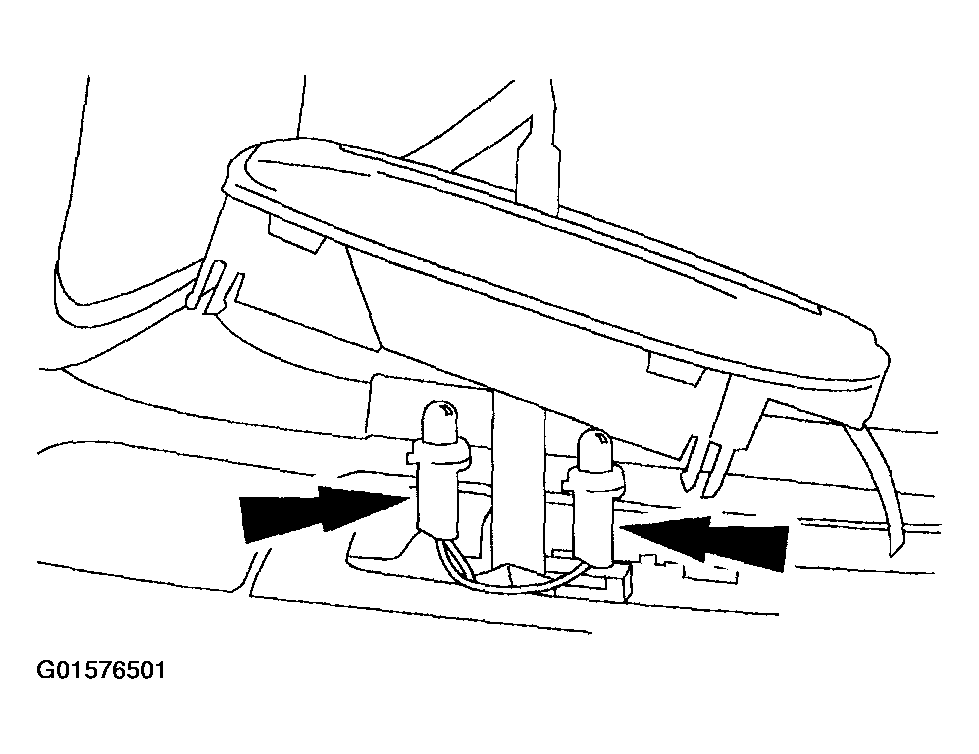

    Fig 3: Disconnecting Selector Lever Bezel Light Bulbs And Sockets
    G01576501Courtesy of FORD MOTOR CO.
  5. Remove the selector lever bezel.
