Selector Lever Cable Adjustment - Floor Shift

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The shift control cable adjustment procedure must be performed in the order shown.
  1. Position the transaxle range selector lever in OVERDRIVE.
  2. Loosen the manual control lever-to-shift control cable nut.

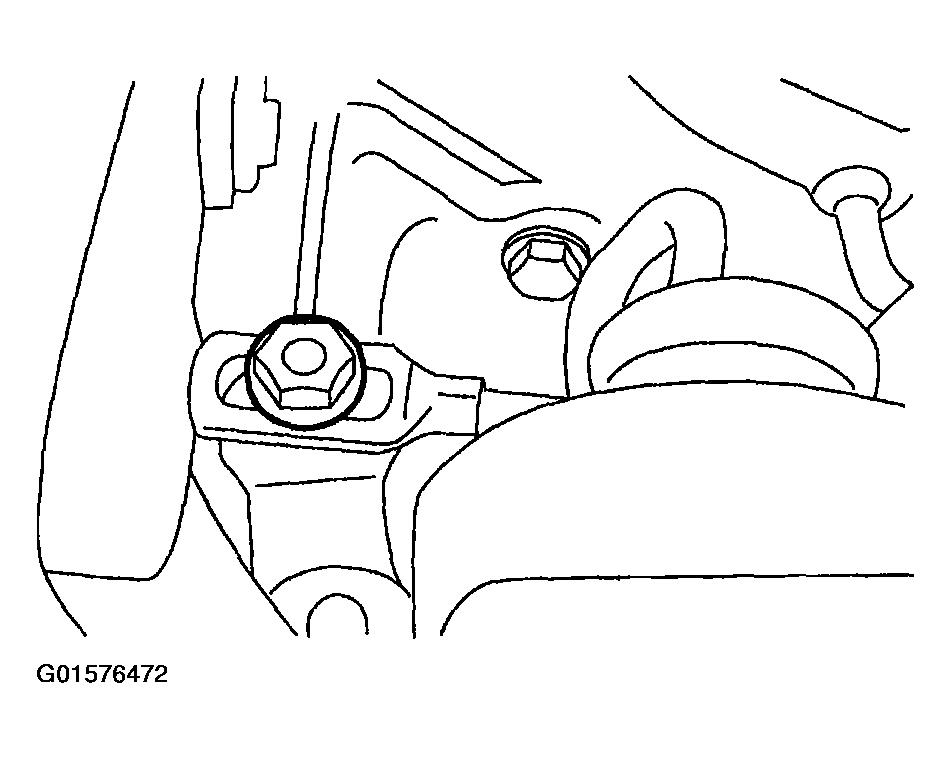

    Fig 1: Loosening Manual Control Lever-To-Shift Control Cable Nut
    G01576472Courtesy of FORD MOTOR CO.
  3. Position the manual control lever in OVERDRIVE. Tighten the nut.

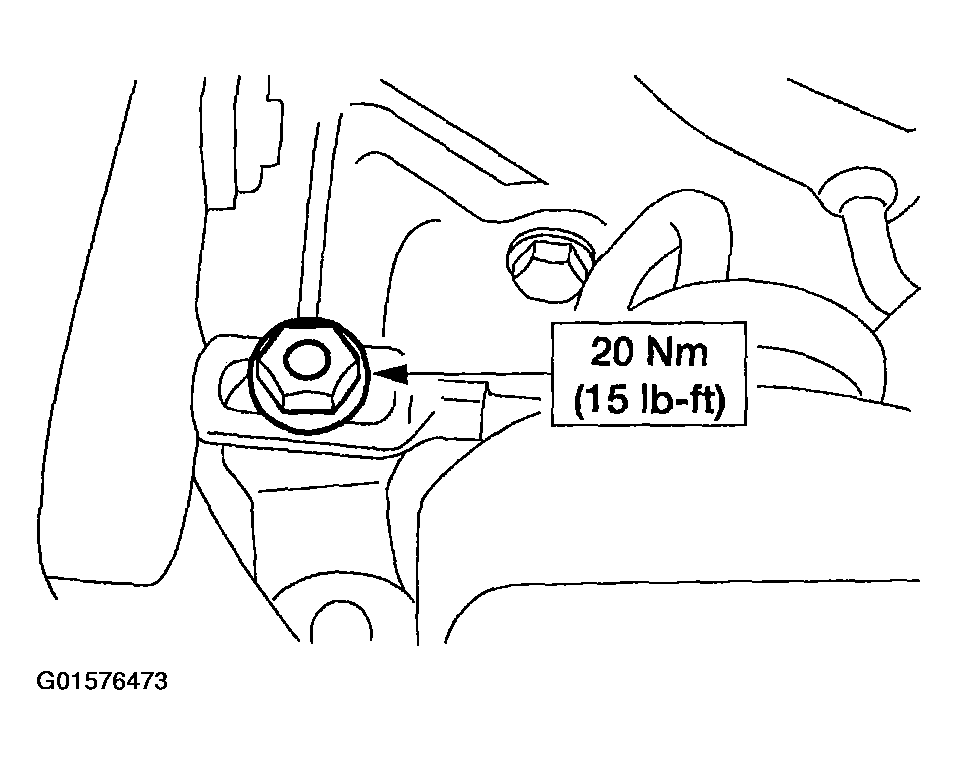

    Fig 2: Tightening Nut
    G01576473Courtesy of FORD MOTOR CO.
  4. Check the operation of the transaxle in each transaxle range selector lever position.
