Selector Lever Cable Adjustment - Column Shift

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The shift control adjustment procedure must be performed in the order shown.

Position the transaxle range selector lever in OVERDRIVE. Hang a 1.4 kg (3 lb) weight on the lever.
Loosen the manual control lever-to-shift control cable nut.

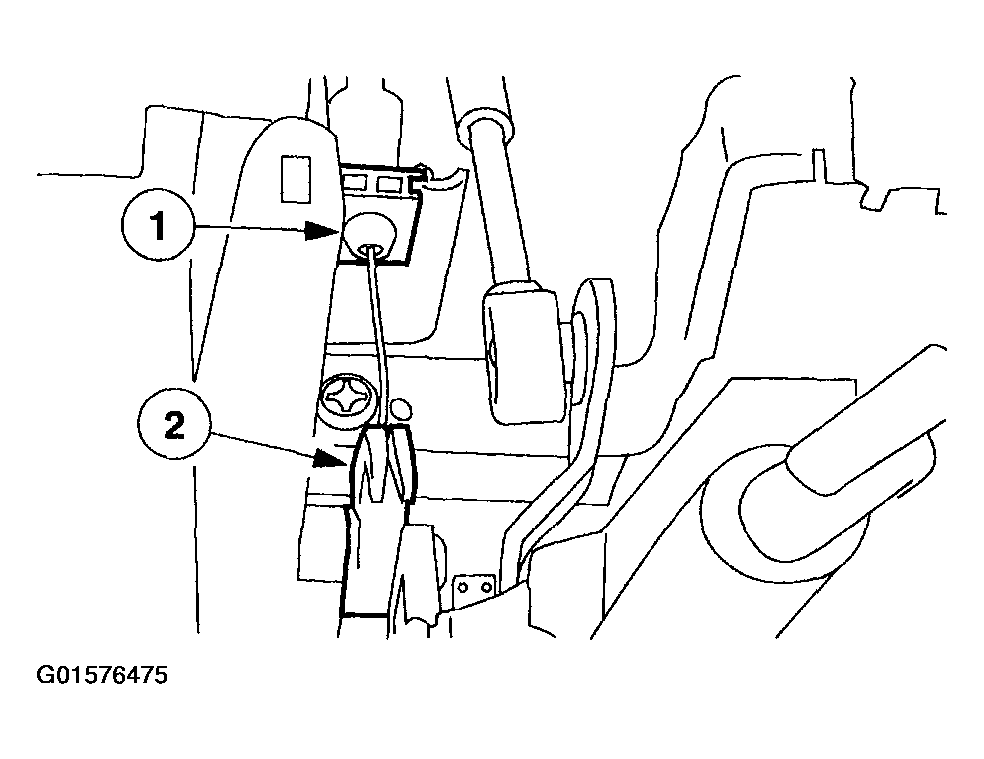

Fig 1: Loosening Manual Control Lever-To-Shift Control Cable Nut
Courtesy of FORD MOTOR CO.
Position the manual control lever in OVERDRIVE. Tighten the manual control lever-to-shift control cable nut.

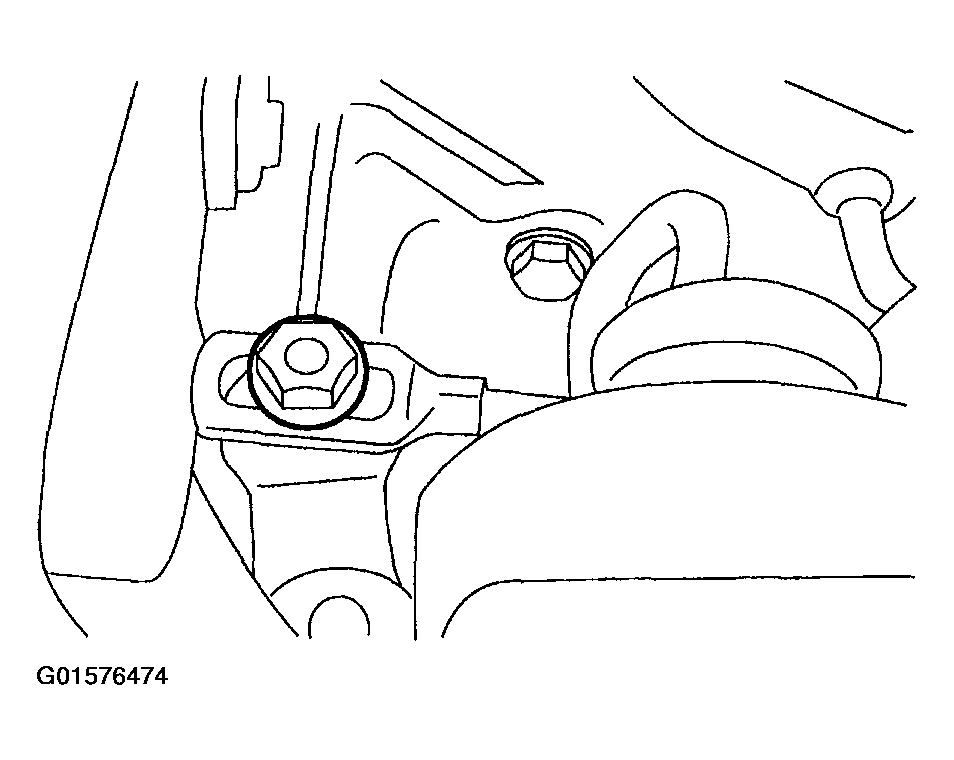

Fig 2: Tightening Manual Control Lever-To-Shift Control Cable Nut
Courtesy of FORD MOTOR CO.
Remove the 1.4 kg (3 lb) weight. Check the operation of the transaxle in each transaxle range selector lever position.
