Transaxle Support Insulator - 3.0L 4V: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If the transaxle mount is not integral to the side pan, refer to TRANSAXLE SUPPORT INSULATOR-3.0L 2V .
  1. Raise the vehicle.
  2. Remove the LH wheel and tire. For additional information, refer to WHEELS & TIRES .
  3. Place the high lift transmission jack under the transaxle.

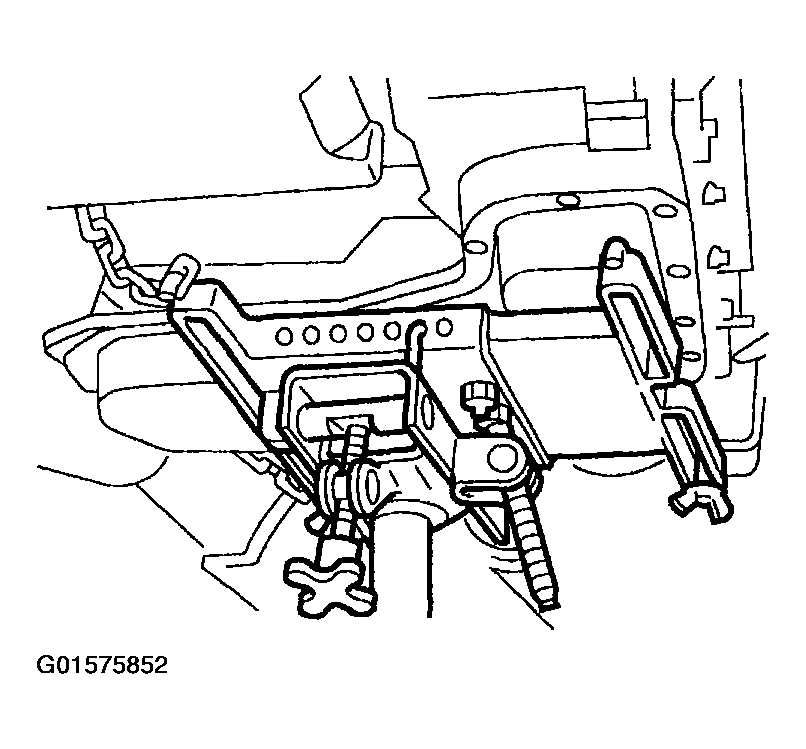

    Fig 1: Placing High Lift Transmission Jack Under Transaxle
    G01575852Courtesy of FORD MOTOR CO.
  4. Remove the engine and transaxle upper support insulator nut.

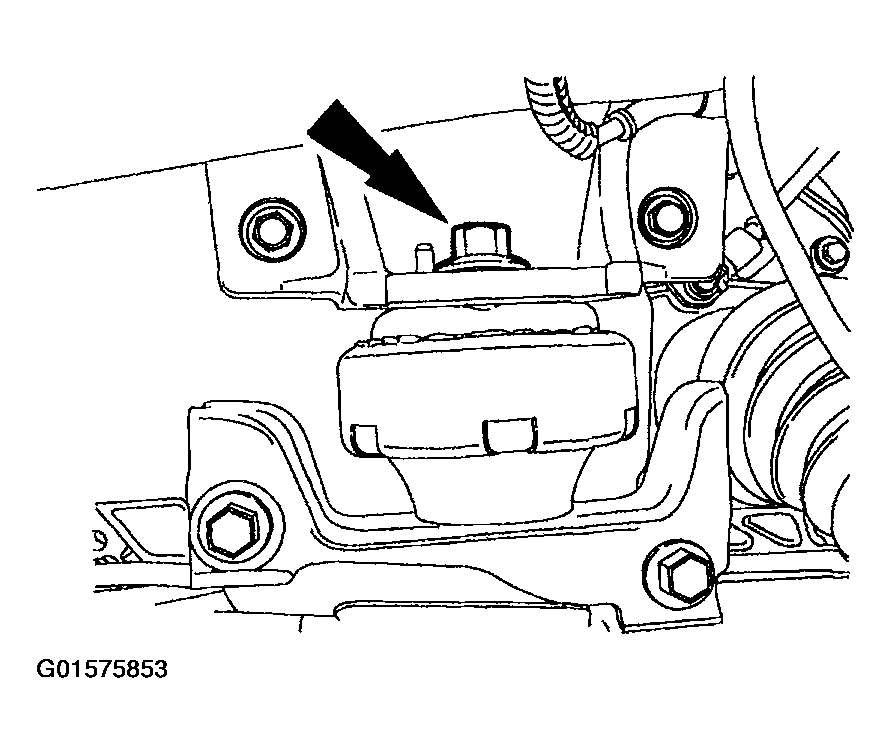

    Fig 2: Removing Transaxle Upper Support Insulator Nut
    G01575853Courtesy of FORD MOTOR CO.
  5. Remove the engine and transaxle upper support bracket bolts and bracket.

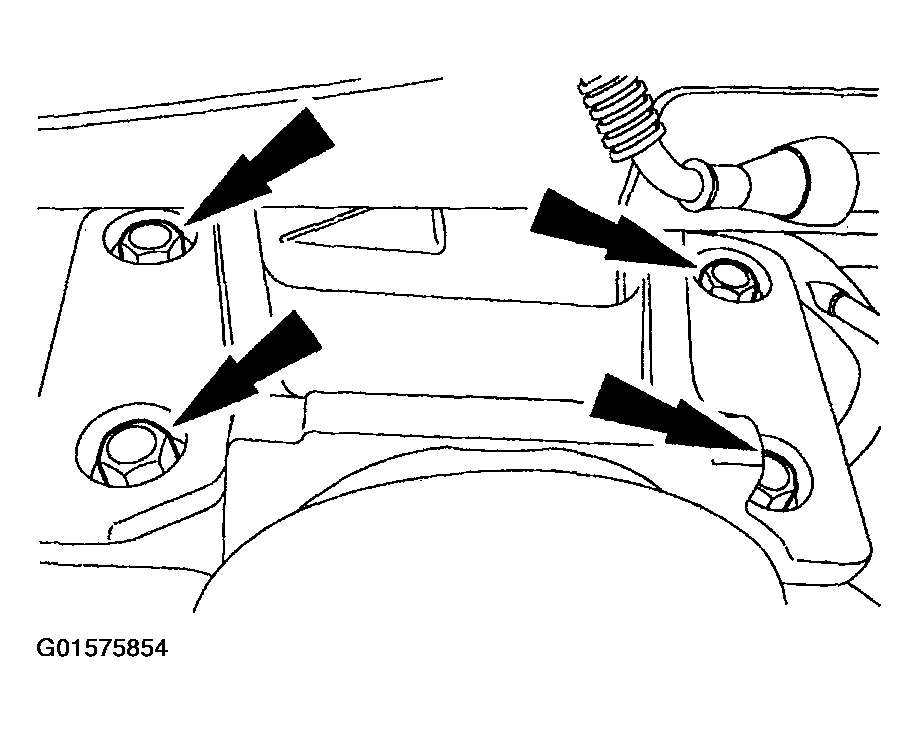

    Fig 3: Removing Transaxle Upper Support Bracket Bolts And Bracket
    G01575854Courtesy of FORD MOTOR CO.
  6. Remove the engine and transaxle upper support insulator bolts and insulator.

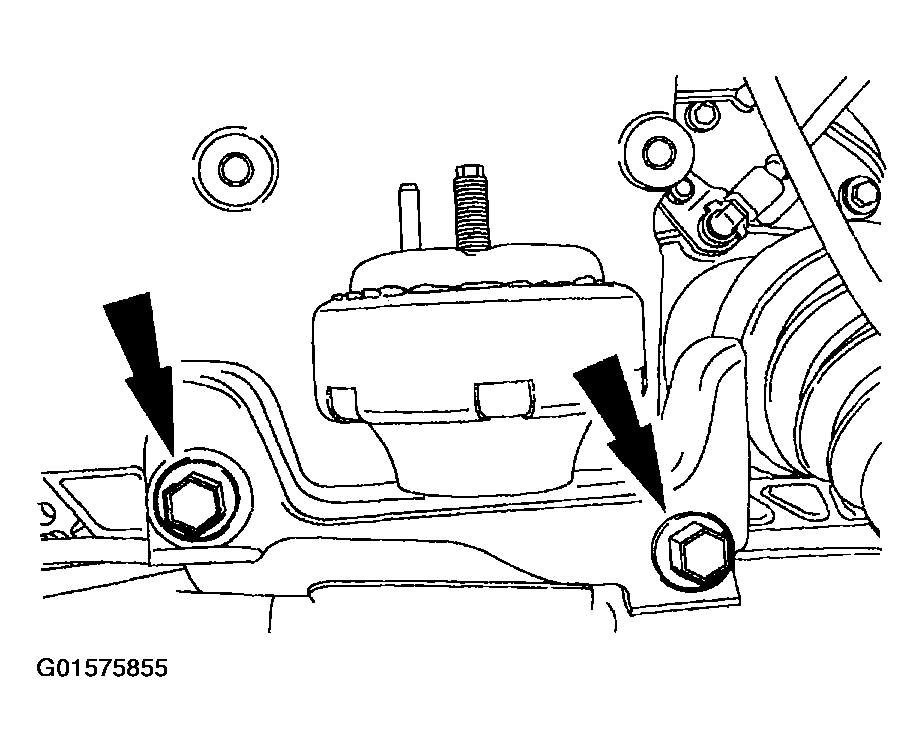

    Fig 4: Removing Transaxle Upper Support Insulator Bolts
    G01575855Courtesy of FORD MOTOR CO.
