Main Control - Pump: Removal

All Vehicles

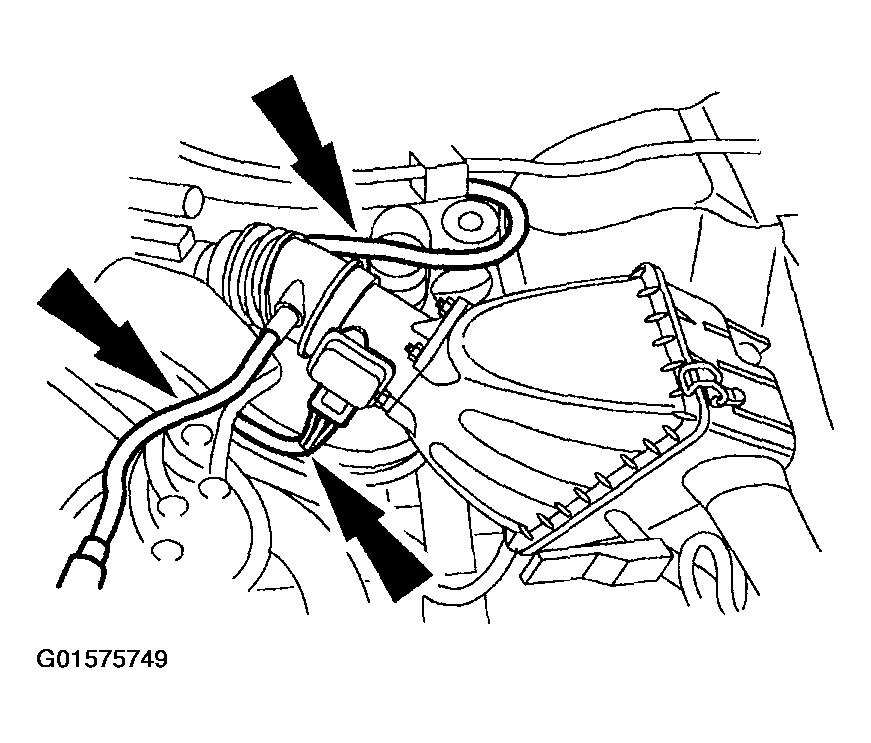

1. Place the transaxle range selector lever in the PARK position.
2. Remove the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
3. Disconnect the mass air flow (MAF) sensor and the breather tubes.
   Fig 1: Disconnecting Mass Air Flow Sensor And Breather Tubes

   Courtesy of FORD MOTOR CO.

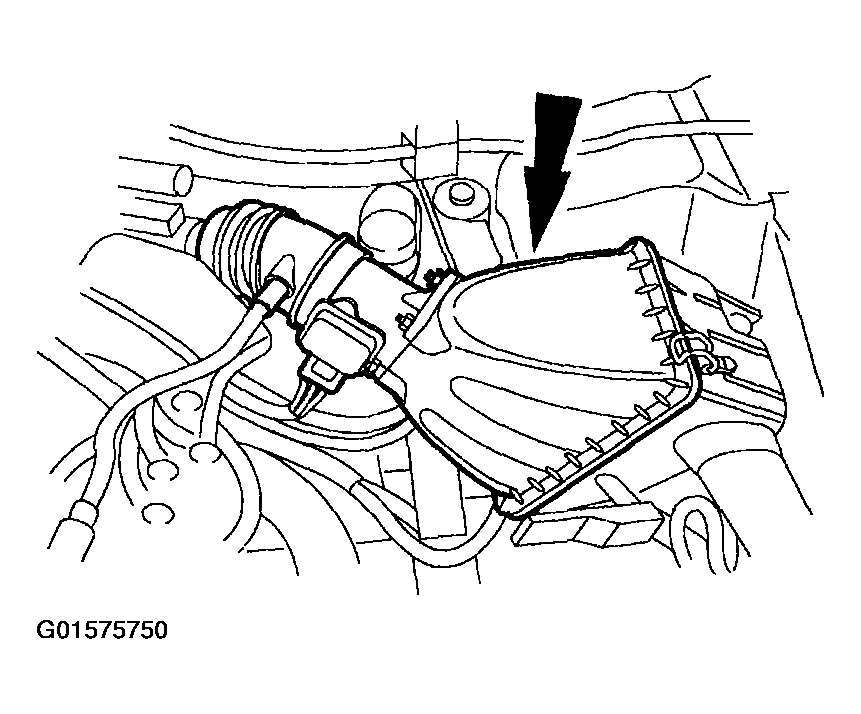

4. Remove the engine air cleaner.
   Fig 2: Removing Engine Air Cleaner

   Courtesy of FORD MOTOR CO.

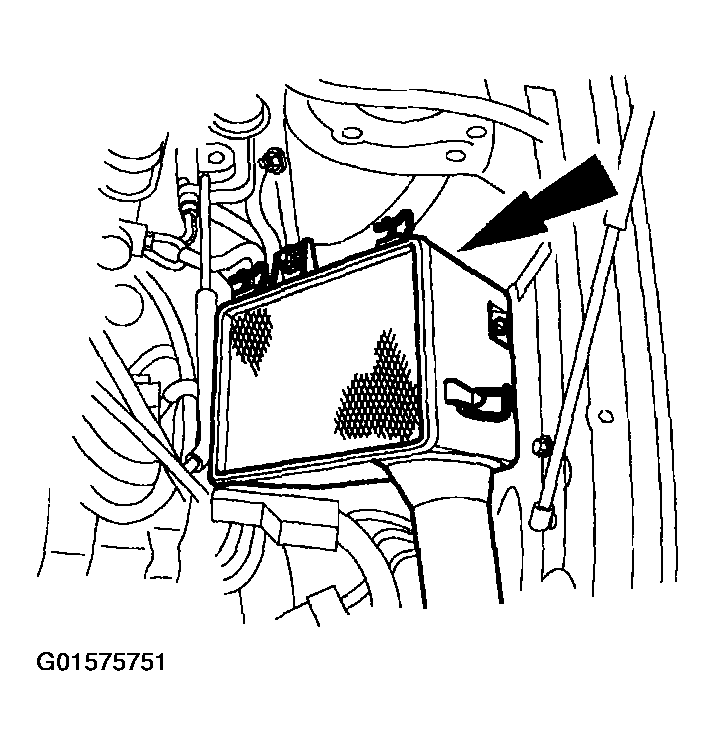

5. Remove the air filter assembly.
   Fig 3: Removing Air Filter Assembly

   Courtesy of FORD MOTOR CO.
6. Disconnect the connectors.
   Fig 4: Disconnecting Connectors

   Courtesy of FORD MOTOR CO.

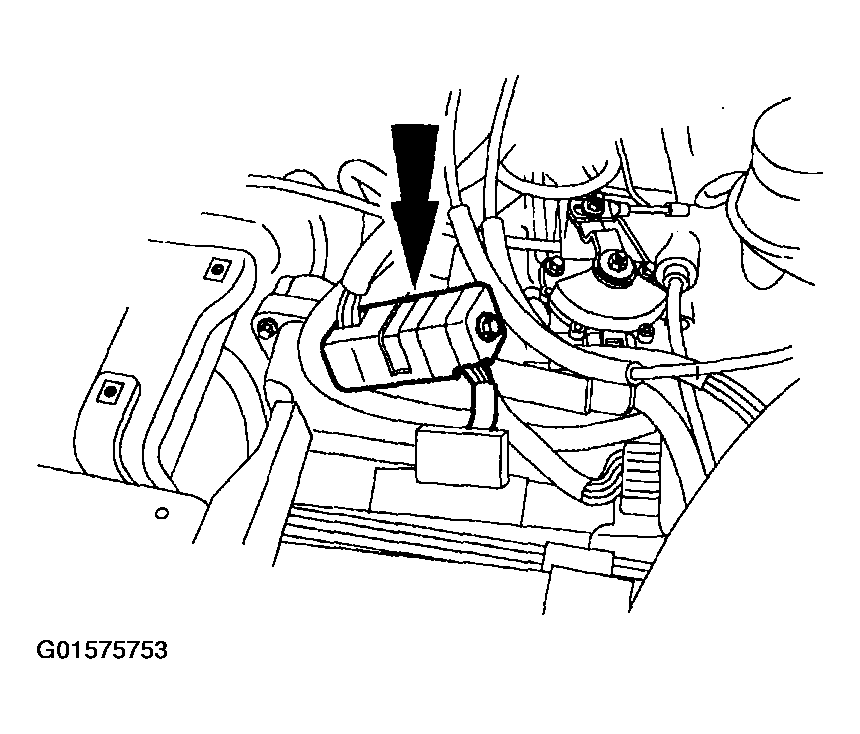

7. Disconnect the connector.
   Fig 5: Disconnecting Connectors

   Courtesy of FORD MOTOR CO.

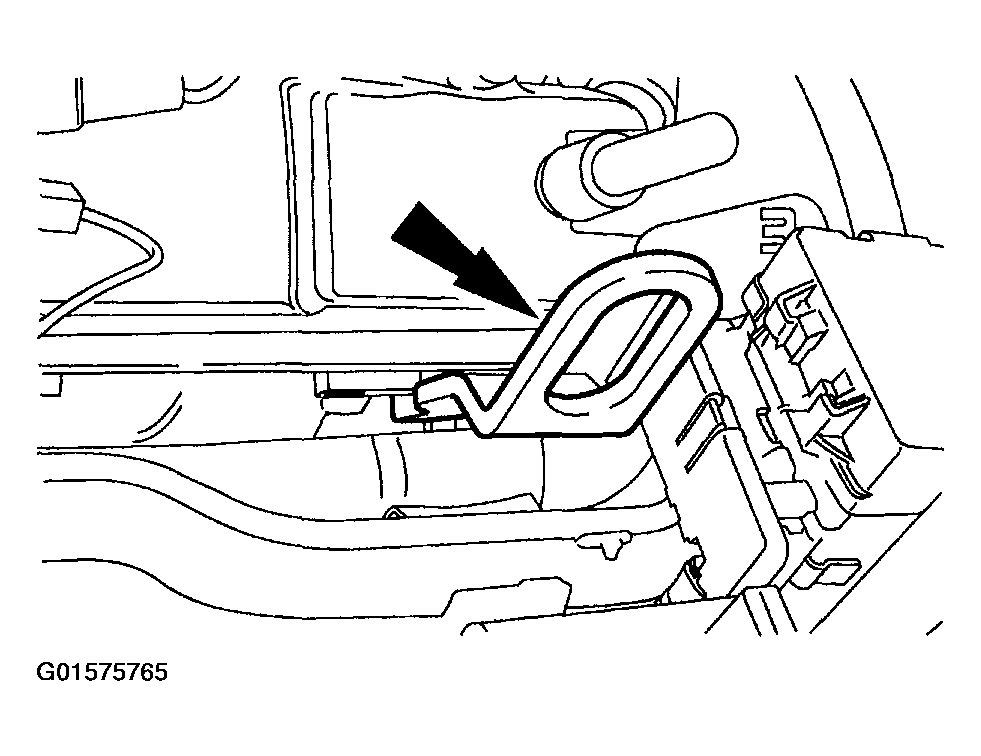

8. Remove the power steering line bracket.

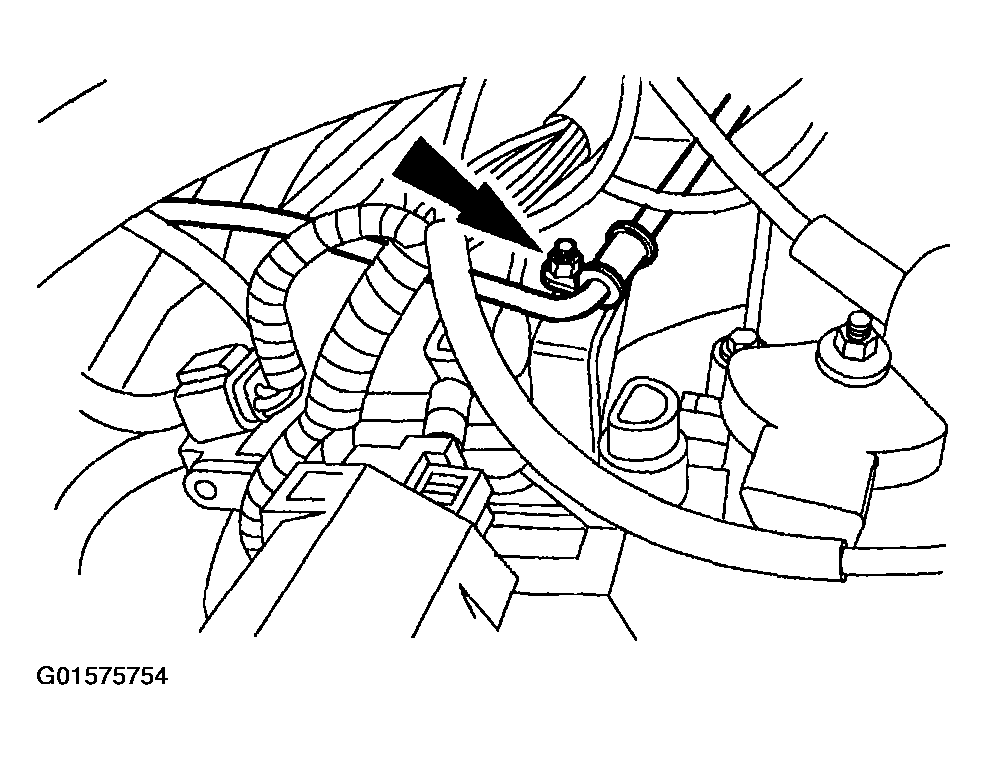

   Fig 6: Removing Power Steering Line Bracket

   Courtesy of FORD MOTOR CO.

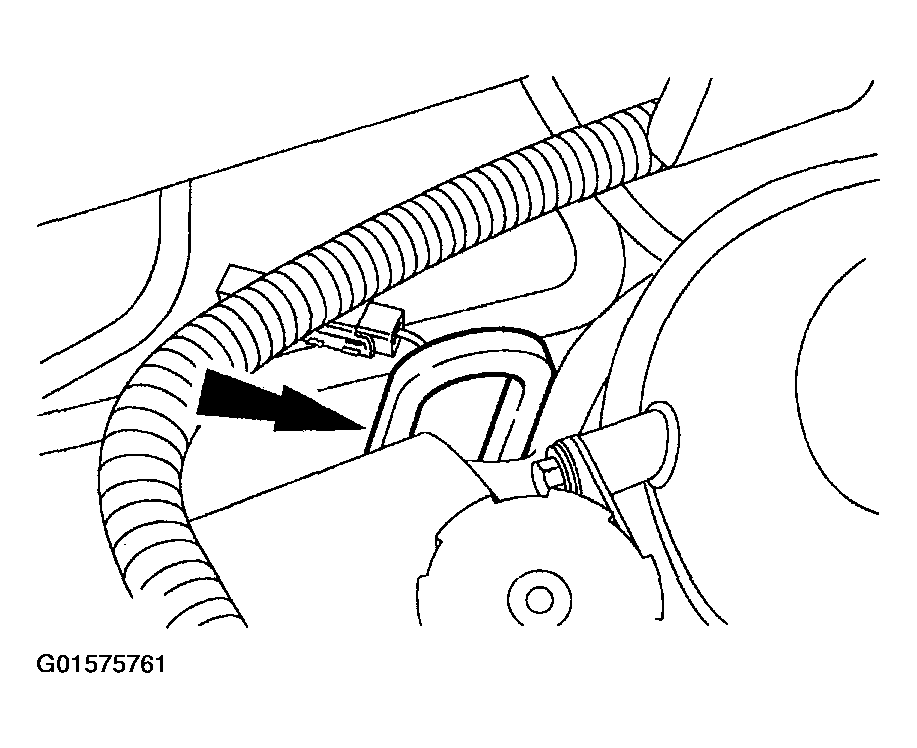

9. Remove the electrical connector bracket.
   Fig 7: Removing Electrical Connector Bracket

   Courtesy of FORD MOTOR CO.

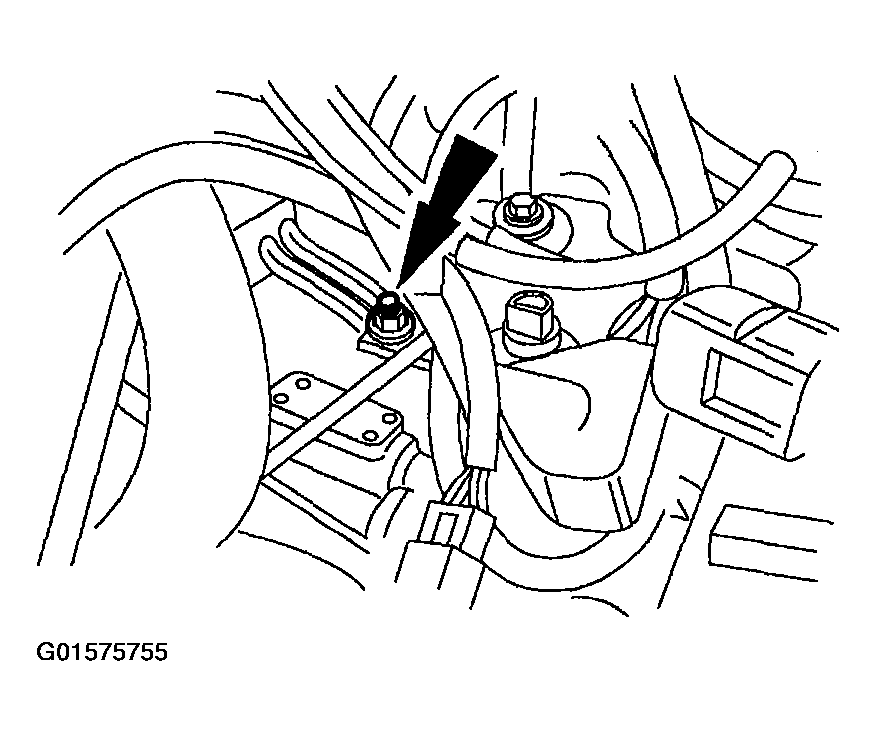

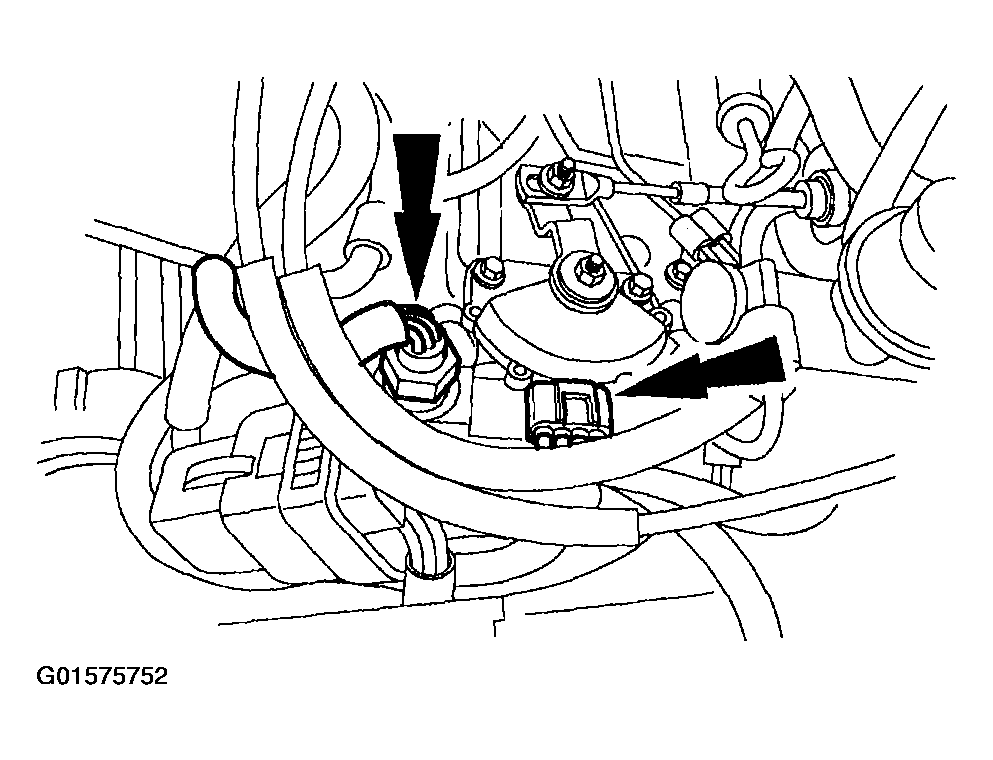

10. Disconnect the turbine shaft speed (TSS) sensor connector.

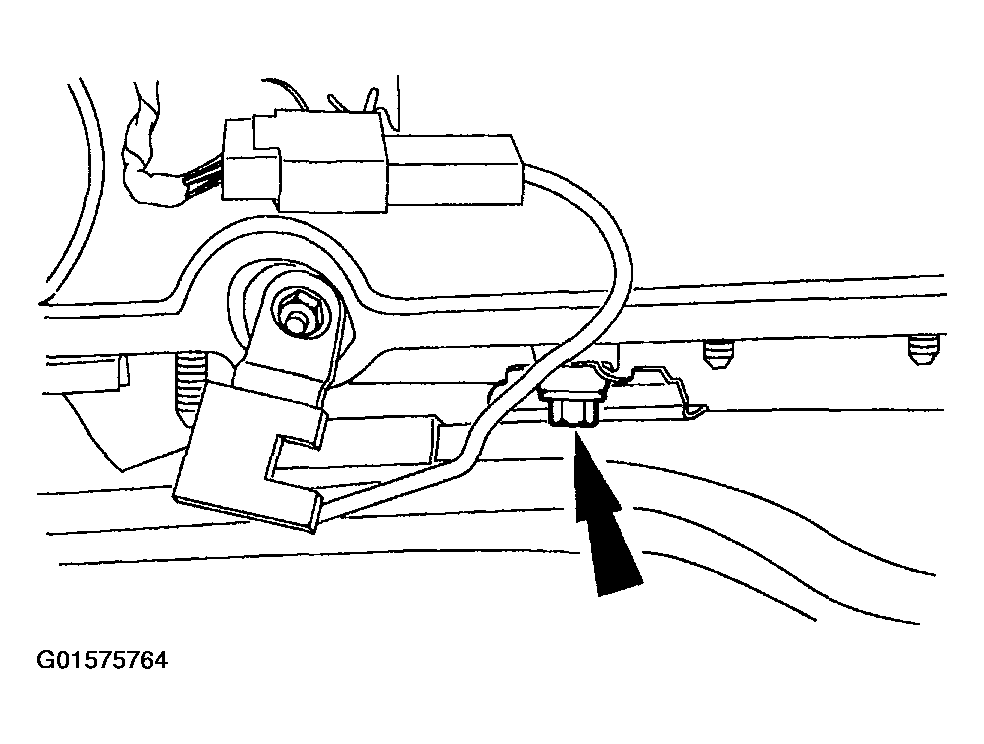

    Fig 8: Disconnecting Turbine Shaft Speed Sensor Connector

    Courtesy of FORD MOTOR CO.

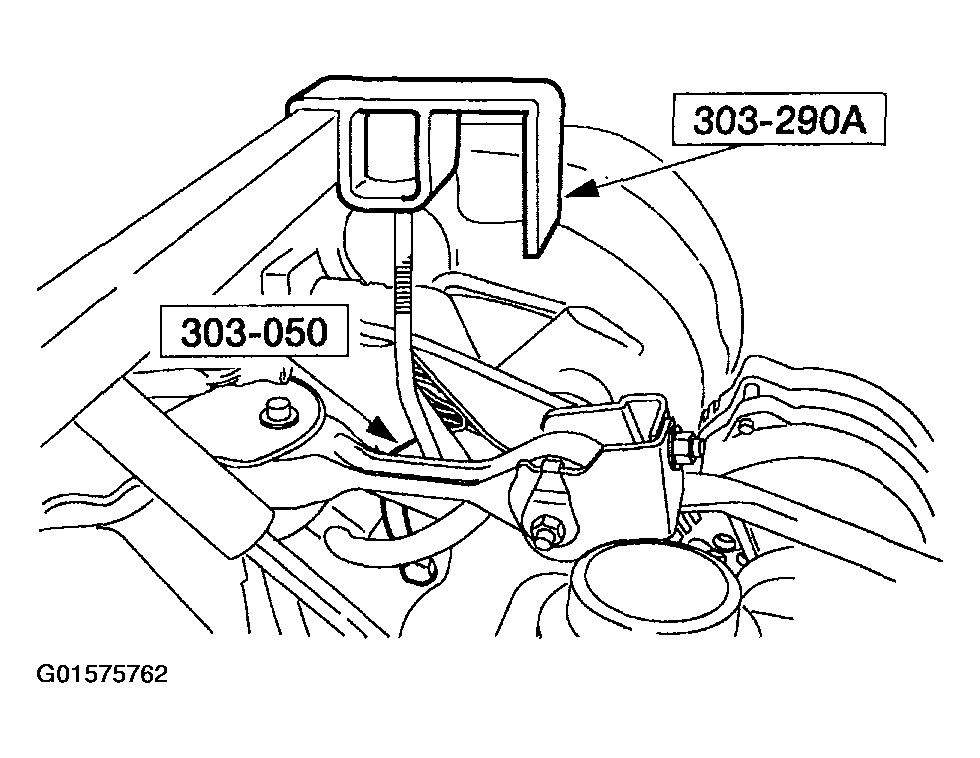

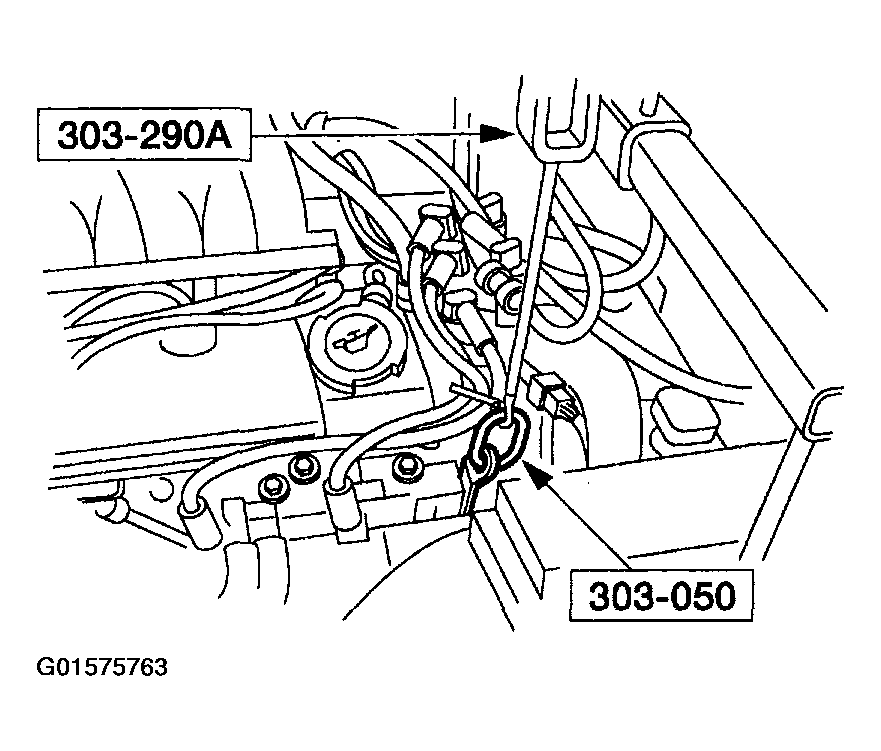

11. Install the 3 Bar Engine Support.

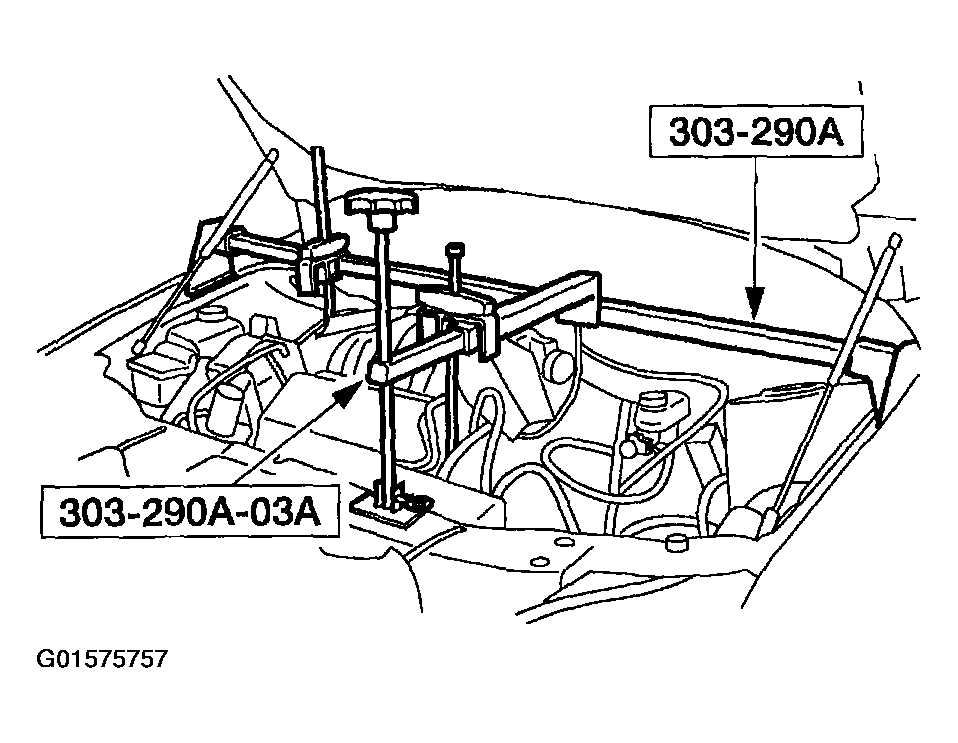

    Fig 9: Installing Bar Engine Support

    Courtesy of FORD MOTOR CO.

    3.0L 4V Engines

12. Remove the upper cowl assembly.
    1. Remove the wiper.
    2. Remove the clips.
    3. Remove the upper cowl assembly.

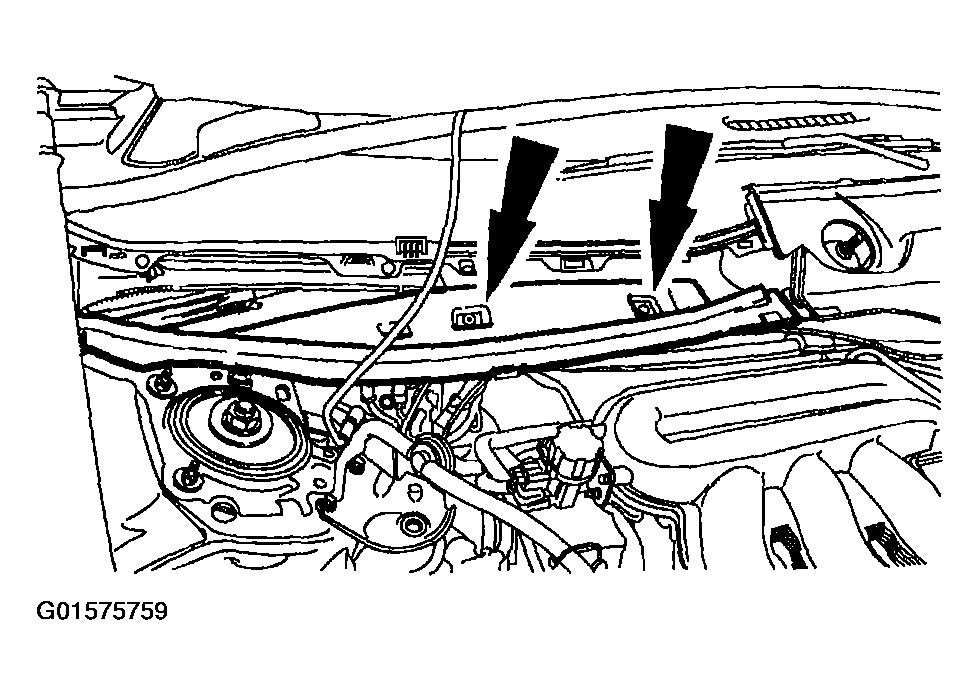

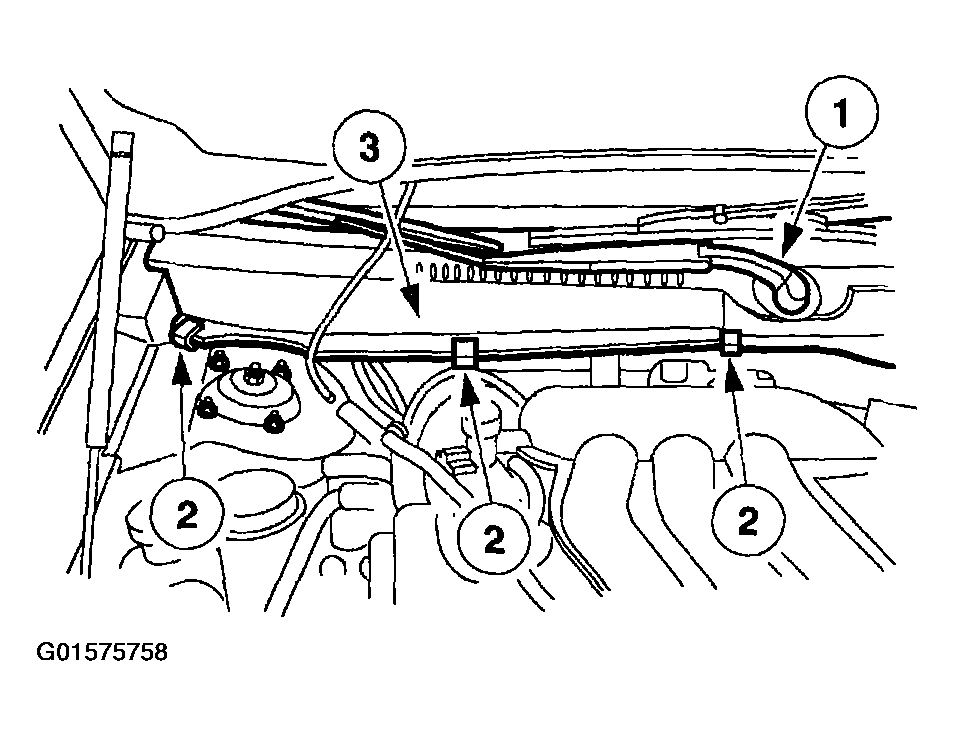

       Fig 10: Removing Upper Cowl Assembly

       Courtesy of FORD MOTOR CO.
13. Remove the lower cowl assembly.
    Fig 11: Removing Lower Cowl Assembly

    Courtesy of FORD MOTOR CO.
14. Remove the rear support brace.
    1. Remove the bolt.
    2. Remove the nut.
    3. Remove the rear support brace.

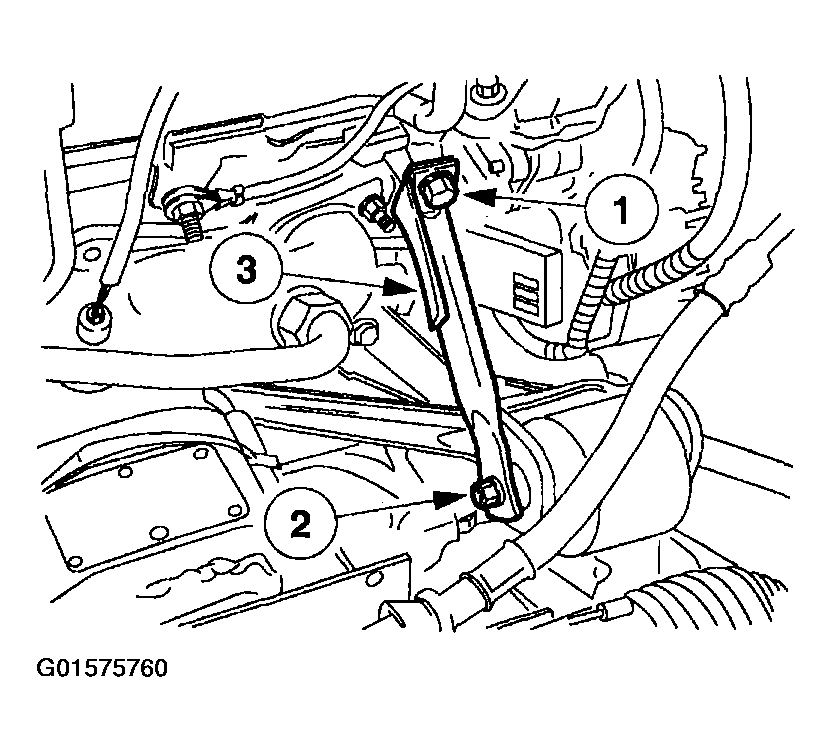

       Fig 12: Removing Rear Support Brace

       Courtesy of FORD MOTOR CO.
15. Install the rear engine lifting bracket in the same location where the top bolt was removed from the rear support brace.
    Fig 13: Installing Rear Engine Lifting Bracket

    Courtesy of FORD MOTOR CO.

    3.0L 2V Engines

16. Install the engine lifting bracket on the right (back) hand side of the engine.
    Fig 14: Installing Engine Lifting Bracket On Right (Back) Hand Side Of Engine

    Courtesy of FORD MOTOR CO.
17. Install the engine lifting bracket on the left (front) hand side of the engine.
    Fig 15: Installing Engine Lifting Bracket On Left (Front) Hand Side Of Engine

    Courtesy of FORD MOTOR CO.

    3.0L 4V Engines

18. Remove the nut for the cooling tube.
    Fig 16: Removing Nut For Cooling Tube

    Courtesy of FORD MOTOR CO.
19. Install the engine lifting bracket.
    Fig 17: Installing Engine Lifting Bracket

    Courtesy of FORD MOTOR CO.

    All Vehicles

20. Raise the vehicle.
21. Remove the LH wheel and tire. For additional information, refer to WHEELS & TIRES .

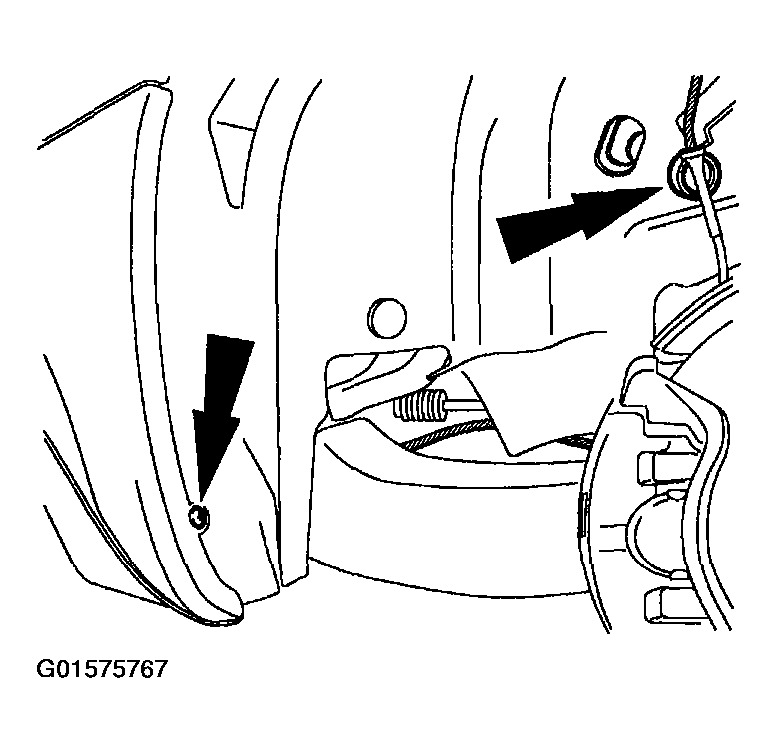

22. Remove the LH front fender splash shield upper screws.
    Fig 18: Removing LH Front Fender Splash Shield Upper Screws

    Courtesy of FORD MOTOR CO.
23. Remove the LH front fender splash shield.
    • Remove one screw, one pushpin and the shield.
      Fig 19: Removing LH Front Fender Splash Shield

      Courtesy of FORD MOTOR CO.
24. Remove the LH transaxle support and insulator. For additional information, refer to TRANSAXLE SUPPORT INSULATOR-3.0L 2V  for vehicles equipped with 3.0L 2V, and 3.0L 4V without the structural side pan. For vehicles equipped with the structural side pan, refer to TRANSAXLE SUPPORT INSULATOR - 3.0L 4V .

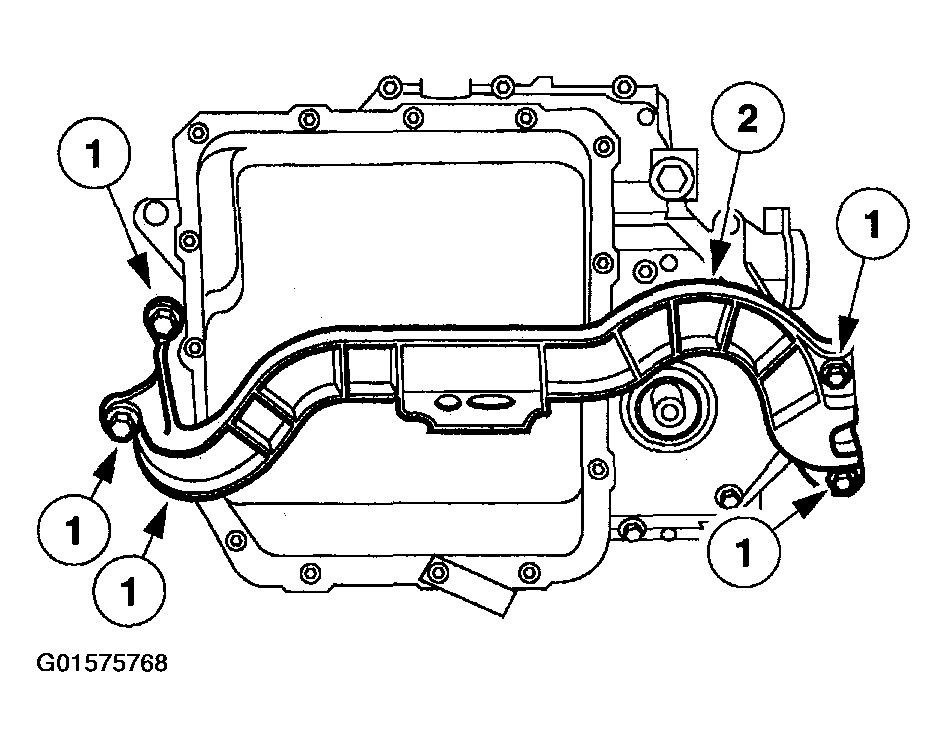

25. For vehicles without the structural side pan, remove the rear engine support bracket.
    1. Remove the bolts.
    2. Remove the rear engine support bracket.
       Fig 20: Removing Rear Engine Support Bracket

       Courtesy of FORD MOTOR CO.
26. Position a drain pan under the transaxle side pan.
27. For vehicles with structure side pan, remove mount.
    Fig 21: Removing Vehicles Structure Side Pan Mount

    Courtesy of FORD MOTOR CO.
NOTE: It will be necessary to lower the left side of the subframe to remove the pan through the wheel well.
NOTE: The structural pan is shown, the stamped pan is similar and has the same bolt pattern.

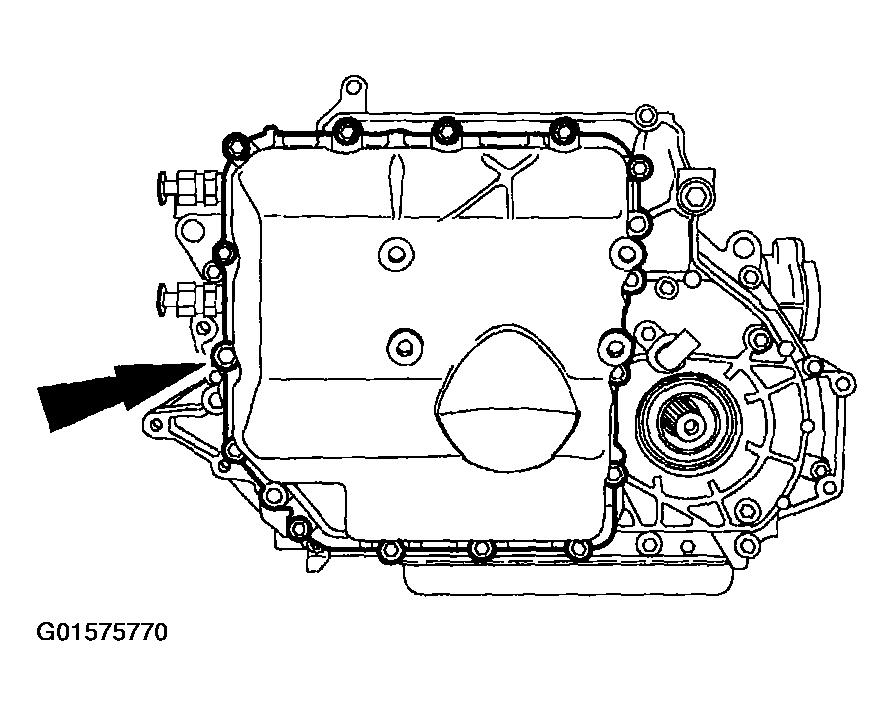

Fig 22: Removing Transaxle Side Pan Bolts
Courtesy of FORD MOTOR CO.
28. Remove the bolts and remove the transaxle side pan and gasket.
CAUTION: Do not pull on the wires or the electrical connectors. Damage to the connectors will result.

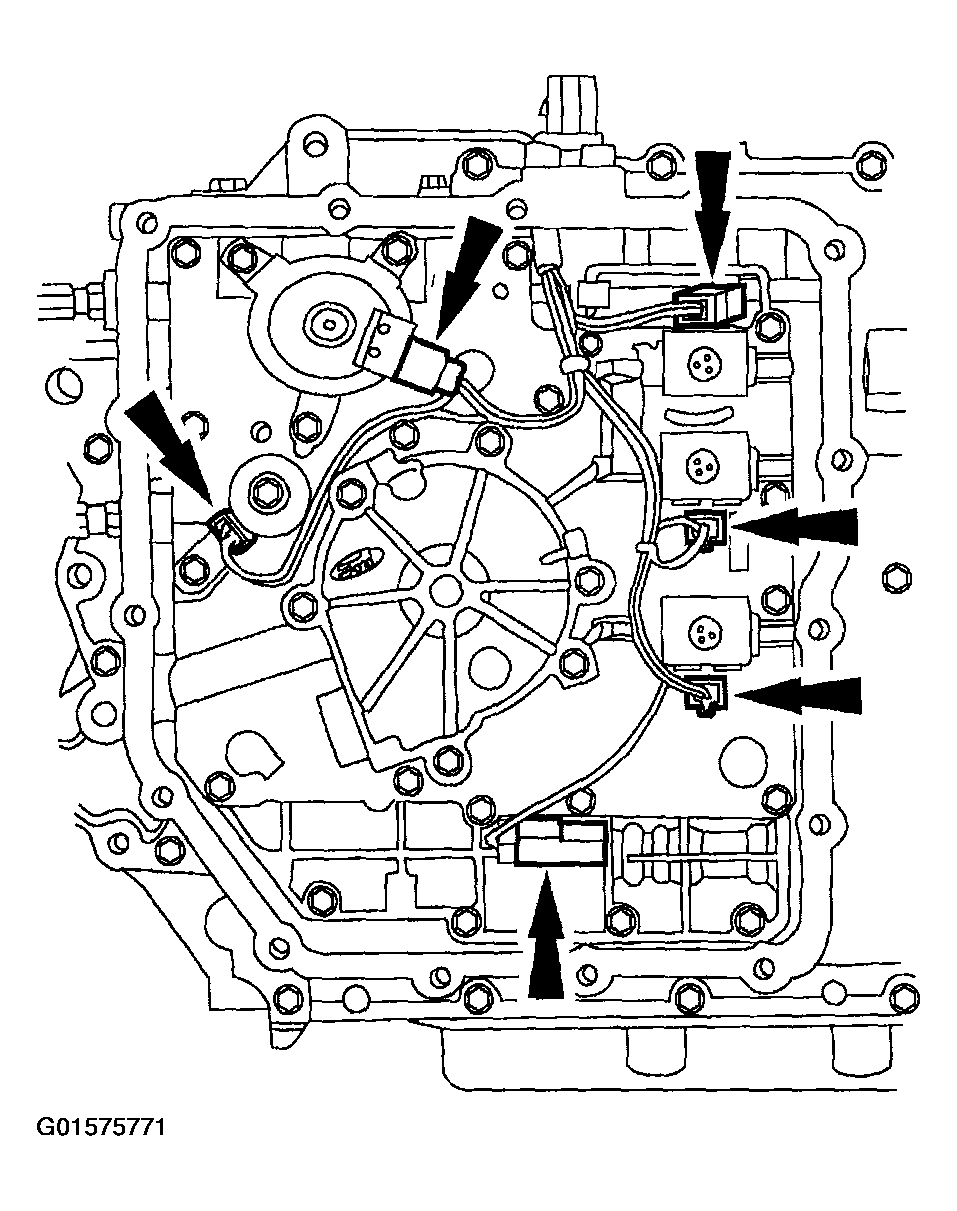

Fig 23: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.
29. Lift the locking tab and disconnect the electrical connectors.
30. Position the transaxle wiring harness out of the way.
CAUTION: Do not remove the two bolts that hold the pump assembly and main control valve body together as the pump assembly may fall from the main control valve body.
CAUTION: Only 4 of the 6 pump cover bolts need to be removed.

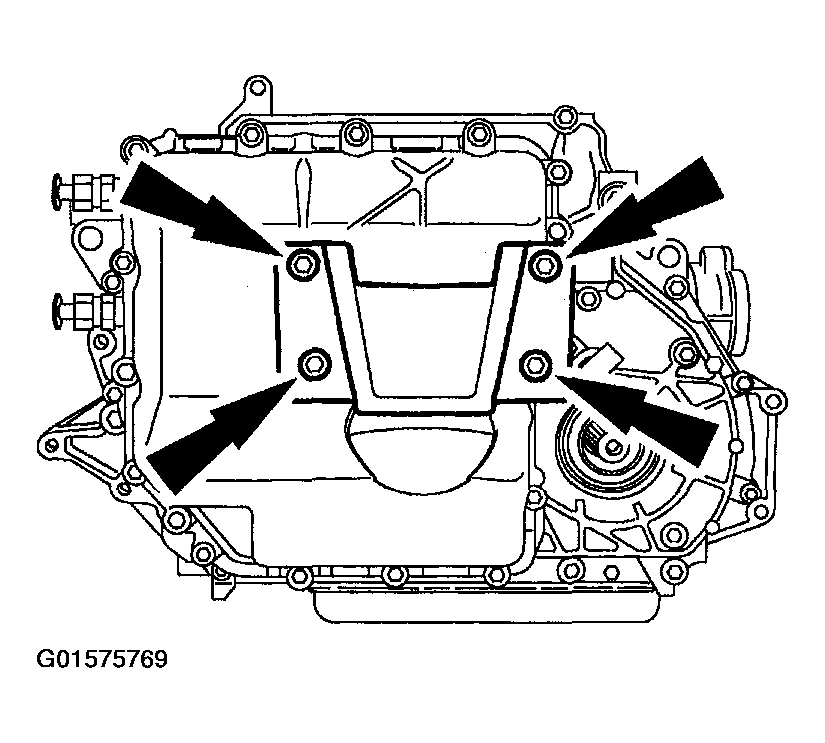

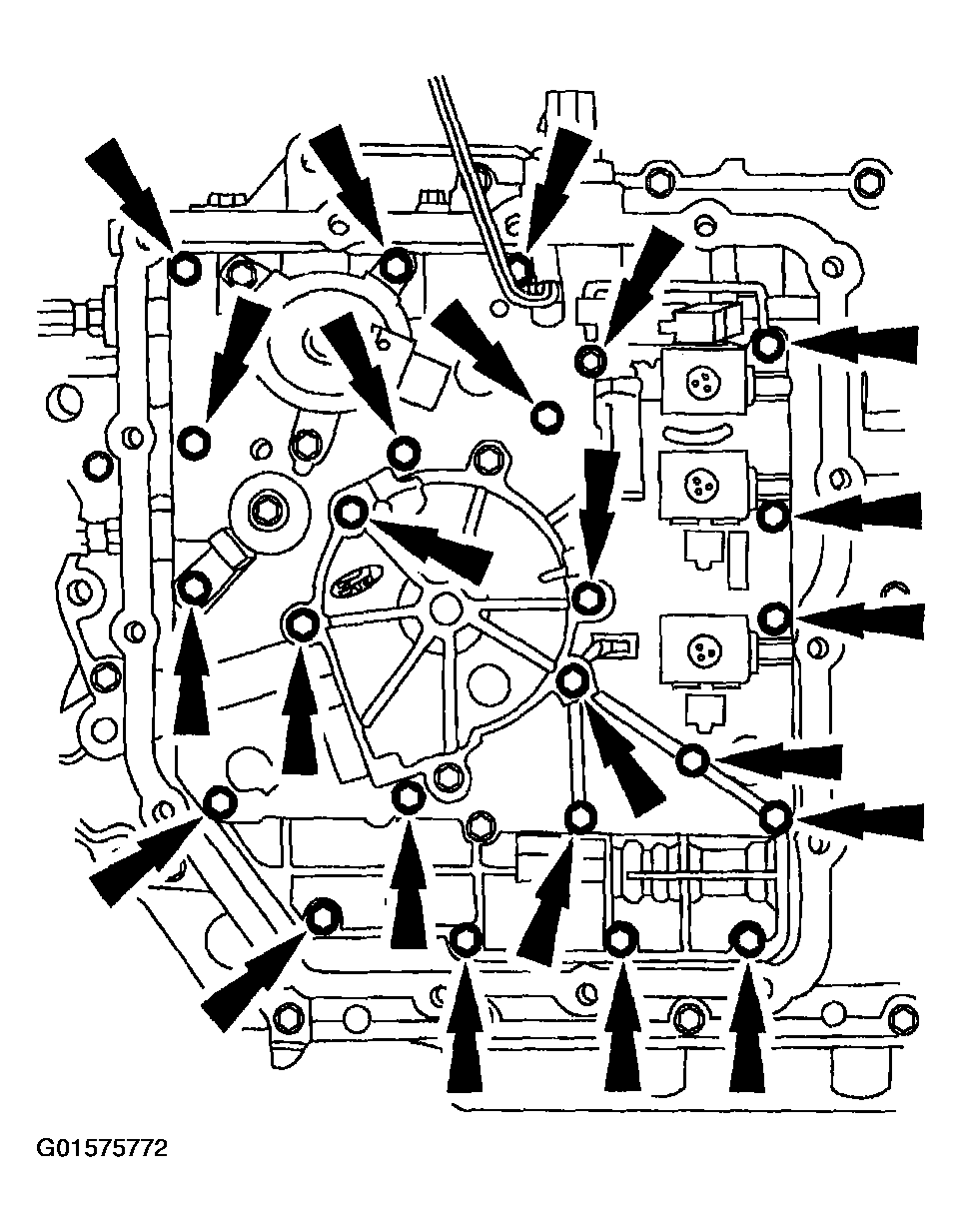

Fig 24: Removing Pump Cover Bolts
Courtesy of FORD MOTOR CO.
31. Remove the bolts.
32. Disconnect the manual linkage.

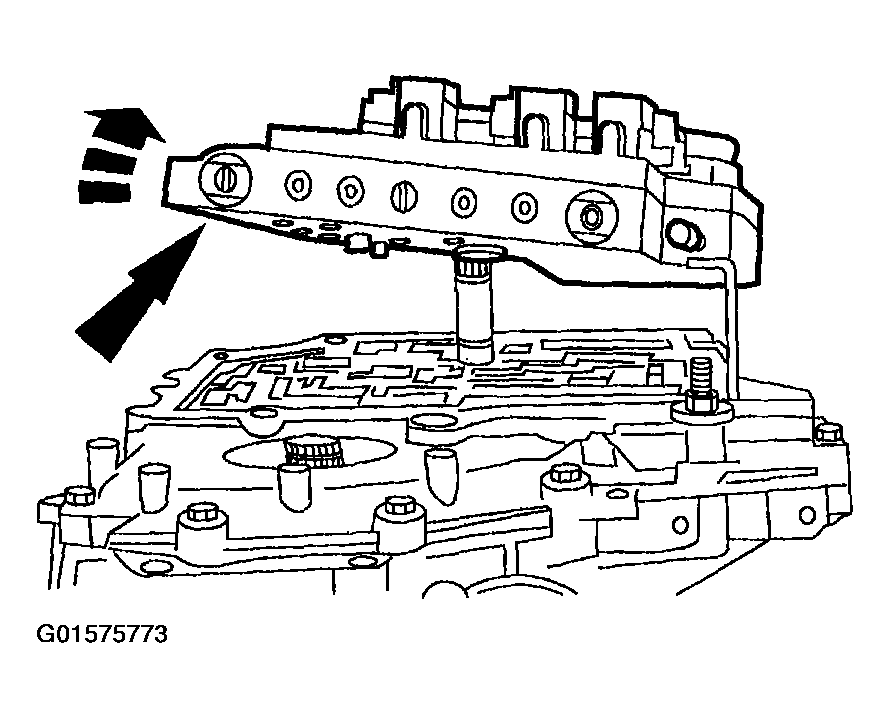

33. Remove the main pump assembly and the main control valve body by carefully sliding it off the pump shaft.
    Fig 25: Removing Main Pump Assembly And Main Control Valve Body

    Courtesy of FORD MOTOR CO.
