Differential Fluid Seals: Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tools install the left hand differential seal.

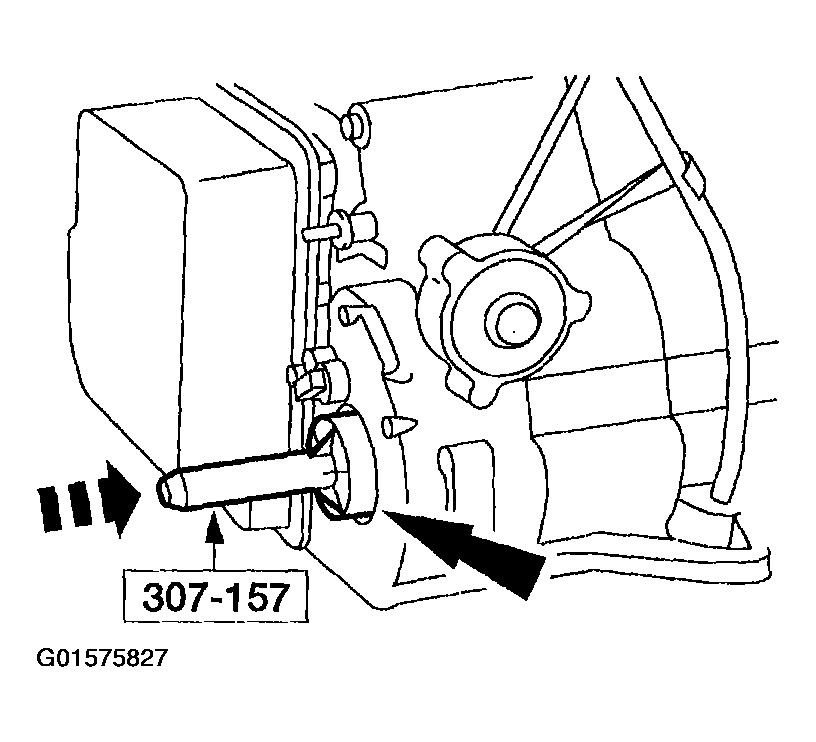

    Fig 1: Installing Left Hand Differential Seal
    G01575827Courtesy of FORD MOTOR CO.
  2. Using the special tools install the right hand seal.

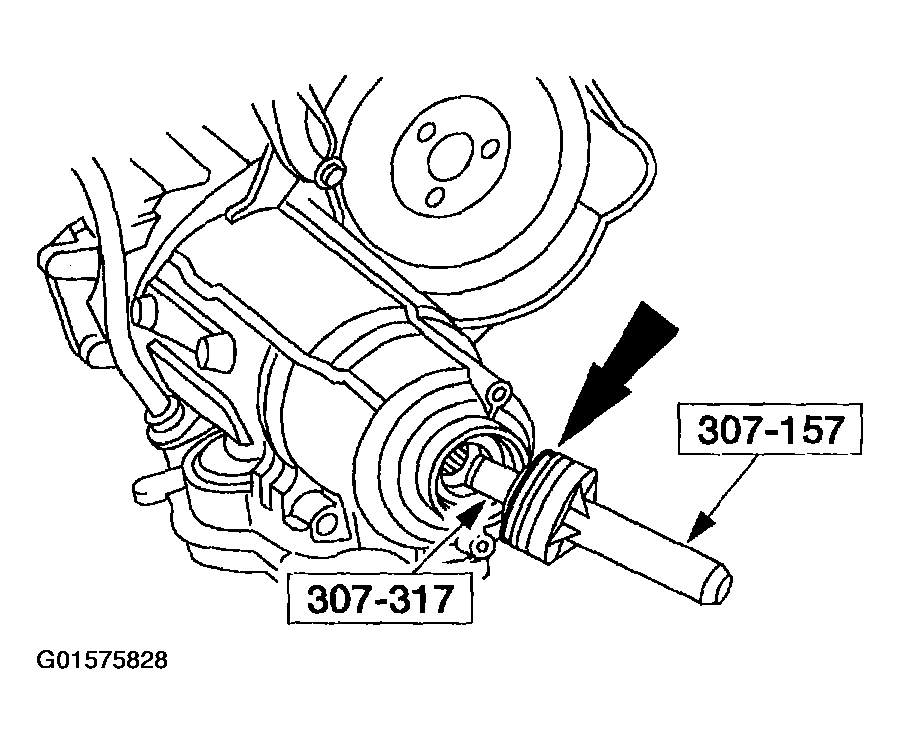

    Fig 2: Installing Right Hand Seal
    G01575828Courtesy of FORD MOTOR CO.
  3. Install the halfshafts into the vehicle. For additional information, refer to AXLE SHAFTS .
  4. Install the front wheels. For additional information, refer to WHEELS & TIRES .
  5. Lower the vehicle.
  6. Reconnect the battery ground cable.
