Sun And Shell Assembly - Disassembly: Disassembly

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

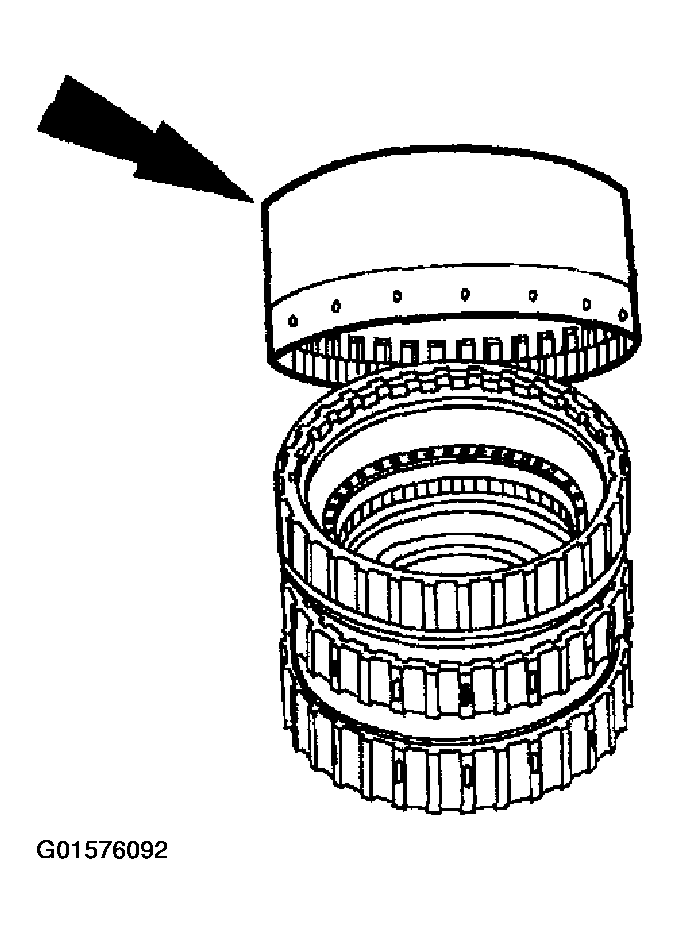

Remove the front sun shell.

Fig 1: Removing Front Sun Shell
Courtesy of FORD MOTOR CO.

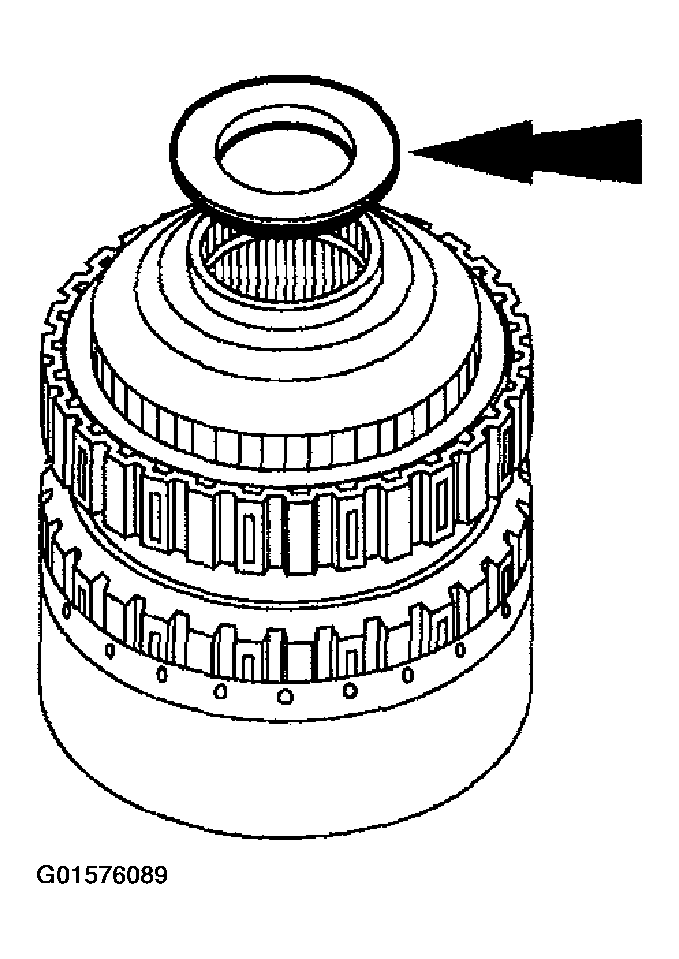

Remove the No. 11 needle bearing.

Fig 2: Removing Needle Bearing
Courtesy of FORD MOTOR CO.

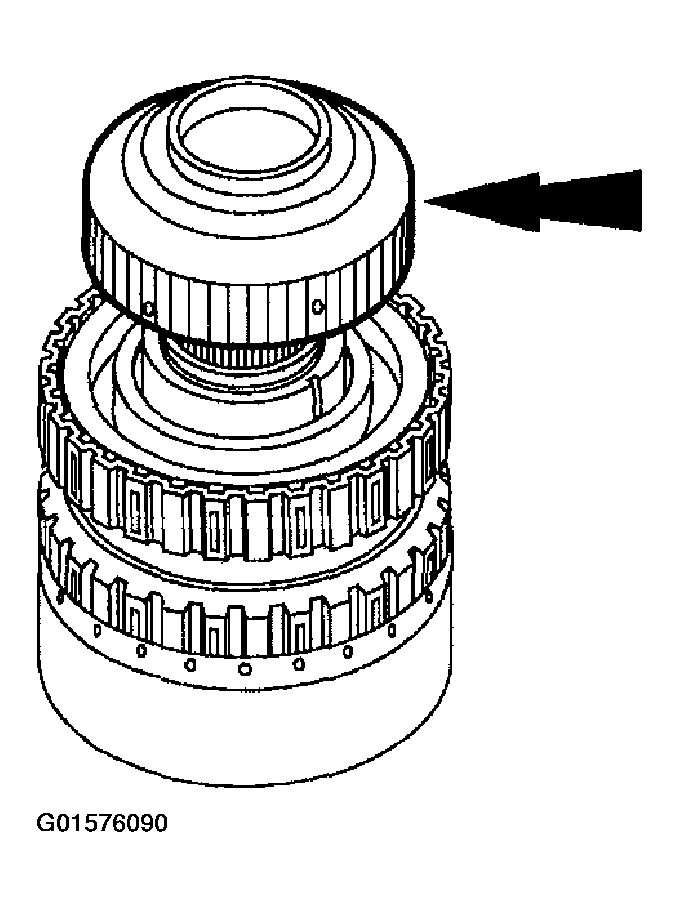

Remove the intermediate clutch hub.

Fig 3: Removing Intermediate Clutch Hub
Courtesy of FORD MOTOR CO.

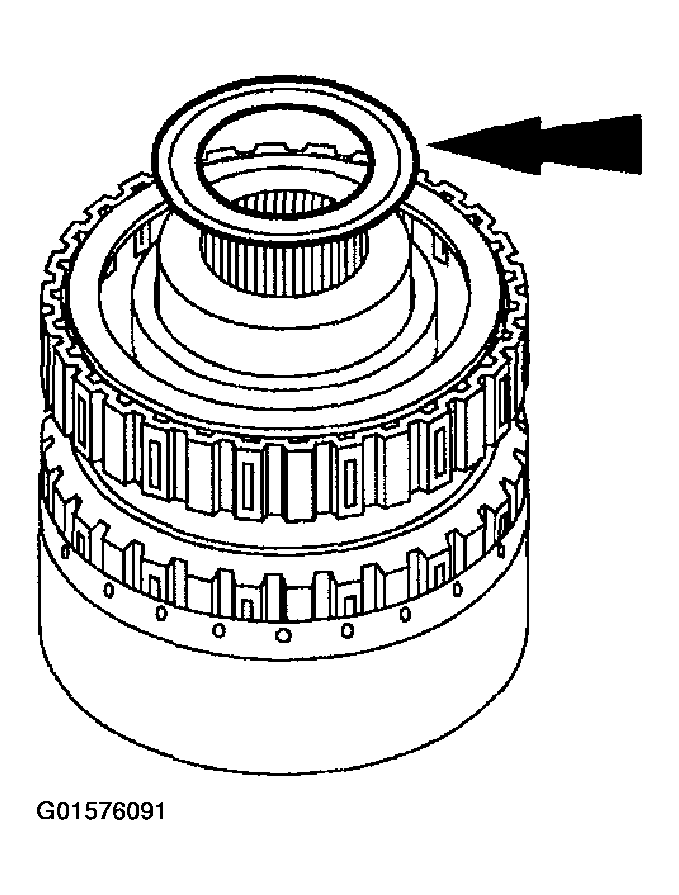

Remove the No. 10 thrust bearing.

Fig 4: Removing Thrust Bearing
Courtesy of FORD MOTOR CO.

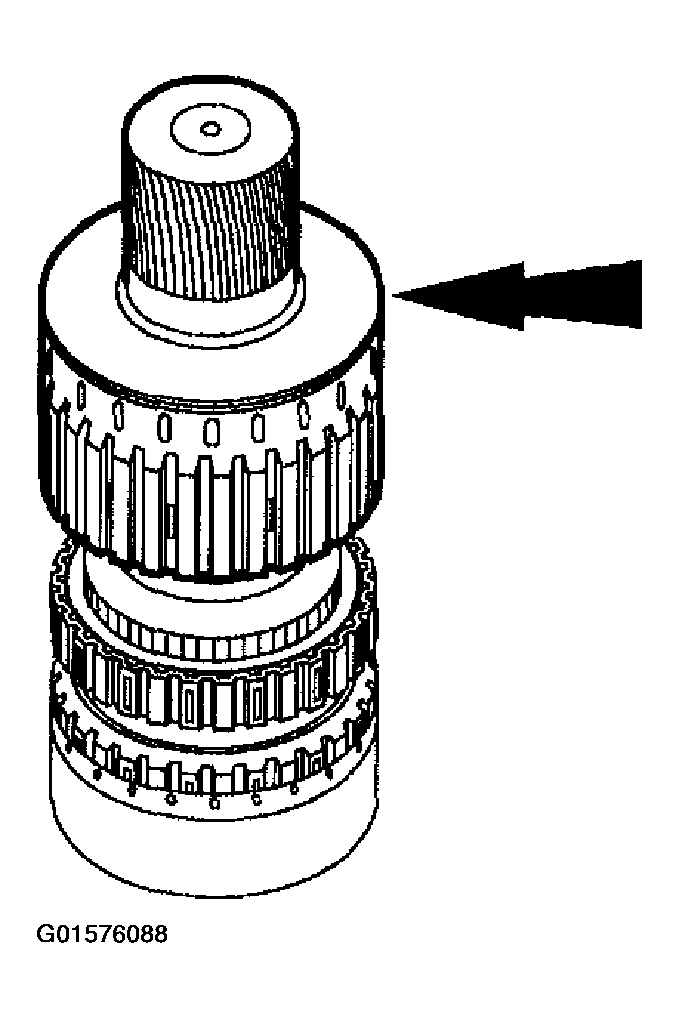

Remove the overdrive drum.

Fig 5: Removing Overdrive Drum
Courtesy of FORD MOTOR CO.

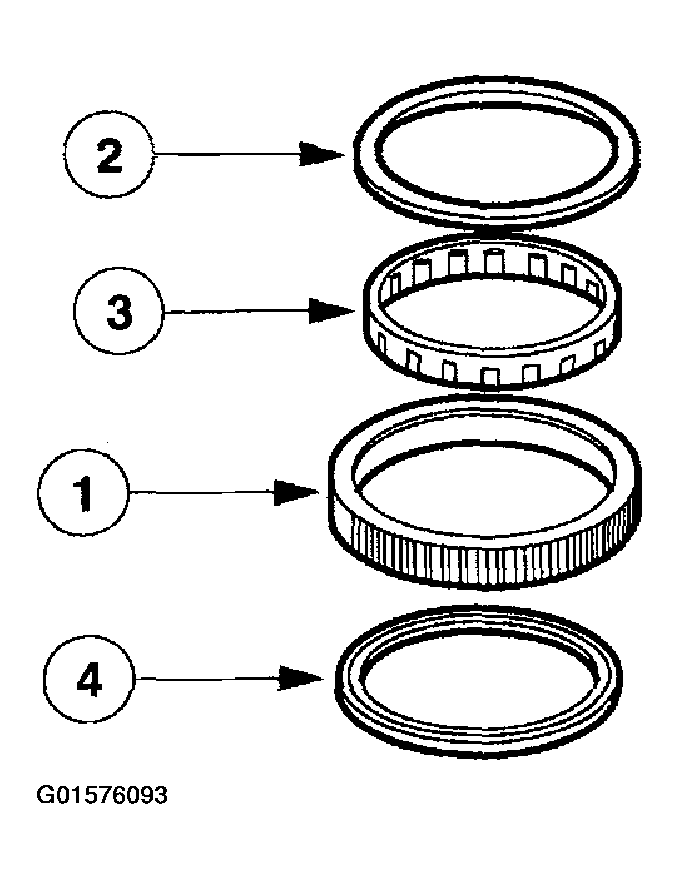

Remove the one-way clutch assembly.
1. Remove the one-way clutch assembly.
2. Remove the top cap.
3. Remove the one-way clutch.
4. Remove the bottom cap.

  Fig 6: Removing One-Way Clutch Assembly
  Courtesy of FORD MOTOR CO.
